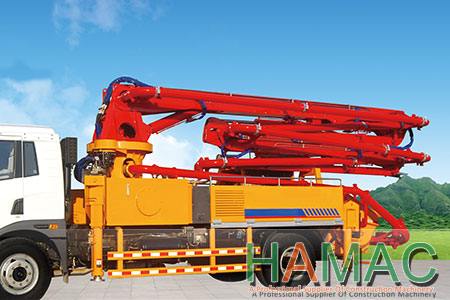

HMC5029 Truck Concrete Pump Boom
Introducción
HMC5029 Truck Concrete Pump Boom is the refined product among the middle and short arm pump truck, after HBT trailer concrete pump, truck-mounted concrete pump, HGY hydraulic concrete placing boom, and it is the high efficient concrete conveying equipment integrating driving, pumping, placing.The boom covers high reliability, economy, safety, durability, owning reasonable matching of Chassis, power, electric control and hydraulic pump system.Besides, it has flexible telescopic boom, less space occupation of the leg, convenient moving vehicle, flexible and security.With the special chassis for the development of rural market and the 2.3 meters width, it can easily adjust to and pass through the narrow and sludge rural roads.. At the same time it also applies the unilateral support technology in order to easily perform in a narrow construction site.
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

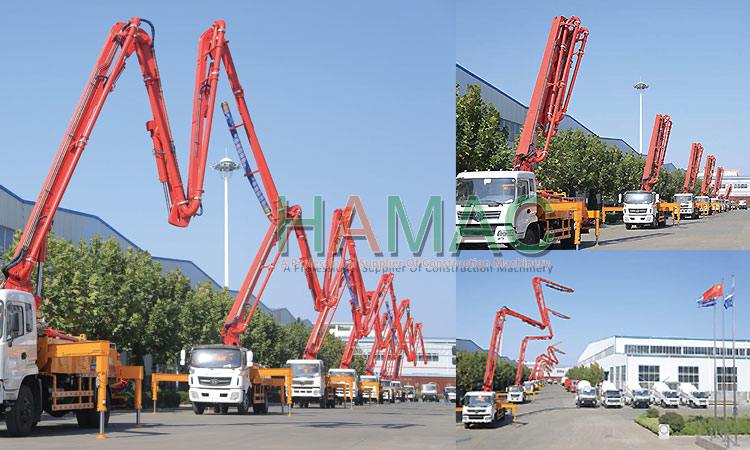

Clients' Working Site
Advantage
1. The construction is especially for the new rural middle-low levels.
2.The manufacture of short arm frame designed for high-speed rail construction.
3.The design of national IV emission standard for energy conservation, and environmental protection
4.Hydraulic automatic reversing of pumping system is for simple maintenance.
5.18-35 meters arms can move up and down, in accordance with high-speed rail laws.
6. X-legs is designed to lead more safe and stable operation.
7.Extremely high performance price ratio and use reliability help the party make profits.
Specification
| HMC5029 Truck Concrete Pump Boom | ||
| CHASSIS | Chassis | FAW/FOTON/DONGFENG |
| Emission standards | National standard IV | |
| Engine | DACHAI or YUCHAI | |
| Power and rated speed of engine | 200p/2000rpm | |
| Wheelbase | 4800 | |
| Max driving speed | 80km/h | |
|
Vehicle approach angle
/departure angle |
24.6°/15.6° | |
| Tire type | 10.00R20 18 layers | |
|
BOOM SYSTEM |
Max concrete placing height | 28.2m |
| Max concrete placing radius | 24.6m | |
| Max concrete placing depth | 17.5m | |
| First arm length(MM) | 7080 | |
| Second arm length(MM) | 5780 | |
| Third arm length(MM) | 5900 | |
| Fourth arm length(MM) | 5787 | |
| Arm foldable angle | 90/180/360/540 | |
| Boom control system | Load sensing proportion control system | |
| Arm folding form | M type | |
| Turret rotation angle | 90° | |
| Front support leg span | 5840 | |
| Back support leg span | 4050 | |
| The leg longitudinal distance (MM) | 6300 | |
| Leg opening type | X-H | |
| Trail length of hose | 3000mm | |
| Diameter of pipeline (MM) | 125 | |
| Electrical control system | Control Power Supply | 24v |
| Control model | PWM | |
| Working voltage | 24 | |
| Electric parts | Omron | |
| Wireless remote control | Germany HBC or homebred | |
| Hydraulic transmission system | Hydraulic system type | Open circuit |
| Rated working pressure | 31.5Mpa | |
| Main oil pump | Rexroth /Kawasaki | |
| Main oil pump model | A11VO190，K3V140 K3V180 | |
| Main oil pump capacity | 190，140,180 | |
| Electro-hydraulic directional control valve | Imported or Domestic | |
| Suction and back oil filter | Liming(domestic) | |
| Jib multi-way valve | HAWE or domestic | |
| Jib balance valve | Italy | |
| Jib oil pump | Domestic | |
| Support leg multi-way valve | Italy or domestic | |
| Safety valve | Imported or domestic | |
| Oil cylinder hydraulic seals | Parker | |
| Hydraulic hopper capacity | 450 | |
| Hydraulic oil cooling | Air-cooling | |
| Main oil cylinder | XIELI(domestic) | |
| Transfer case | Germany STIEBEL or domestic | |
| Slewing reducer | Domestic brand | |
| Hose connection | Eaton | |
| Cleaning system | Air pressure or plunger pump | |
| DIMENSIONS&WEIGHT | Total length of vehicle（MM） | 10010 |
| Total width of vehicle（MM） | 2300 | |
| Total height of vehicle（MM） | 3610 | |
| Total weight of vehicle（T) | 18.5 | |
| PUMPING SYSTEM | The type of distribution valve | S valve |
| Concrete piston | Domestic | |
| Max. outlet pressure(H/L) | 10/5 | |
| Concrete cylinder Dia x Stroke | 200/1200-1450 | |
| Max. feeding height(MM） | 1450 | |
| Hopper capacity(M3) | 0.65 | |
| Concrete slump | 160-220 | |
| Allowable max diameter of aggregate（MM） | 40 | |
| Lubricating model | Centralized automatic | |
