XBS/DXBS Fine Stone Concrete Pump
INTRODUCTION
XBS/DXBS series products are a kind of mortar conveying equipments specially developed according to the characteristics of floor heating projects. They are extensively applied in the large-area and highly efficient construction of fine stone concrete or mortar stuffing in floor heating project. Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.
Hot Sale in stock: DHBT40 Diesel concrete pump - HBT60 Electric concrete pump - HBT15 Concrete mixing pump - DHBT15 Concrete mixing pump - 42m Concrete Boom Pump Truck - 17m Concrete Placing Boom - HBT80 Electric concrete pump
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

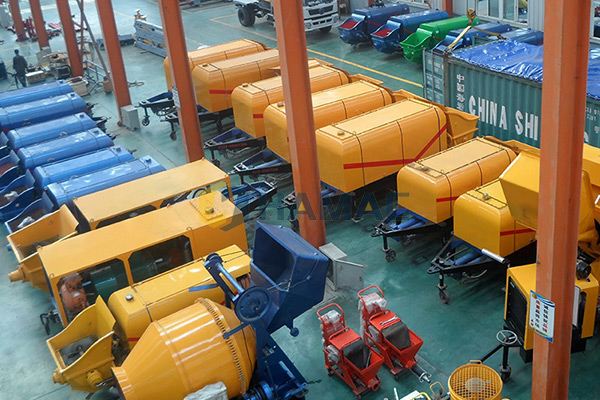

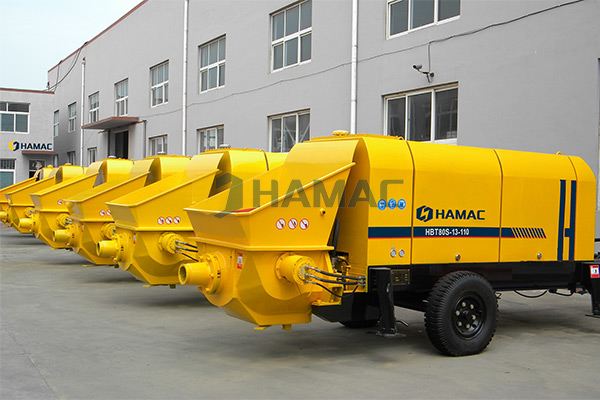

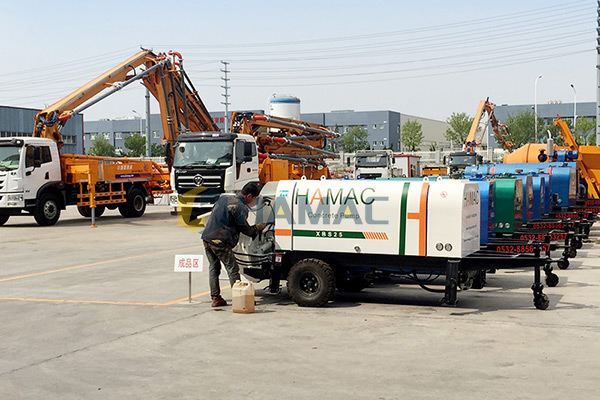

Detailed Photos
Performance
XBS/DXBS series products are also widely used for the conveying of fine stone concrete, fire-resistant and heat-insulating materials in various construction projects; the delivery of afforesting soil in eco-environmental construction; the pressure grouting of various basic piles.
The inner diameter of conveying pipe has developed into φ100 based n formerφ80 so that XBS/DXBS series products can convey concrete with diameter no more than 30mm, which makes XBS DXBS series products have broader applications such as the conveying of mortar, small stones and large aggregate concrete.

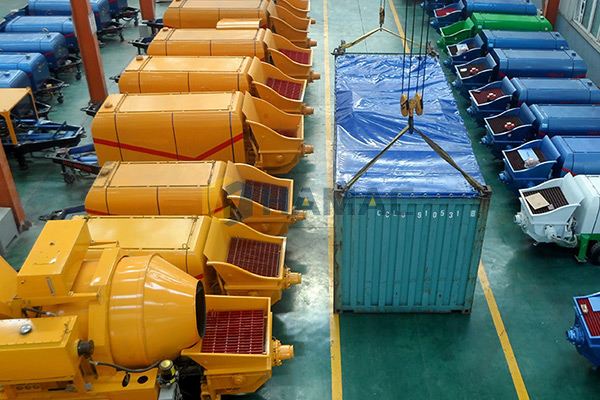

Manufacturing Process
Specification
| Item | Unit | Motor engine concrete pump | Diesel engine concrete pump | |||||||
| XBS25-12-33 | XBS30-13-40 | XBS40-13-48 | DXBS25-12-56 | DXBS30-13-56 | DXBS40-13-56 | |||||
| Max. theoretic delivery volume | M3/h | 25 | 30 | 40 | 25 | 30 | 40 | |||
| Max. outlet pressure | Mpa | 12 | 13 | 13 | 12 | 13 | 13 | |||
| Main oil pump volume | Ml/r | - | - | - | 63 | 80 | 112 | |||
| Max. aggregate diameter | mm | ≤30(≤20) | ||||||||
| Cylinder diameter*stroke | mm | φ140×800 | φ140×1000 | φ140×1000 | φ140×1200 | φ140×1200 | φ140×1200 | |||
| Power | Kw | 30 | 40 | 48 | 56 | 56 | 56 | |||
| Inner diameter of delivery pipeline | mm | φ100（φ80） | φ100（φ80） | φ100（φ80） | φ100（φ80 | φ100（φ80） | ||||
| Overall | mm |
4600×1500 ×1550 |
4600×1500 ×1550 |
4600×1500 ×1550 |
4600×1500 ×1550 |
4600×1500 ×1550 |
4600×1500 ×1550 |
|||
| Weight | kg | 2000 | 2100 | 2100 | 2300 | 2450 | 2450 | |||
| Max. theoretic delivery distance | Horizontal | m | 400 | 500 | 600 | 350 | 450 | 550 | ||
| vertical | m | 140 | 160 | 180 | 140 | 160 | 180 | |||
