LSY series Screw Conveyor
INTRODUCTION
The LSY series screw conveyor is an equipment that conveying materials with rotating spiral (screw)device in a closed housing with round cross-section. It is mainly used to conveying various kinds of powder or granular materials. And it can be used horizontally or tilting, especially suitable for conveying bulk cement from the cement silo to the mixer or to the batching machine.
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

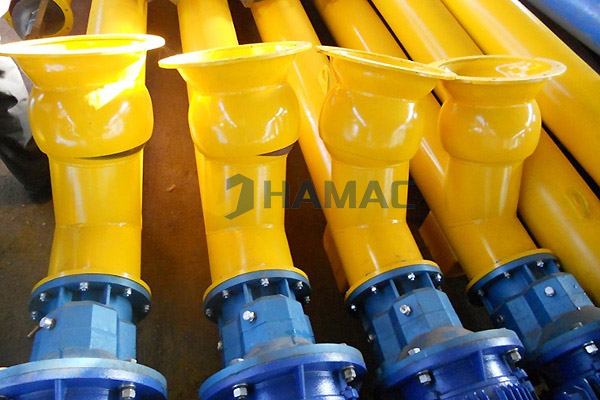

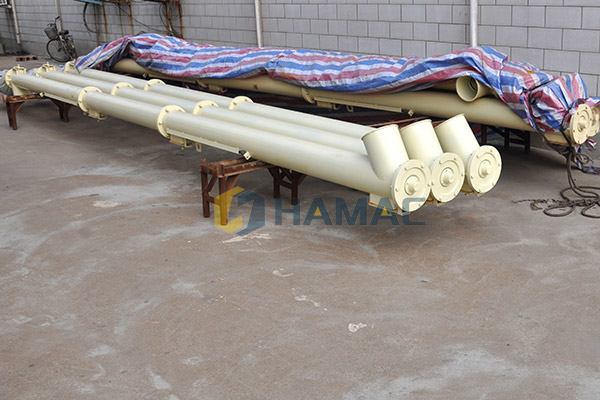

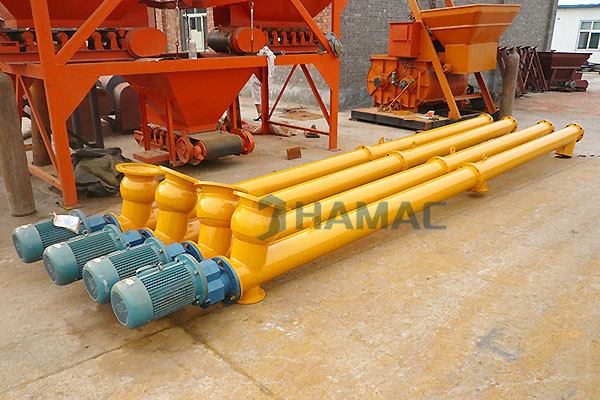

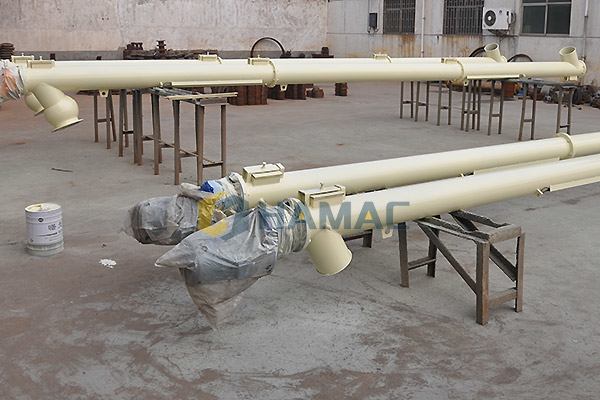

Detailed Photos
Performance
1. We choose the famous brand parts for our screw conveyor;
2. If required by our clients, SICOMA and WAM brands are available also;
3. Equipped with universal joint, can be easily matched with different requirement.

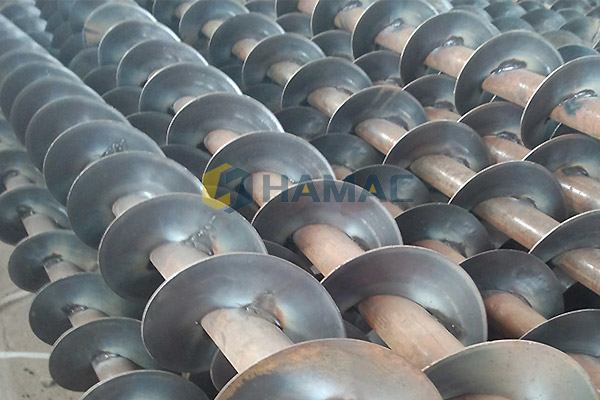

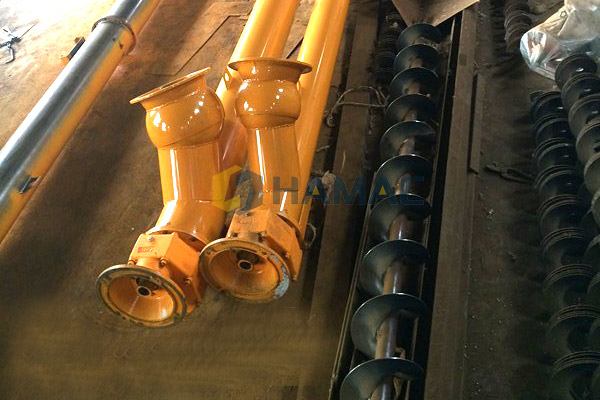

Manufacturing Process
Specification
| Model | LSY160-2.5 | LSY160-4.5 | LSY200-6 | LSY200-8(9) | LSY250-8(9) | LSY300-9(12.15) |
| Metric Diameter of Screw | 160 | 160 | 185 | 185 | 237 | 305 |
| Length of Screw Conveyor | 2.5 | 4.5 | 6 | 8(9) | 9(12.15) | 9(12.15) |
| Rotary Speed of Main Axle | 112 | 112 | 100 | 100 | 90 | 80 |
| Sheave Diameter | Φ 180 | Φ 180 | Φ 219 | Φ 219 | Φ 273 | Φ 325 |
| Working Angle | ≤20 | ≤20 | ≤45 | ≤45 | ≤45 | ≤45 |
| Conveying Capacity | 25 | 25 | 35 | 35 | 45 | 75 |
| Motor Modes | Y100L2-4 | Y112M-4 | Y132S-4 | Y132M-4 | Y160L-4 | Y180L-4 |
| Power of Motor | 3 | 4 | 5.5 | 7.5 | 15 | 18.5 |
