HAMAC Concrete batching plant without mixer is specially designed for vast and sparsely populated areas. Because of the properties of concrete , people use concrete mixer truck to mix all materials instead of concrete mixer.

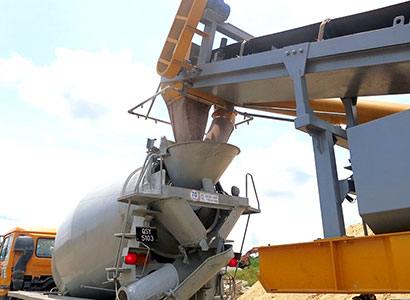

All aggregates are fed into the aggregate batching machine by loader and weighed in the weighing hopper or on the weighing belt. Then they are transported to a belt conveyor and sent into the concrete mixer truck by belt conveyor.
After all materials are weighed and fed into the concrete mixer truck, The truck can leave for the destination. The tank of mixer truck is rotating all the way.
1. Without concrete mixer, low investment high return, save time and electricity.
2. Very suitable for vast and sparsely populated area.
3. Computer controlled the whole production process can be displayed vividly on the screen.
4. Continuous high efficient belt feeding system.
|
Model |
HZS25 |
HZS35 |
HZS50 |
HZS60 |
HZS90 |
|
|
Capacity (m3/h) |
25 |
35 |
50 |
60 |
90 |
|
|
Aggregate batcher |
PLD1200 |
PLD1200 |
PLD1600 |
PLD1600 |
PLD2400 |
|
|
Discharge height (m) |
3.8 |
3.8 |
3.8 |
3.8 |
3.8 |
|
|
Cycle time (s) |
60 |
60 |
60 |
60 |
60 |
|
|
Weighing accuracy |
Aggregate |
±2% |
±2% |
±2% |
±2% |
±2% |
|
Cement |
±1% |
±1% |
±1% |
±1% |
±1% |
|
|
Water |
±1% |
±1% |
±1% |
±1% |
±1% |
|
|
Additive |
±2% |
±2% |
±2% |
±2% |
±2% |
|

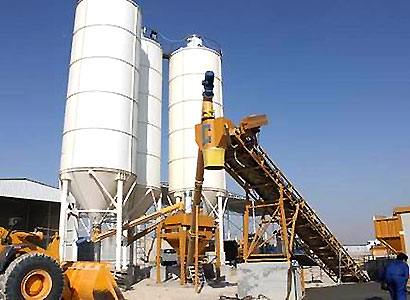

The Batching Plant without Concrete Mixer is widely used for different projects all over the world. HAMAC exported the Batching Plant without Concrete Mixer to different countries and got good comments from our clients. They are used in different working sites for different projects.
YHZS50 Mobile concrete batching plant in Australia
Application Country: Australia
This projects was installed on 2012, it works for 5 years up to now. It is for a contracting company who has many different projects in Australia. When one projects finished, it will be transported to another working site for the next projects. It saves the installation time and transportation cost for concrete. …
YHZS50 Mobile Concrete Batching Plant in Myanmar
Application Country: Myanmar
This is our project in Myanmar. This client has many different working sites. He wants to move the concrete batching plant after one project finished. So, we recommend him this mobile one. This customer visited us last year, and visited many companies. Finally he choose us because of our quality and our professional service for exporting even ou…
Integrating R&D, production, distribution, and service-providing into one enterprise, HAMAC attaches great importance to communication with customers. We have established an after sales visit team consisting of more than 56 persons. On the one hand, they timely solve the problems that our customers encounter; on the other hand, they collect feedback and improvement recommendations from our customers, to correctly orient our development and research.
Several production bases for production
Free budget analysis, program planning
Service that exceeds expectations
