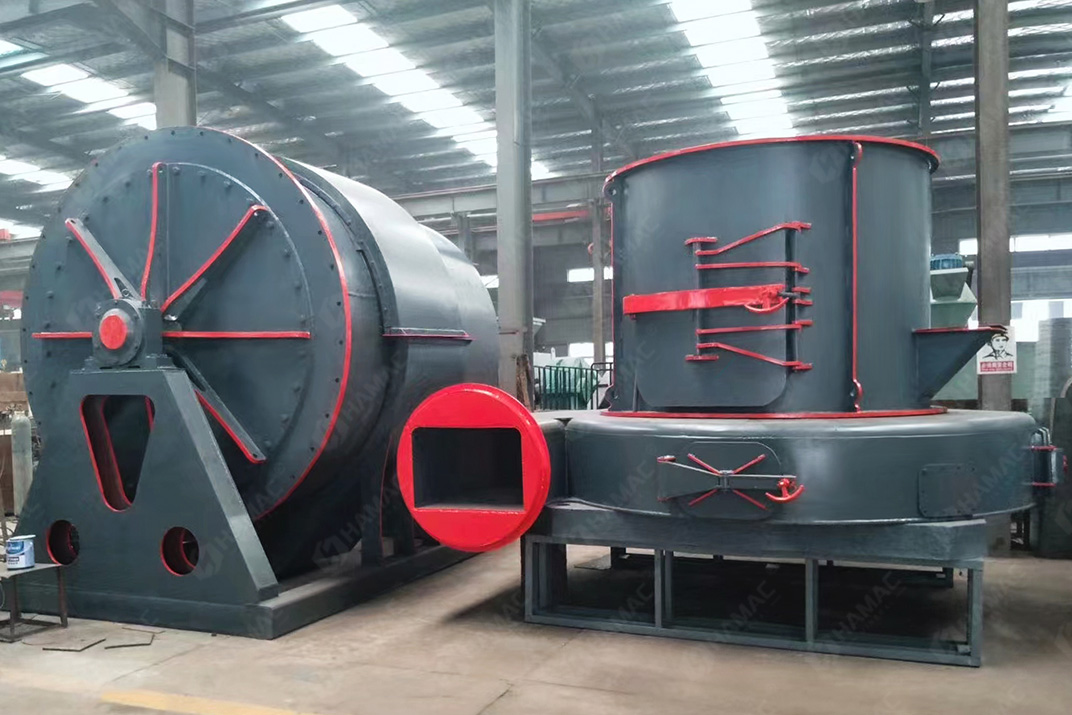

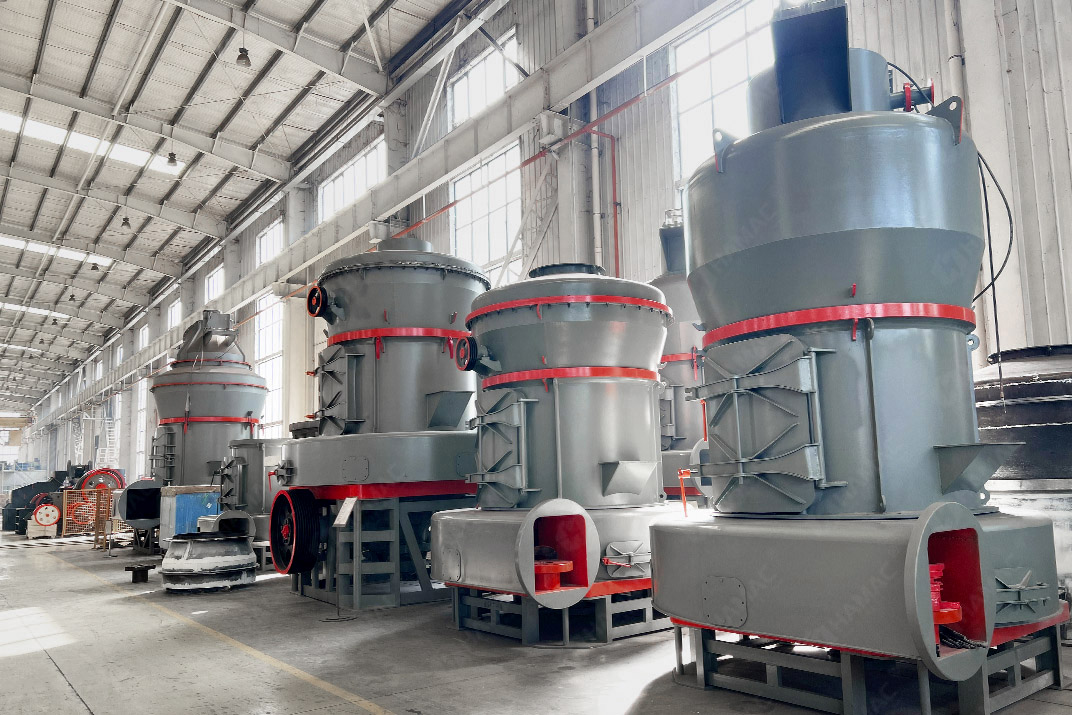

YGM High pressure Grinding Mill

YGM High pressure Grinding Mill
A powder making machine widely used in the world

Raymond mill, also called high-pressure grinding mill, is a crucial industrial grinding equipment widely used in industries such as mining, construction, chemicals, and fertilizers. It processes non-flammable and explosive materials like quartz, talc, marble, limestone, dolomite, gypsum, and more, with a Moh’s hardness below 9.3 and humidity below 6%. It is ideal for materials used in cement, activated carbon, kaolin, and other products across various industrial sectors.

  • Introduction
  • Technical Parameters
  • Gallery
Content Index

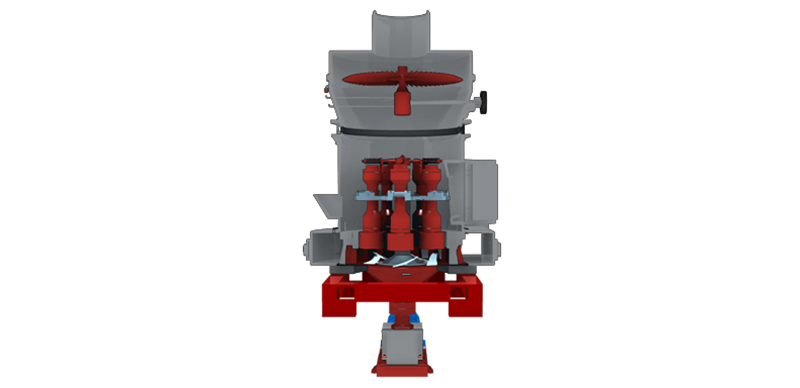

Working Principle of Raymond Mill

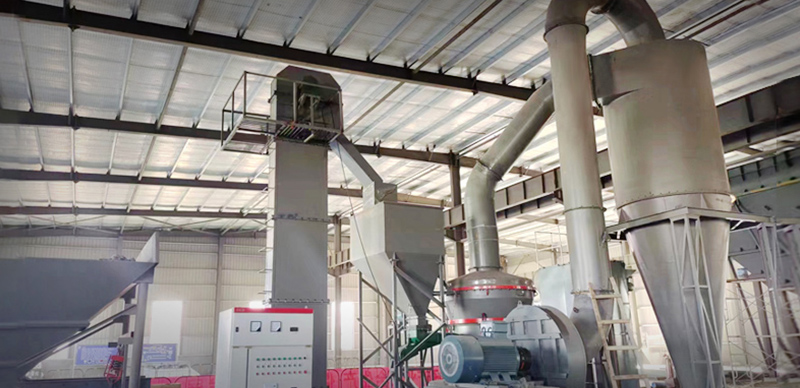

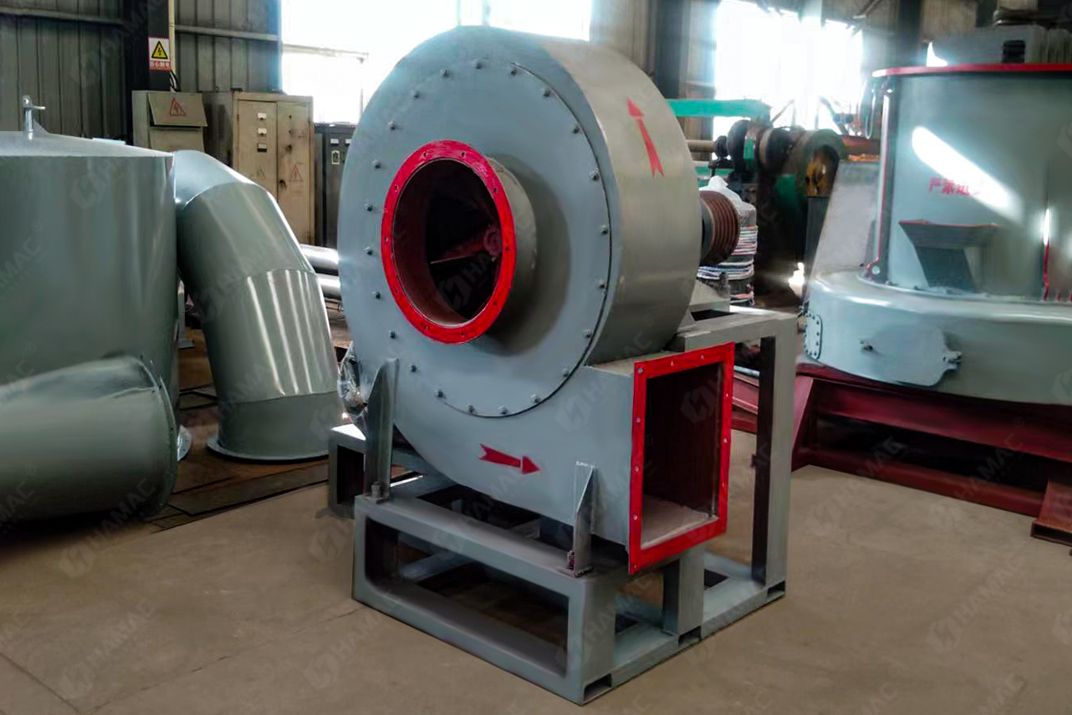

The Raymond mill is mainly composed of a grinding machine, a classifier, a blower, a finished product cyclone powder collector, a bag dust collector and a connecting air duct. Auxiliary equipment such as a jaw or hammer crusher, an elevator, a storage bin, an electromagnetic vibrating feeder and an electrical control cabinet can be equipped according to user needs.

After the material is crushed to the required particle size, the elevator sends the material to the storage hopper, and then the vibrating feeder sends the material evenly and continuously into the grinding chamber of the main machine of the Raymond mill. Due to the centrifugal force during rotation, the grinding roller swings outward, pressing the grinding ring tightly, and the shovel scoops up the material and sends it between the grinding roller and the grinding ring. The purpose of crushing is achieved due to the rolling of the grinding roller. The fine powder of the ground material is brought into the analyzer for sorting with the circulating air of the blower. The material with too coarse fineness falls back to the re-grinding, and the qualified fine powder enters the finished product cyclone powder collector with the air flow and is discharged through the powder outlet pipe as the finished product.

YGM High pressure Grinding Mill

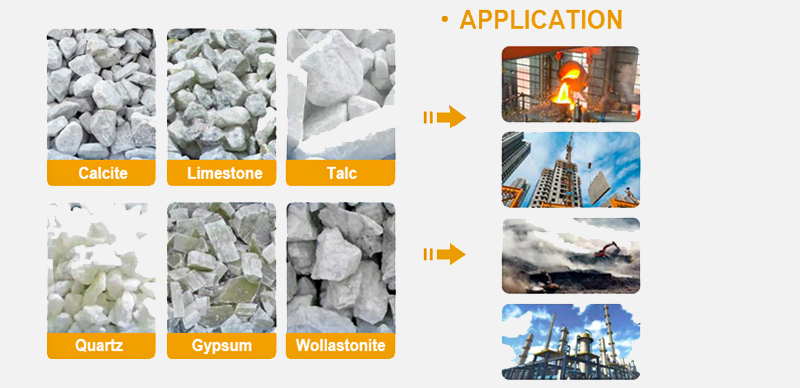

Wide applications of Raymond mill

Raymond mill is mainly used in metallurgy, construction, mining, chemical industry, road building and other industries. Specifically, the powder it produces can be used as inorganic filler in putty powder, double fly powder, paint, coating, power plant desulfurization powder, plastic filling, toothpaste, paper making and other products.

YGM High pressure Grinding Mill

How to choose the suitable Raymond mill

When you want to purchase a Raymond grinding mill, you have to consider the below factors,

  • 1.The raw material you want to grind, if it is hard or not, if it is too hard material, Raymond mill is not a good option;
  • 2.The output size and pass rate; it will affect that how to choose a suitable classifier;
  • 3. How many tons per hour you want to produce per hour.

After you get the above information exactly, our expert can assist you to choose the right model of Raymond Mill.

YGM High pressure Grinding Mill

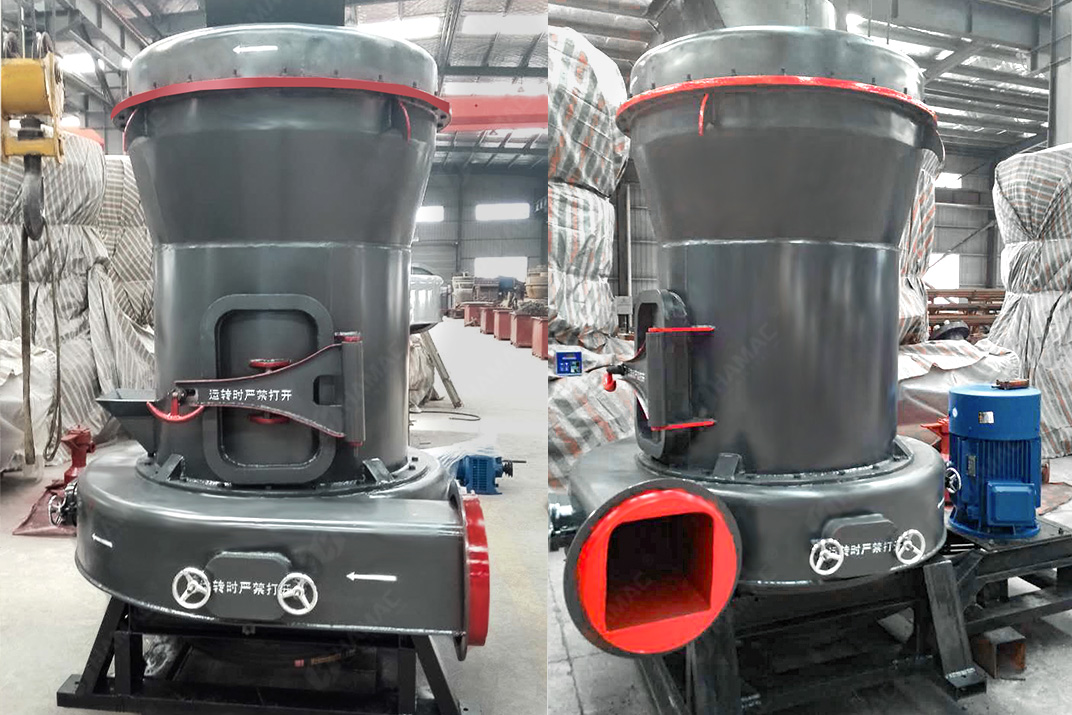

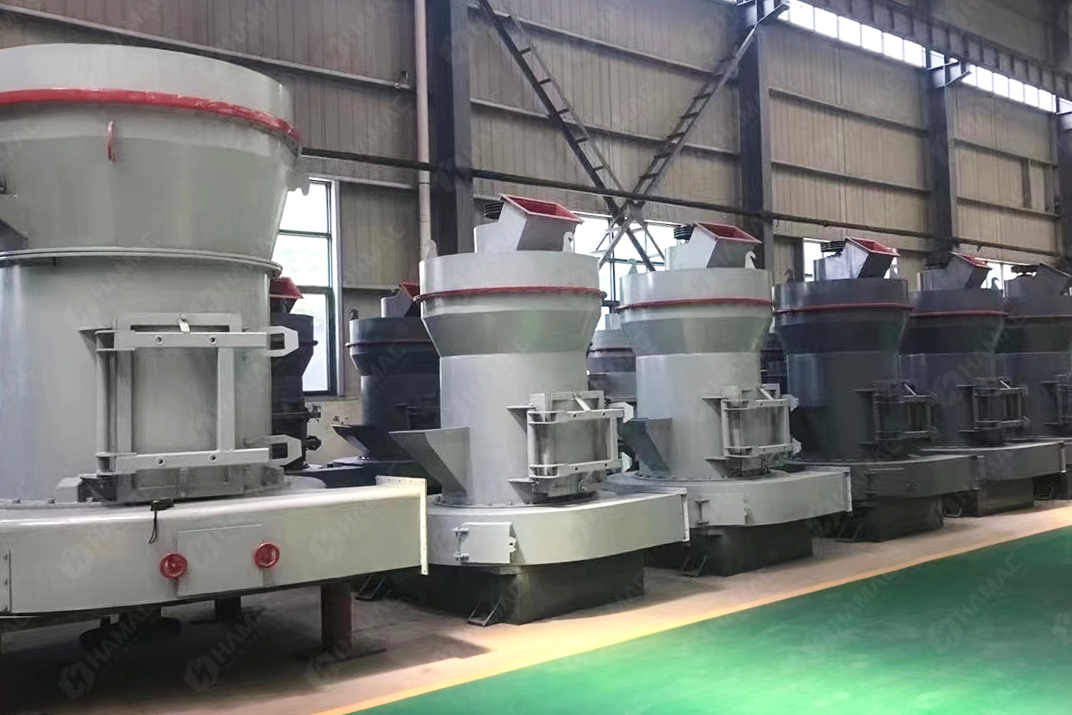

YGM High pressure Grinding Mill Goods Delivery

Based on good quality and decades of experience, the YGM High pressure Grinding Mill which is manufactured by HAMAC was exported to different countries. The YGM High pressure Grinding Mill will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

YGM High pressure Grinding Mill shipping pictures

YGM High pressure Grinding Mill Technical Parameters

Model Roller Qty Roller Size Ring Size Feed Size Product Size Output Speed Power
YGM65 3 210×150 mm 650×150 mm < 15 mm 0.613-0.033 mm 0.4-1.8 t 160 rpm 15 kw
YGM75 3 260×150 mm 780×150 mm < 15 mm 0.613-0.033 mm 1-3 t 160 rpm 18.5 kw
YGM85 3 270×140 mm 830×140 mm < 20 mm 0.613-0.033 mm 1.2-4.6 t 150 rpm 22 kw
YGM95B 3-4 300×160 mm 900×160 mm < 25 mm 0.613-0.033 mm 1.5-4.8 t 150 rpm 30 kw
YGM95 4 310×170 mm 950×170 mm < 25 mm 0.613-0.033 mm 2.1-5.6 t 130 rpm 37 kw
YGM130 4 410×210 mm 1280×210 mm < 30 mm 0.95-0.033 mm 3-9.5 t 103 rpm 75 kw
YGM1500 4 420×280 mm 1510×280 mm < 30 mm 0.95-0.033 mm 5-15 t 103 rpm 90 kw
YGM160 5 440×270 mm 1600×270 mm < 35 mm 1.9-0.045 mm 8-16 t 82 rpm 132 kw
YGM190 5 560×330 mm 1900×330 mm < 35 mm 1.9-0.045 mm 12-30 t 75 rpm 200 kw

Note: Our products are being updated constantly, all rights reserved by HAMAC.

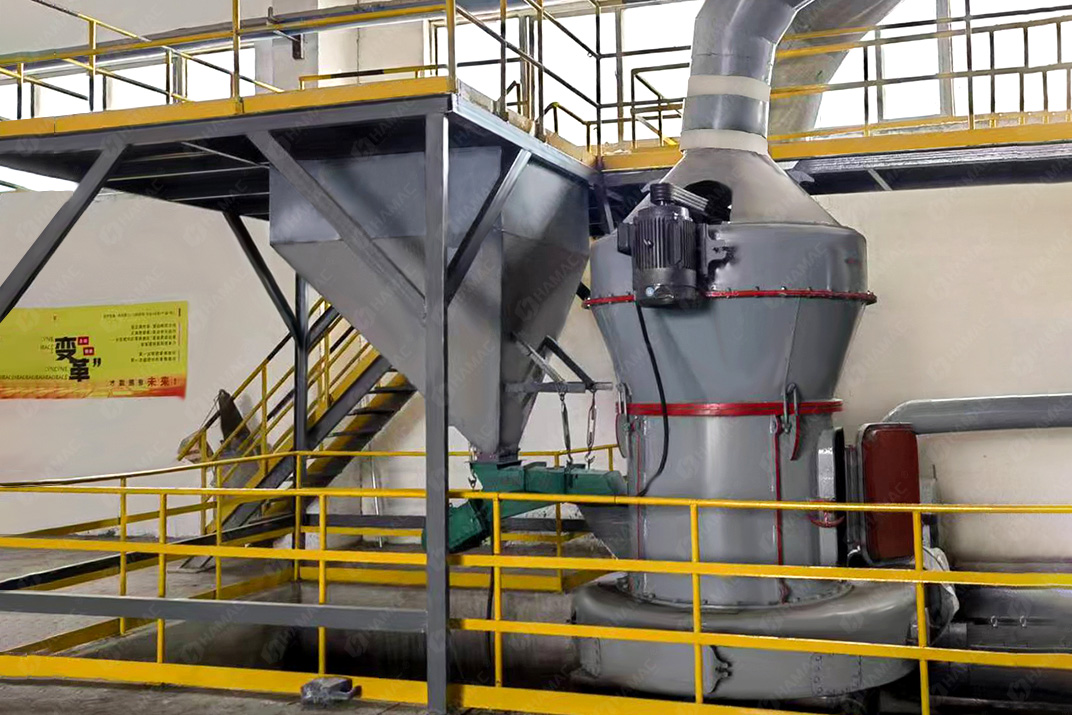

YGM High pressure Grinding Mill Application Case

The YGM High pressure Grinding Mill is widely used for different projects all over the world. HAMAC exported the YGM High pressure Grinding Mill to different countries and got good comments from our clients.
