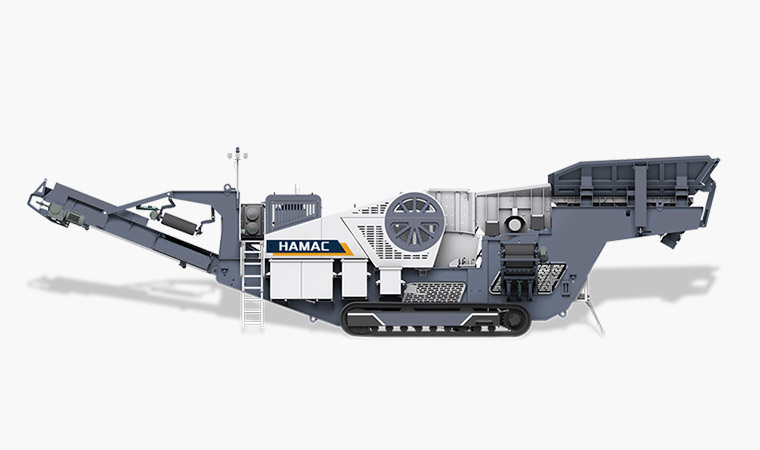

Tracked jaw Crusher Plant

Tracked jaw Crusher Plant
The best choice for material crushing in different working sites

HMC series tracked mobile crushers are widely used in aggregates production and recycling applications globally. Their track-mounted design allows for easy movement on-site and between sites, enhancing flexibility. Often called 'mobile crushing plants,' these machines boost productivity, lower operating costs, improve safety, and reduce environmental impact. Mobile crushers offer complete mobility, even on steep slopes up to a 1:10 incline, making them ideal for diverse operational needs.

  • Different modular as options
  • Easily being transported
  • Reduce transportation cost of material
  • Introduction
  • Technical Parameters
  • Gallery
Content Index

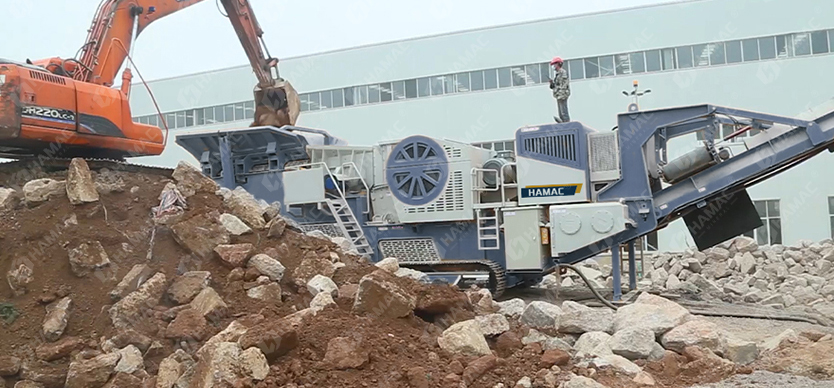

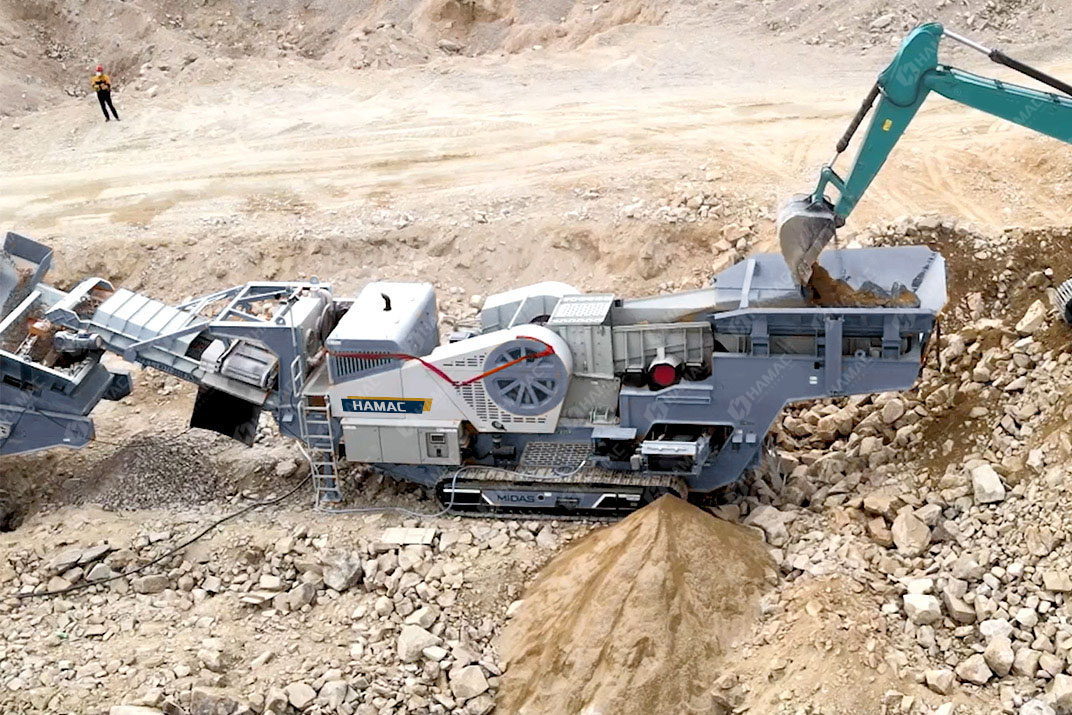

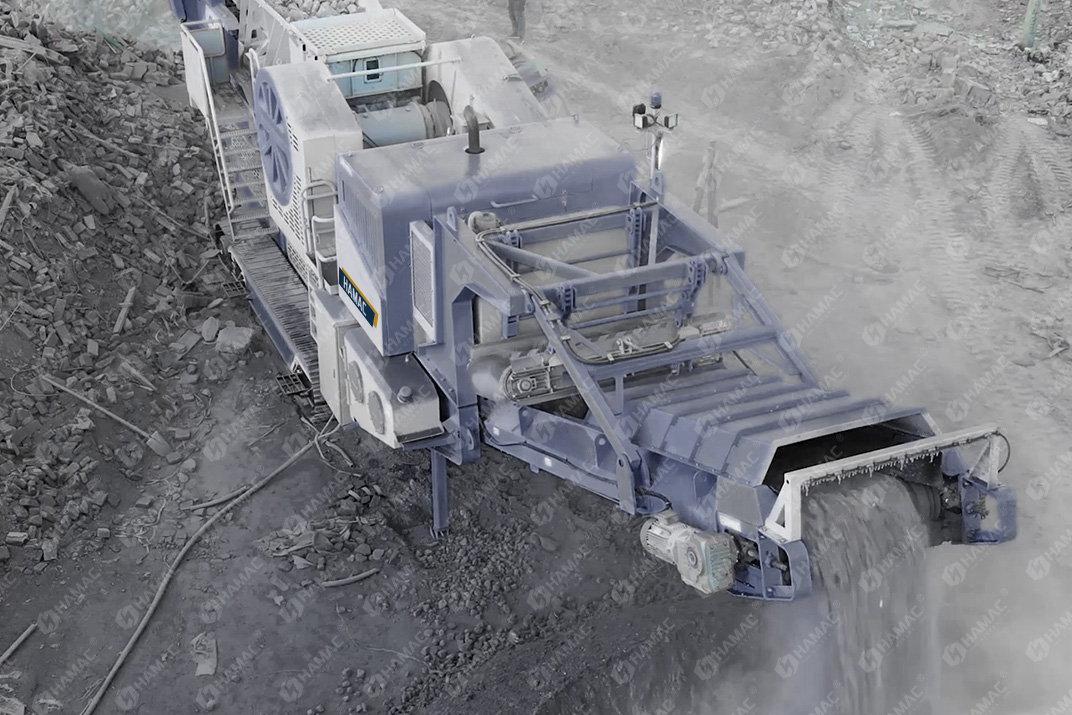

Usage of tracked crusher

Tracked crusher and screens are used widely in the world for different projects as below:

  • 1. Widely used in mines, coal mines, recycling of garbage and construction waste, earthwork engineering, urban infrastructure, roads or construction sites.
  • 2. Processing of topsoil and other materials; separation of viscous aggregate; construction and blasting industries; screening after crushing; quarrying industry.
Usage of tracked crusher

Features and advantages

  • 1.Fuel saving, environmental protection and low cost;
  • 2.Light weight, compact design and convenient transportation;
  • 3.Attached power package adopts optimized design.
  • 4.Pre-screening system can increase crushing efficiency greatly.
  • 5.It adopts heavy-load crawler chassis, hydraulic drive and self-powered. According to different project needs, it can be equipped with jaw crusher, impact crusher, cone crusher, vertical shaft impact crusher, vibrating screen and supporting equipment to operate alone or in multiple stages to form a combined crushing and screening operation system.
Features and advantages Tracked jaw Crusher Plant

Tracked jaw Crusher Plant Goods Delivery

Based on good quality and decades of experience, the Tracked jaw Crusher Plant which is manufactured by HAMAC was exported to different countries. The Tracked jaw Crusher Plant will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

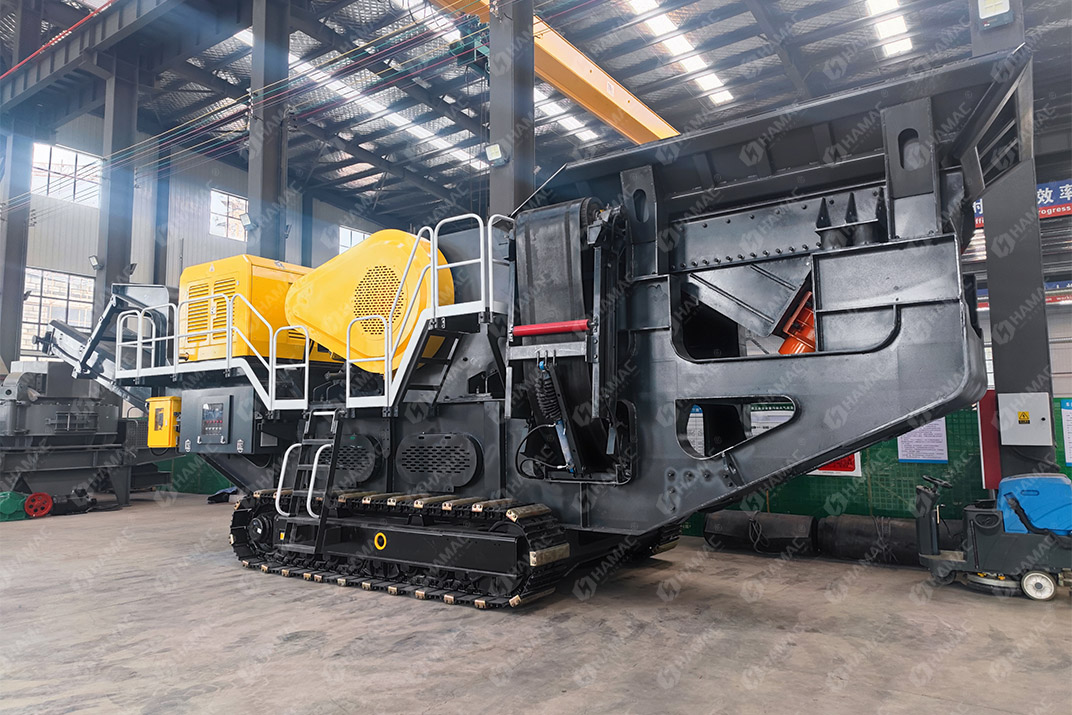

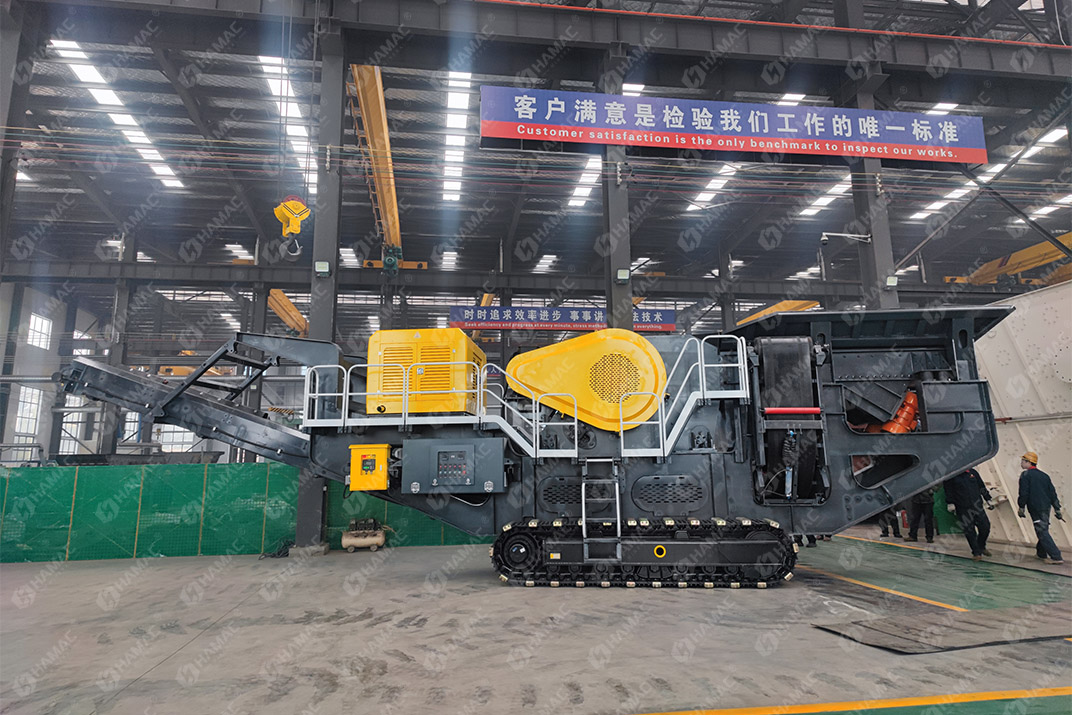

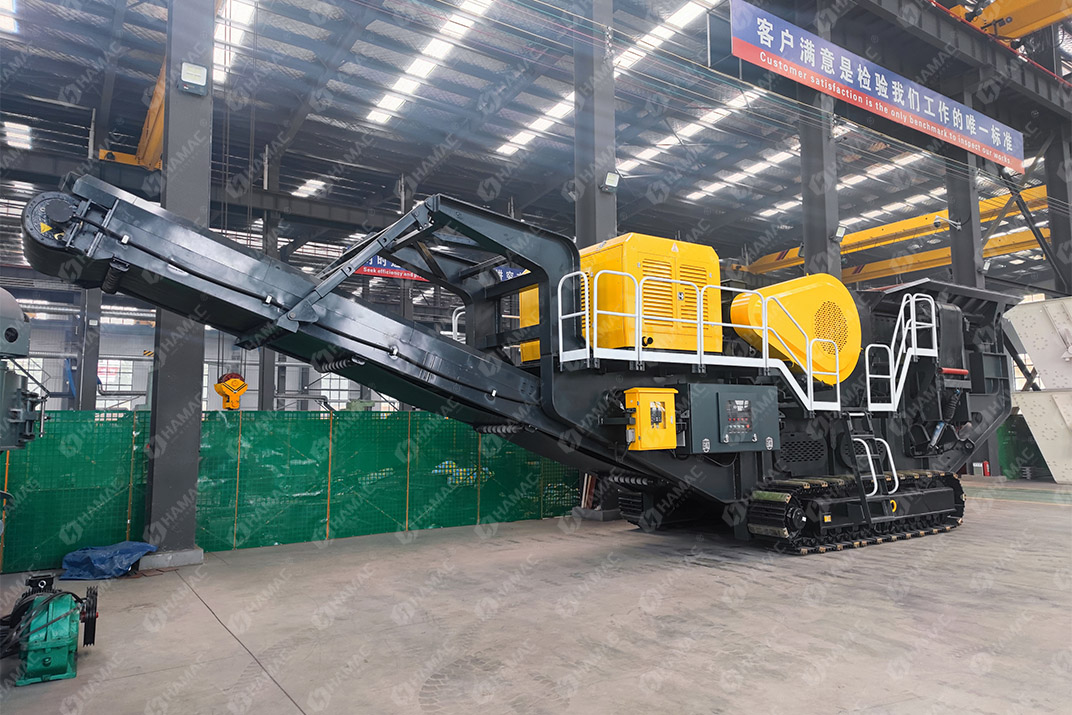

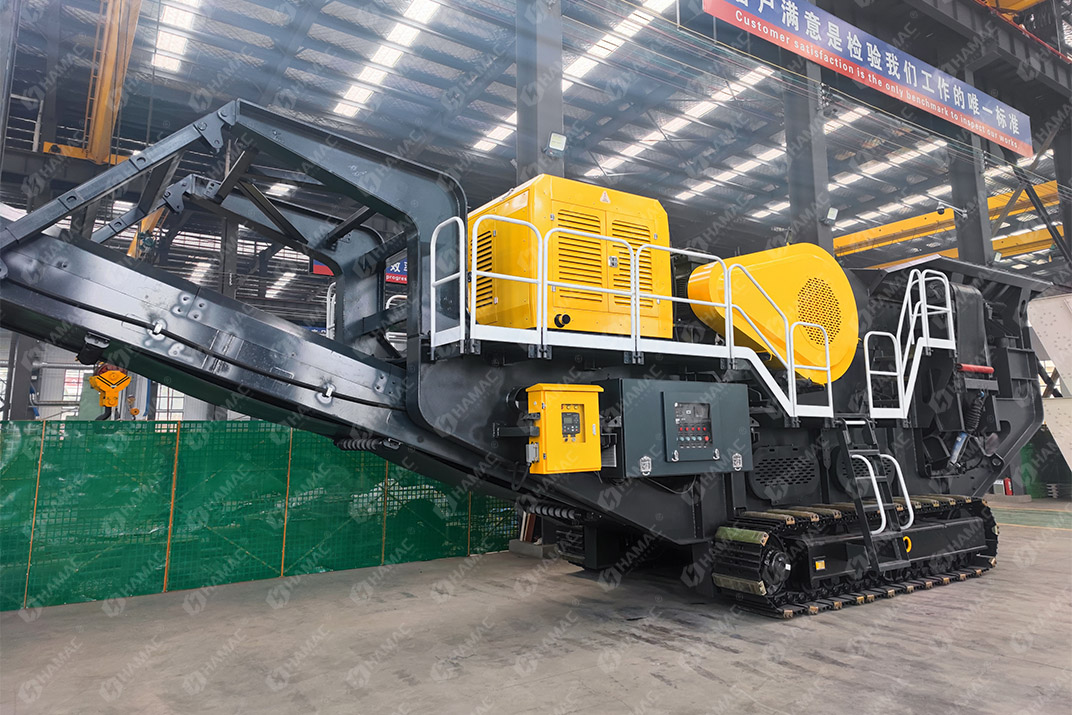

Tracked jaw Crusher Plant shipping pictures

Tracked jaw Crusher Plant Technical Parameters

Model MJ150SE MJ260E MJ-350E MJ-450SE
Feeder
Volume(m³) 4 6 6 6
Feeding height(mm) 3500 4357 4357 4357
Maximum feed size(mm) 430 560 630 720
Crusher
Host model MC80 MC106 MC113 MC120
Feed opening(mm) 800×510 1060X700 1130×750 1200×870
Closed side setting(mm) 40-175 70-200 70-200 70-200
Conveyor
Main conveyor width(mm) 1000 1200 1200 1200
Stacking height(mm) 3307 3470 3470 3455
Side conveyor width×height (mm) 650x2196 650x2196 650x2196 650x2196
Driving mode Motor reducer drive Motor reducer drive Motor reducer drive Motor reducer drive
Power Unit
Generator power (kW) 150KW 250KW 250KW 300KW
Diesel tank capacity 400L 600L 600L 800L
Hydraulic tank capacity 250L 300L 300L 400L
Technical Data
Total power(kw) 94.2 146.8 146.8 185.4
Host power(kw) 75 110 110 160
Processing capacity(t/h) 55-335 150-500 160-570 175-610
Track speed(km/h) 0.6-1 0.6-1 0.6-1 0.6-1
Total weight(t) 34 50 54 58
Transport dimension(mm) 12500 ×2900 ×3500 16354 ×3384 ×3725 16042 ×3262 ×3813 15038 ×3070 ×3947

Note: Our products are being updated constantly, all rights reserved by HAMAC.

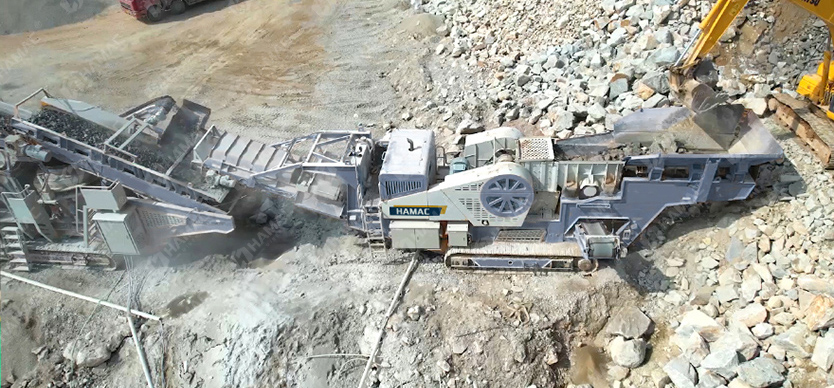

Tracked jaw Crusher Plant Application Case

The Tracked jaw Crusher Plant is widely used for different projects all over the world. HAMAC exported the Tracked jaw Crusher Plant to different countries and got good comments from our clients.
