Stationary Concrete Batching Plant

Stationary Concrete Batching Plant Multiple models for selection, can be customized according to customer requirements
The most widely used concrete batching plant in the world

As a mature manufacturer of stationary concrete batching plant, HAMAC designed this series stationary concrete batching plant which is suitable for commercial concrete sale and own projects. It is equipped famous brand components such as pneumatic cylinders, vibrators, air compressor, SICOMA concrete mixer and motors etc.

  • 25-240m3/h as options
  • two different feeding methods
  • fully automatic controlled by software
  • Introduction
  • Technical Parameters
  • Gallery
Content Index

What is concrete batching plant for sale?

Concrete batch plant for sale is a complete production line to produce ready mix concrete. The aggregates,sand,cement,fly ash,additive,water reducing admixtures in concrete will be weighed by the weighing system, and then are fed into the concrete mixer machine to be mixed to concrete for sale. The whole procedure is controlled by software in the computer. And then it will be transit to the working sites by concrete transit mixer. Sometimes it will be discharged to the concrete pump machine directly to be pumped to the building.

The following two pictures are the overall layout of two typical concrete batch plants for sale:

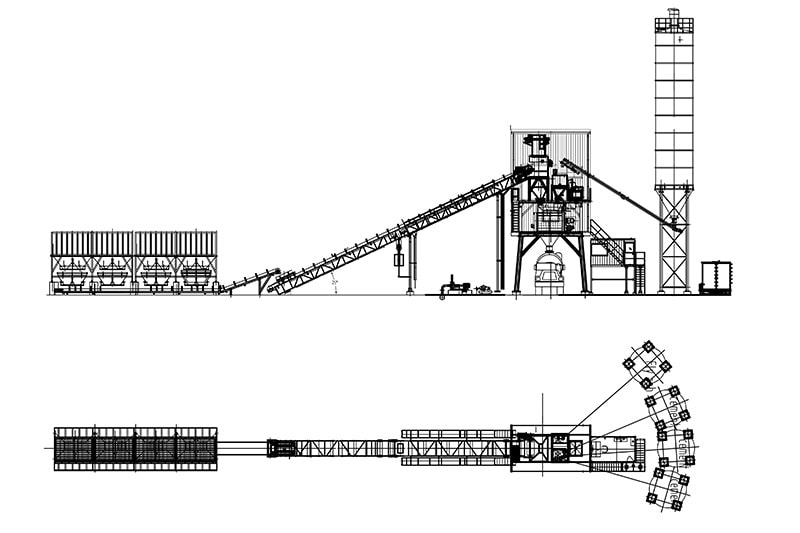

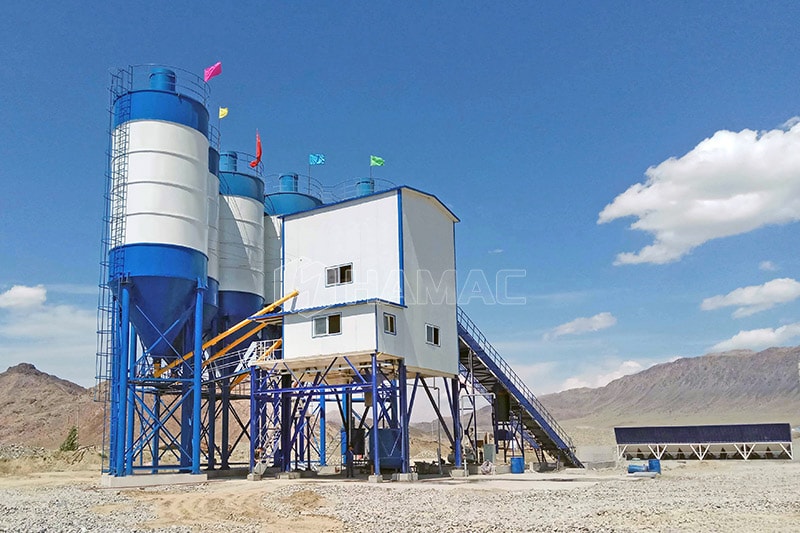

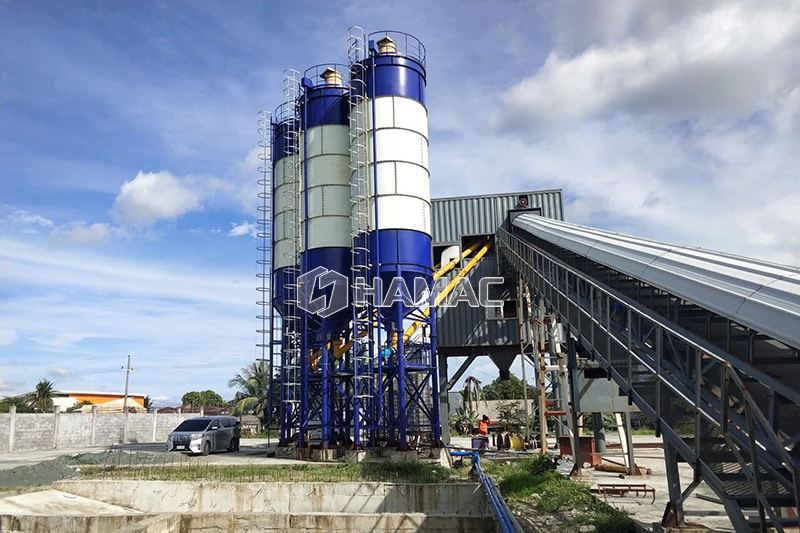

Belt Conveyor type Concrete Batching PlantBelt Conveyor type Concrete Batching Plant

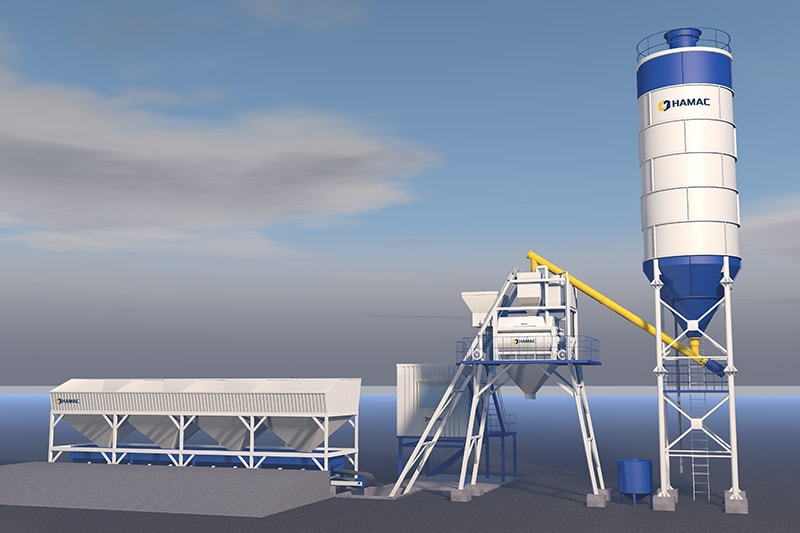

Skip hoist type Concrete Batching PlantSkip hoist type Concrete Batching Plant

The main components of ready mix concrete plant

For a complete concrete plant for sale, it contains the following parts;

1.Aggregate batching machine, it will weigh the weight of different sizes aggregates, sand according to the formula which is input into the software system, and then feed the material into the concrete mixer;

2.Belt conveyor or skip hoist bucket, after the sand and gravel is measured in the aggregate batcher machine, it is conveyed to the mixer by the belt conveyor or skip hoist bucket;

3.Central mixer, it is an equipment that fully mixes the raw materials of cement, sand, gravel and water admixtures to produce concrete. It is mainly composed of motor, reducer, mixing tank and discharging mechanism. The concrete plants for sale is mainly equipped with twin-shaft concrete mixer;

4.Concrete batching plant cement silo, it is used to storage the cement and fly ash;

5.Weighing system for cement, water and additive, the load cells are equipped to each weighing hopper for different materials;

The main components of ready mix concrete plant

6.Additive supplying system, for some projects, the additive such as water reducing agent in concrete should be used to produce water reducer concrete, accelerates the setting of concrete. There is a system to supply additive to the water tank;

7.Water supply system, the water pump transfer the water from ground to the water weighing hopper above the concrete mixer;

8.Pneumatic system, an air compressor is equipped to provide the air to open and close the cylinder, butterfly valves etc;

9.Electrical cabinet and software control system, the formula will be enter into the system, so that all the procedures can work automatically;

The main components of ready mix concrete plant

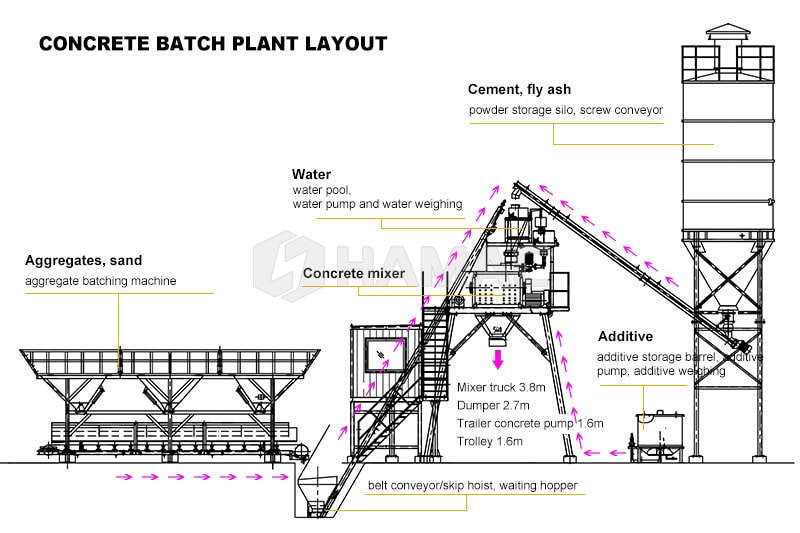

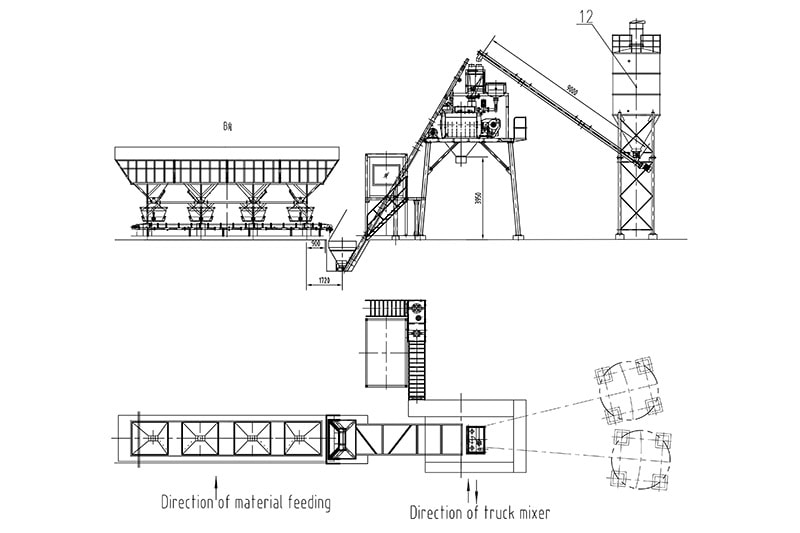

Concrete batch plant layout:

In order to explain clearly how the concrete batch plant works, we prepare this concrete batch plant layout, please check it.

concrete batch plant layout

Belt conveyor type concrete batch plant VS Skip hoist type concrete batch plant

As we all know, there are generally two feeding methods for concrete batching plants for sale; one is hopper feeding, skid hoist type; the other is belt conveyor feeding. So, when customers buy a concrete batch plant for sale, how should they choose the feeding method of the concrete plant for sale?

Let us see the difference between these two types batch plant for sale as blow:

The three characteristics of the skip hoist type concrete mixing plant for sale are:

One is that it occupies a small area and is suitable for use in narrow places with limited space; the other is that it is very convenient to be installed and relocated; The third is that this concrete plan price is cheaper, so it is also widely used in high-speed railway, highway, and urban commercial ready mix plant for sale in domestic market or overseas market. It is usually considered as small ready mix concrete plant.

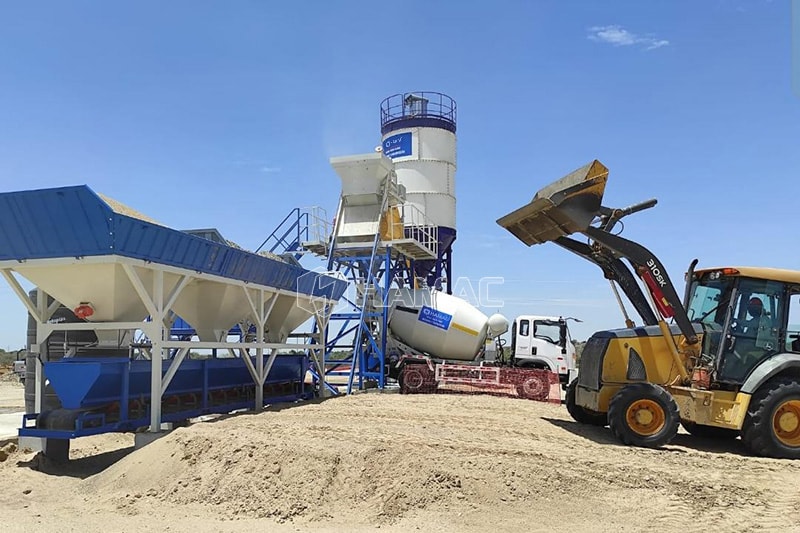

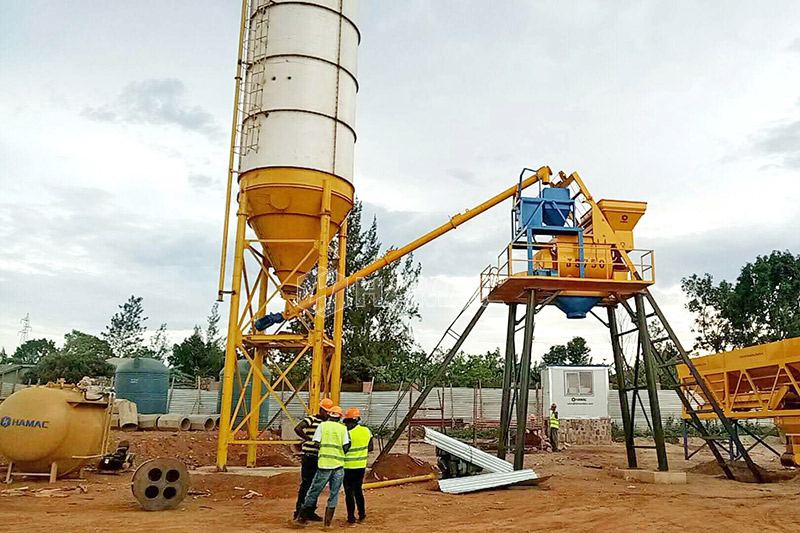

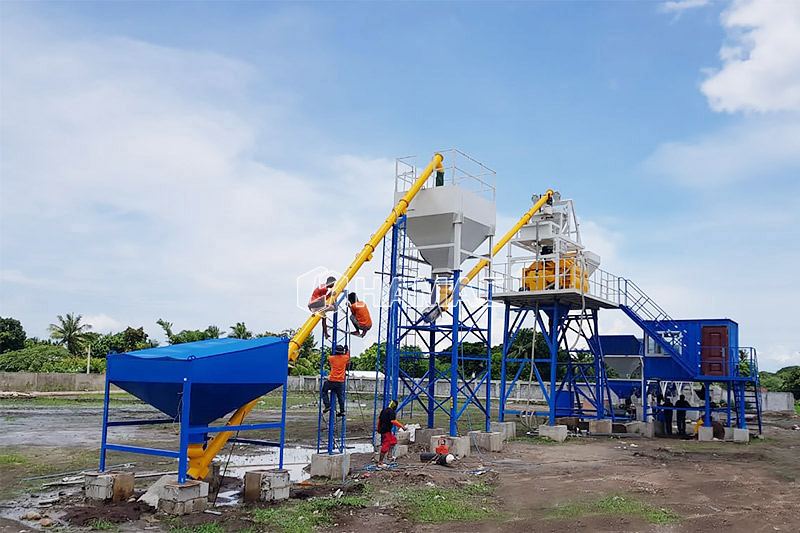

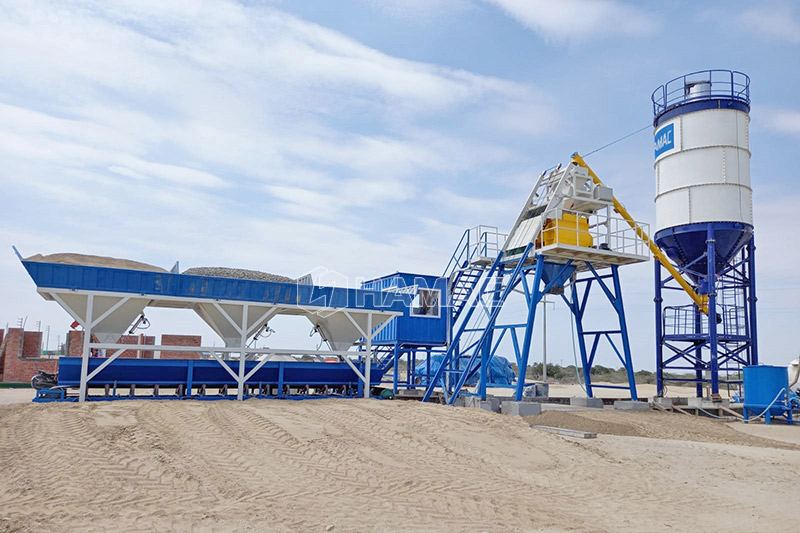

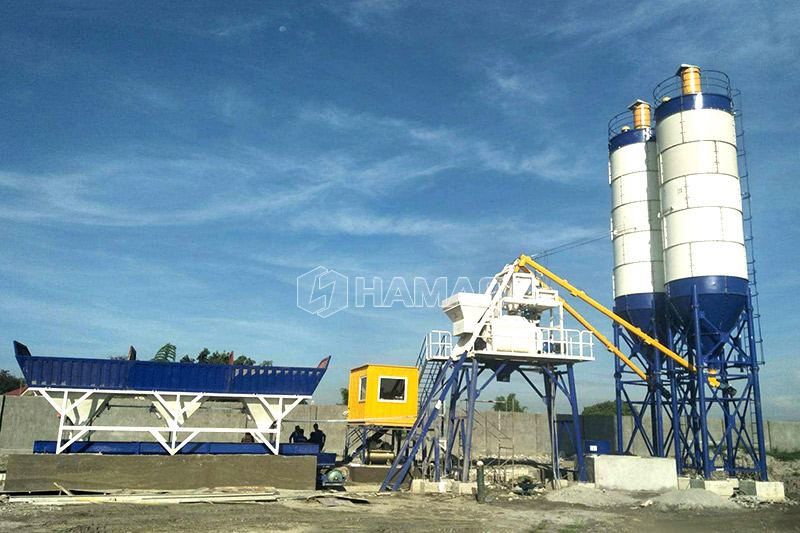

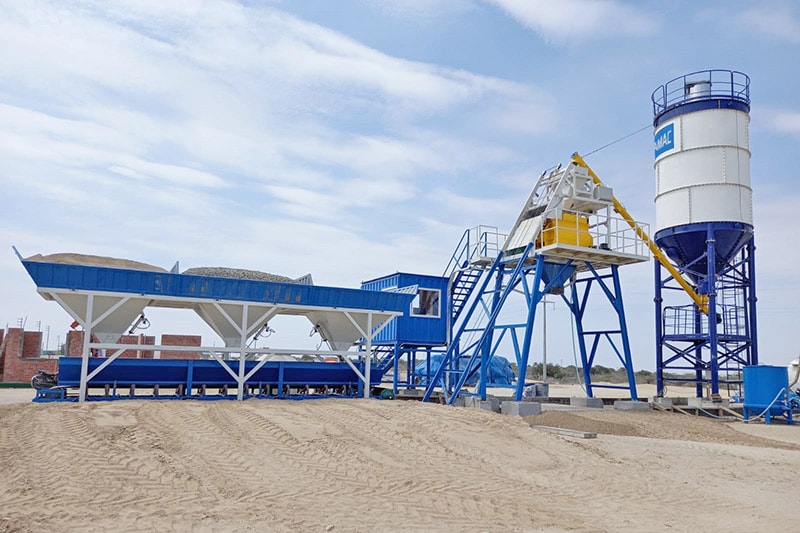

Skip hoist type concrete batch plant

The characteristics of the belt conveyor type concrete mixing plant for sale are:

The belt conveyor feeding method adopts the principle of conveyor belt, which is more complicated in design than hopper feeding, but has high feeding and transportation efficiency, can quickly complete large-scale operation requirements, and improve production efficiency by more than 20%; The belt conveyor feeding has a short production cycle and a big capacity, which is suitable for commercial concrete atching plants;

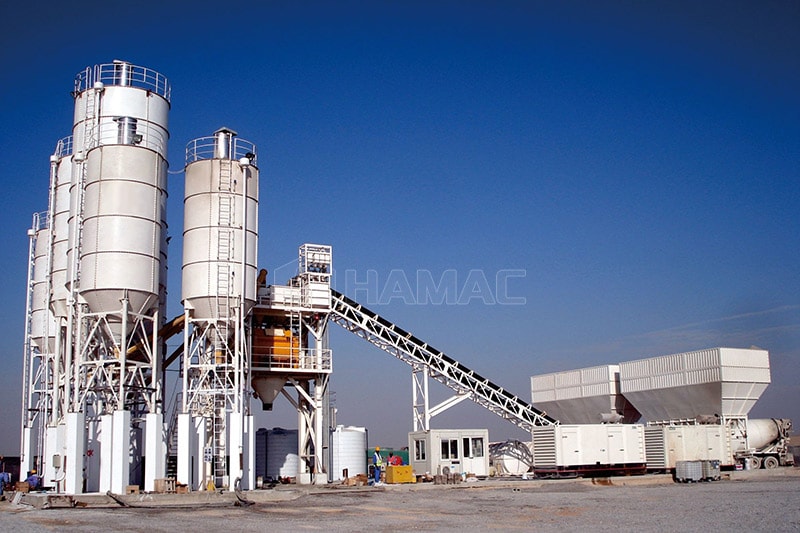

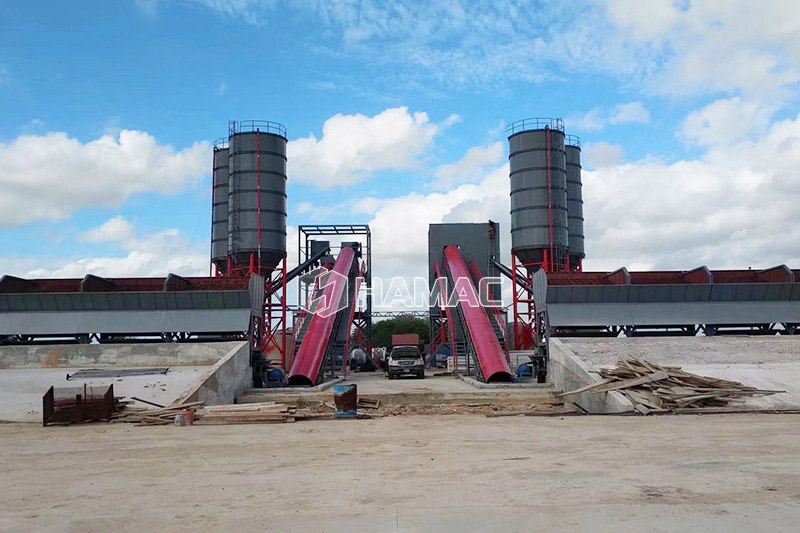

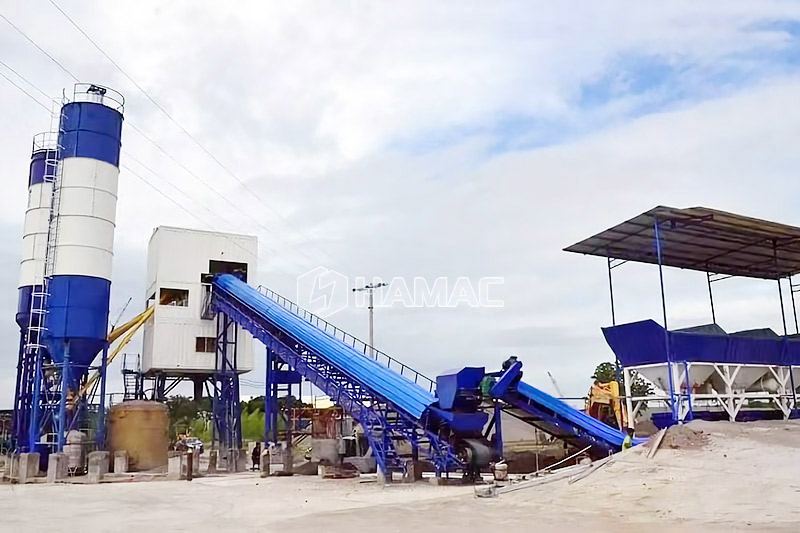

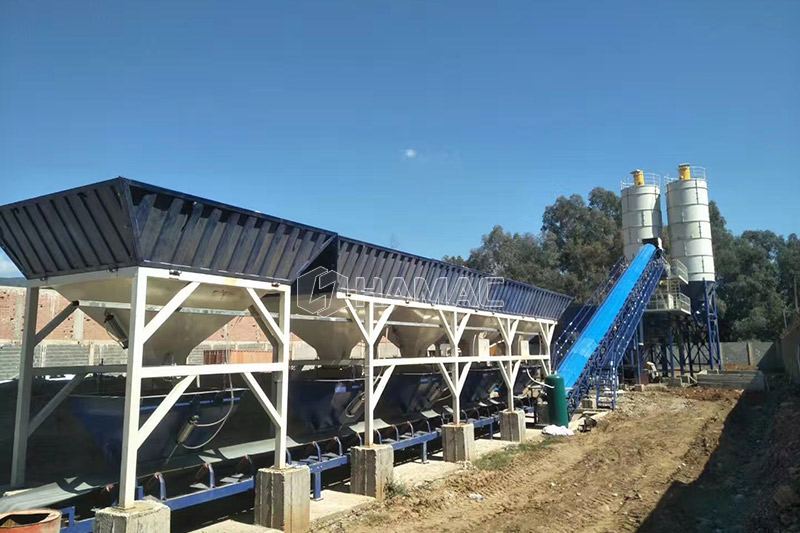

Belt conveyor type concrete batch plant

Disadvantages: large occupation area, high electricity consumption, and large investment in concrete batching plant for sale.

Based on the above information, the client can make the decision to choose the suitable concrete batching plant to build the concrete factory for sale.

Wet batch concrete plant VS dry batch concrete plant

There are two types concrete batch plant for sale in the market. One is wet batch concrete plant, another one is dry batch concrete plant.

Wet batch concrete plant is a concrete batching plant with central concrete mixer to mix the aggregates, sand, cement, water and additive to produce the ready mix concrete for sale. It is the most popular central mix concrete plant in the market. After mixing, the ready mix concrete will be transported to the job site by the truck mixer.

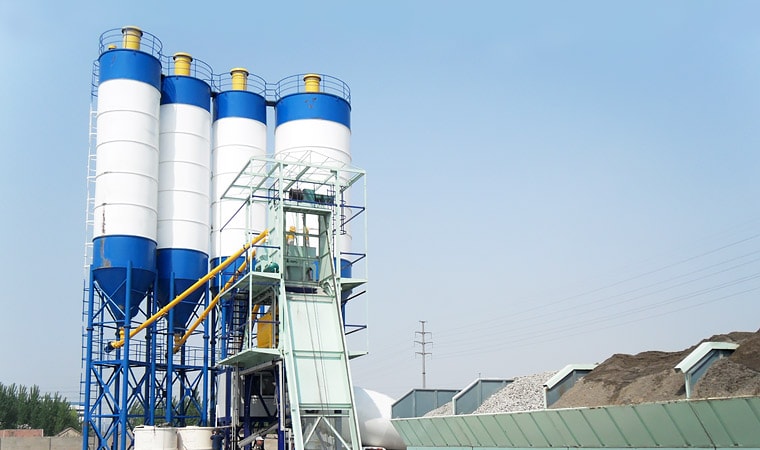

Wet batch concrete plant

Dry batch concrete plant is a dry concrete batching plant without central concrete mixer, this is the most important difference compared with wet batch concrete plant. It is dry mix. All the aggregates, sand, cement and water will be discharged into the concrete transit mixer without mixing. The concrete will be mixed in the drum mixer on the way to working site.

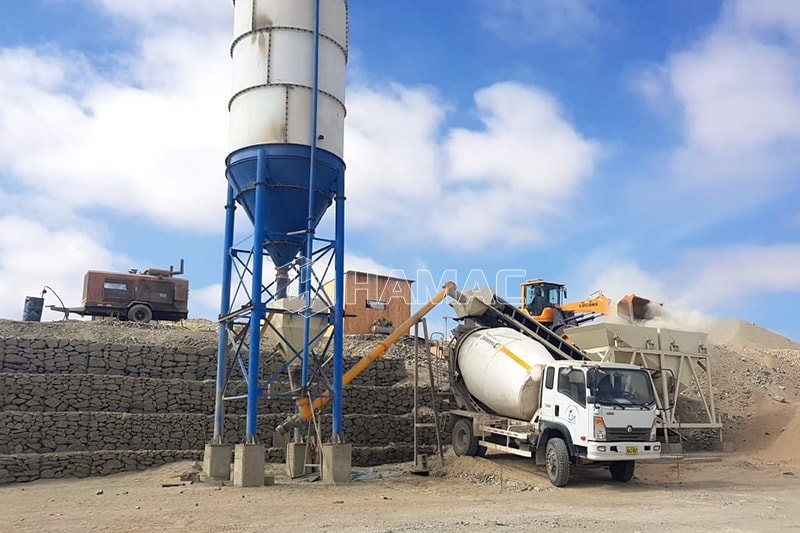

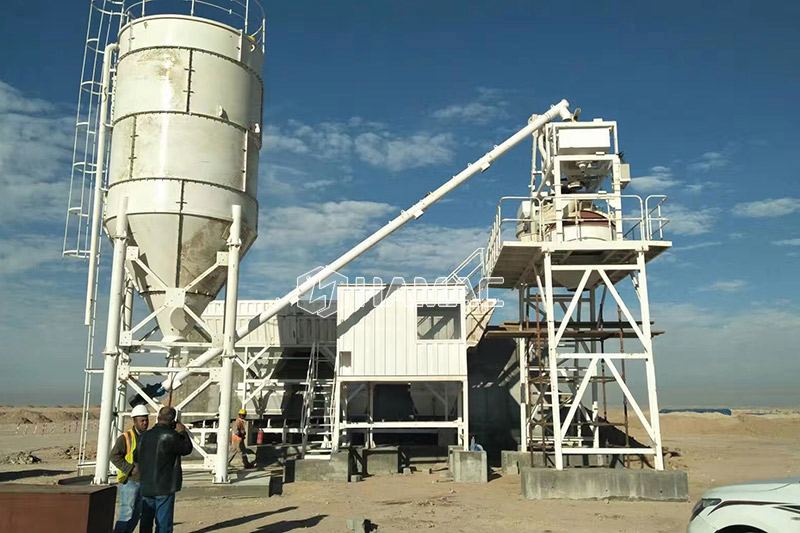

dry batch concrete plant

Additional equipment required for CBP

When you want to invest in a commercial ready mix concrete batch plant for sale, it is important to consider the added services that can be offered to make the end user comfortable, solve their potential problems, and make the business more efficient. What will other equipment be like?

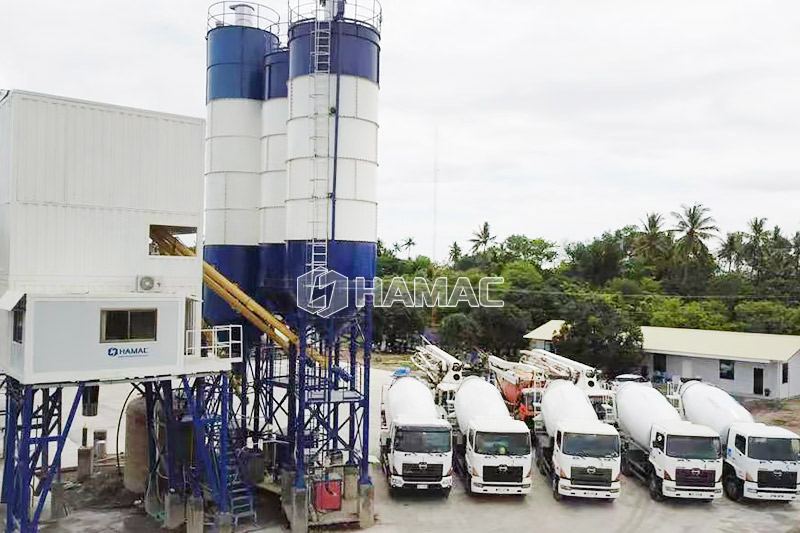

Commercial Ready Mixed Concrete Mixing Plant

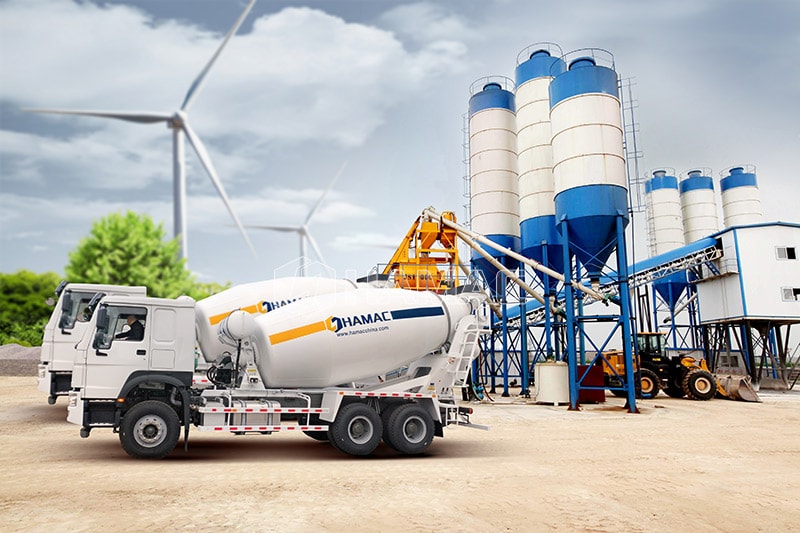

1.Mixer truck is a device used to transfer ready mix concrete from the batching plant to the working site. At least, you need to buy a concrete mixer truck to help the client transit the concrete. The size of the concrete batching plant will determine the amount of concrete that can be produced.

Mixer truck is a device used to transfer ready mix concrete from the batching plant to the working site

2.Truck-mounted concrete boom pump, some clients will buy the concrete for their high building, but they don't have the means to pump it. You can provide a pumping service for your project together with concrete selling. The increased possibility for the end user to choose the one who can provide the specific pumping machine service will make it more likely that the end user will choose the one who can provide the best service.

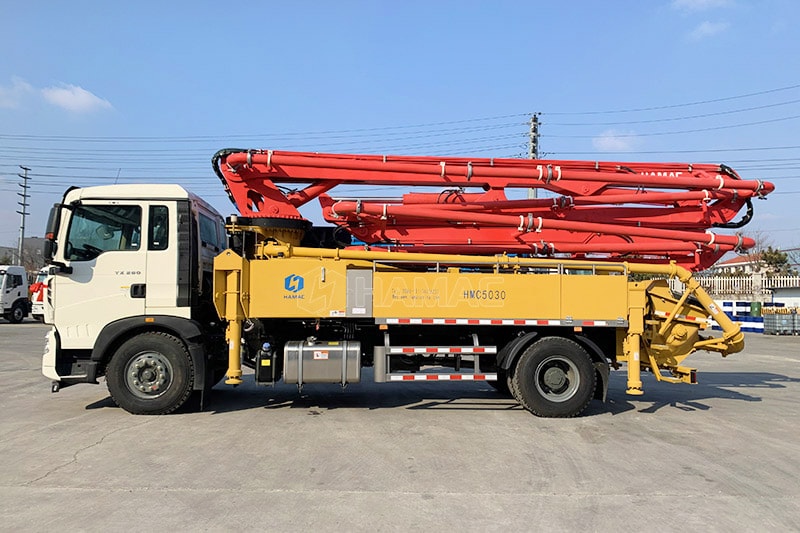

Truck-mounted concrete boom pump

3.Concrete trailer pump for sale, which is suitable for long term projects, just put this concrete pump for sale near to the building, and pouring the ready mixed concrete according to requirement. Then it can pump the concrete to the high rise building.

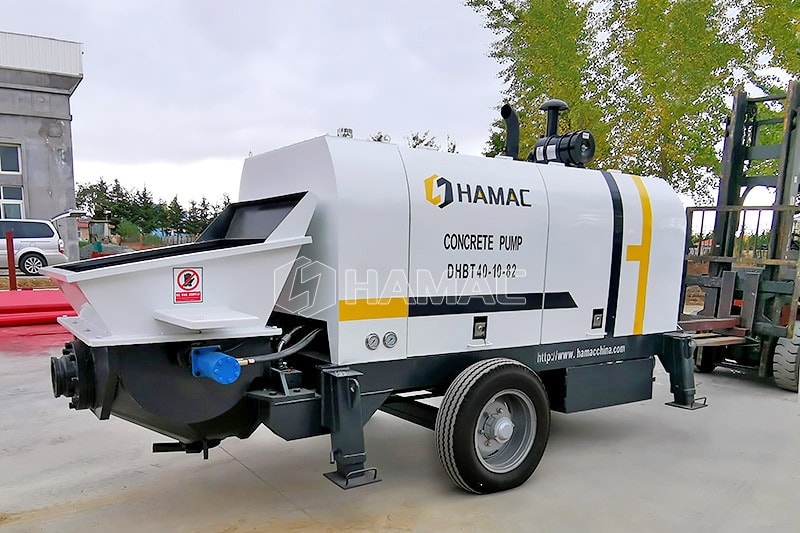

Concrete trailer pump for sale

According to our experience, most of the ready mix concrete supplier provide the above service. You can add the cost into the concrete price for sale.

Why choose HAMAC concrete batch plant?

HAMAC concrete batch plant adopts famous brand parts to make the mixing plant works stable and reliable.

  1. 1.Pneumatic cylinder, from Japan SMC;
  2. 2.Vibrators, from Italy WAM;
  3. 3.Butterfly valves, from Italy WAM;
  4. 4.Air compressor, water pumps, cables and electrical components are from top-class suppliers;
  5. 5.Separate gearbox, motor and drum for belt conveyors, it will be more convenient for the client to maintain it;
  6. 6.All the machines are above ground, more convenient for maintain;
  7. 7.Bolted type cement silo, to save the shipping cost. All the accessories for cement silos are from Italy WAM;
Why choose HAMAC concrete batch plant

Concrete batching plant manufacturers

There are several professional concrete batching plant manufacturers in China. As one of them, HAMAC is a manufacturing enterprise specializing in the production of concrete batching plants and concrete pumping plants. Our machines have passed the EU CE certification and are exported to developed countries such as Europe and the United States. Our products cover the stationary concrete batching plants, mobile concrete batching plants, dry type concrete batching plants etc, and are the ideal supplier for your purchase of different concrete batching plants.

Belt Conveyor type Concrete Batching Plant
Skip hoist type Concrete Batching Plant

Stationary Concrete Batching Plant Goods Delivery

Based on good quality and decades of experience, the Stationary Concrete Batching Plant which is manufactured by HAMAC was exported to different countries. The Stationary Concrete Batching Plant will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

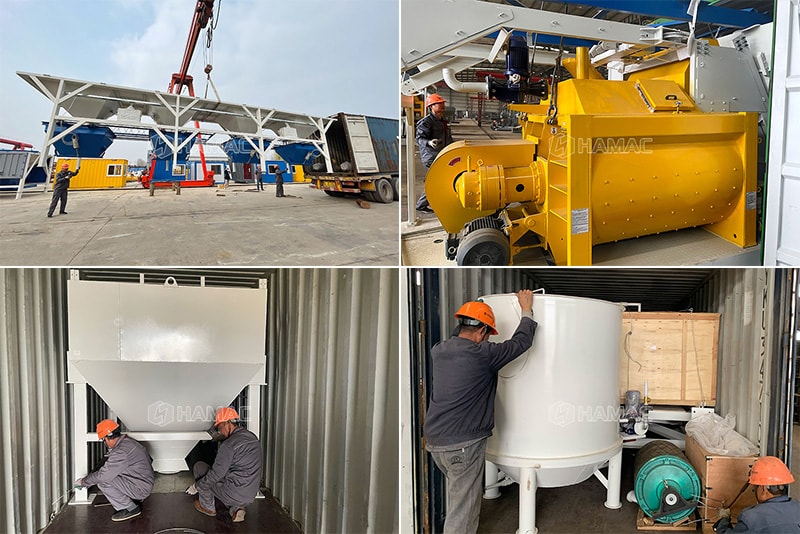

Stationary Concrete Batching Plant shipping pictures

Stationary Concrete Batching Plant Technical Parameters

Technical data Model
HZS60 HZN60 HZS90 HZN90 HZS120 HZS180(150) HZS240(200)
Theoretical capacity(m³/h) 60 60 90 90 120 180(150) 240(200)
Mixer model JS1000 MP1000 JS1500 MP1500 JS2000 JS3000 JS4000
Batching system PLD1600 PLD1800 PLD2400 PLD2400 PLD3200 PLD4800 PLD6400
Discharging height (mm) 4100 4840 4100 4100 4100 4100 4100
Maximum aggregates size(mm) 60(80) 60(80) 60(80) 60(80) 60(80) 60(80) 60(80)
automatic Cycle time(s) 60 60 60 60 60 60(72) 60(72)
Weighing Precision of Aggregate ±2% ±2% ±2% ±2% ±2% ±2% ±2%
Weighing Precision of Cement ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Weighing Precision of Water ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Weighing Precision of Additive ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Total power(KW) 106 114 145 145 175 215 295

Note: Our products are being updated constantly, all rights reserved by HAMAC.

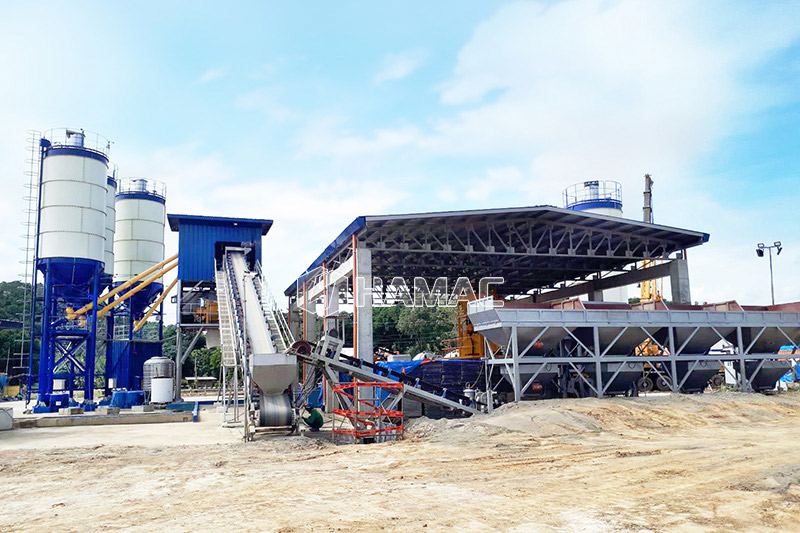

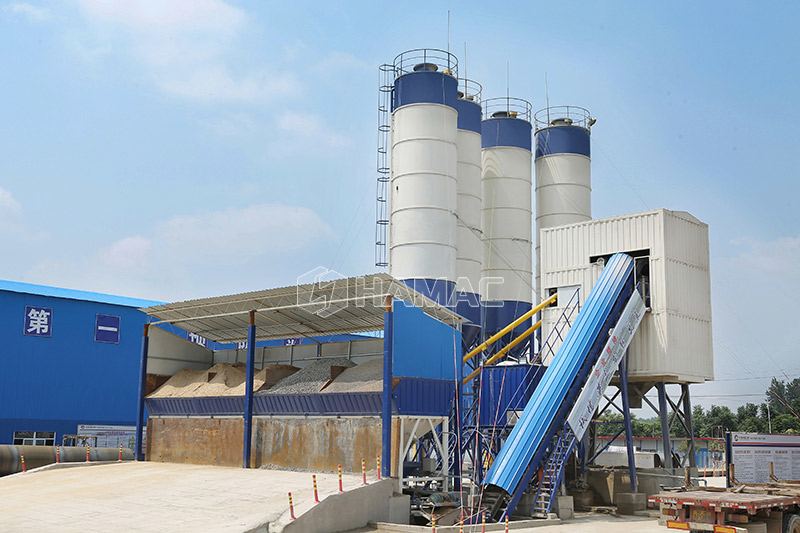

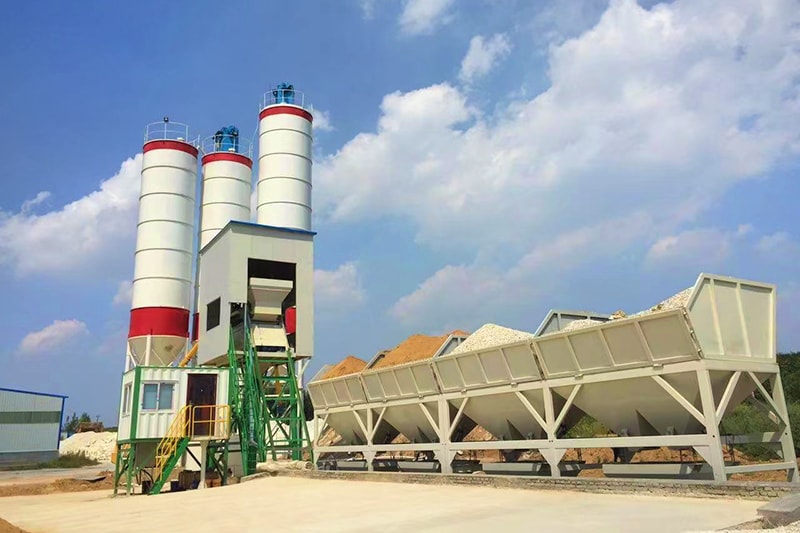

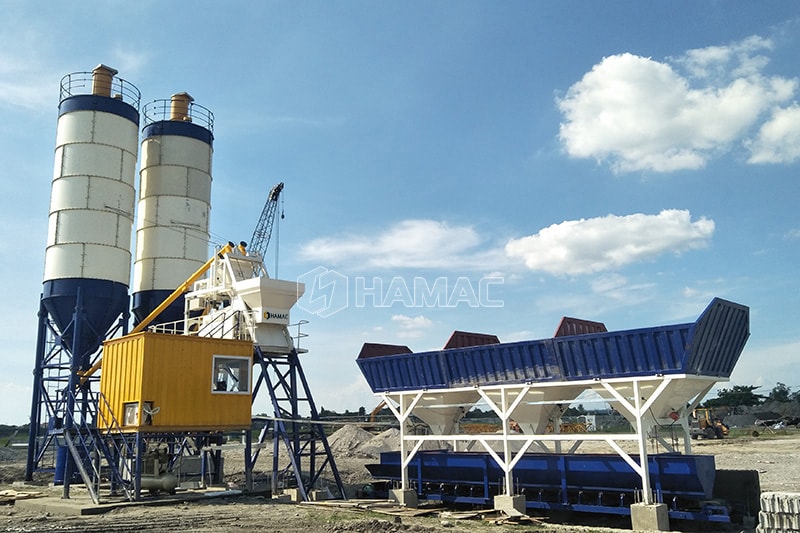

Stationary Concrete Batching Plant Application Case

The Stationary Concrete Batching Plant is widely used for different projects all over the world. HAMAC exported the Stationary Concrete Batching Plant to different countries and got good comments from our clients.
