HZS50 hoisting hopper type concrete batching plant works in Cebu, Philippines

For these two years, we delivered and installed several units of HZS50 hoisting hopper type concrete batching plant to Cebu, Philippines. The aggregate is lifted by the hoisting hopper to the central concrete mixer. It saves the working area occupation and cost. It is a very popular design in this area. We exported this design concrete mixing plant to this area for several units.

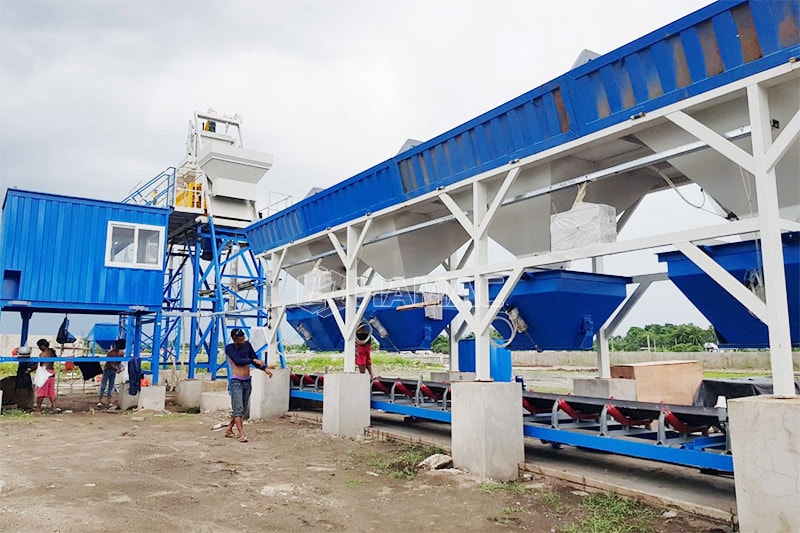

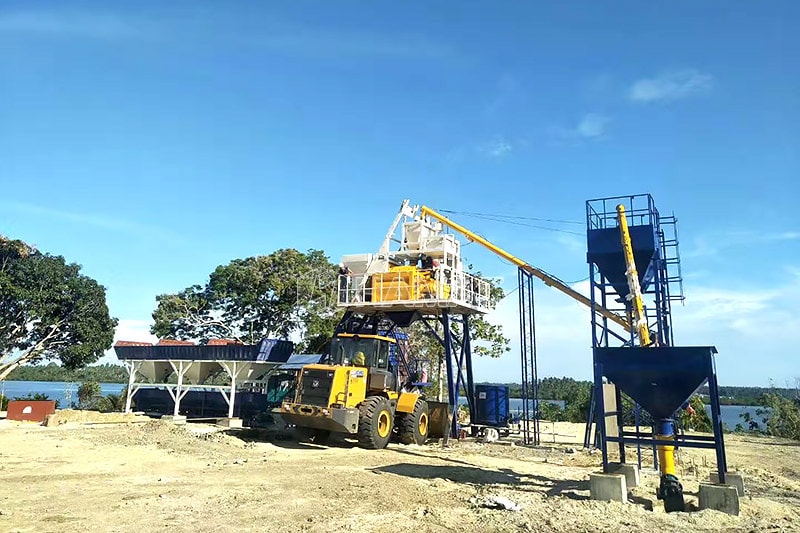

Wet type concrete batching plant in Cebu

Wet type concrete batching plant in Cebu

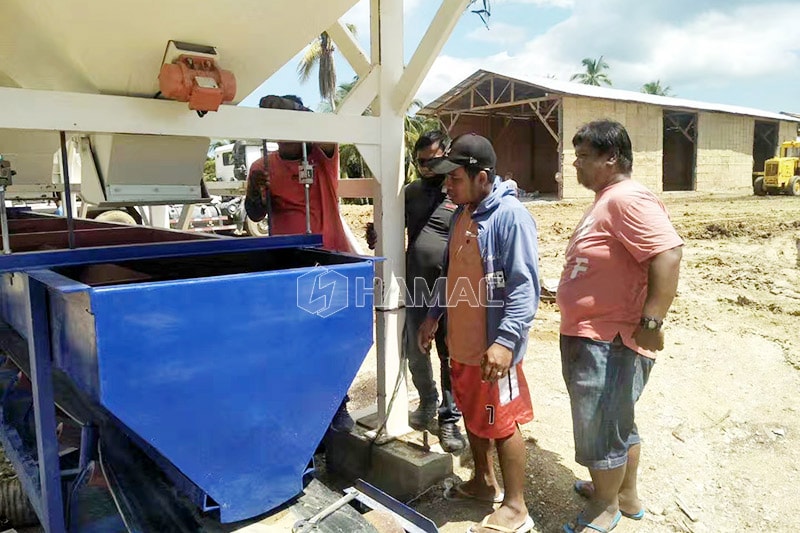

Concrete batch plant operator is learning

Concrete batch plant operator is learning

Detailed information of this design concrete batching and mixing plant for sale:

Nominal capacity: 50m3/h; Aggregate batching machine: 4*10m3 ; Central mixer: JS1000 twin shaft concrete mixer; Cement hopper and screw to feed the cement from bigbag ; Control Mode: Full automatic, easy operation; Discharging height:4000mm;

For different client, they have different request for the machines and investment because of different conditions, so we always provide our clients with different design concrete batching plant to meet their needs.

1. In this area, there is not any cement factory to supply the cement in the tank truck, so they have to use the cement in the BIGBAG. The cement silo is not a good option. So, all of them chose a cement hopper to collect the cement from the BIABAG. There is a blade in the hopper. The BIGBAG will be cut, and then the cement will be discharged into the hopper. And then it will be transferred to the small cement silo which is connected with the cement weighing hopper;
2. Some client needs more accurate and faster weighing system. We have two options for the aggregate weighing system. One is multiple times weighing, all the aggregates and sand will be weighed in the same hopper, it will take more time and not so accurate. Another design is separate weighing for each sizes aggregates. It is more accurate. As a manufacturer of concrete batching plant for sale, we can provide you with these two solutions.

Weighing multi times in the same hopper

Weighing multi times in the same hopper

Separate weighing system for the aggregates and sand

Separate weighing system for the aggregates and sand

If you want to visit this project on site, or contact our client to check the machine’s work performance, please contact us: Email:[email protected] WhatsApp:+8615136236223
