HMC180 Self-loading Concrete Mixer

INTRODUCTION

HMC180 Self-loading Concrete Mixer is a mini-mobile concrete batching plant, its capacity Of one Batch is 1.8m³, it owns all the functions of concrete batching plant, loading, weighing, pumping, mixing, travel, discharge and washing. It can produce concrete independently and efficiently in remote areas.

Drum geometric volume：2.7m³，Concrete drum output：1.8m³/batch，Double mixing screws， Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed dependends on the speed of diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for discharging on the four sides of the vehicle.

It is easy to operate and cost efficient to produce and distribute fresh concrete for mining, industrial complexes, shopping plazas, office buildings, warehouses, and residential homes for applications such as footings, poured foundations, floors, sidewalks, driveways, curbs, patios, pools, etc.

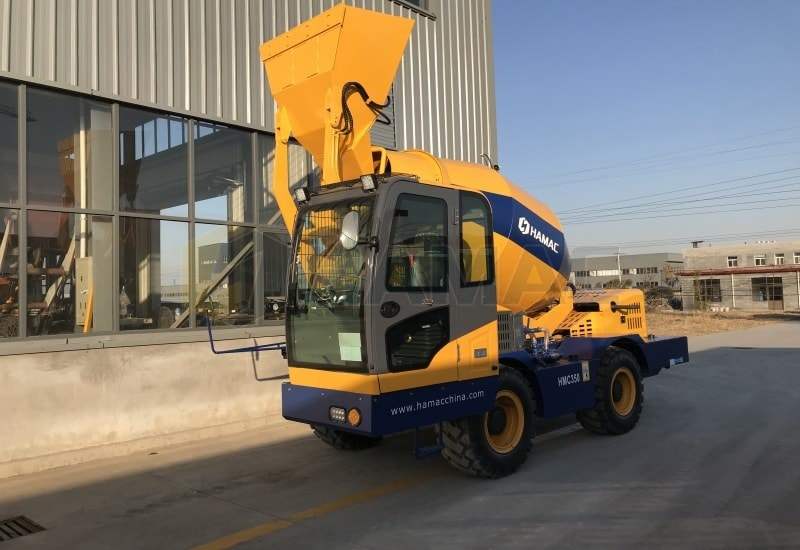

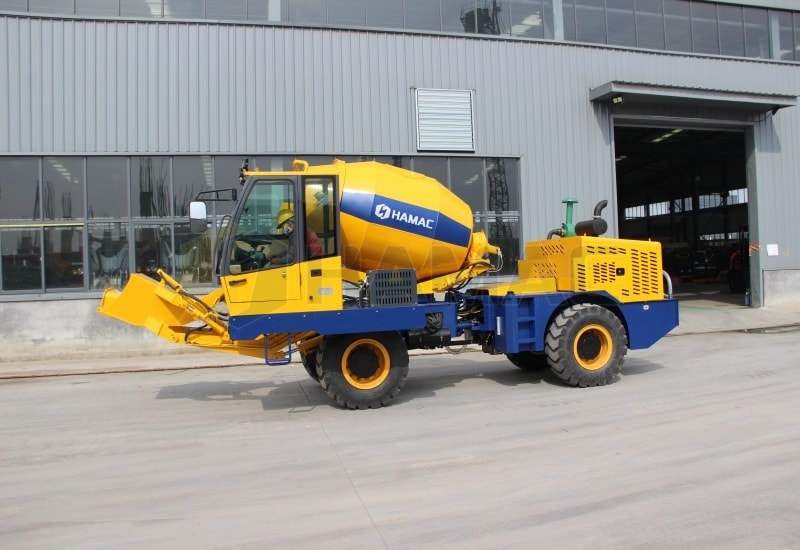

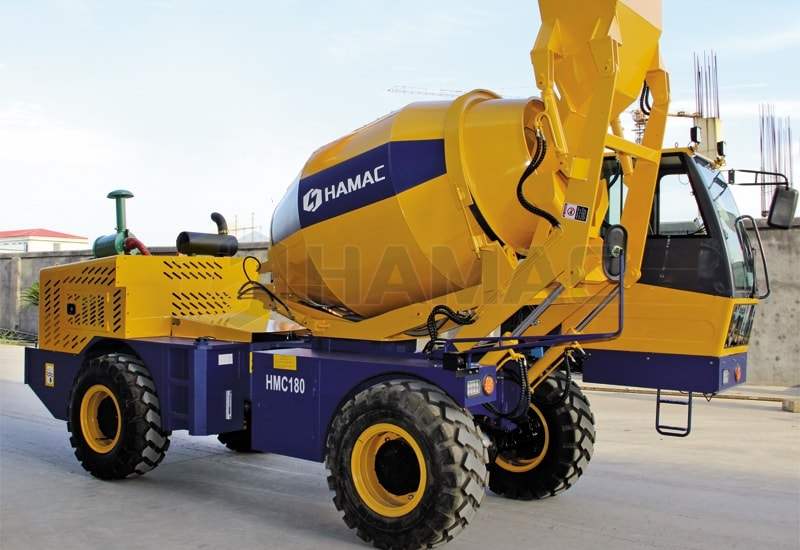

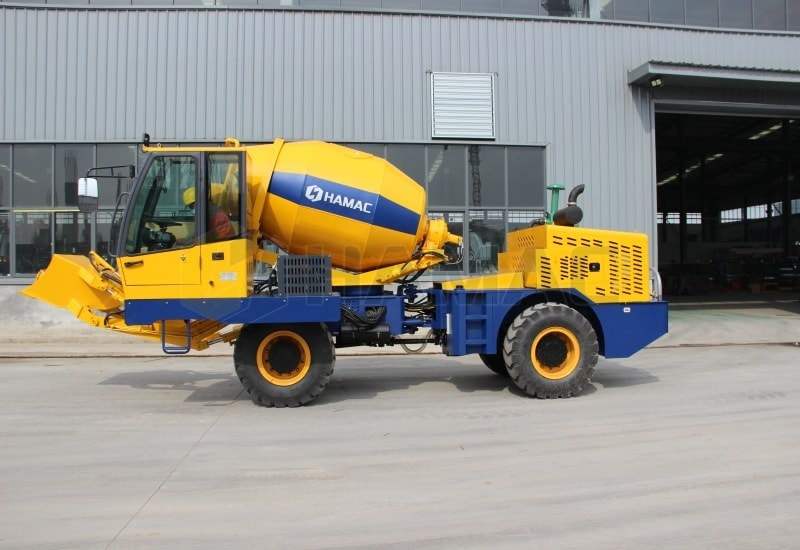

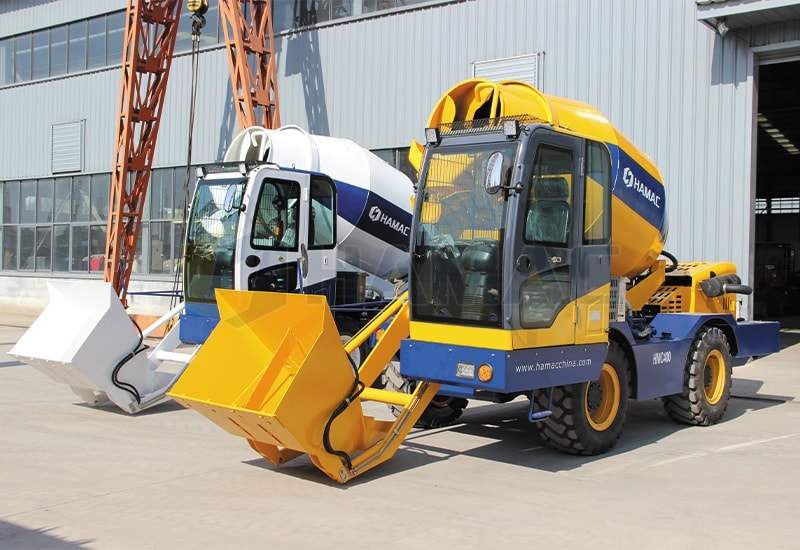

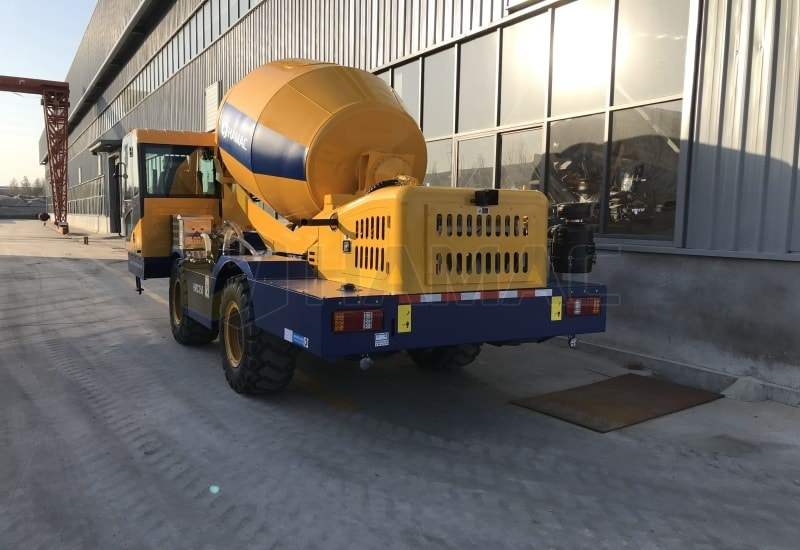

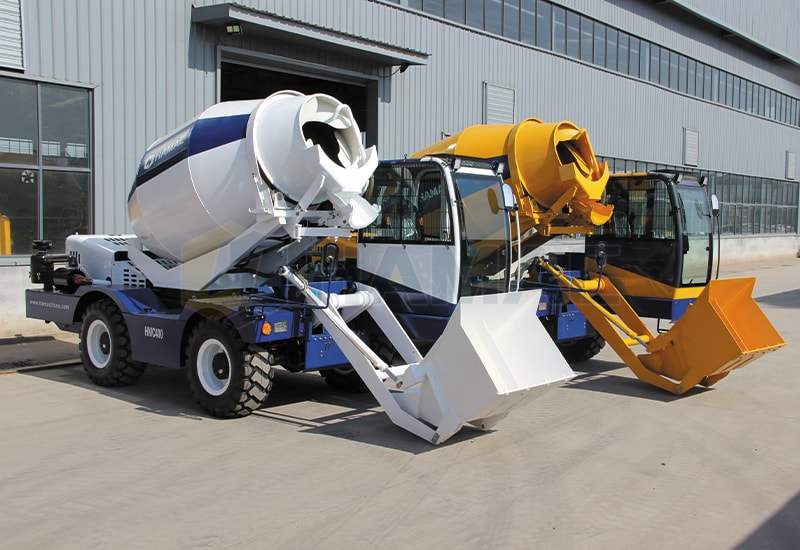

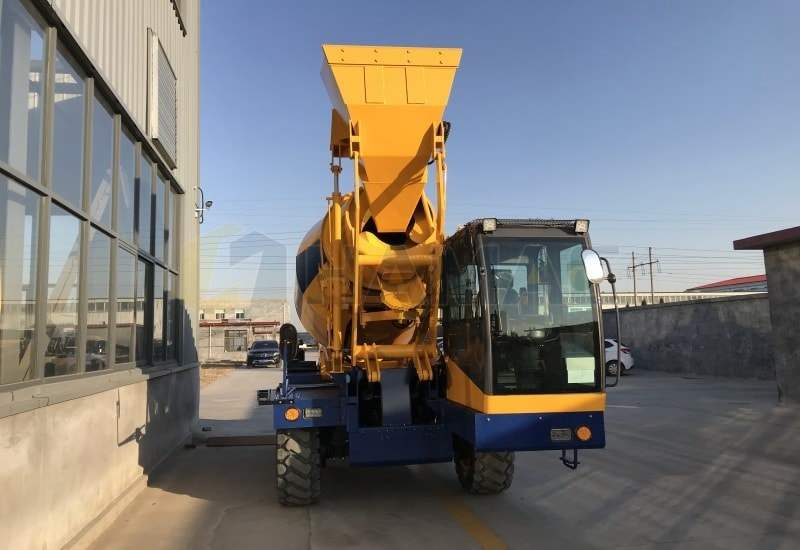

Detailed Photos

FEEDBACK

Performance

SCOPE OF APPLICATION

1. House and workshop in remote areas;
2. concrete road;
3. Water canal;
4. Infrastructure in remote areas;
5. Reservoir dam project

Advantages:

1. It combines loading, mixing, transit and discharging;
2. Famous brand engine, YUCHAI and CUMMINS as options;
3. An electronic weighting system and printer is available, The weighing scales monitor is at the operator's convenience to certify 100% quality concrete is produced.
4. Water pump has the ability to draw water from any water source available (ponds, Lakes, rivers, water containers, etc.) to its water tank. From its tank, the water is pumped through the flow meter, making sure the right amount of water is added, to the drum.
5. 270 degree rotation mixing drum, it can discharge the concrete in different directions;
6. Equipped with famous brand hydraulic system for stable work performance;
7. 4*4 drive mode, it is suitable for different rough working conditions;
8. Equipped with washing system, you can make the machine clean immediately after finishing working;
9. Well-decorated cabin for driver, equipped with air conditioner; more comfortable;
10. All the functions controlled by joystick and buttons,
11. 4 wheels steering and 2 wheels steering optional;
12. It can be delivered by the container, save cost for sea freight.

Manufacturing Process

Specification

1.8m3 Self-loading concrete mixer Technical Data
No.	Name	Detailed information
1	Mixing system	Drum geometric volume is 2.7 m3. Concrete drum output:1.8m3, Double mixing screws. 13RPM, Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed dependends on the speed of diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for discharging on the four sides of the vehicle.
2	Max. capacity	6m3/h
3	Transmission	Diesel engine drives the torque converter, there is a transmission shaft installed on it to drive the transmission box which will be used to driven the four wheels
	High and low speed	flexible shaft shift gear
4	Running mode	Hydraulic running
5	Joymix	All hydraulic functions of shovel controlled by a single fully servo controlled Joystick.
6	Hand shank	To controll the mixing drum rorate 270°
7	Diesel engine	YUCHAI 4102 Turbo-charged ,78kW (Cummins as option)
8	Hydraulic pump	double gears, 2050/2032
9	Loading shovel	Effective capacity per load 700 liters, complete with hydraulic opening gate.
10	Discharging chute	Slewing and mechanically tilting. Fitted with two pins easily detachable to increase the discharge height.The detachable chute can be unloaded directly through the hopper. 1 chute extension part is provided as standard configuration
11	Water tank	2*200L, The water quantity into the drum is controlled by the electromagnetic flow meter in the cabin;
12	Tanks	Fuel tank: 75L, Hydraulic oil tank: 16L
13	Tyre	Off road industrial type 16/70-20, maximum load: 7000kg, 800kPa
14	Weighing system	Electronic system,“Load cells” acting on the arm, display and printer in the cab.
15	Servicing brake	vacuum servo brake
16	Parking brake	automatically air-cut brake
17	Water supply system	Electronic system,“Load cells” acting on the arm, display and printer in the cab.
18	Electric system	2×12V--80AH (272A)
19	Overall dimension	Legnth: 7300mm; Width: 2650mm;Height: 3750mm；
20	Running speed	Legnth: 7300mm; Width: 2650mm;Height: 3750mm；
21	Min. Turning radius	5270mm
22	Weight	5700kgs

Tags: self loading pan mixer ready mixed concrete truck portable cement mixers concrete agitators 38m Truck Mounted Concrete Boom Pump Mobile Concrete Batching Plant in Juba renault concrete mixer trucks

Global Cases of HMC180 Self-loading Concrete Mixer
