European Tech.Twin shaft Concrete Mixer
INTRODUCTION
HTS series concrete mixer absorbs the European advanced technology and has unique performance of European mixer. It is a good plant to instead the exported same type mixers. The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.
Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump - Get quote or inquiry!
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

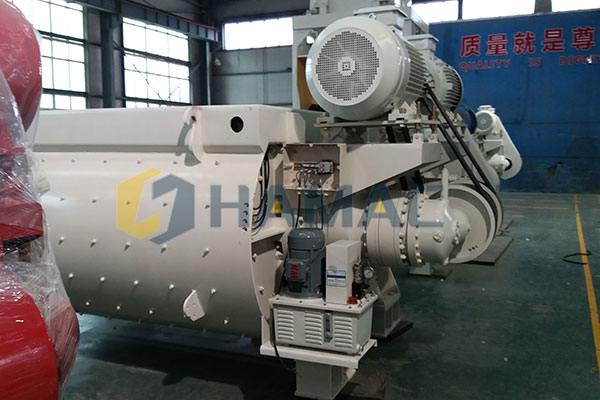

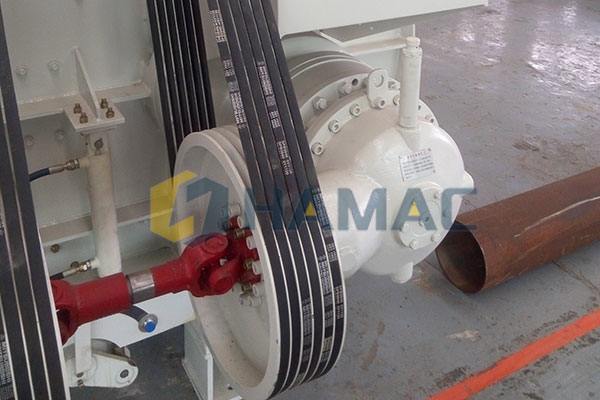

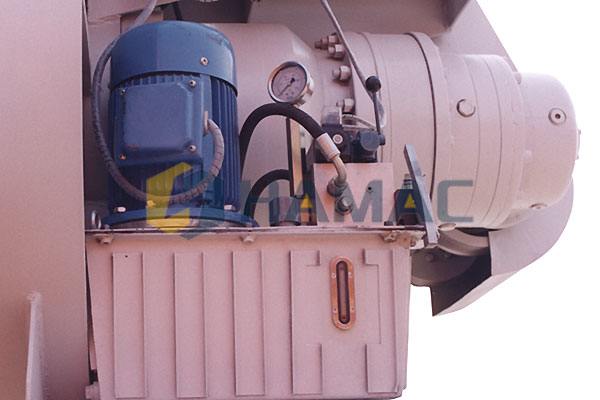

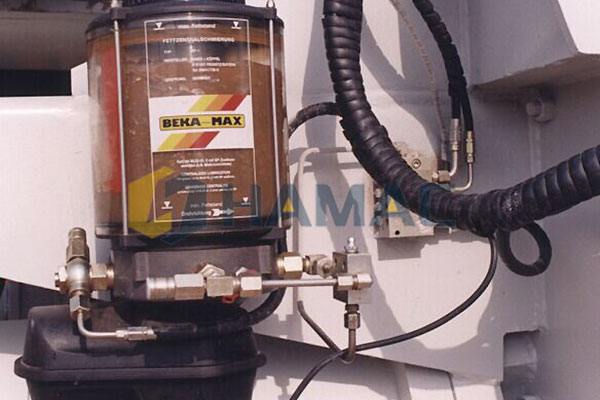

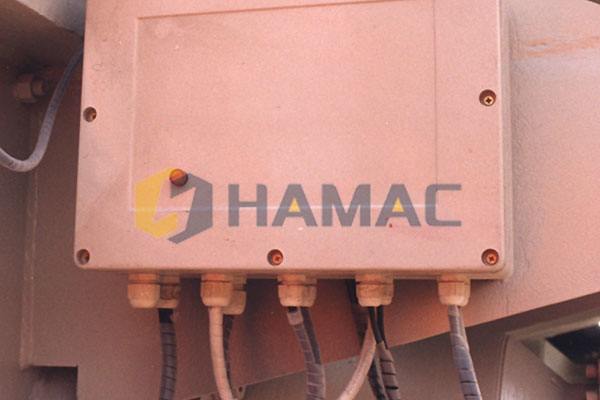

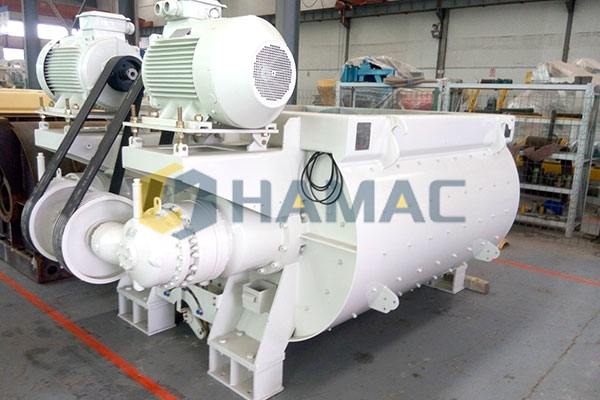

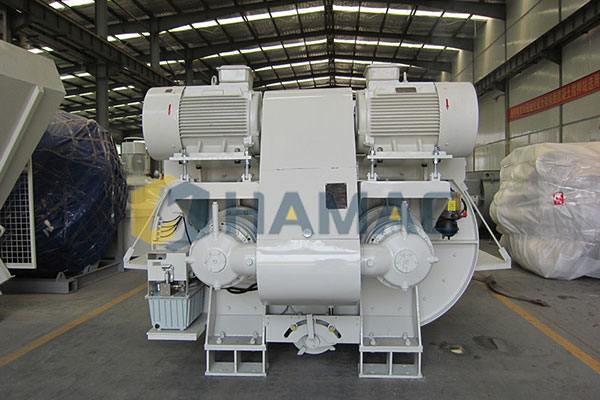

Detailed Photos
Performance
1. The structure of the mixer is designed compactly, and all parts are fixed on the mixing tank, which can save space and be installed and replaced easily;
2. Combined double floating seal and unique seal with high pressure grease, this configuration can expand useful life;
3. The mixing arm is streamline in axial and in radial direction which ensures fast mixing speed and can reach to the homogeneity quickly. Meanwhile, the unique designed structure can improve the utilization rate of cement;
4. Scaled board and paddle are made of manganese steel, which extends the useful life greatly;
5. High pressure cleaning device, consistence probe are optional.

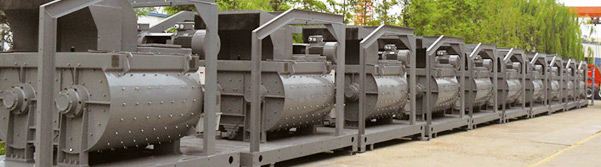

Manufacturing Process
Specification
| Model | HTS1000 | HTS/1500 | HTS2000 | HTS3000 | HTS4000 |
| Feeding volume (L) | 1500 | 2250 | 3000 | 4500 | 6000 |
| Compacted concrete. Per batch (L) | 1000 | 1500 | 2000 | 3000 | 4000 |
| Power (kw) | 37 | 2x30 | 2x37 | 2x55 | 2x75 |
| Weight(kg) | 5500 | 6500 | 7600 | 9800 | 13000 |
