M series Wheeled Skid Steer Loader

INTRODUCTION

M series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.

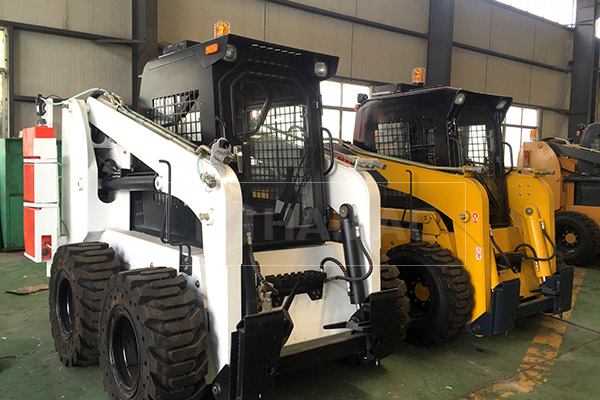

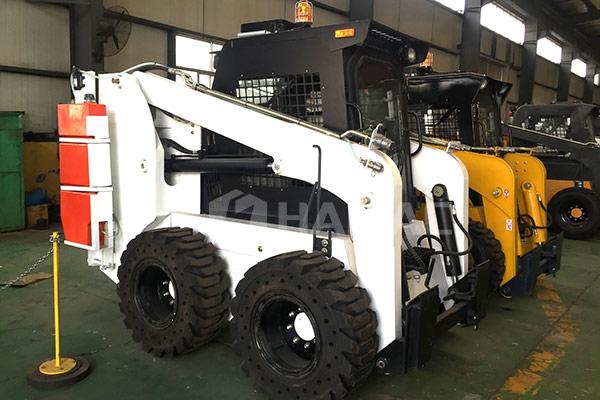

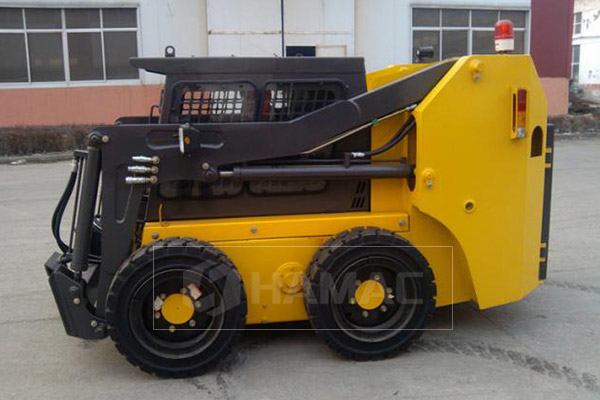

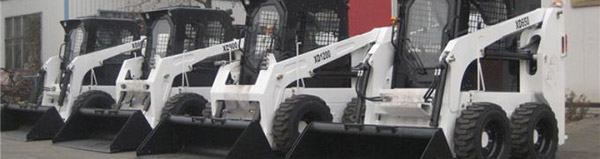

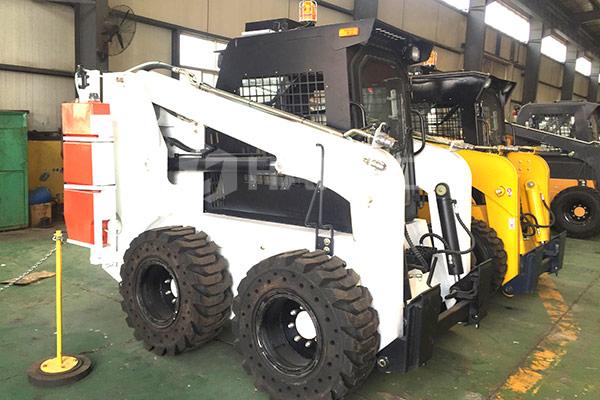

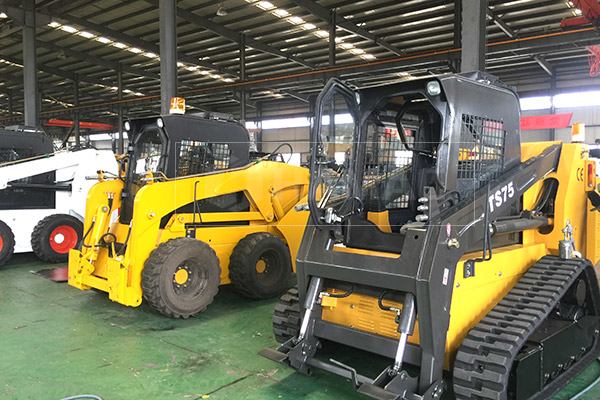

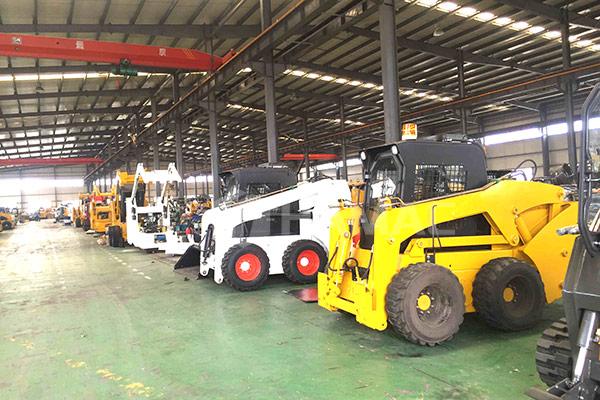

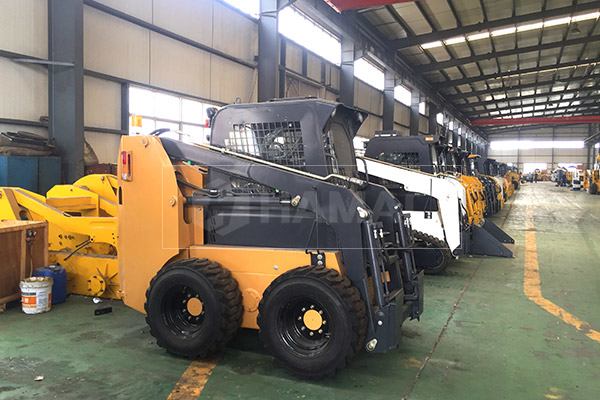

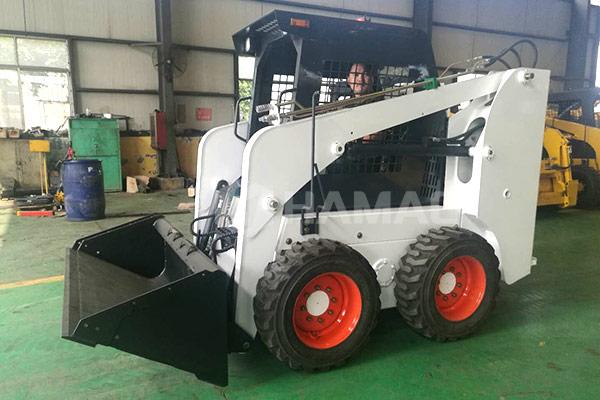

Detailed Photos

FEEDBACK

Performance

1. It is compact designed. The small width makes it highly trafficable. The manipulator arm has viable amplitude ensuring the strong loading capacity on the condition of small width.
2. It has the smallest width among all the skid steer loaders. For special working condition, our company improves the super short product and the height is now as short as 1.4 meters.
3. All the hydraulic parts are European and American products. The operation is pilot servo system which controls sensitively and responses rapidly. M Series product is the best choice for working in narrow space.

Skid Steer Loader Attachments

Skid steer loader attachments offers an extensive, ever-growing line of high-quality skid steer attachments for construction and farming equipment.

Combination Bucket

Pallet Forks

Dozer Blade Grader Leveler

Snow Pusher

Grapple Bucket

Grapple Rake

Bale Squeeze

Grapple Rock Bucket

Hay Spear

Mixer

Digging Backhoe

Utility Digging Backhoe

Pick Up Broom

Tree Spade

Get all the Skid Steer Loader Attachments

From drive units to fully accessorized bundles, Skid Steer Solutions has all your skid steer auger needs covered. Have a look at each of our auger options today and be amazed at everything a skid steer auger attachment can do for you.

Specification

Model	HC25M	HC30M	HC35M	HC45M	HC60M	HC65M
Operating Load (kg)	300	450	500	700	850	950
Max. Speed (km/h)	9	10	10	12	12	12
Hydraulic flow (L/min)	37	50	60	62.5	75	75
Tire Model	23X8.5-15	27X8.5-15	8.5-15	10-16.5	12-16.5	12-16.5
Rated Power (kW)	18.4	22	29.5	37	45	55
Fuel tank Volume (L)	25	45	60	70	70	80
Self Weight (kg)	1500	2000	2300	2700	2800	3000
Bucket Volume (m³）	0.2	0.3	0.3	0.4	0.4	0.5

Structure Data:

Main data/ Model	HC25M	HC30M	HC35M	HC45M	HC60M	HC65M
Overall operating height (mm)	3126	3430	3300	3980	4130	4130
Height to bucket hinge pin (mm)	2399	2633	2725	3080	3130	3130
height to top of cab (mm)	1813	1878	2000	2120	2170	2170
Height to bottom of level bucket(mm)	2399	2663	2558	2200	2250	2250
Overall length without bucket(mm)	1918	2262	2300	2710	2810	2810
overall length with bucket(mm)	2560	2929	2950	3490	3595	3595
Dumping angle at maximum height(° )	36	43	40	40	40	40
Dumping height(mm)	1882	1971	2050	2380	2400	2400
Dumping reach(mm)	458	477	790	750	750	750
Rollback o bucket on ground(° )	24	26	30	30	30	30
Rollback of bucket at full height(° )	97	95	104	105	105	105
Wheelbase(mm)	722	818	897	991	991	1080
Ground clearance(mm)	148	167	140	185	210	210
Angle of departure(° )	28	25	20	20	20	20
Front turning radius without bucket(mm)	971	1135	1098	1168	1198	1204
Front tuning radius(mm)	1557	1819	1760	1550	1550	1550
Rear tuning radius(mm)	1146	1339	1296	1350	1450	1450
Rear axle to bumper (mm)	738	967	964	1108	1208	1082
Tread width, centerline to centerline (mm)	747	967	1080	1450	1500	1500
Width (mm)	900	1182	1350	1580	1682	1682
Bucket width (mm)	914	1267	1400	1680	1700	1700
