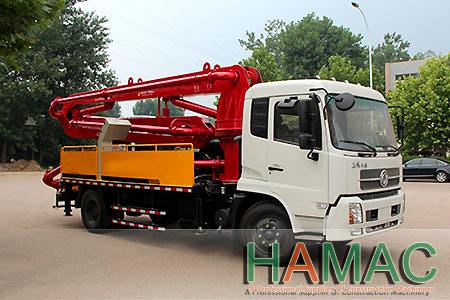

HMC5021 Truck Concrete Pump Boom

Chassis and power system:
Chassis adopts FAW, FOTON, DONG FENG chassis, strong carrying capacity, good dynamic performance and low fuel consumption. Clients can choose the separate power or chassis power.

Pumping hydraulic system:
Overall hydraulic control system and oil pressure signals make operation more simple and reliable, improve the swing cylinder reversing speed and reduce the reversing impact. At the same time, the large oil cylinder reversing moment action could be accelerated and the concrete cylinder would be fully filled, making concrete output continuous and smooth.

Hydraulic system of jib structure and support legs:
Arms with load sensing proportion control system ensure the arm running freely and excellent operating performance. Electro-hydraulic and manual multiple valves ensure wireless remote control and manual control in case of emergency. Oil line of support leg and Jib structure can directly switch, avoid wrong operation ensure the safety construction of the concrete pump truck.

Jib structure system:
Jib structure system is based on the finite element analysis, dynamic analysis and test, and the accurate data support. High strength low alloy steel plate, all materials and welding line by 100% non-destructive technology ensure the jib structure reasonable and highly reliable.

Remark:
Optional upper engineering diesel engine: YUCHAI, COMMINS, LOVOL.

Item		Unit	Parameter
Pumping System	Model		HMC5021 Truck Concrete Pump Boom
	Max. Output	m³/h	50
	Max. outlet pressure (H/L pressure)	Mpa	13/7.6
	Rated working pressure	Mpa	31.5
	Pumping frequency (H/L pressure)	times/min	14/23
	Hopper capacity	m3	0.65
	Feeding height	mm	1500
	Hydraulic system type		Open circuit
	The type of distribution valve		S VALVE
	Oil cylinder diameter	mm	DN125
	Concrete cylinder diameter	mm	DN200
	Cooling type of hydraulic oil		Fan cooling
Jib Structure System	Max. placing height	m	21
	Rotary angle	°	365
	Arm foldable angle	°	90/180/360
	Arms section quantity	section	3
Chassis and Vehicle	Chassis model		Dongfeng
	Wheelbase	mm	4700
	Power of engine	kw	132
	Rated speed of engine	rpm	2200
	Emission standard		National IV
	Total weight of vehicle	kg	14500
	Overall dimension of vehicle (L*W*H)	mm	9450×2500×3500
Others parameter	Hydraulic oil hopper capacity	L	300
	Water tank capacity	L	300
	Lubricating mode		Centralized automatic
	Control mode		Manual and Remote control
