HMC250 Self-loading Concrete Mixer

HMC250 Self-loading Concrete Mixer video

INTRODUCTION

HMC250 Self-loading mobile concrete mixer is equipment combined with concrete mixer truck and concrete mixing station. Raw material loading, weighting, mixing and discharging all rolled into one machine. It could be used not only to transport the concrete but also to produce the concrete at site. It is suitable for the working area where is far from the concrete batching plant and some short-time finished projects.


inquiry! Leave a Message!

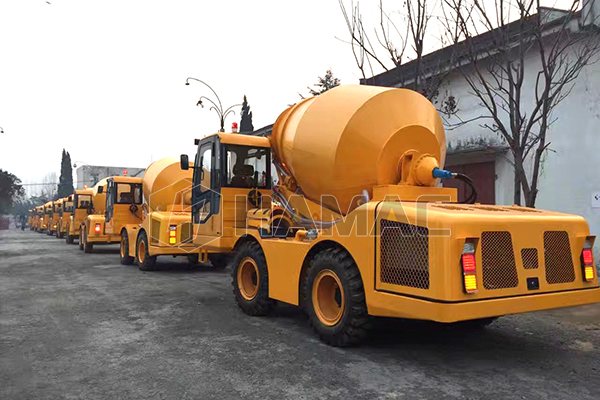

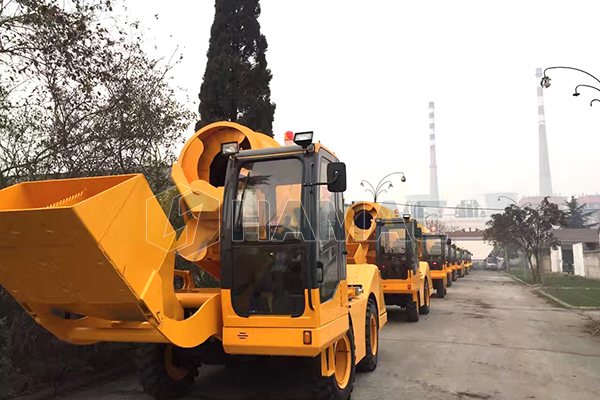

Detailed Photos

Specification

HMC250 Self-loading Concrete Mixer
Name Item Specification
  Net 6200 KG
Transmission Full Hydraulic
4 wheel drive
Brake Air Brake
Chassis Off-road
Tread 1800mm
Wheelbase 1500mm
Loader bucket capacity 0.55m3
Control Hydraulic
Tilt angle 30%
Speed High 0-25KM/H
Low 0-8KM/H
Mini turning radius 6400mm
Tyre model 16/70-20
Engine Type YUNEI / YN38GBZ
Rated Power/RPM 76KW/2400RPM
Max. Torque/RPM 410N.M/2400RPM
Cylinder 4
Starter Electric
Cooling type water cooling
Maxing Drum Geometric capacity 4.6M3
Capacity 2.5m3
Bank Angle 16 °
Rotation Angle 270°
Chute Swing Angle ≥60°
Angle control Hydraulic
Size Long:2210m
Short:430m
Loader Weighing model computer control
Concrete Standard C15.C20.C25 C30
Accuracy Cement ≤±2%/time
Relative  Error ≤±3%/time
water ≤±1%/time
Additive ≤±1%/time
Admixture ≤±2%/time
Loader control Hydraulic 4 way stick
Over size 6700*2300*2950mm

Note: products are updated constantly, any data discrepancy, refer to the actual product.
