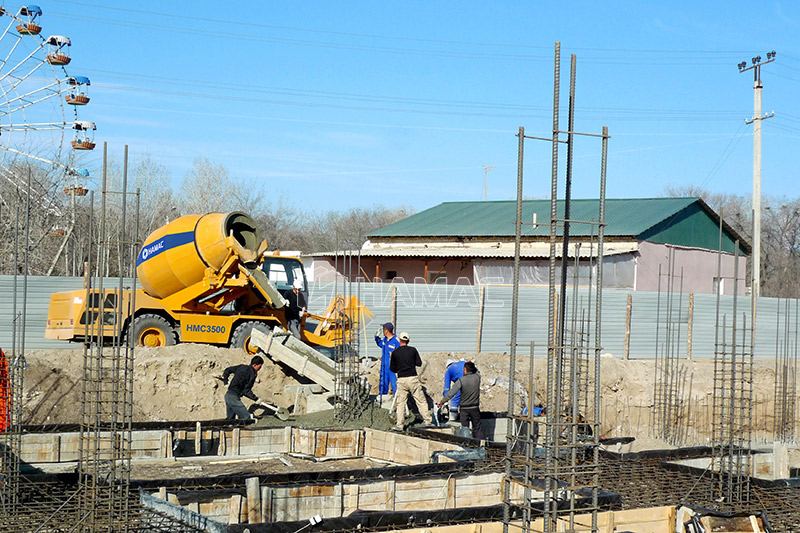

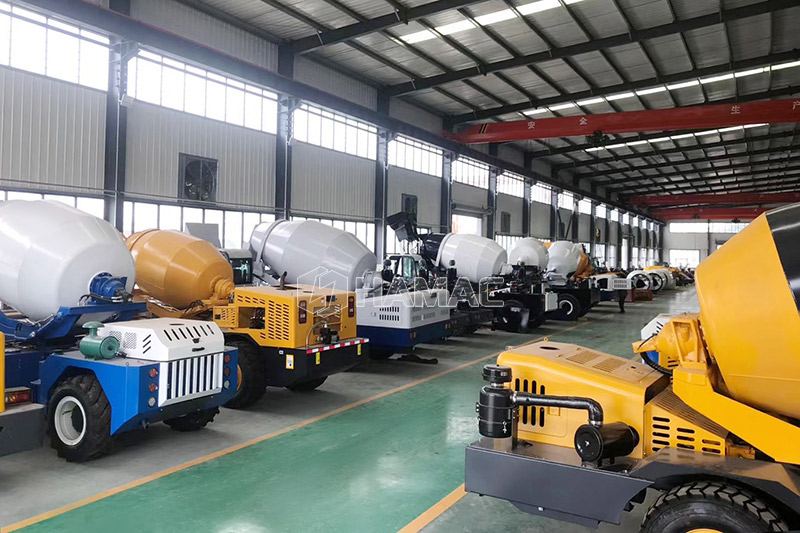

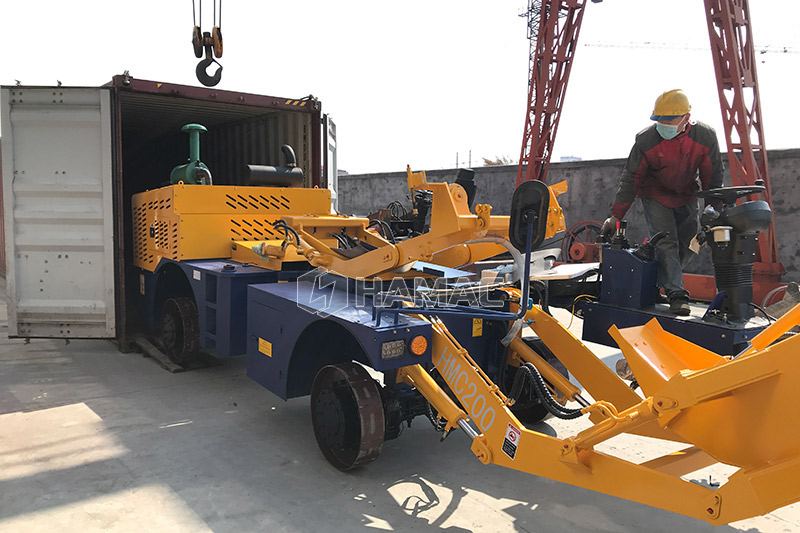

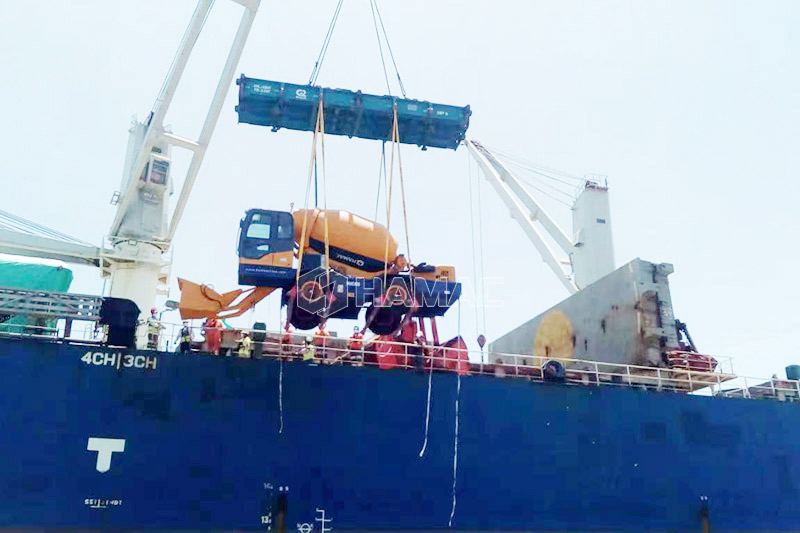

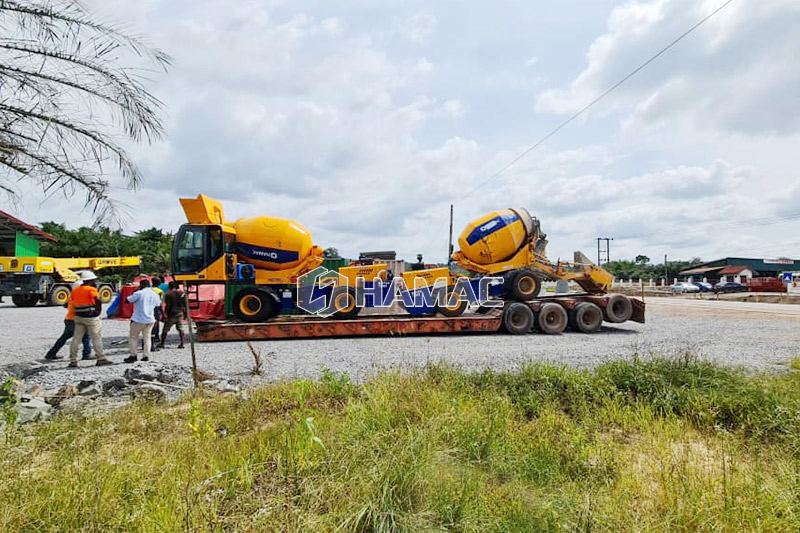

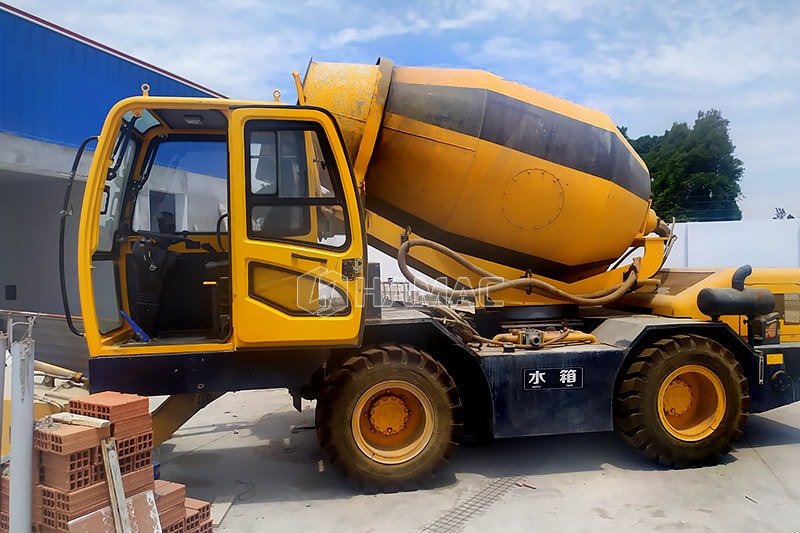

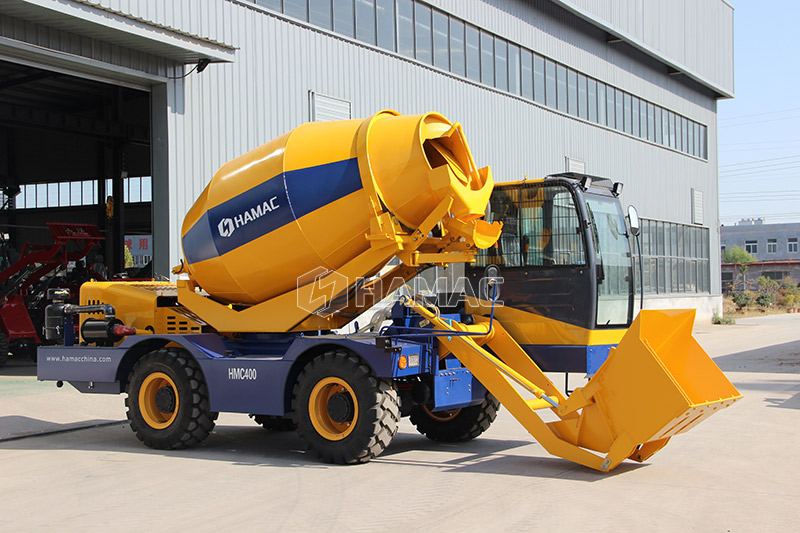

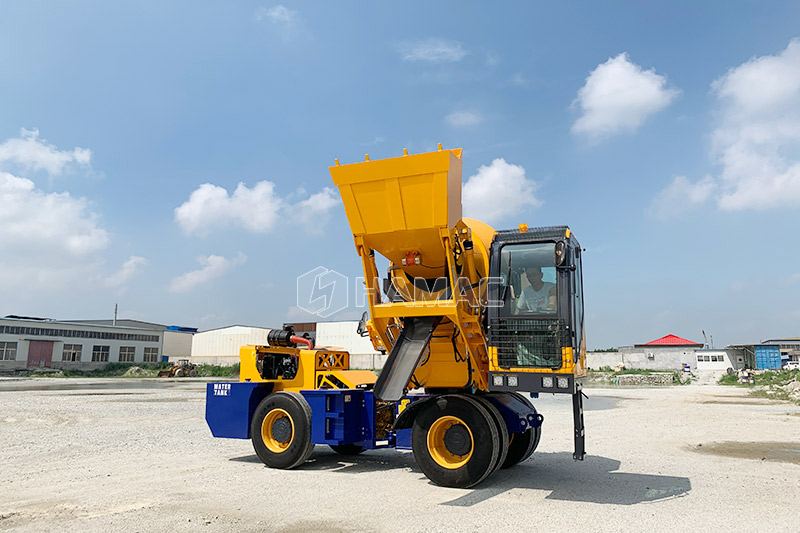

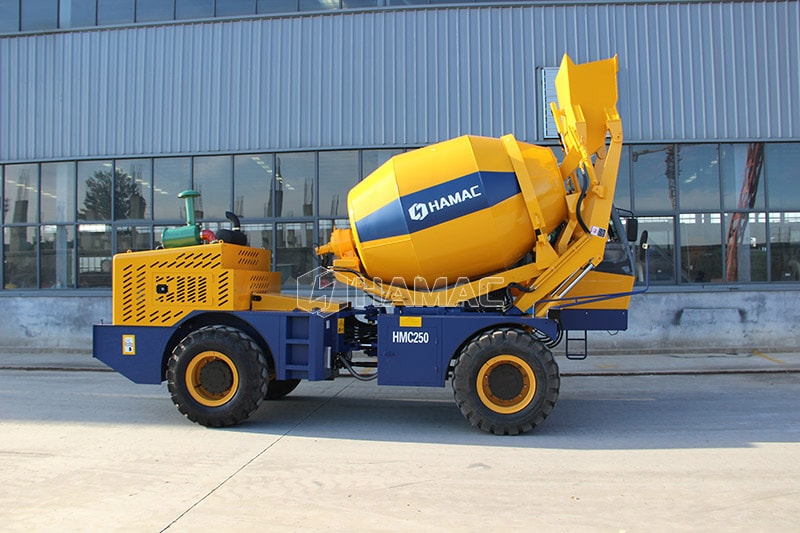

Detailed Photos

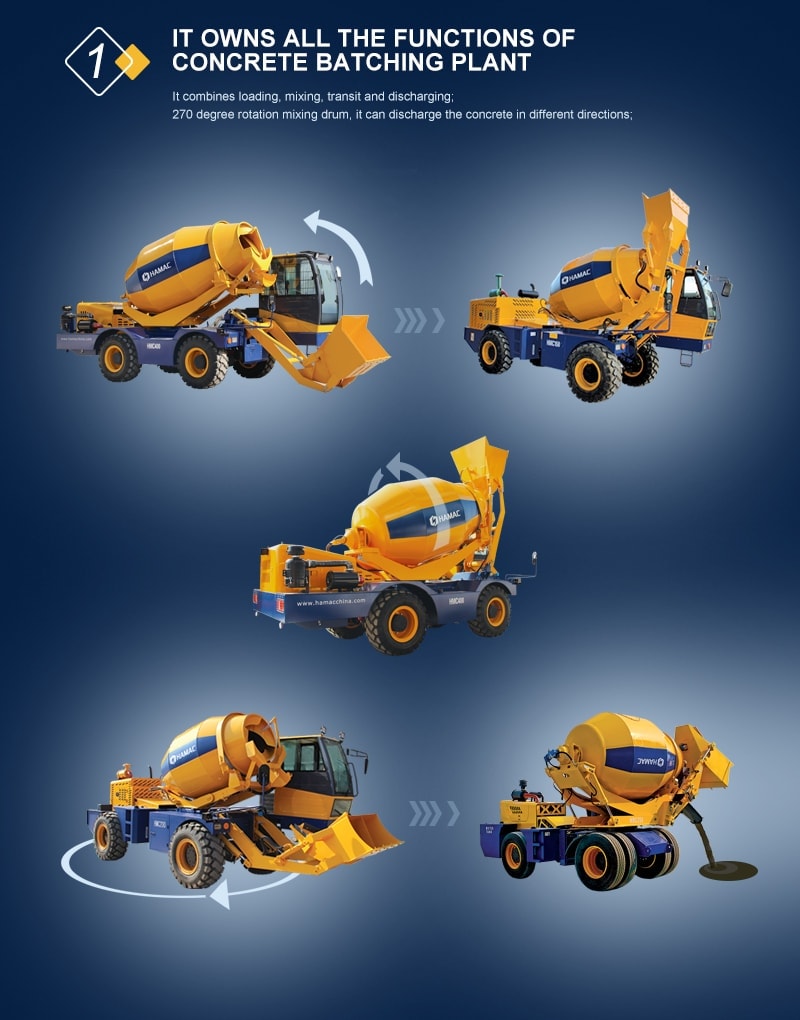

Performance

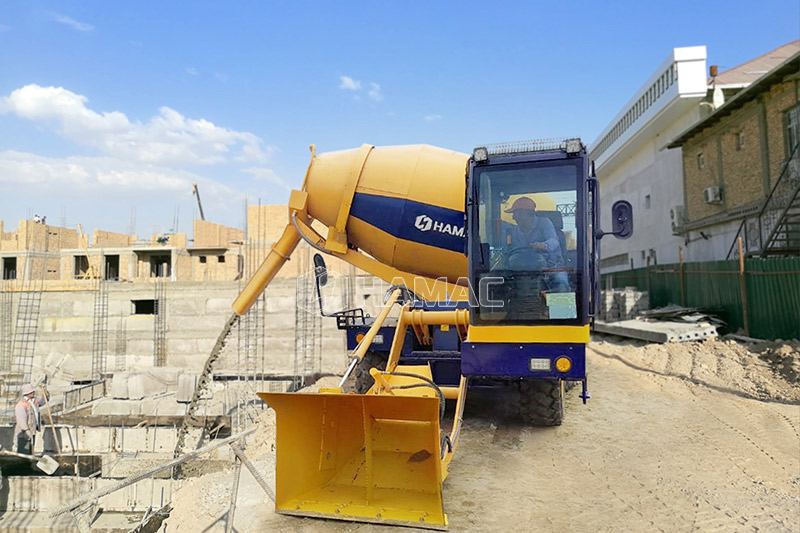

Load: Because of the specially designed hinge type hydraulic shovel, this mixer can load the material easily and accurately. There is a blade in the shovel so that the cement bag can be cut automatically to avoid the waste of cement. All the ingredient can be fed into the mixing barrel from the top of shovel;
Mixing : After the aggregate and cement are fed into the mixing barrel, they will be mixed with the pressed water from the double water tanks which are on the truck. The specially designed double screw to confirm the quality of concrete (if required, we can equip the electronic weighing system)
Transport: This mixer is fit for any working site because of its 4 wheel hydraulic drive system and favorable configuration. It can crawl on the 30 degree slope at a full load situation;

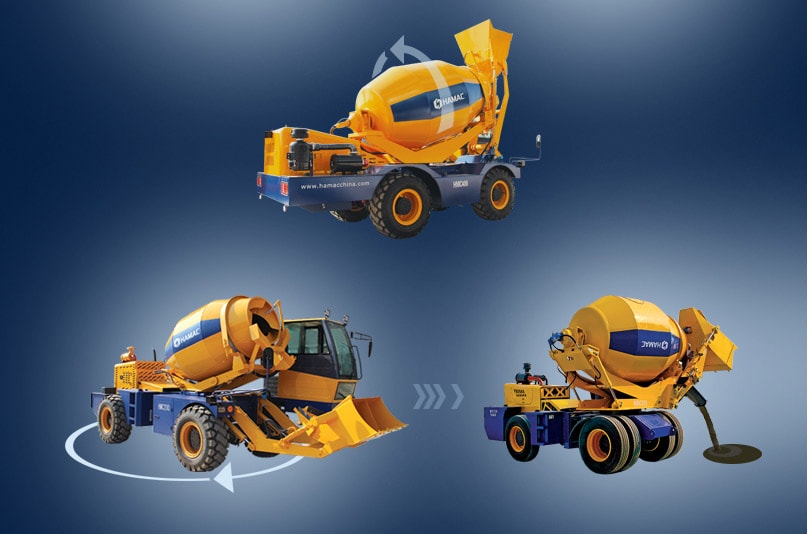

Discharging: Adopt the revolutionary solution. The operator can control the mixing barrel at a 300 degree rotation so that it can discharge the concrete at a 2 meters height, 4 directions.
Operation: There is a well appointed cab. The driver can operate almost all the actions through a handle shank.
Safety: This mixer equipped with ROPS-FOPS system to provide the driver with comprehensive safeguard.
Specification
Model | Capacity of one batch (m3) | Batches per hour | Angle Of Drum Rotation (degree) | Drive Way | Power supply |
HMC100 | 1 | 4 | 270 | Full Hydraulic, Four-Wheels Drive | Diesel engine |
HMC120 | 1.2 | 4 | 270 | Full Hydraulic, Four-Wheels Drive | Diesel engine |
HMC150 | 1.6 | 4 | 270 | Full Hydraulic, Four-Wheels Drive | Diesel engine |

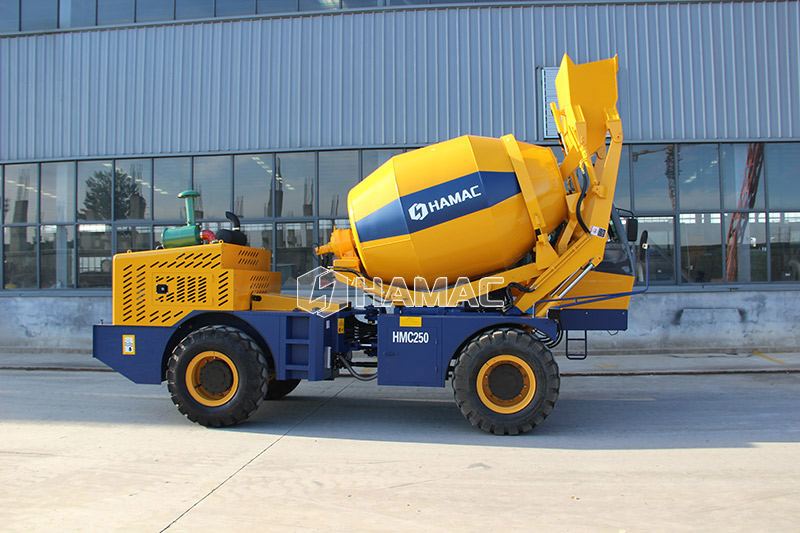

HMC250 | 2.5 | 4 | 270 | Full Hydraulic, Four-Wheels Drive | Diesel engine |
HMC350A | 3.5/3 | 4 | 270 | Full Hydraulic, Four-Wheels Drive | Diesel engine |
HMC350B | 3.5/3 | 4 | 270 | Full Hydraulic, Four-Wheels Drive | Diesel engine |

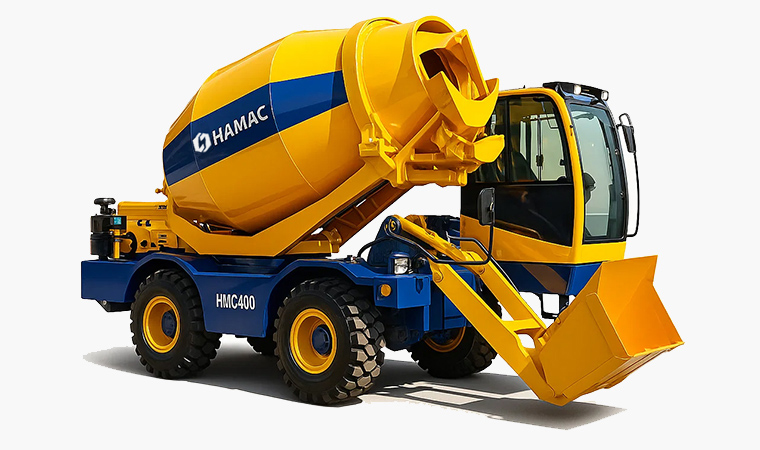

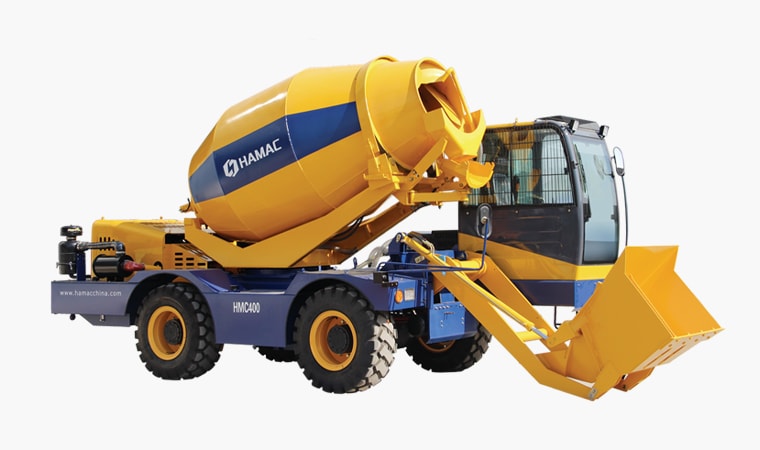

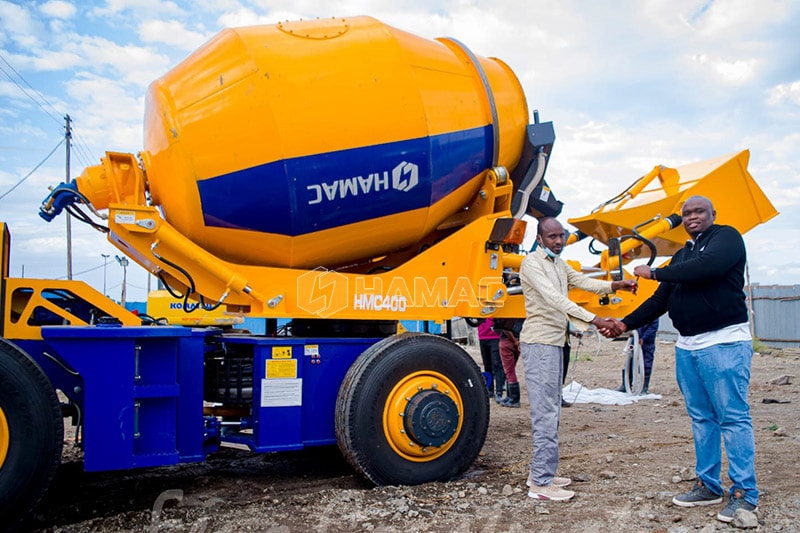

HMC400 | 4.0 | 4 | 270 | Full Hydraulic, Four-Wheels Drive | Diesel engine |
Note: Our products are being updated constantly, all rights reserved by HAMAC.

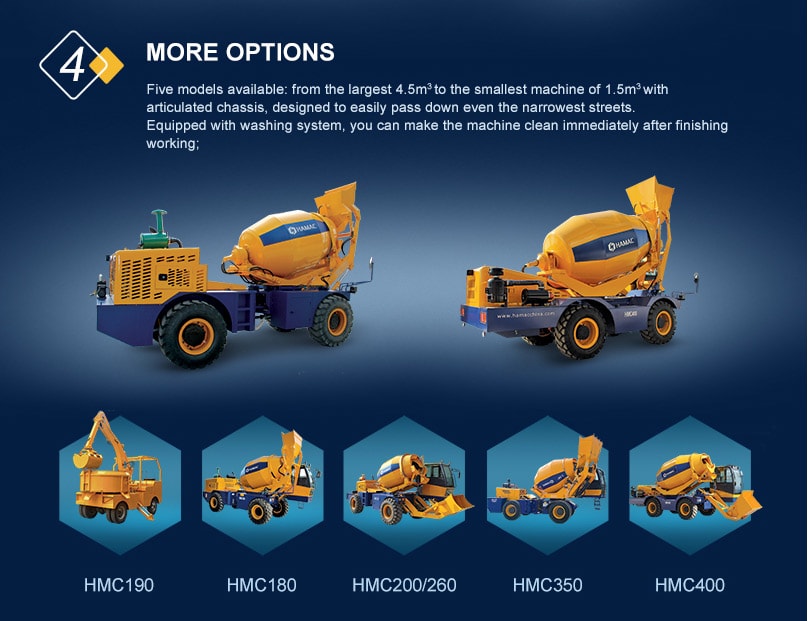

Model of Self-loading Mixers
