Concrete Line Pump

Concrete Line Pump Multiple models for selection, can be customized according to customer requirements
A more advanced pumping equipment than trailer concrete pump

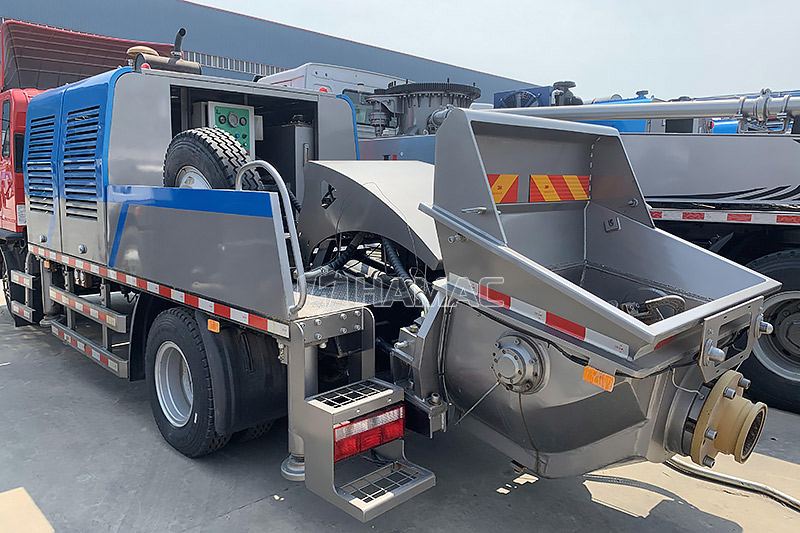

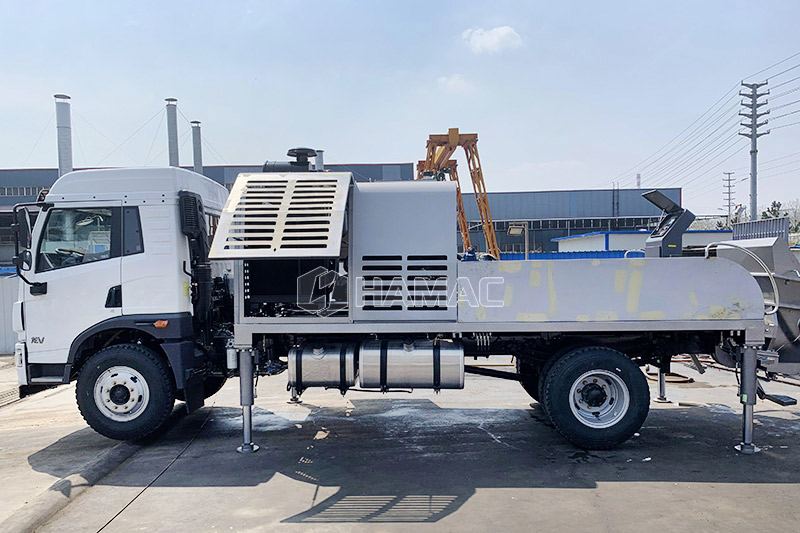

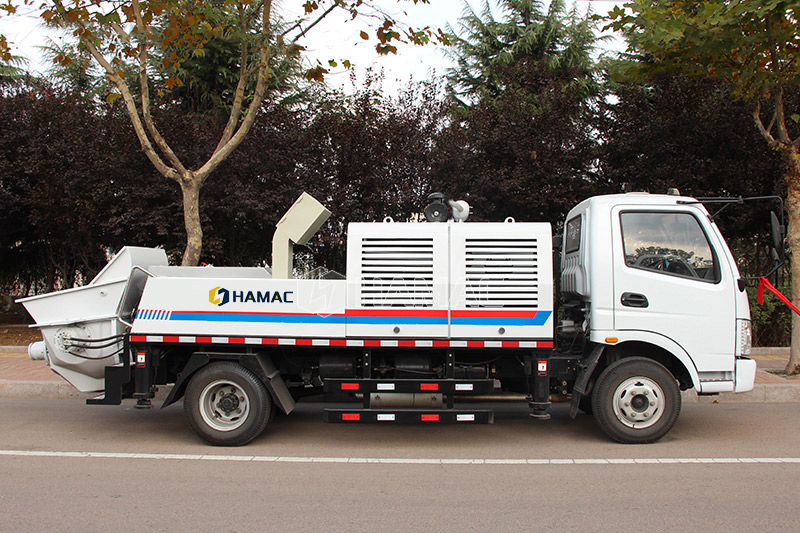

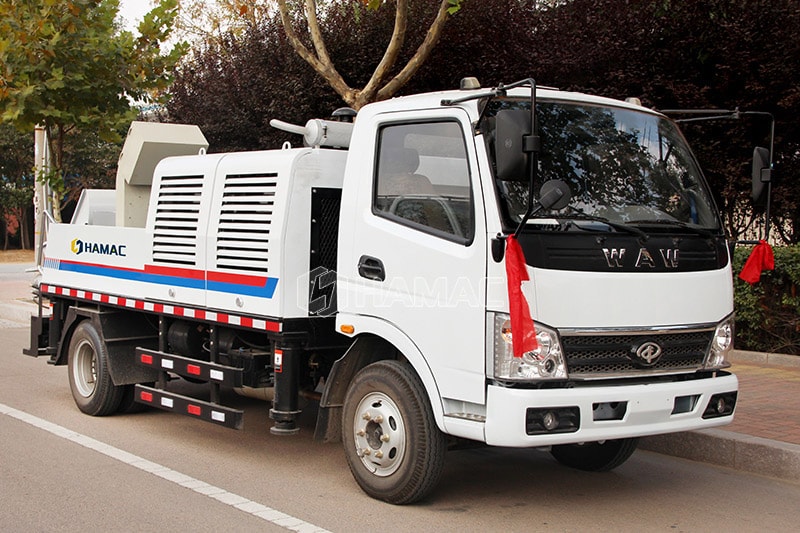

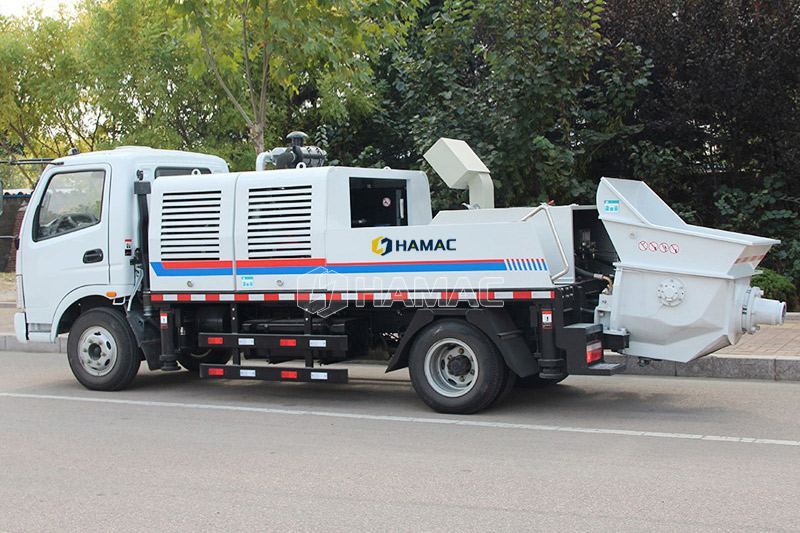

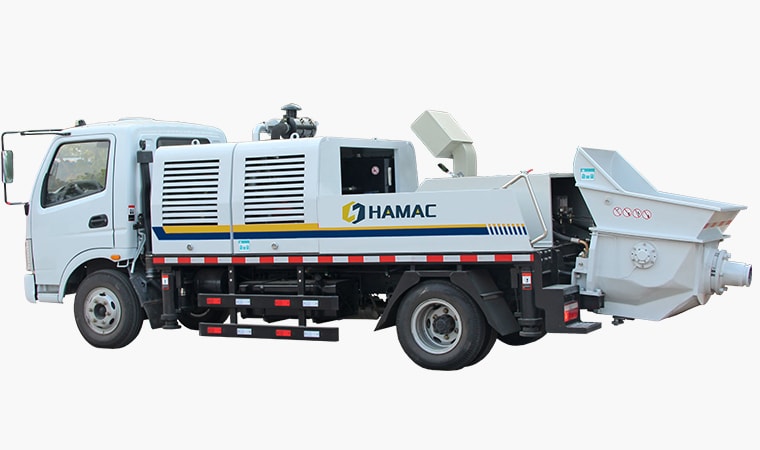

This type of concrete pump is mounted on a truck, and it is commonly referred to as a line pump or truck-mounted concrete pump. It can move to different jobsites by itself, not like a trailer concrete pump, there must be a device to tow it. For this truck-mounted concrete pump, it can move by itself. It is faster and more convenient than the trailer concrete pump.

  • 50-100m3/h as options
  • Famous brand hydraulic parts
  • 22MPa outlet pressure
  • introduction
  • Technical parameters
  • gallery
Related Product
Related Cases

The truck-mounted concrete pump integrates the advantages of trailer concrete pump and truck-mounted concrete boom pump. It is more flexible than the trailer concrete pump, and does not need to be transported, loaded and unloaded, installed and fixed. The equipment is suitable for small batches, multiple construction sites, narrow construction sites and ready-to-go conditions.

Advantages

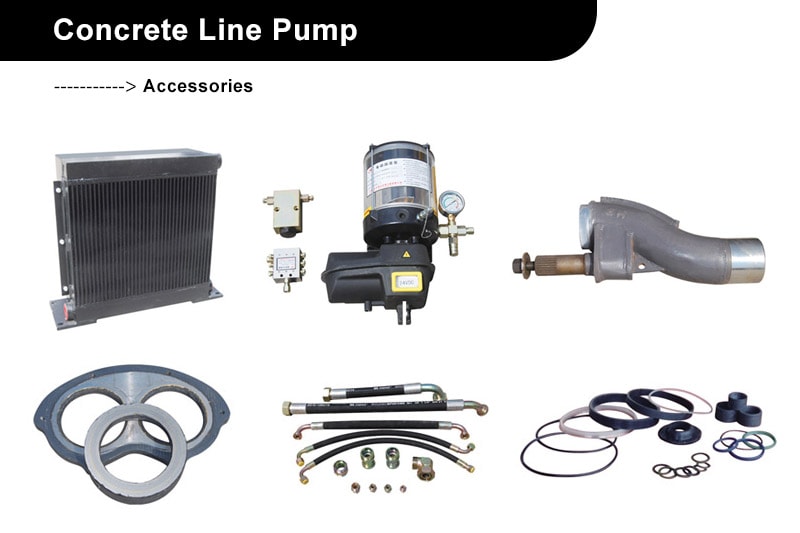

  • Power system: Using Volvo/Deutz and Lovol diesel engines;
  • Main oil pump: Germany Harvey/Rexroth/Japan Kawasaki series. The variable plunger pump is used to ensure the smooth and reliable operation of the system, and the overpressure relief function is provided to effectively protect the main pump and diesel engine.
  • Chassis: HAMAC truck-mounted concrete pump adopts the domestic leading quality FAW chassis, it owns after-sale service in different countries;

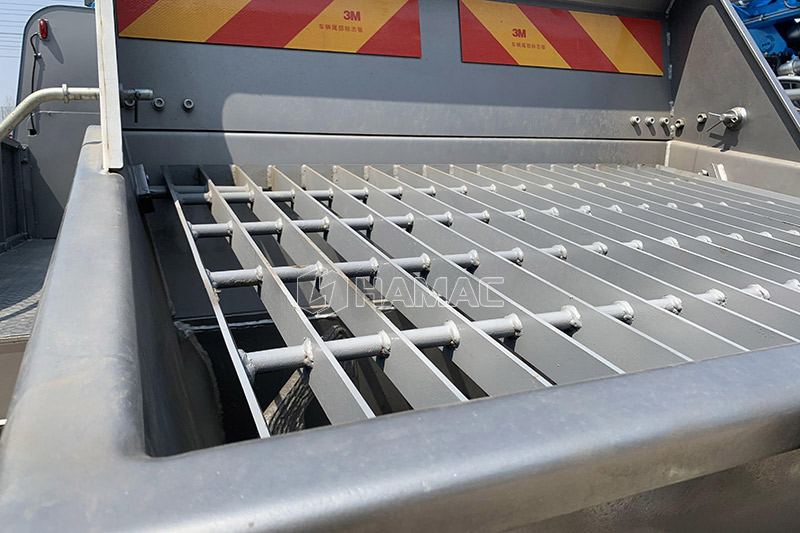

  • High technology for concrete sucking: The optimized inner wall of the hopper is smooth and does not accumulate concrete, with the smooth transition of the S pipe, and the precise blade angle, so that the concrete can be sucked into the concrete cylinder to the maximum extent, improving the material suction efficiency to 90% above.
  • Larger concrete cylinder: The diameter of the conveying cylinder is increased to 230mm, which reduces the number of reciprocating wear of the piston and prolongs the service life of the piston. The large-diameter conveying cylinder is used with the optimized hopper device to maximize the actual efficiency of pumping concrete.
  • High and low pressure automatic switching technology: highly integrated large flow automatic reversing device, the energy loss is the least, the switching between high pressure transmission and low pressure transmission only needs to be easily one-click, no penetration, no pollution.
  • Hydraulic hose joints: The hydraulic hose joints are made of American Eaton products to ensure the safety of the hydraulic system and no leakage.
  • Large oil cylinder seals: The large oil cylinder seals are made of American Parker products.
  • Radiator: The radiator adopts a plate-fin air-cooled radiator to ensure that the system works at the highest temperature allowed.
  • S-pipe valve: The S-pipe valve is made of high-manganese steel as a whole, and the wear-resistant surface is surfacing with anti-wear materials, which has the dual advantages of high pressure resistance and wear resistance.
  • Glasses plate, cutting ring: Glasses plate, cutting ring are made of hard alloy inlay, durable.
  • Piston: The piston is precision machined from imported materials, with excellent quality of hydrolysis resistance, wear resistance and high temperature resistance.
  • In the overall layout, space is reserved for maintenance and replacement, which provides convenience for the maintenance of other components.

Contact us to visit the factory or order products

Leave a message Online chat

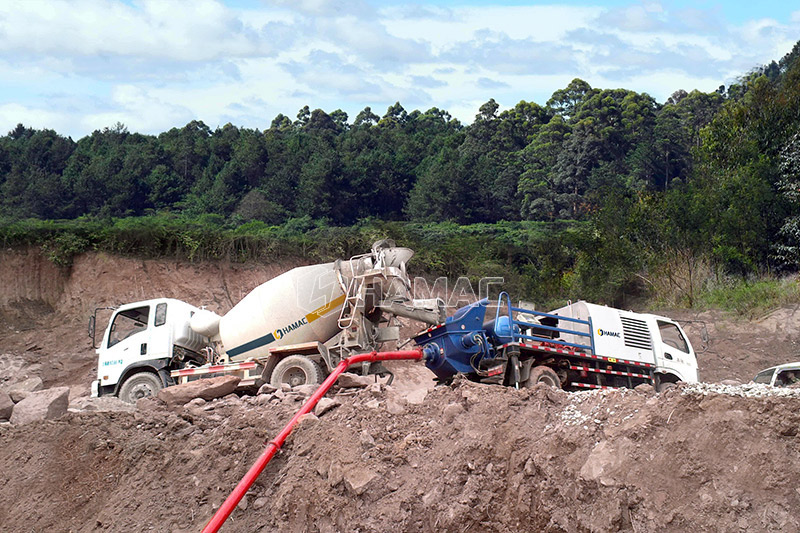

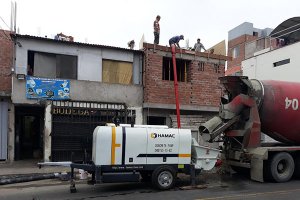

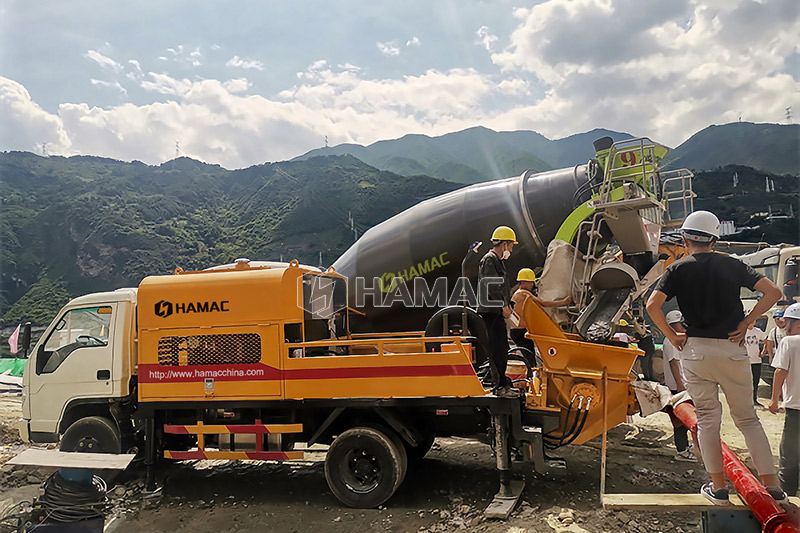

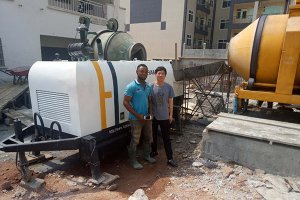

application case

The Concrete Line Pump is widely used for different projects all over the world. HAMAC exported the Concrete Line Pump to different countries and got good comments from our clients.

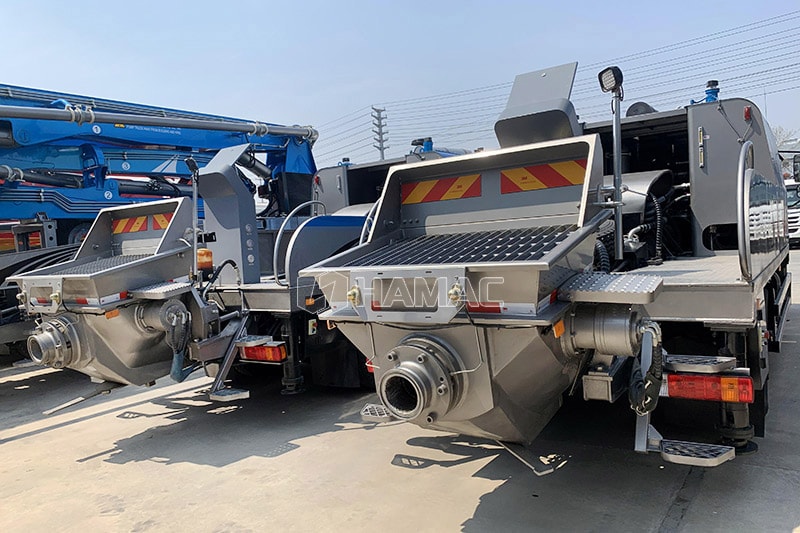

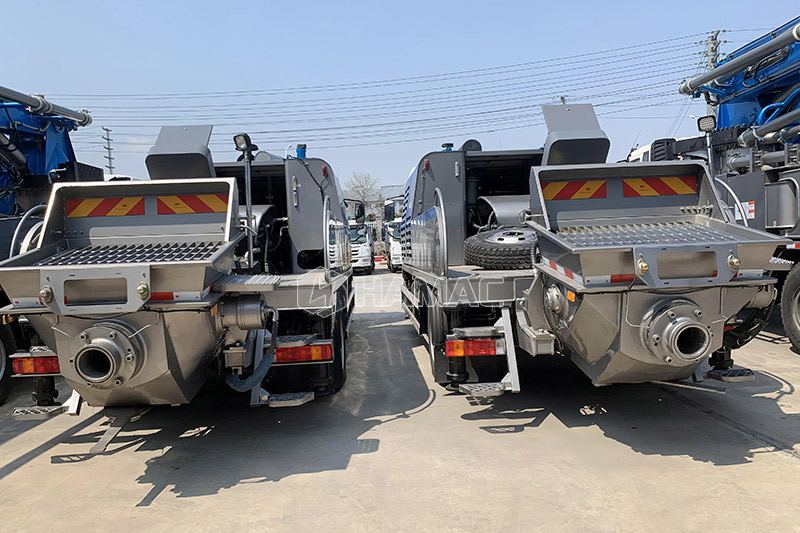

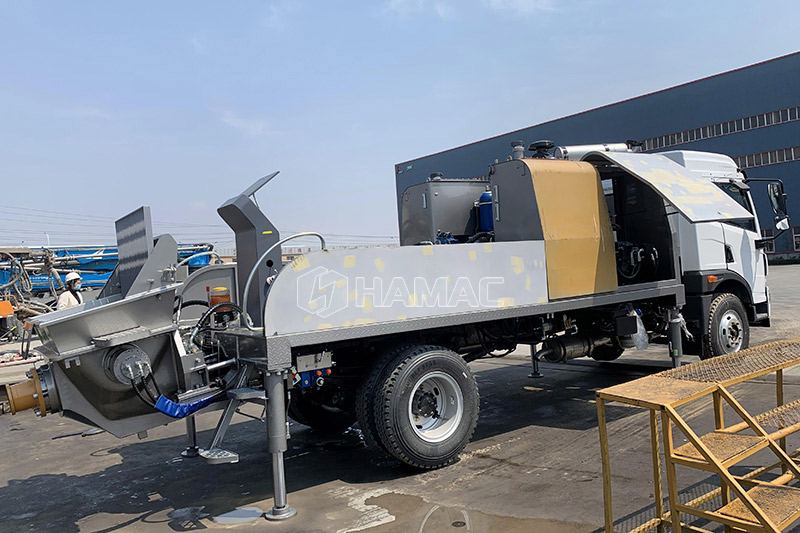

Goods Delivery

Based on good quality and decades of experience, the Concrete Line Pump which is manufactured by HAMAC was exported to different countries. The Concrete Line Pump will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

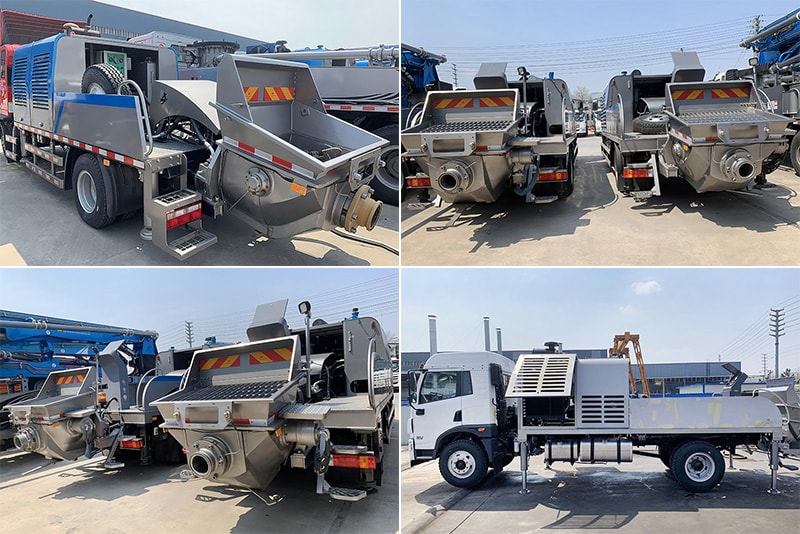

Concrete Line Pump shipping pictures
ITEM UNIT SPECIFICATION
Model   HMC5141THB
Driving System Chassis Brand   FOTON DAIMLER, Left Drive
Chassis Model   BJ1113VFPHG-RA
Fuel Type   Diesel
Displacement/Power L/KW 6.7/156
Displacement Standard    Euro III
Tyre Model   8.25R20
Axle Base M 5.0
Quantity Of Axles   2
Max. Driving Speed Km/H 90
Front Wheel Base Mm 1900
Back Wheel Base Mm 1800
Min. Turning Radius M 9
Pumping System Brand Of Diesel Engine   DEUTZ Brand
Diesel Engine Model   BF6M1013-25T3R
Diesel Engine Power KW 186
Driving Mode   Hydraulic Driving
Oil Cylinder Inner Diameter × Stroke Mm Ф180×Ф125×1800
Concrete Cylinder Inner Diameter × Stroke Mm Ф230×1800
Oil Pressure Of System MPa 32
Switch Of H-Pressure And L-Pressure   Equipped
Fuel Tank Capacity L 290
Oil Tank Capacity L 600
Cooling Mode Of Hydraulic System   Fan Cooling
Max. Theoretical Capacity M3/H H-Pressure 55
M3/H L-Pressure 100
Pumping Distance (H-Pressure) Max. Horizontal M 125A Pipe 880
Max. Vertical M 125A Pipe 220
Hopper Capacity M3 0.6
Feeding Height Mm ≤1500
Concrete Slump Cm 14~23
Max. Aggregate Diameter Mm Crushed Stone: 40 / Pebble: 50
Valve   S Valve
Water Pump For Cleaning   Equipped
Concrete Pipe Cleaning Mode   Water Cleaning
Water Tank Capacity L 400
Lubrication Mode   Automatic
Overall Dimension Length (Mm)*Width (Mm)*Height (Mm) Mm 9195*2458*2623
Full-Load Total Weight Kg 13500

Note: Our products are being updated constantly, all rights reserved by HAMAC.
