Crawler Excavators

Crawler Excavators
The most popular excavator in the world

A hydraulic crawler excavator is an earth-moving machine that uses a bucket to excavatematerials above or below the bearing surface and loads them into transport vehicles or unloads them to the stockyard. The excavated materials are mainly soil, coal, silt, and pre-pine soil androcks. As one of the most important types of engineering machinery in engineering construction, excavators are widely used in mining and urban and rural construction. HAMAC's excavators haveadvanced performance and unique technology

  • Different models as options
  • Famous brand hydraulic parts
  • High cost performance
  • Introduction
  • Technical Parameters
  • Gallery
Content Index

Highlights of HAMAC Crawler Excavator

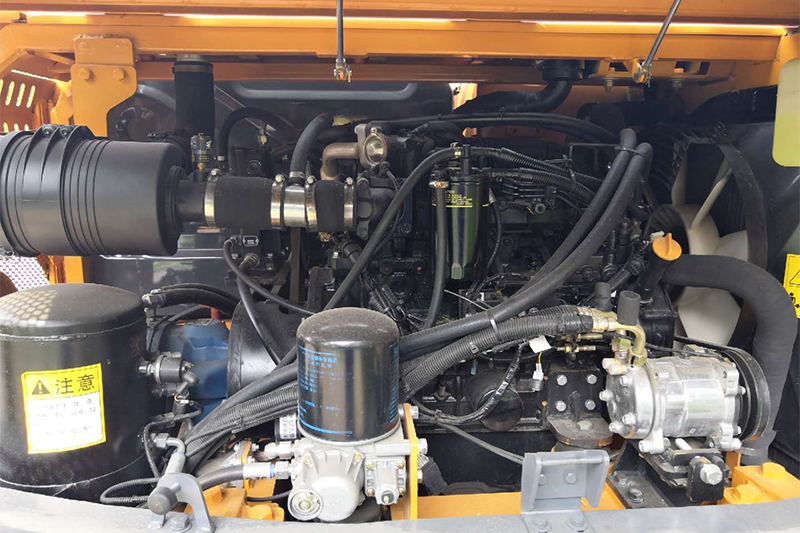

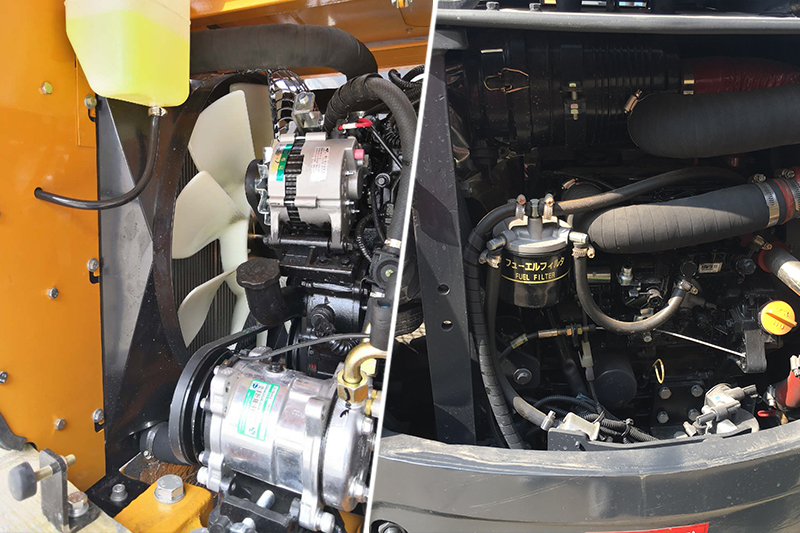

1. Famous brand engine, ISUZU, CUMMINS, WEICHAI as options, large torque, strong power, especially suitable for heavy-duty operation.

Crawler Excavators

2. Adopt Japanese excavator technology, stable performance and reasonable price, it is a goodalternative for some very famous brand excavator;

crawler excavators for sale crawler skid excavators crawler and wheeled excavators crawler excavator uses Crawler Excavator

3. In order to ensure reliability, each designed excavator must undergo 2000 hours of industrial testing and pass the strict test of the National Construction Machinery Quality Supervision andInspection Center.

Crawler Excavators crawler excavators for sale Crawler Excavators

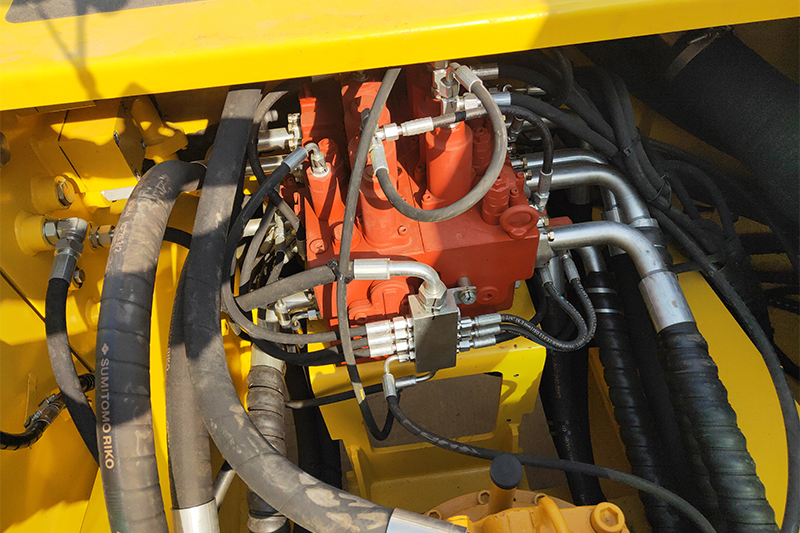

4. International famous brand hydraulic components to ensure the high reliability of the hydraulic system.

Crawler Excavators

5. The cab adopts anti-overturning and anti-falling structure design, which meets the safety standards of China, EU, North America and other regions, and has obtained TOPS and FOPS safety certification.

crawler excavators for sale

6. The filter element is centrally arranged on one side of the main pump, and maintenance canbecarried out by standing on the ground and opening the door.

crawler skid excavators crawler and wheeled excavators crawler excavator uses

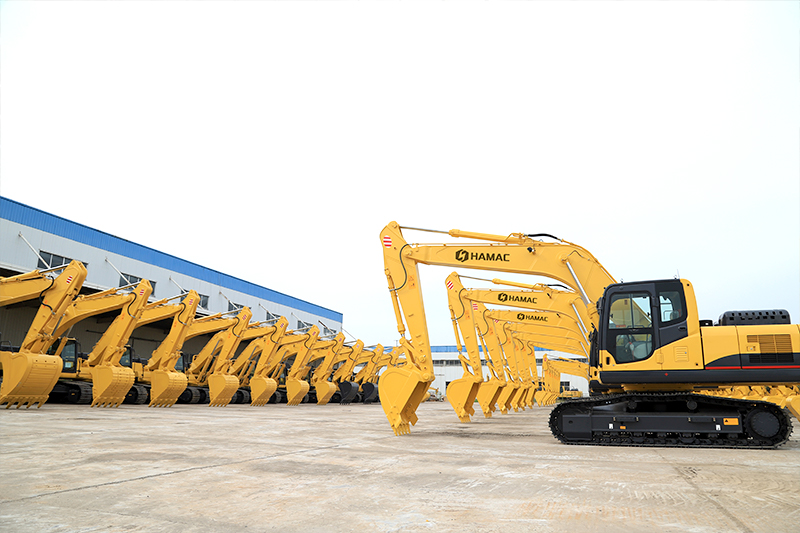

Crawler Excavators Goods Delivery

Based on good quality and decades of experience, the Crawler Excavators which is manufactured by HAMAC was exported to different countries. The Crawler Excavators will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Crawler Excavators shipping pictures

Crawler Excavators Technical Parameters

Items Model HMC60 HMC80 HMC130 HMC210 HMC240 HMC300 HMC360 HMC485 HMC520
Overall weight (T) 6.05 8.18 13 21.87 24.2 32.6 36 47 50
Bucket Volume (m³) 0.22 0.34 0.53 1.05 1.2 1.4 1.6 2.3 3.0
Motor brand Yanmar Yanmar CUMMINS ISUZU CUMMINS CUMMINS ISUZU CUMMINS ISUZU
Motor Power (kW/RPM) 36.2/2100 54.3/2200 86/2200 120/2150 140/2200 194/2200 190.5/2200 280/2100 300/1800
Fuel tank Volume(L) 100 130 247 350 350 565 650 650 680
Waling Speed (High/Low) 4.2/2.2 5.1/2.7 5.3/3.1 5.2/3.4 5.7/3.9 4.6/2.8 6.2/4 4.9/2.7 5.1/2.9
Rotary speed (RPM) 9.5 11.2 12.6 10.2 12.82 9.4 8.2 8.9 8.1
Hydraulic pump model HP5V76 HP5V76 K3V63DT K3V112DP AP4VO140 K5V160DT K5V160DT K5V200DT K5V212
Maximum Flow (L/MIN) 160 167 128*2 220*2 252*2 265*2+30 336*2 360*2 381*2
Work Pressure (MPa) 32 27.5 34.3 34.3 34.3 34.3 37 34.3 34.3
Hydraulic tank volume (L) 80 86 130 246 230 310 310 335 450

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Crawler Excavators Application Case

The Crawler Excavators is widely used for different projects all over the world. HAMAC exported the Crawler Excavators to different countries and got good comments from our clients.
