Mini excavator

Mini excavator
A versatile excavator for different small projects

Since the 1980s and 1990s, small construction machinery has exerted great advantages inmunicipal engineering, transportation and other construction projects and has developedrapidly. Mini excavators have made great contributions to saving manpower and material resources in these projects, meeting various urban operation requirements, maximizing their production capabilities in the narrow working space of the city, and gradually becomingarepresentative tool in urban construction.

  • Different models as options
  • Famous brand hydraulic parts
  • High cost performance
  • Introduction
  • Technical Parameters
  • Gallery
Content Index

Advantages of min excavator

Mini excavators have the characteristics of compact appearance, low price, easy maintenanceand high work efficiency. 1. Wide scope of application: It has good flexibility and is suitable for excavation work in housemaintenance, various pipelines and other infrastructure construction. Because of its small scale, it has some basic functions of medium and large excavators


1. Wide scope of application: It has good flexibility and is suitable for excavation work in housemaintenance, various pipelines and other infrastructure construction. Because of its small scale, it has some basic functions of medium and large excavators.

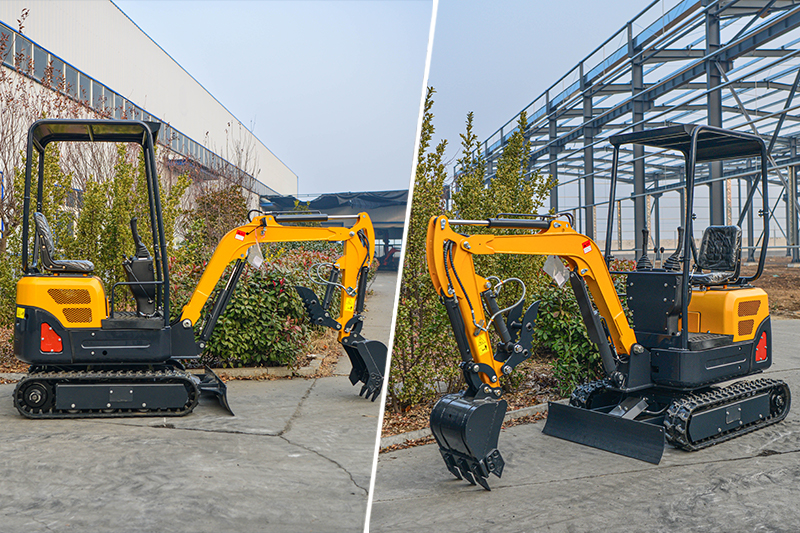

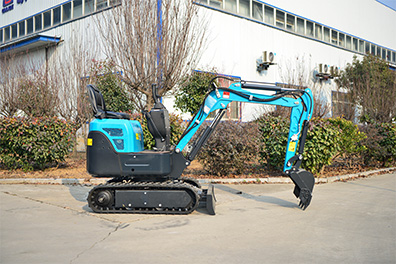

Mini excavator

2. Good quality and low price: lighter overall weight, convenient transportation and lowprice. Because it is cheap and easy to transport, it can partially replace some manual operations, hashigh efficiency and low operating costs.

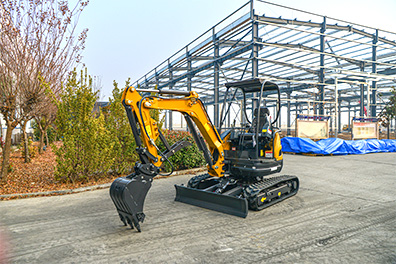

mini excavator for sale mini excavator price mini excavator weight

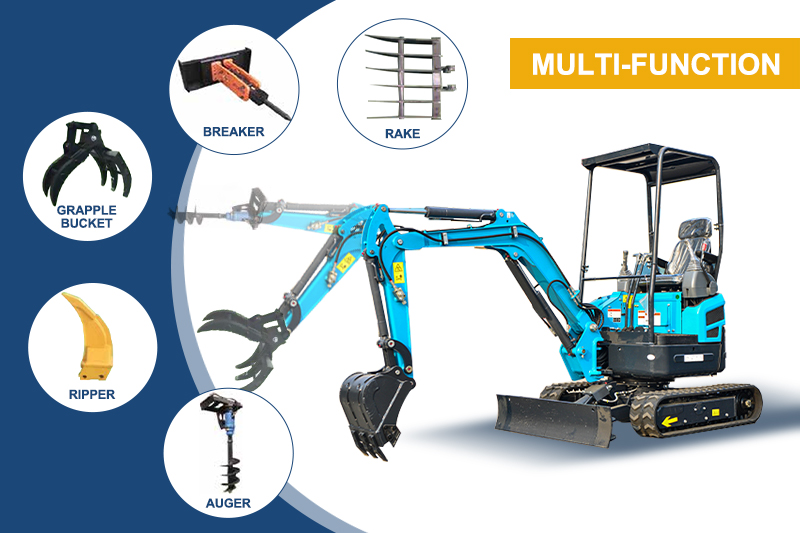

3. Multi-function: In addition to loading materials, it can also be used to handle special conditions of operations, such as replacing other work tools: installing drill bits for rotary drilling, installing hooks for lifting, installing cleaning for cleaning work, etc.

mini excavator buckets

4. Convenient for transportation and transfer of project sites: The small-sized mini excavator can work in various small spaces. It can pass through narrow locations and work in openspaces on the train without the need to transport heavy trucks. The transportation can becarried It can also greatly reduce the cost of transporting machines.

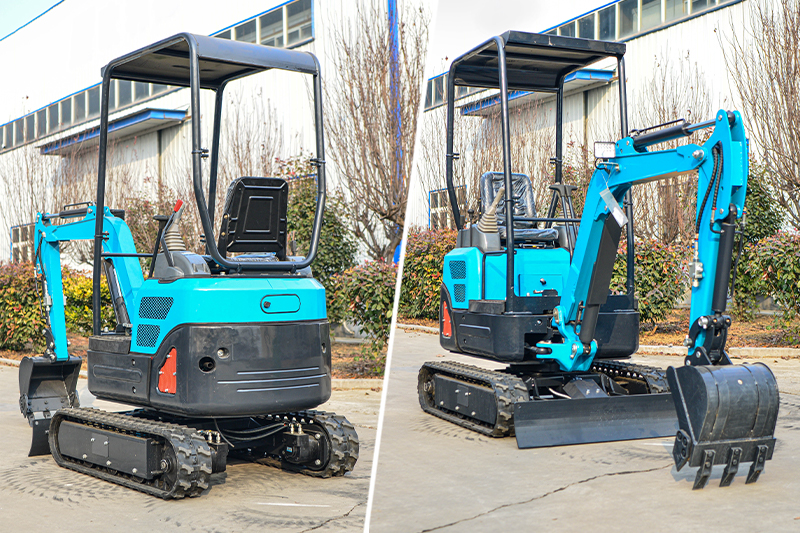

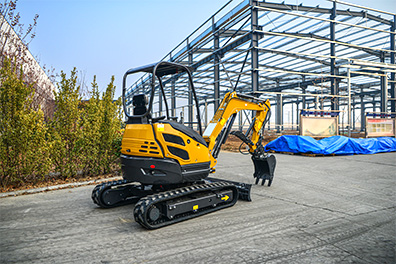

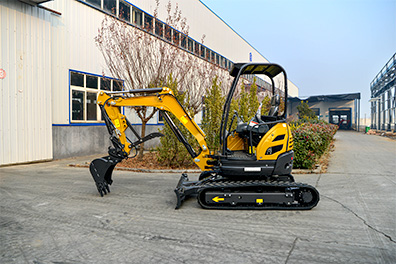

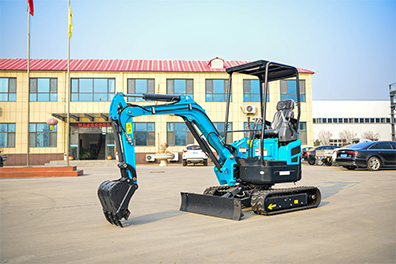

mini excavator mini excavator for sale mini excavator for sale

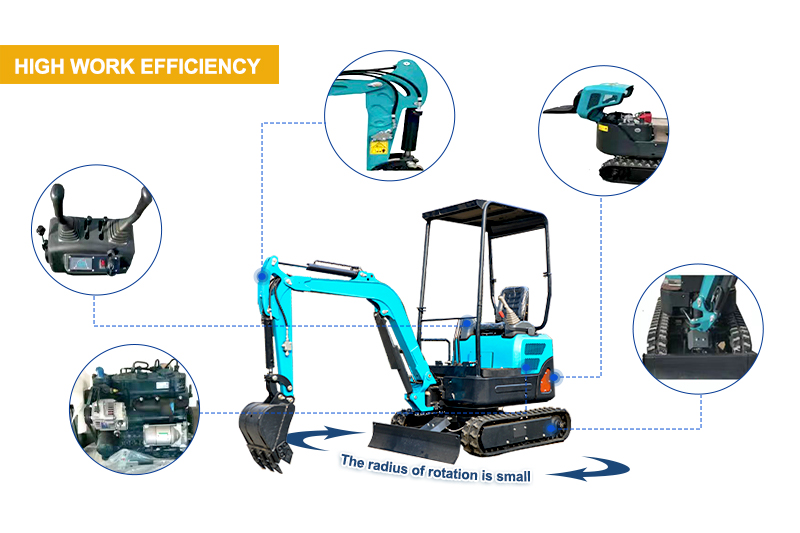

5. High work efficiency: The radius of rotation is small. Therefore, when the working spaceof the mini excavator is limited, the operator does not need to consider the obstacles on theconstruction site that hinder the rotation of the excavator, thereby focusing on the bucket operation, thus greatly improving the efficiency of the operation. Enhanced operational efficiency.

mini excavator buckets

Mini excavator Goods Delivery

Based on good quality and decades of experience, the Mini excavator which is manufactured by HAMAC was exported to different countries. The Mini excavator will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

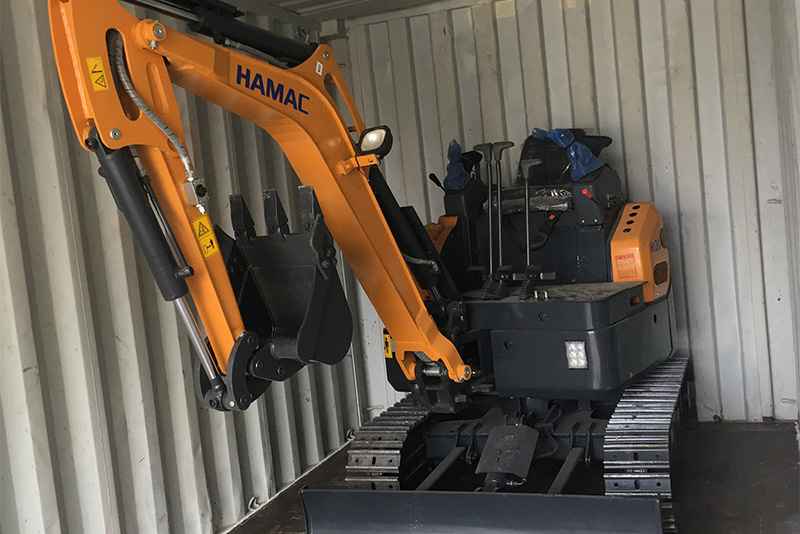

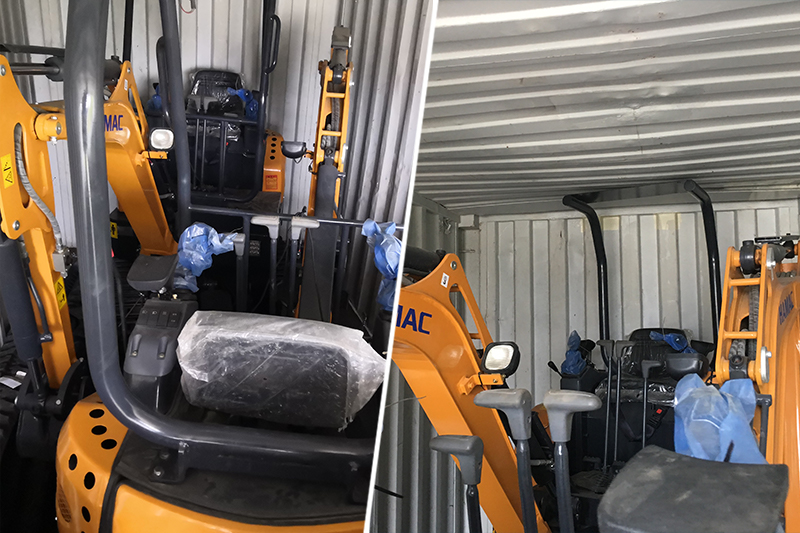

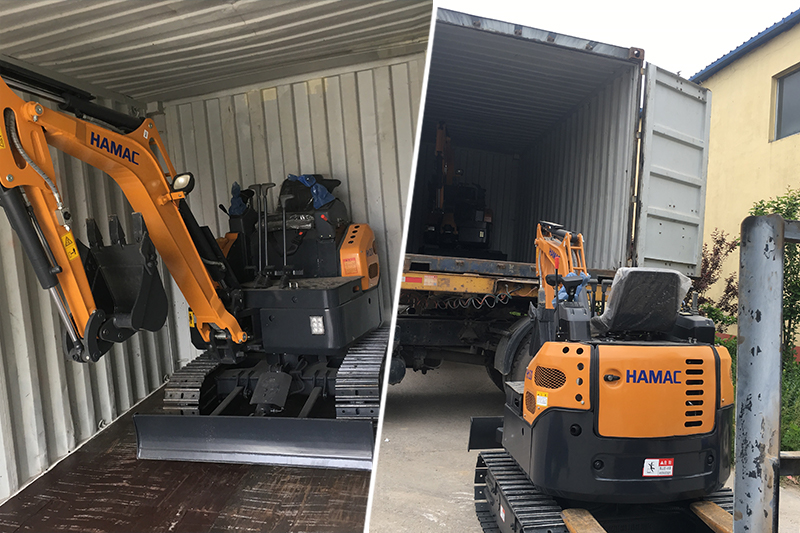

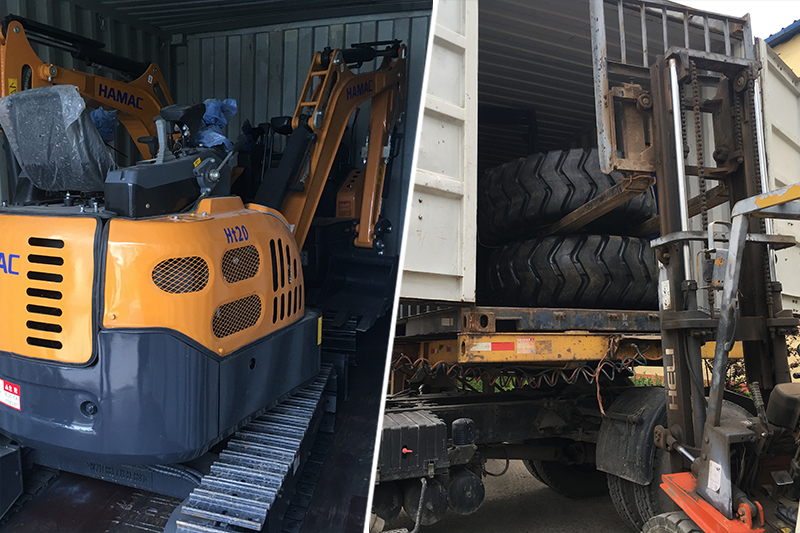

Mini excavator shipping pictures

Mini excavator Technical Parameters

Model HMC10 HMC12 HMC15 HMC17 HMC20 HMC25 HMC30 HMC35
Bucket volume 0.03 m³ 0.03 m³ 0.033 m³ 0.045 m³ 0.045 m³ 0.075 m³ 0.105 m³ 0.11 m³
Operation weight 960 kgs 1120 kgs 1370 kg 1760 kg 1860 kg 2510 kg 3460 kg 3515 kgs
Length 2450 mm 2450 mm 3100 mm 3350 mm 3350 mm 3850 mm 4485 mm 4600 mm
Height 1430 mm 1430 mm 2200 mm 2280 mm 2280 mm 2280 mm 2440 mm 2440 mm
Width 750-950 mm 750-950 mm 1100 mm 990-1240 mm 1120 mm 1500 mm 1550 mm 1550 mm
Max. Digging height 2580 mm 2680 mm 3200 mm 3540 mm 3545 mm 3980 mm 4750 mm 4600 mm
Maximum discharge height 1830 mm 2060 mm 2180 mm 2440 mm 2460 mm 2660 mm 3260 mm 3175 mm
Maximum digging depth 2000 mm 2000 mm 1860 mm 2310 mm 2315 mm 2510 mm 3003 mm 2880 mm
Maximum digging radius 2850 mm 2950 mm 3485 mm 3900 mm 3905 mm 4236 mm 4996 mm 4965 mm
Swing speed 14 RPM 14 RPM 9 RPM 8.7 RPM 8.7 RPM 9.5 RPM 9.2 RPM 8.5 RPM
Diesel engine Koop/Changchai Kubato D722-EF11 Kubato D902-EF08 Kubato D1105-EF09 Yanmar 3TNV88-BSSY
Engine form 192FA Water-cooled inline three-cylinder diesel engine
Rated power 12 PS (8.6 KW) 14 PS (10.2 KW) / 2500 rpm 16 PS (11.8 KW) / 2300 rpm 20.6 PS (15 KW) / 2200 rpm 28 PS (20.5 KW) / 2300 rpm
Gradeability 30° 30° 30° 30° 30° 30° 30° 30°
Driving speed (Low/High) 2.2 km/h 2.2 km/h 2.2 km/h, 4.3 km/h 2.2 km/h, 4.3 km/h 2.2 km/h, 4.3 km/h 2.6 km/h, 4.5 km/h 2.9 km/h, 4.8 km/h 3.0 km/h, 4.2 km/h
Volume of fuel tank 7 L 7 L 16 L 18 L 18 L 28 L 40 L 40 L

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Mini excavator Application Case

The Mini excavator is widely used for different projects all over the world. HAMAC exported the Mini excavator to different countries and got good comments from our clients.
