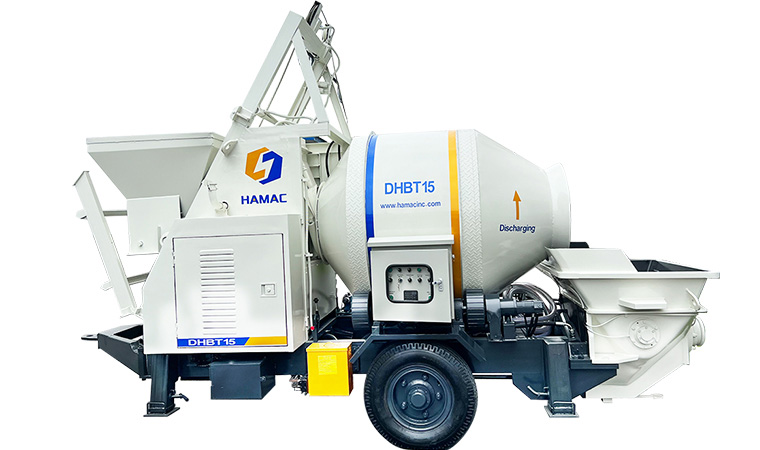

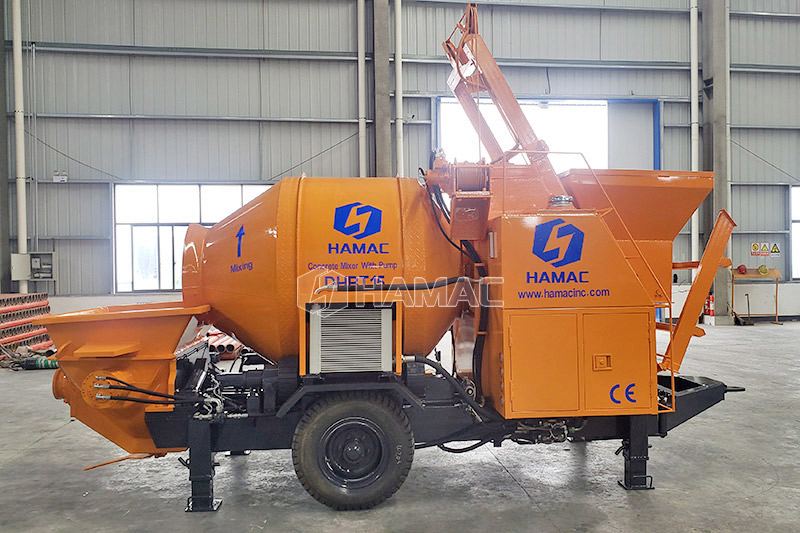

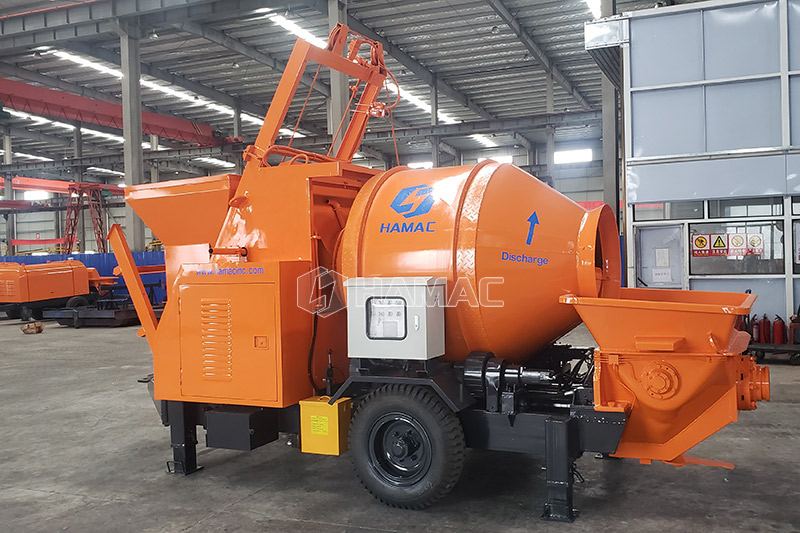

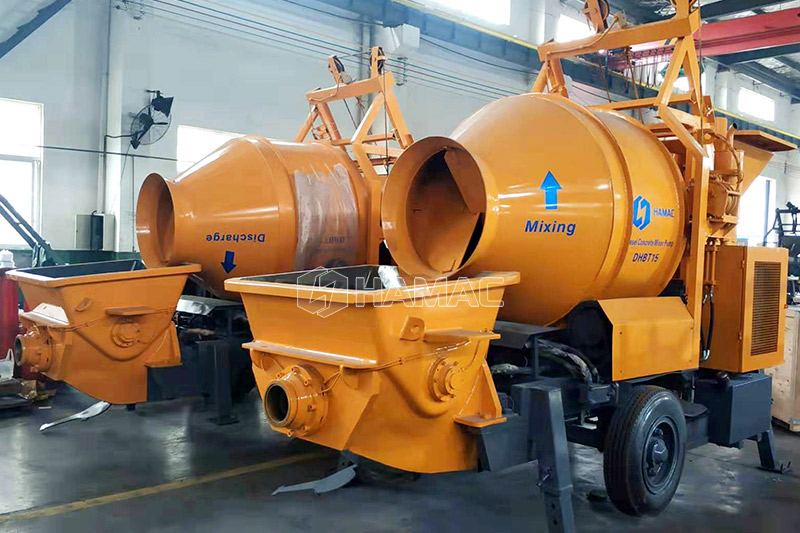

Trailer Concrete Mixer Pump

Trailer Concrete Mixer Pump A new designed versatile machine, movable and easily to be operated
A new designed versatile machine, one stop solution for concrete mixing and pumping.

According to the requirement of our clients, HAMAC researched and developed this concrete mixer with pump. You can finish all the work by only one machine. It combines concrete mixer with concrete pump. When the concrete pump is working, the concrete mixer is also working. It will save your time to produce and deliver the concrete.

  • Diesel engine type and electric motor type
  • Drum mixer and twin shaft mixer as options
  • Can pump 70m high, 300m horizontal distance
  • introduction
  • Technical parameters
  • gallery
Related Product
Related Cases

In the past time, the clients wanted to buy a concrete mixer to produce the concrete firstly, and then he also needed a concrete pumping machine to deliver the concrete to the buildings or jobsites. There will be two machines to finish the job. It required more people for the projects.

As a mature manufacturer of concrete pumping machines, HAMAC designed this series portable diesel concrete mixer with pump which is suitable for different projects. We have two options, one type is equipped with drum concrete mixer, another type is equipped with twin shaft concrete mixer which can mix the concrete uniformly.

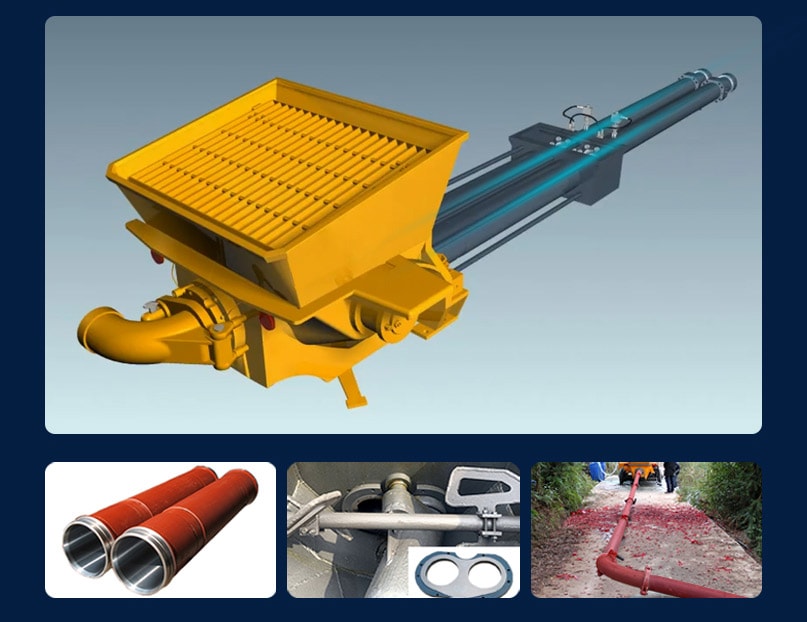

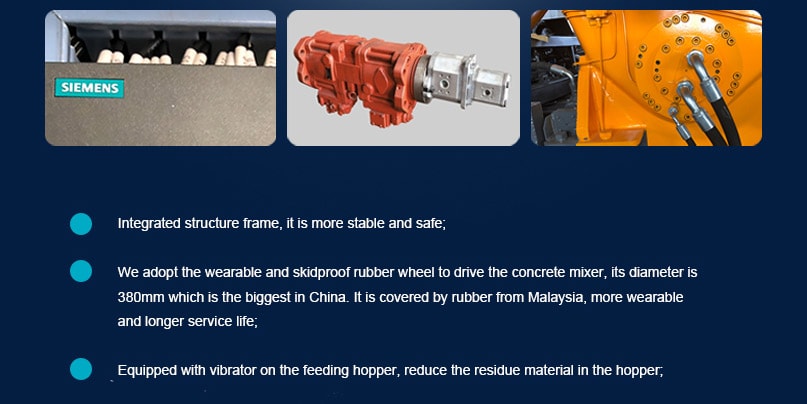

Advantages

Concrete Mixer with Pump Concrete Mixer with Pump Concrete Mixer with Pump Concrete Mixer with Pump Concrete Mixer with Pump Concrete Mixer with Pump Concrete Mixer with Pump Concrete Mixer with Pump Concrete Mixer with Pump Concrete Mixer with Pump Concrete Mixer with Pump Concrete Mixer with Pump

Contact us to visit the factory or order products

Leave a message Online chat

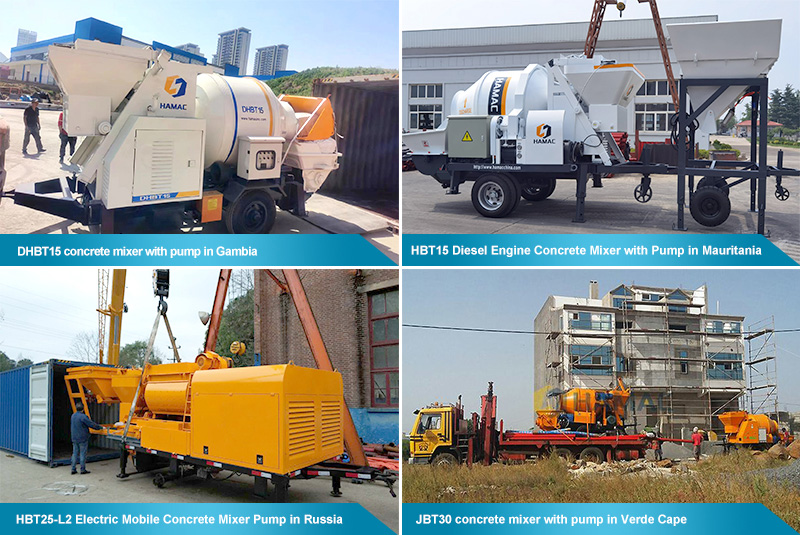

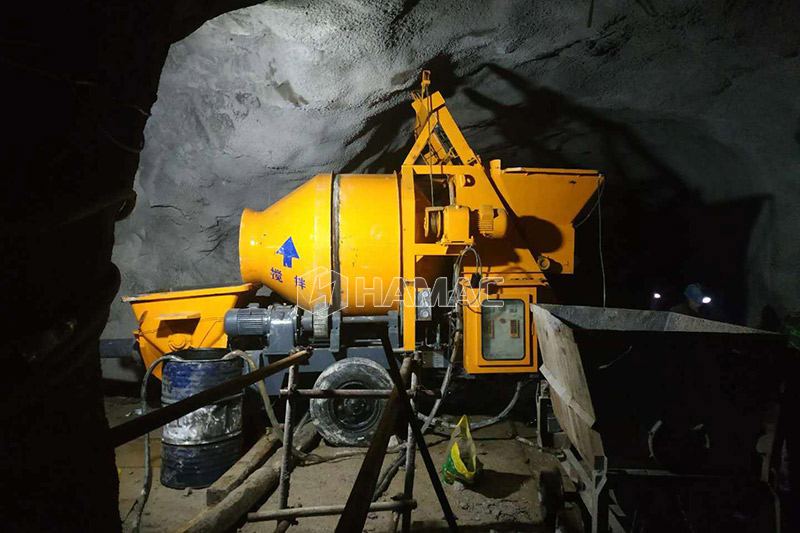

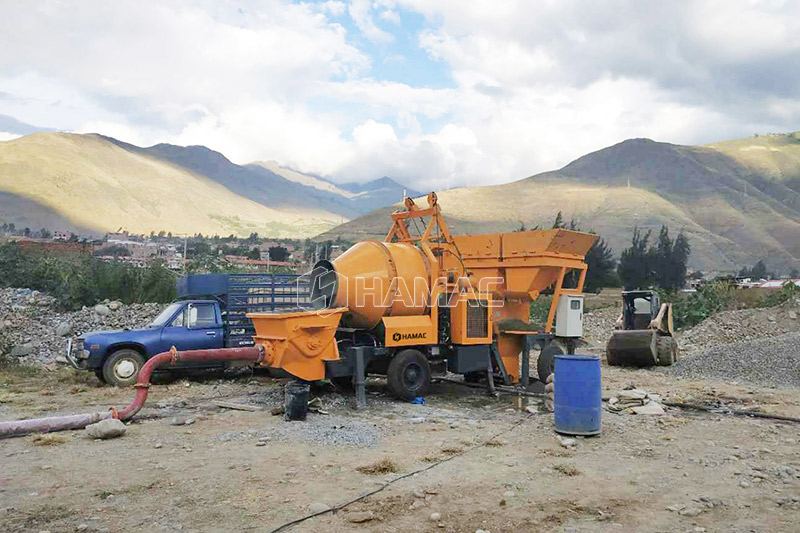

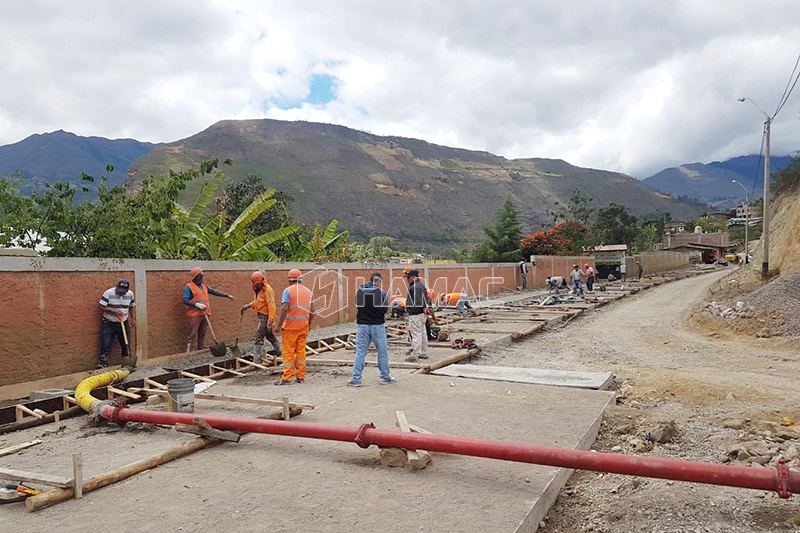

application case

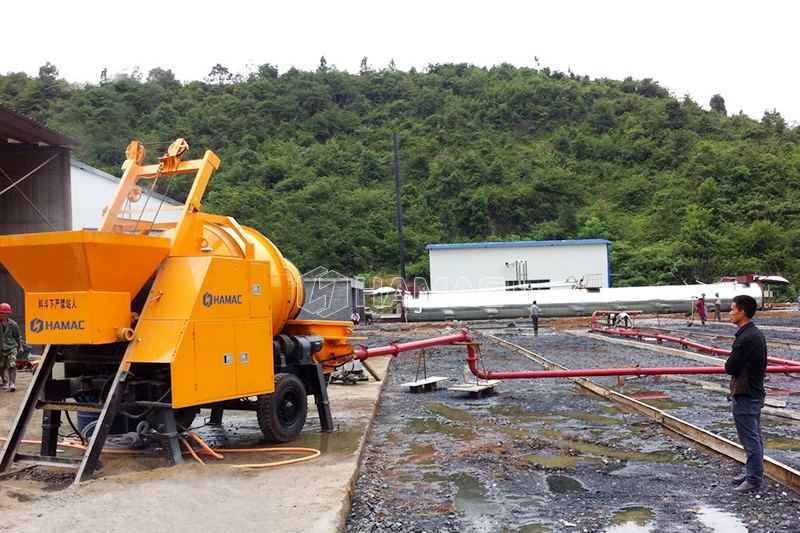

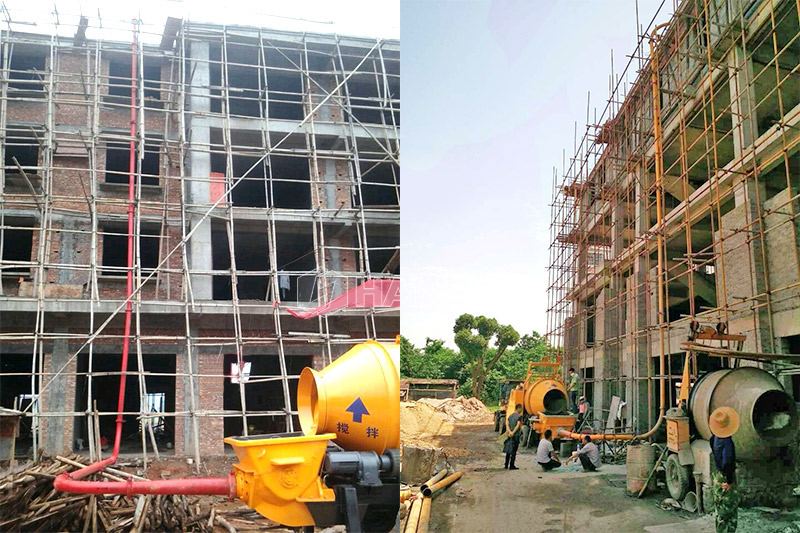

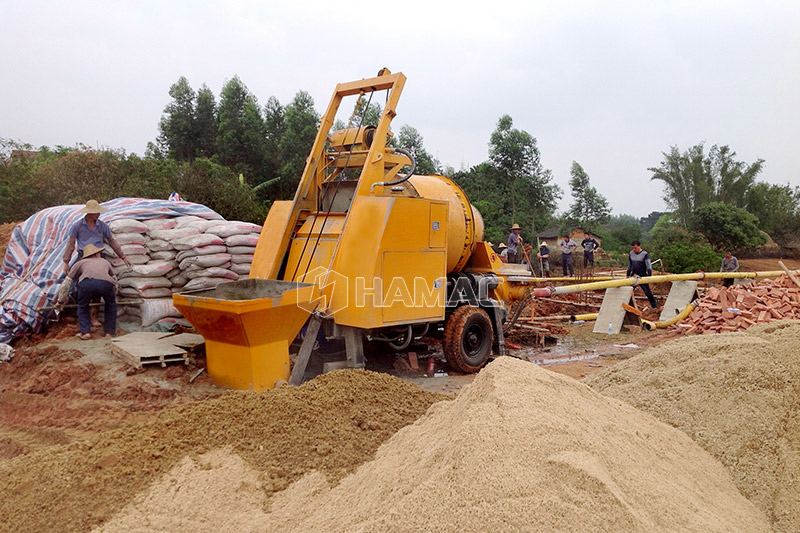

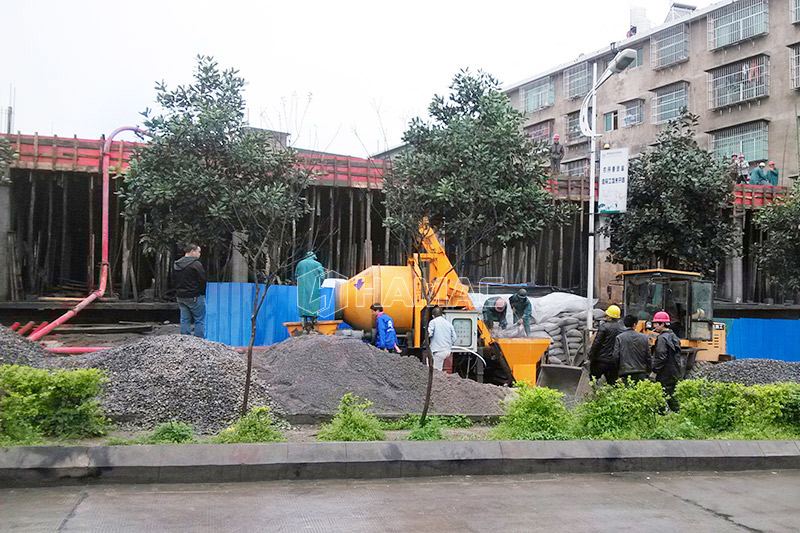

The Trailer Concrete Mixer Pump is widely used for different projects all over the world. HAMAC exported the Trailer Concrete Mixer Pump to different countries and got good comments from our clients.

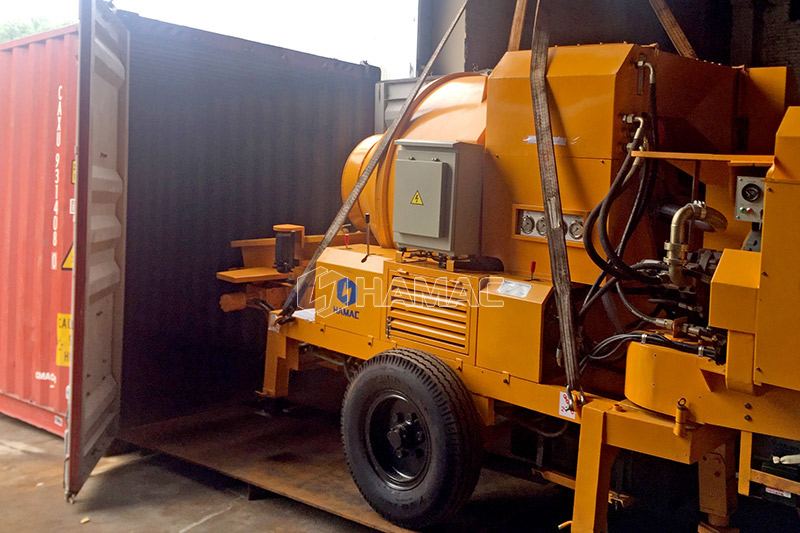

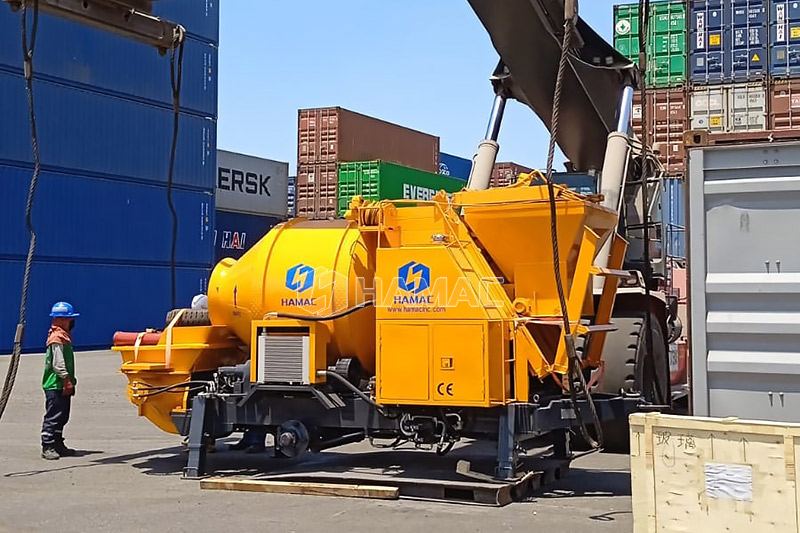

Goods Delivery

Based on good quality and decades of experience, the Trailer Concrete Mixer Pump which is manufactured by HAMAC was exported to different countries. The Trailer Concrete Mixer Pump will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

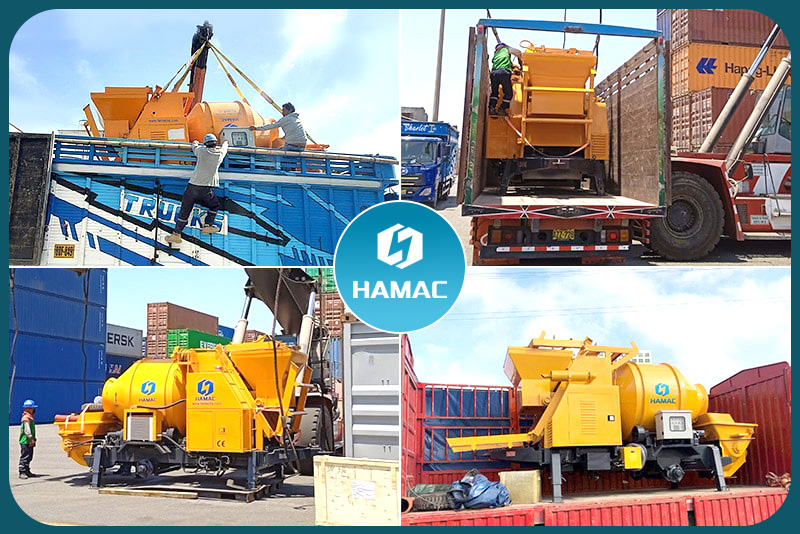

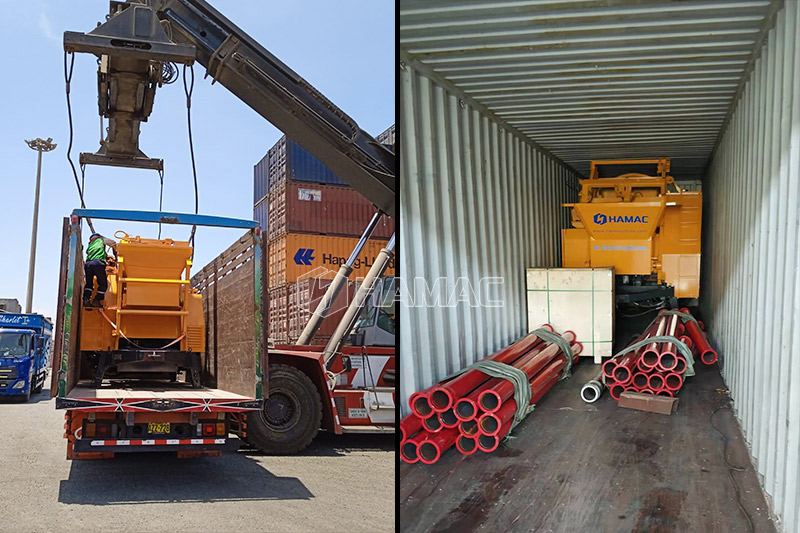

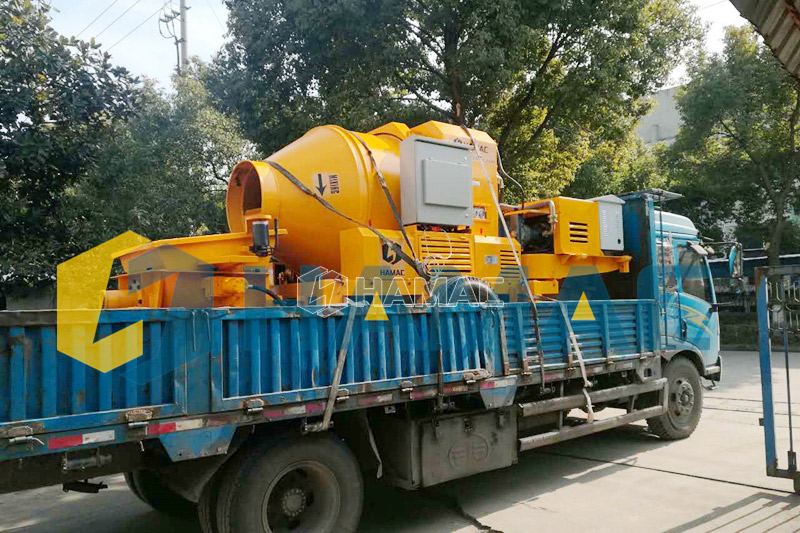

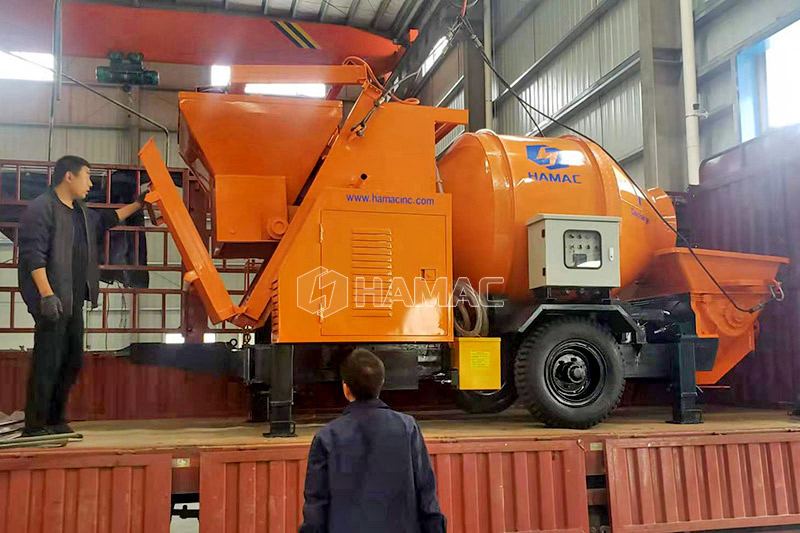

Trailer Concrete Mixer Pump shipping pictures
Parts Name/Parameters Parts Specification
Models HBT15 DHBT15E DHBT15 DHBT15 PRO
Power Power supply model Electric Motor Diesel engine  Diesel engine  Diesel engine
Electric Component  Siemens/Schneider/Omron
Mixing System Mixer JZM450 drum mixer, 750L charging hopper, 450L concrete output per batch
Mixing Motor Hydraulic  Hydraulic  Hydraulic  Hydraulic
Hoist Motor Hydraulic  Hydraulic  Hydraulic  Hydraulic
Submersible Pump 0.75kW 0.75kW 0.75kW
Max. Theoretical Mixing Output 18-22m³/h
Pumping System Main Motor 45kW, electric motor 52kW, Weichai diesel engine  62kW, Weichai diesel engine  92kW, Weichai diesel engine
Motor Rated Speed 1480 RPM 1800 RPM 1800 RPM 1800 RPM
Mian Hydraulic Oil Pump KAWASAKI K3V112 Domestic brand K3V80 KAWASAKI K3V112 KAWASAKI K3V140
Double Gear Pump 25&16
 Valves overflow and directional valves, OM/HUADE, Italy brand/China brand
Main Oil Cylinder Φ100*Φ70*1000mm
Delivery Cylinder Φ200*1000mm
S Valve Φ200mm
Cutting Ring Φ200mm
Glass Wear Plate Φ200mm
Max. Theoretical Pumping Output 40m³/h
Outlet Pressure 10Mpa 6Mpa 8Mpa 10Mpa
Hydraulic System Type Open circuit
Motor Rated Voltage 380V, 3P Diesel engine Diesel engine Diesel engine
Max. Aggregate Size Pebble:40mm  Aggregate:30mm
Delivery height and horizontal distance 70m/300m
Hydraulic Oil Tank Volume 200L
Concrete Outlet Diameter  Φ180mm
Hopper Capacity × Filling Height 600*1400 (L*mm)
Machine Size(LxWxH) 5100*2200*2450 mm
Total Weight 5600kgs 5300kgs 5600kgs 5800kgs
Tyre Size 700R16
Towing Speed Max. 8km/h

Note: Our products are being updated constantly, all rights reserved by HAMAC.
