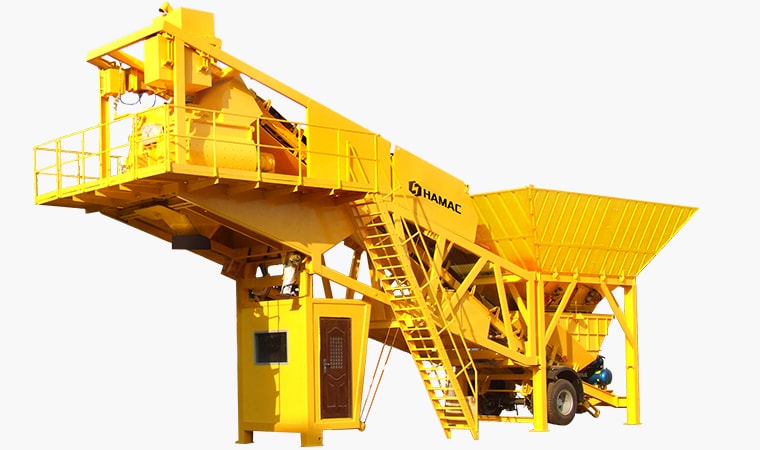

Mobile Concrete Batching Plant

Mobile Concrete Batching Plant Multiple models for selection, can be customized according to customer requirements
A convenient concrete batching plant for your project

The mobile concrete batching plant is a concrete mixing equipment that integrates the material storage, weighing, conveying, mixing, discharging and automatic control systems of the traditional stable concrete batching plant into a single trailer unit; it is as same as the stable automatic concrete batching plant.

  • 25-100m3/h as options
  • Easily being transported
  • Fully automatic controlled by software
  • introduction
  • Technical parameters
  • gallery
Related Product
Related Cases

As a mature manufacturer of mobile concrete batching plant, HAMAC designed this series mobile concrete batching plant which is suitable for some projects which always finishes in not so long time. It is equipped famous brand components such as pneumatic cylinders, vibrators, air compressor, SICOMA concrete mixer and motors etc.

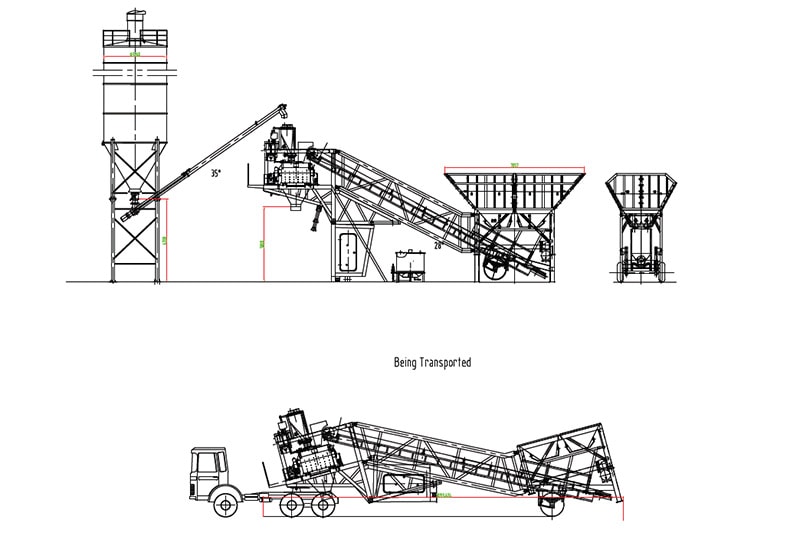

Working Principle:

A wheel loader will feed the 4 different hoppers for different sizes aggregates, and then the aggregates and sand will be weighed by the load cells, and the cement comes from the cement silo by the screw conveyor, water is supplied by the water pump will be weighed as well by different load cells, then all of these material will be fed into the mixer for mixing. After mixing, the concrete will be discharged into the concrete mixer truck. All of the weighing, mixing and discharging process are controlled by the software automatically.

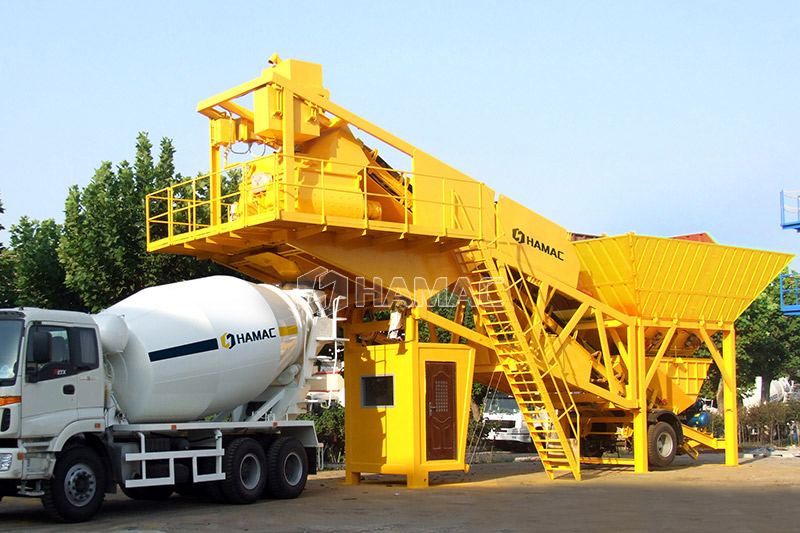

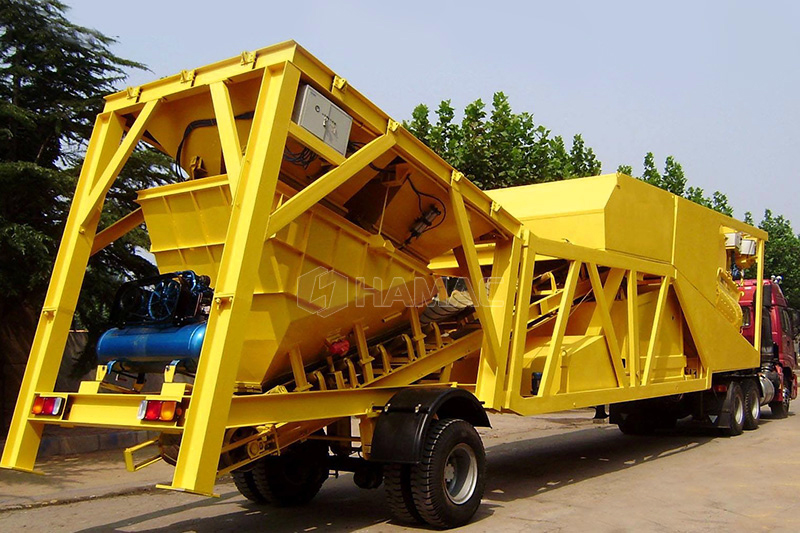

Mobile Concrete Batching Plant

Advantages

  • 1. The structure is compact, and almost all the processes of concrete production are concentrated on the trailer unit;
  • 2. The operation interface is humanized, the working performance is reliable, and it can still run stably in various harsh environments;
  • 3. The twin-shaft concrete mixer has excellent continuous operation ability, comprehensive mixing trajectory, strong mixing motion, and rapid and uniform mixing;
  • 4. Highly automation, excellent maneuverability, simple operation and good stability;
  • 5. The structure is firm, the space layout is compact and reasonable, which ensures flexibility and production capacity at the same time ,so which is not inferior to the stationary concrete batching plant;
  • 6. The mobile batching plant occupies less area and is easy to move around, which greatly reduces the amount of basic engineering;
  • 7. The mixing and metering platform is equipped with an epitaxial platform, and the space is as same as the stationary concrete batching plant, which fully guarantees the needs of commissioning and maintenance.

Contact us to visit the factory or order products

Leave a message Online chat

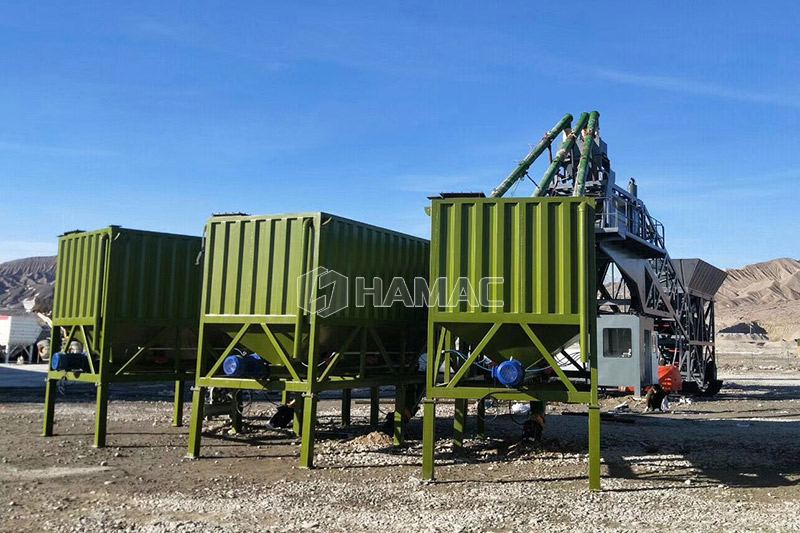

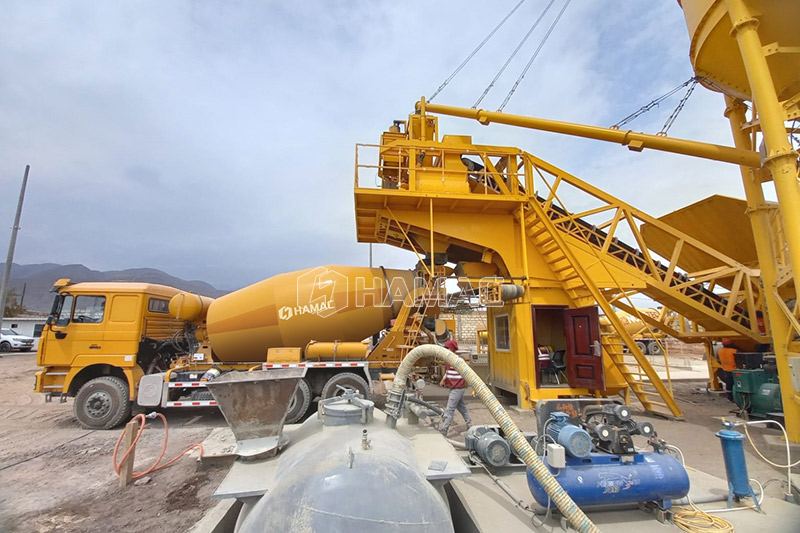

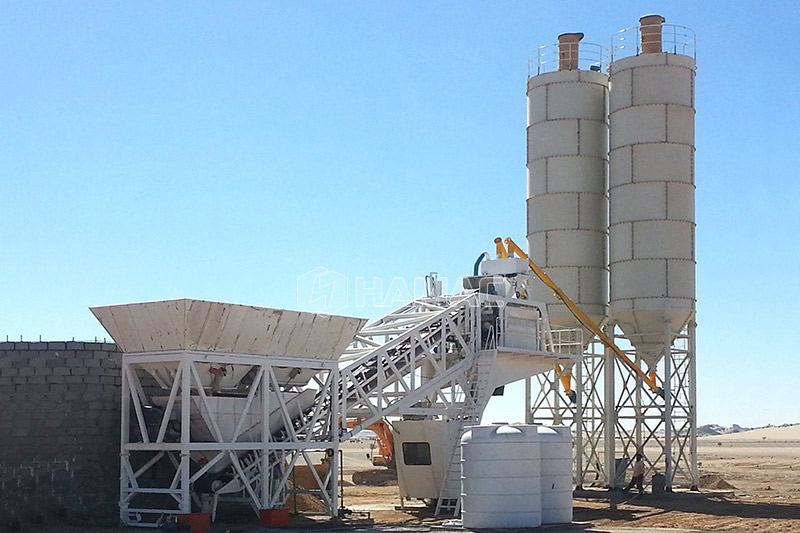

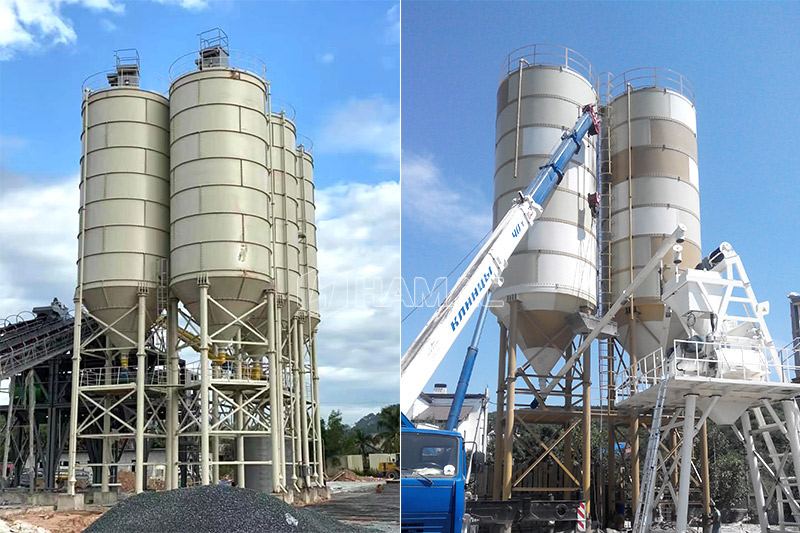

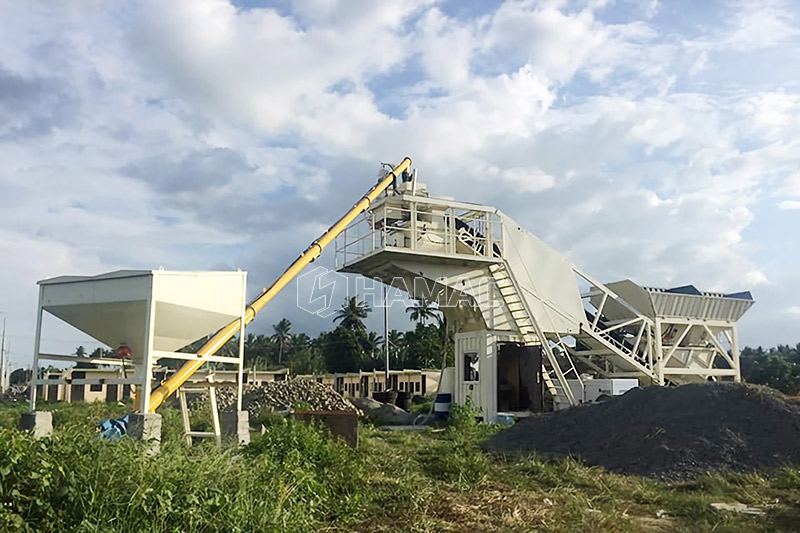

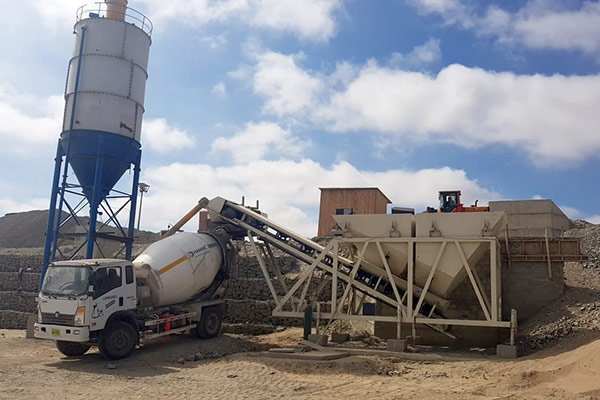

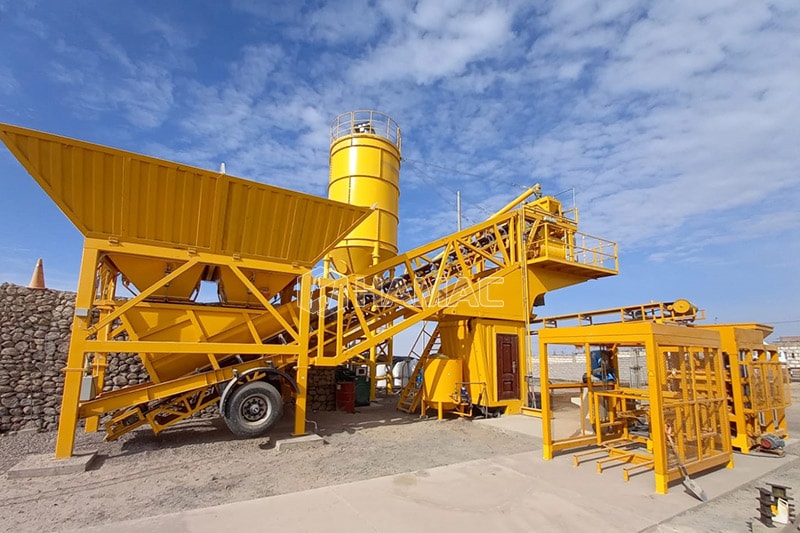

application case

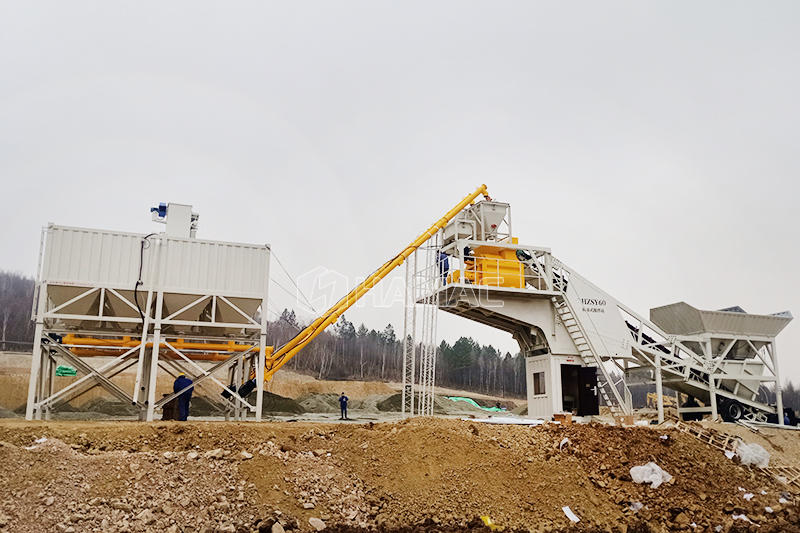

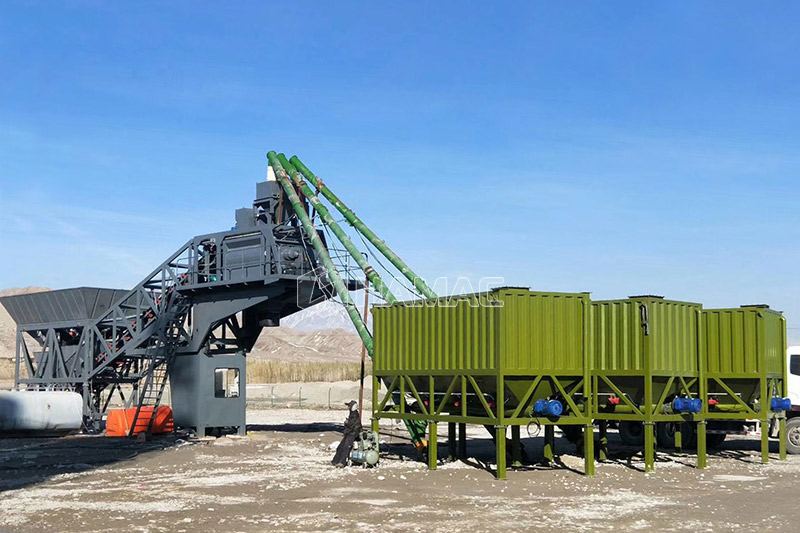

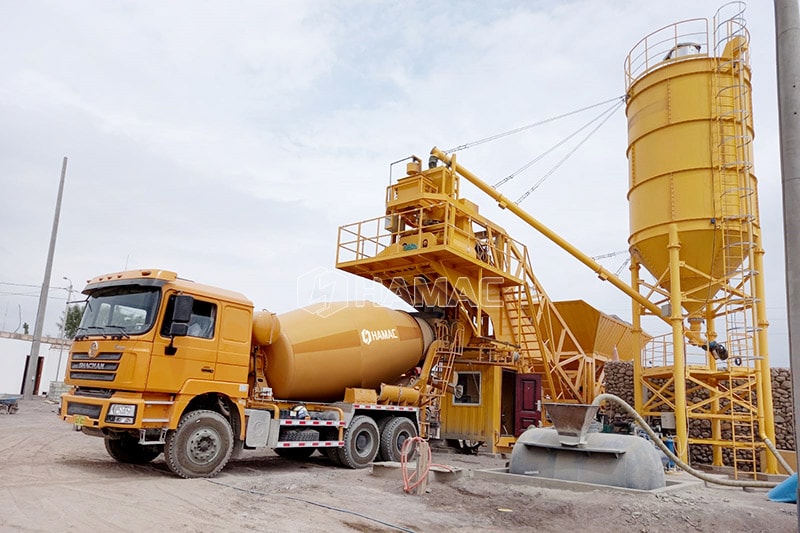

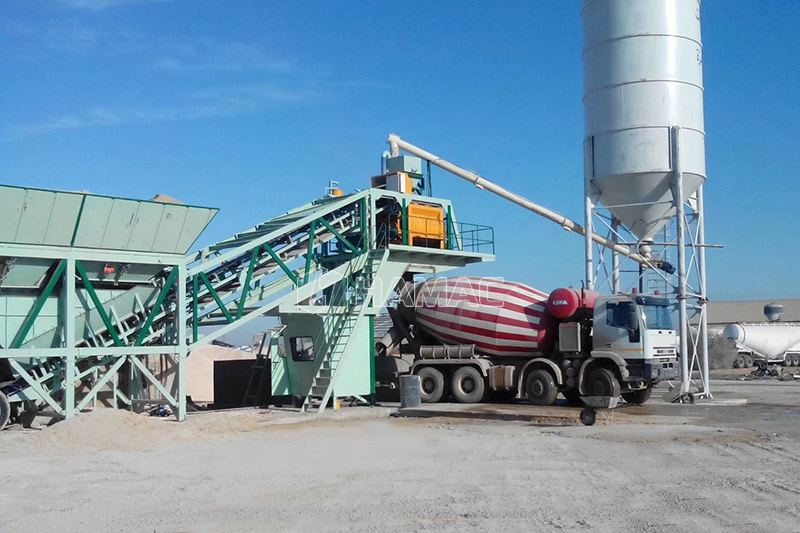

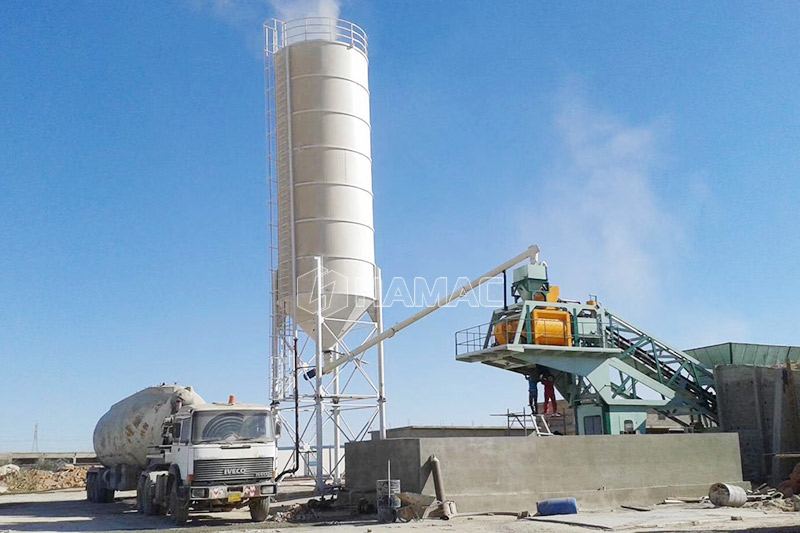

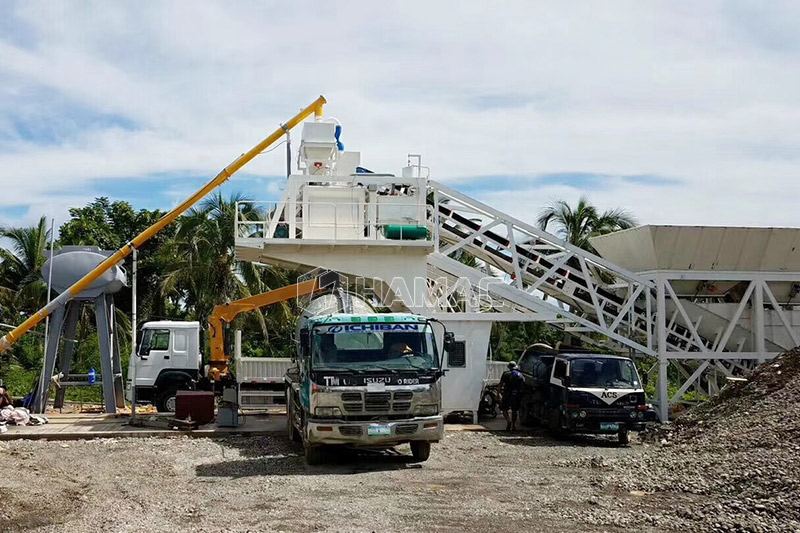

The Mobile Concrete Batching Plant is widely used for different projects all over the world. HAMAC exported the Mobile Concrete Batching Plant to different countries and got good comments from our clients.

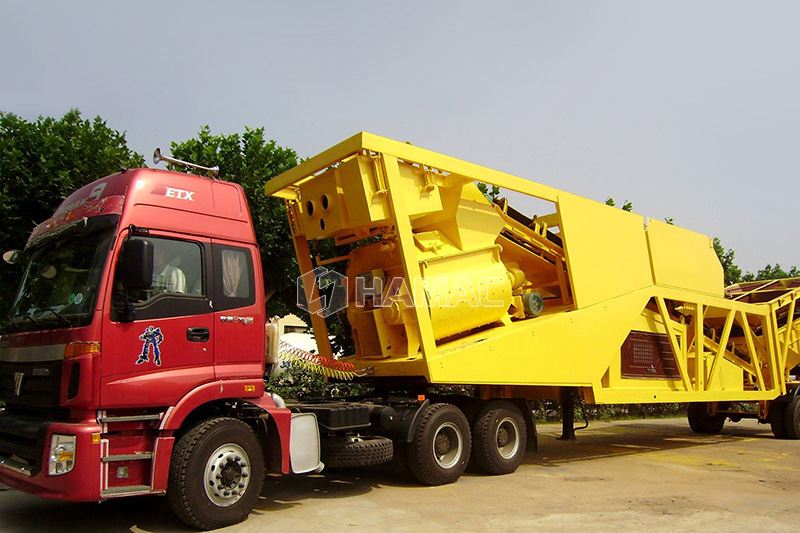

Goods Delivery

Based on good quality and decades of experience, the Mobile Concrete Batching Plant which is manufactured by HAMAC was exported to different countries. The Mobile Concrete Batching Plant will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

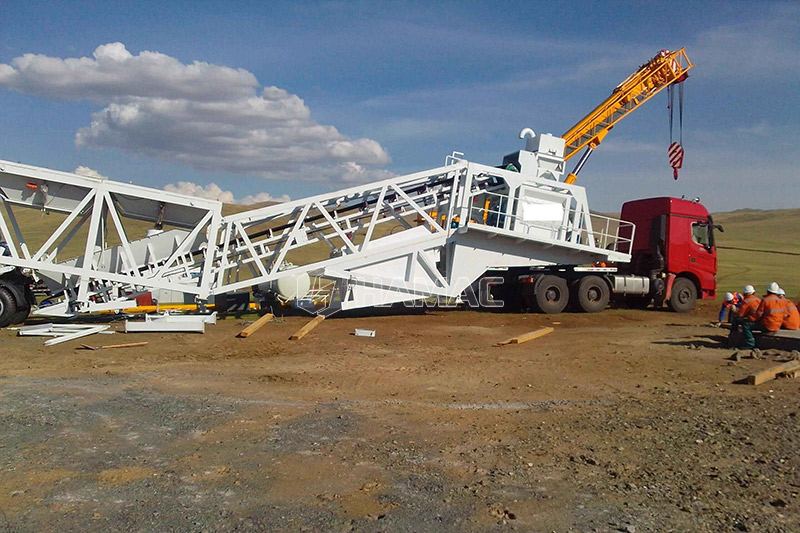

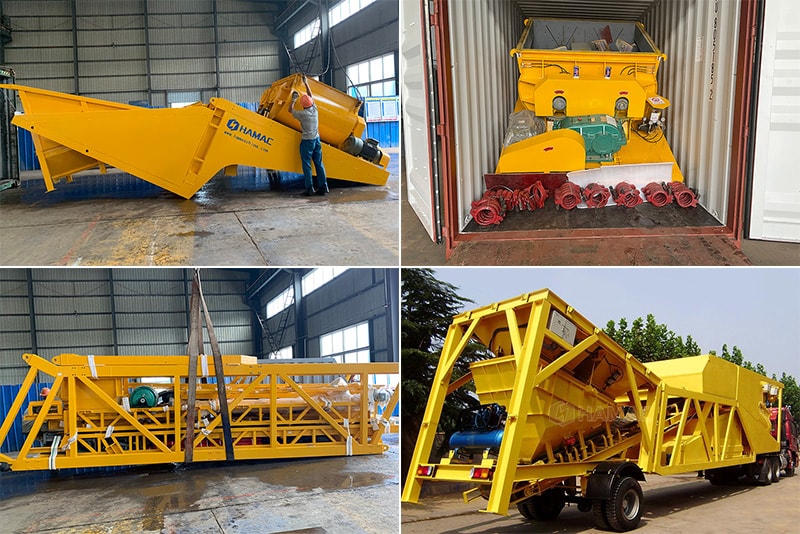

Mobile Concrete Batching Plant shipping pictures
Parameter Model
YHZS25 YHZS35 YHZS50/60 YHZS75/90 YHZS100
Theoretical Productivity
(M3/H)
25 35 50/60 75 100
Central Mixer 0.5m3 per batch 0.75m3 per batch 1.0m3 per batch 1.5m3 per batch 2.0m3 per batch
Aggregate Batching System 4 hoppers 4 hoppers 4 hoppers 4 hoppers 4 hoppers
Discharging Height(Mm) 3800 3800 3800 4000 4000

Note: Our products are being updated constantly, all rights reserved by HAMAC.
