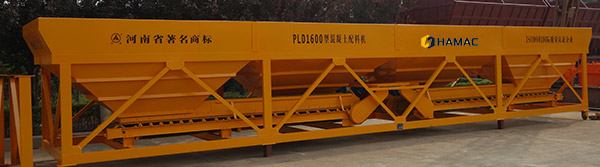

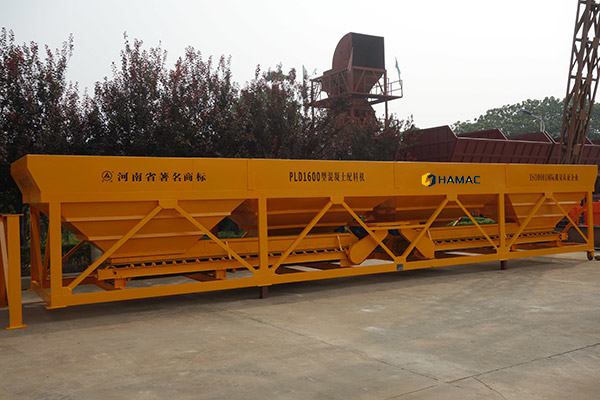

PLD Concrete Batching Machine
INTRODUCTION
PLD series concrete batching machine is automatic batching equipment supporting a mixer. It can automatically complete the ratio of sand, stone, cement and other kinds of materials 3-6 (secondary aggregate grading concrete) ingredients procedures designed according to user's concrete requirement.
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

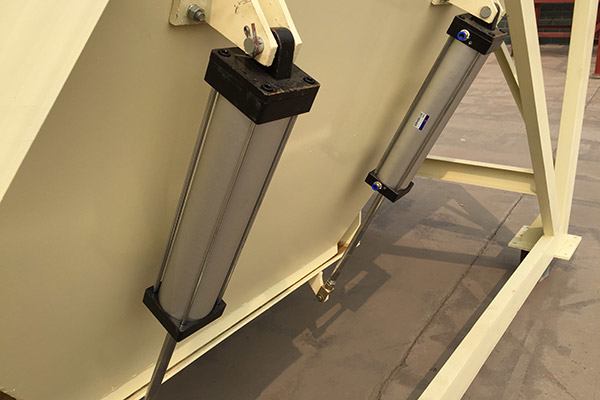

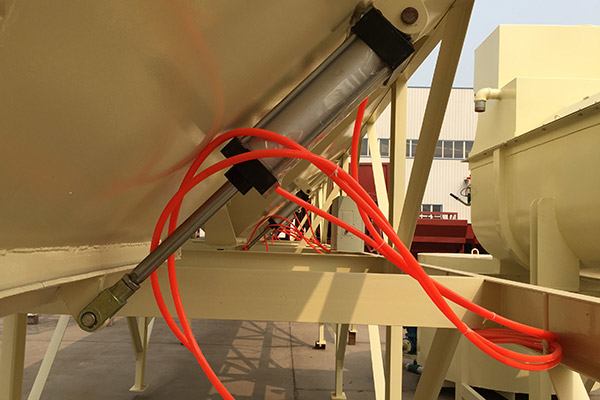

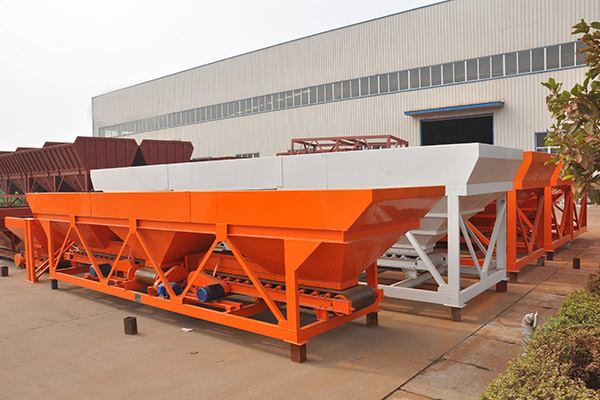

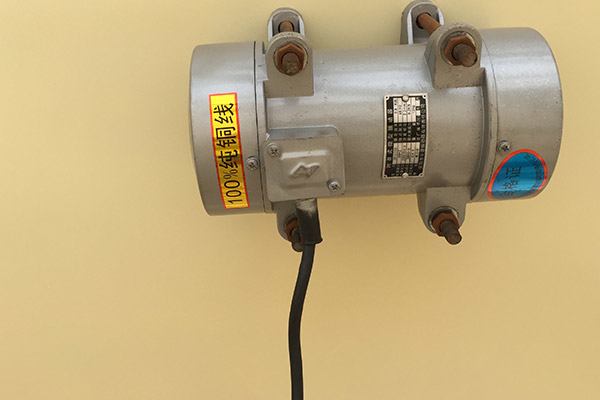

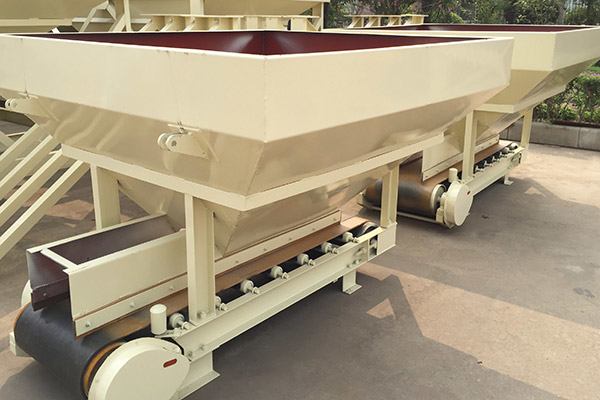

Detailed Photos
Performance
1. High precision electric weighing, PC+PLC control;
2. Digital display on the screen, Reasonable layout,
3. Compact structure, Easy operation,
4. Reliable performance.

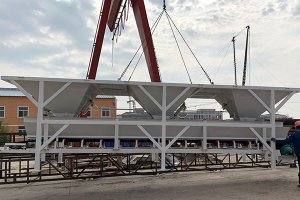

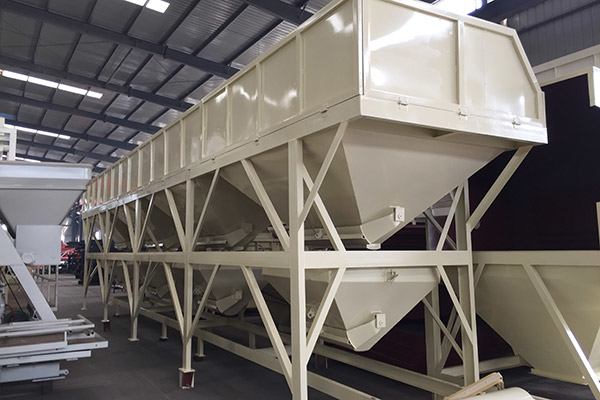

Manufacturing Process
Specification
| Model | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Cubage of storage hopper | 2m3 | 2.2m3 | 3.7m3 | 12m3 | 20m3 | 25m3 |
| Cubage of weighing hopper | 0.8m3 | 1.2m3 | 1.6m3 | 2.4m3 | 3.2m3 | 4.8m3 |
| Output rate | 48m3/h | 60m3/h | 80m3/h | 120m3/h | 160m3/h | 280m3/h |
| Accuracy of batching | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Max weighing value | 1500Kg | 2000Kg | 3000Kg | 4000Kg | 5000Kg | 8000Kg |
|
Aggregate types for batching |
2-3 | 2-4 | 2-4 | 3-4 | 3-4 | 4 |
| Feeding height | 3000mm | 3000mm | 3000mm | 3200mm | 3500mm | 3800mm |
| Speed of belt conveyor | 1.25m/s | 1.25m/s | 1.25m/s | 1.0m/s | 1.0m/s | 1.6m/s |
| Power | (2-3)x3Kw | (2-4)x3Kw | (2-4)x3Kw | 11Kw | 11Kw | 15Kw |
| Overall weight | 2500Kg | 2900-3900-4900Kg | 3500-4750-5750Kg | 8500-10500Kg | 10200-12600Kg | 13600Kg |
Tags: small concrete mixer truck self loading batching plant schwing concrete pump price Concrete Placing Equipment
Solutions
Related Concrete Equipment

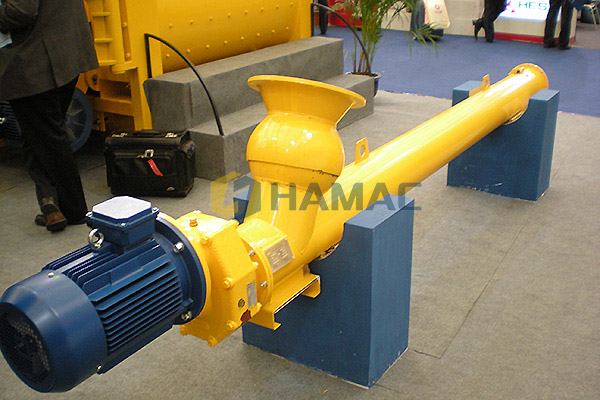

LSY series Screw Conveyor
LSY series Screw Conveyor
Cement Silo
PLD Concrete Batching Machine
Wheel Loader
Cement Mortar Foam Machine
Products
Concrete Mixers
Concrete Batching Plant
Concrete Conveying Plant

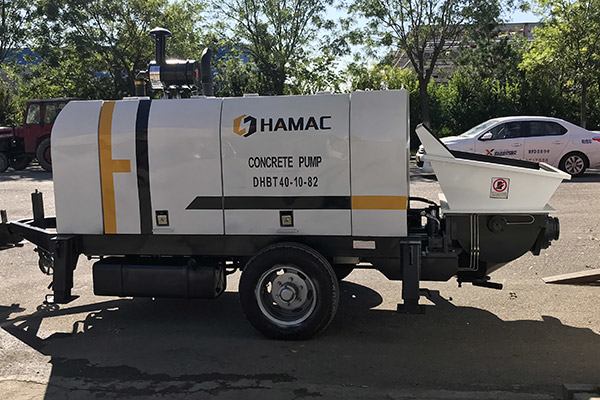

- HBT/DHBT series Concrete Pump
