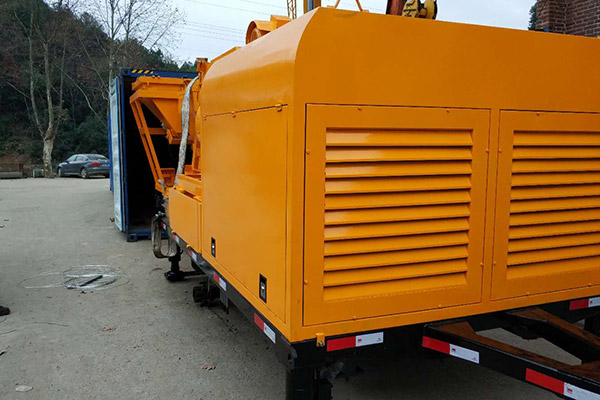

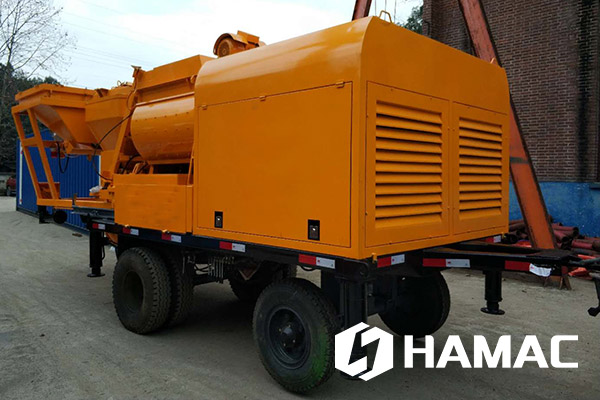

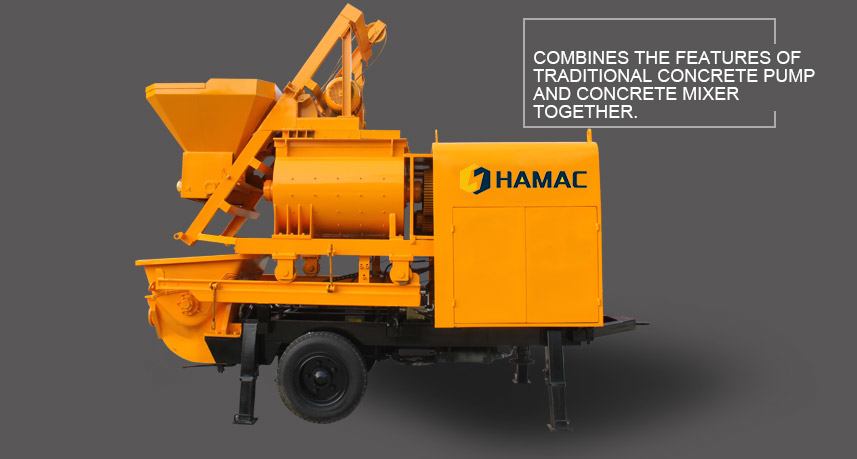

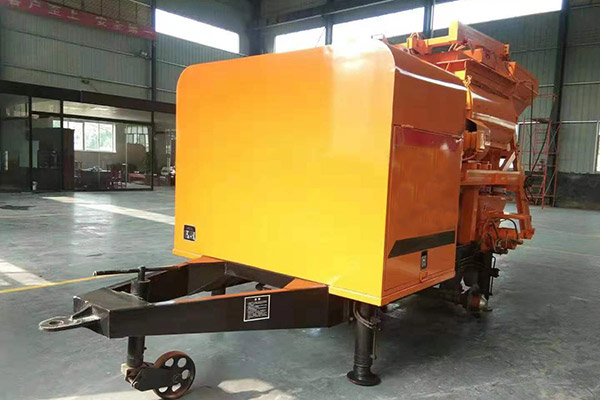

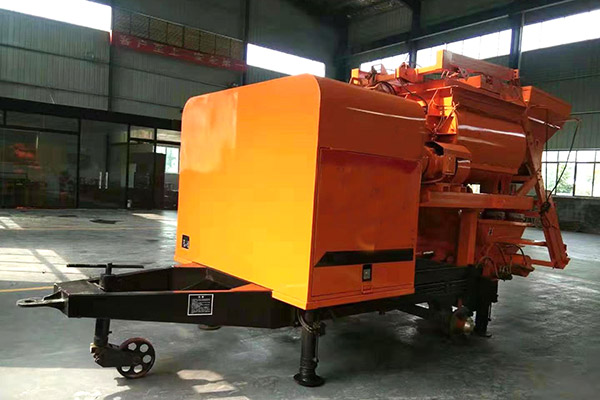

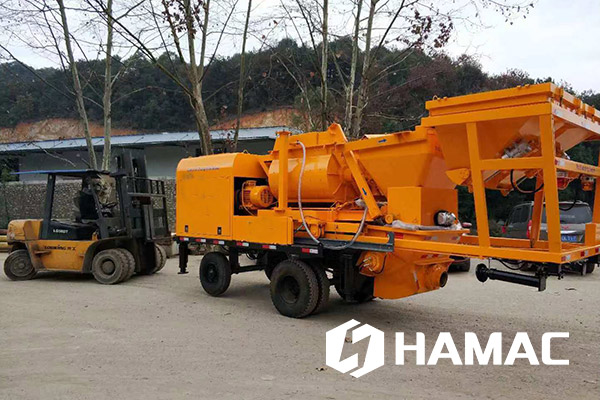

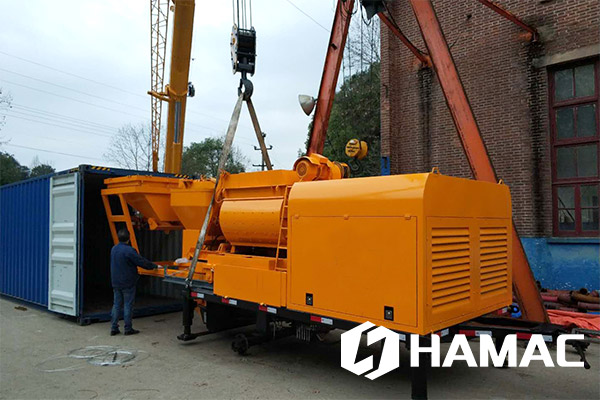

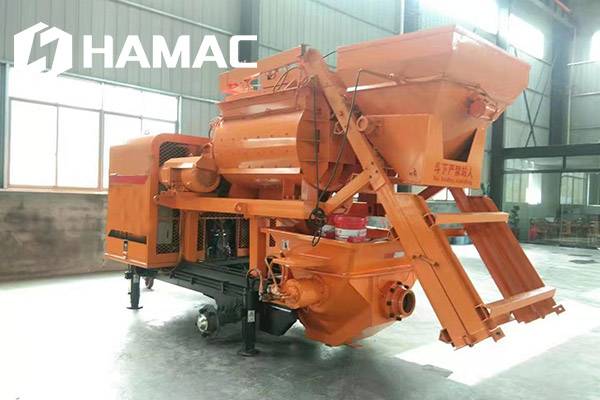

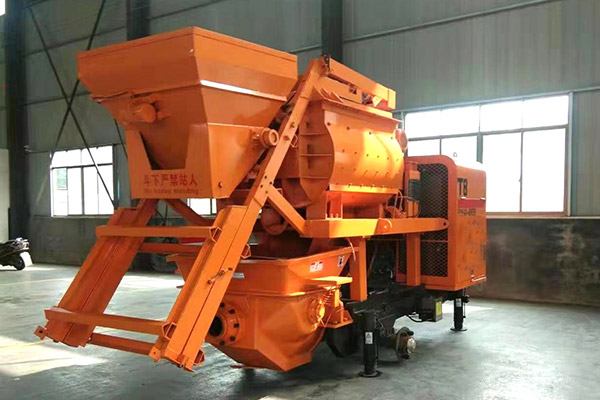

Detailed Photos
Performance
1. Electric driven, it is suitable for the working sites which can provide power supply;
2. Mixer and pump, combined in one machine, easy to be moved;
3. Forced type concrete mixer, compared with drum type concrete mixer, concrete quality is better;
4.PLC controlled, work stable, working life longer;
5. Compact design, the concrete mixer can slide on the railway.
Specification
HBT15-L1 Electric Concrete Mixer Pump | ||
Parts Name/Parameters | Parts Specification | |
Models | HBT25-L1 | |
Power | Power supply model | Local electricity 3P |
Electric Component | Siemens/Schneider/Omron | |
Mixing System | Mixer | JS500 twin shafts concrete mixer, 800L charging hopper, 500L concrete output per batch |
Mixing Motor | 18.5kW | |
Hoist Motor | 5.5kW | |
Submersible Pump | 0.75kW | |
Max. Theoretical Mixing Output | 25m³/h | |
Pumping System | Main Motor | 37KW |
Motor Rated Speed | 1480 RPM | |
Mian Hydraulic Oil Pump | KAWASAKI K3V112 | |
Double Gear Pump | 25&16 | |
Valves | overflow and directional valves, OM, Italy brand | |
Main Oil Cylinder | Φ100*Φ70*1000mm | |
Delivery Cylinder | Φ200*1000mm | |
S Valve | Φ200mm | |
Cutting Ring | Φ200mm | |
Glass Wear Plate | Φ200mm | |
Max. Theoretical Pumping Output | 40m³/h | |
Outlet Pressure | 8Mpa | |
Hydraulic System Type | Open circuit | |
Motor Rated Voltage | Customized | |
Max. Aggregate Size | Pebble:40mm Aggregate:30mm | |
Delivery height and horizontal distance | 70m/300m | |
Hydraulic Oil Tank Volume | 200L | |
Concrete Outlet Diameter | Φ180mm | |
Hopper Capacity × Filling Height | 600*1400 (L*mm) | |
Machine Size(LxWxH) | 5100*2200*2450 mm | |
Total Weight | 7000kgs | |
Tyre Size | 700R16 | |
Towing Speed | Max. 8km/h |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
