JZR Diesel Driven Concrete Mixer
INTRODUCTION
JZR series diesel concrete mixer (concrete agitator AND Diesel Concrete Mixer with Lifting Bucket) is driven by diesel engine. There are two feeding modes: climbing bucket feeding and dump hopper feeding. JZR series diesel engine concrete mixer can be drawn by wheels, so it is easy to move. It is controlled by electric control box, which makes the operation very easy. The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.
Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump - Get quote or inquiry!
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

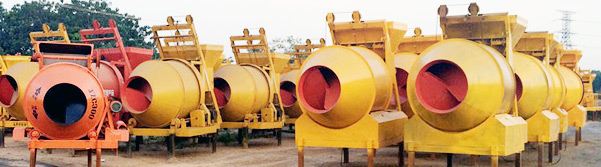

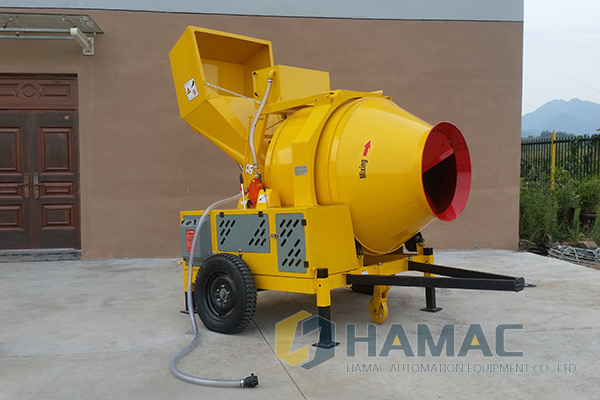

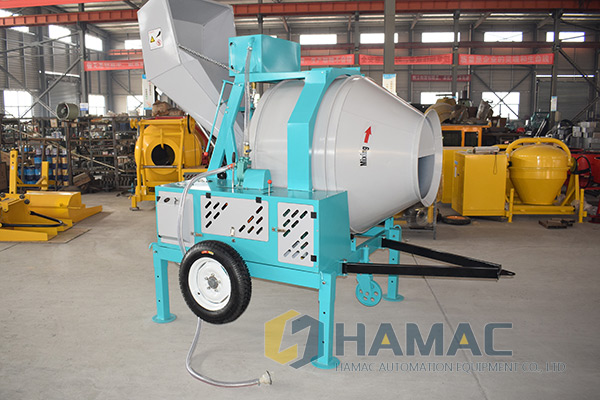

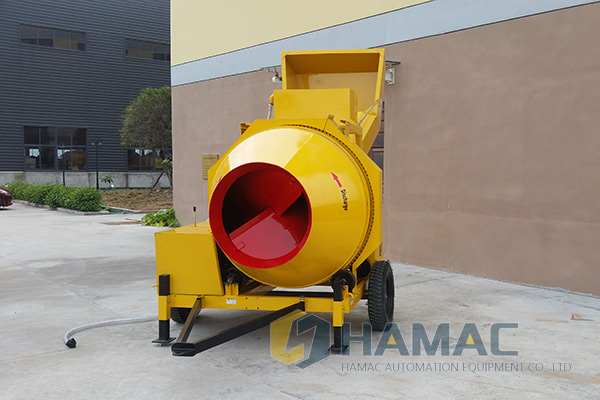

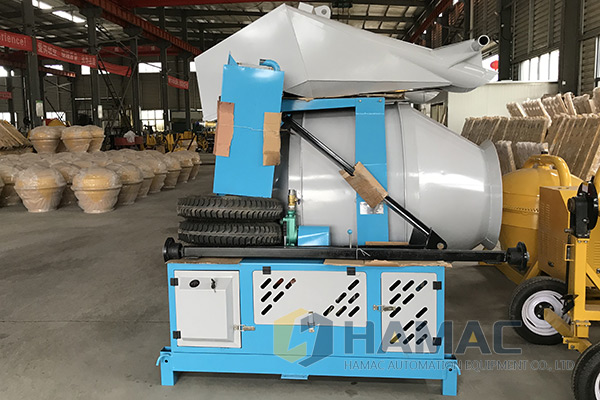

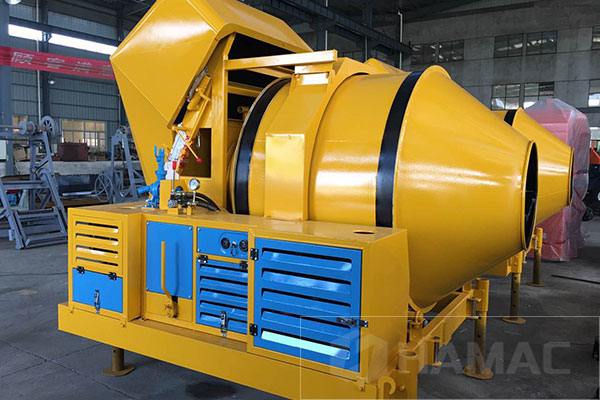

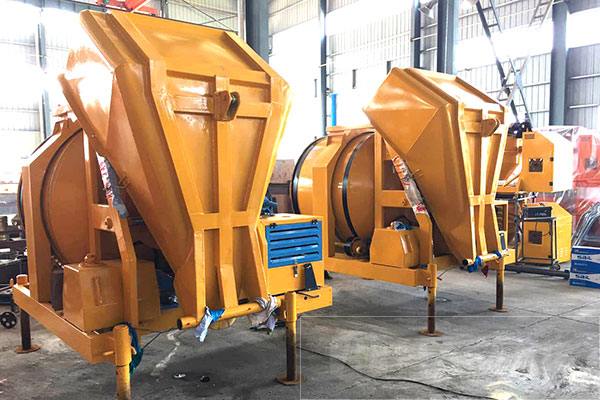

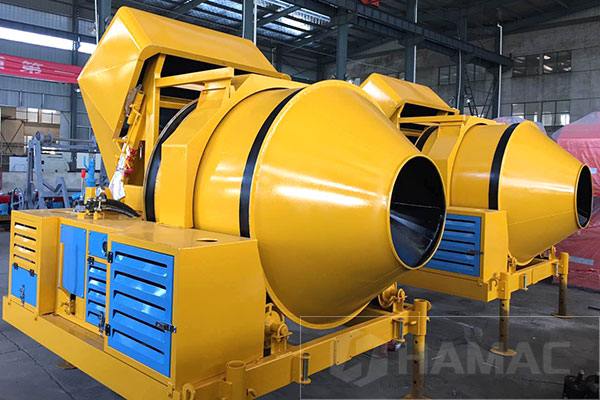

Detailed Photos
Performance

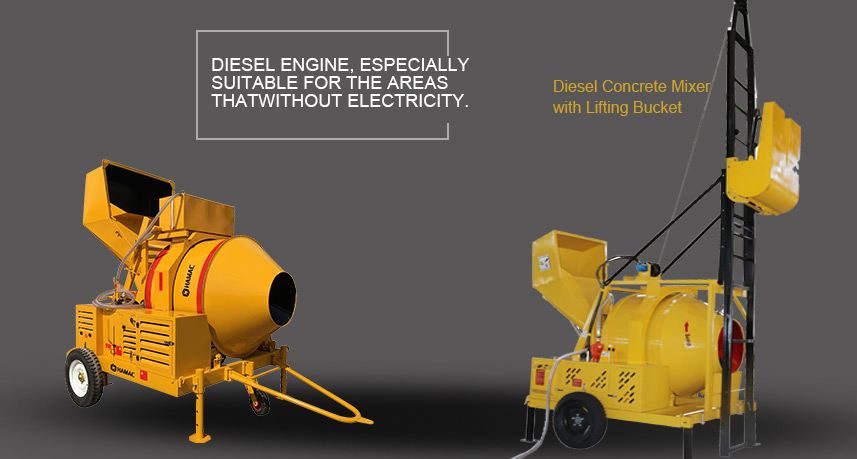

1. Diesel engine, especially suitable for the areas thatwithout electricity.
2. Can be easily moved between different construction sites.
3. Easy operation; stable performance; Low energy consumption.
4. Reasonable structure, higher reliability, mixing evenly with high productivity.

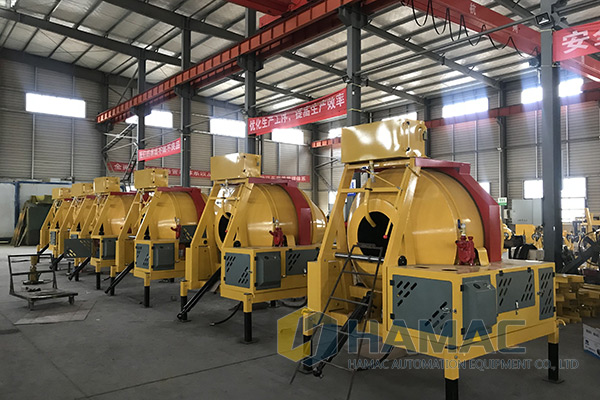

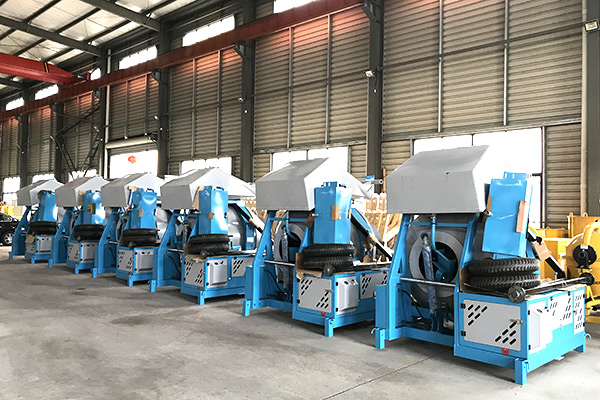

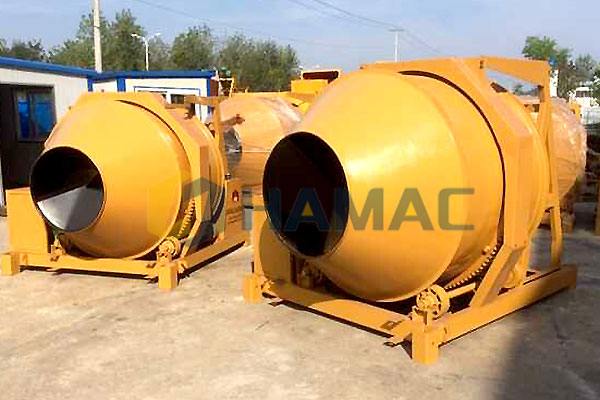

Manufacturing Process
Specification
| Model | JZR350DW | JZR350DH | JZR500DH |
| Discharging Capacity(L) | 350 | 350 | 500 |
| Charging Capacity(L) | 560 | 560 | 800 |
| Productivity(m3/h) | 10-14 | 10-14 | 20-22 |
|
Maximum Size of Aggregate(mm) |
60 | 60 | 80 |
| Hopper Lifting | Hydraulic system | Hydraulic system | Hydraulic system |
| Diesel Engine Power(kw) | 13.2 | 13.2 | 16.2 |
| Power of Water Pump(kw) | 0.75 | 0.75 | 2.2-3 |
| Accuracy of Water Supply | Error≤2﹪ | Error≤2﹪ | Error≤2﹪ |
|
Dimensions in Container (mm) |
2750×2200×2400 | 2300×1900×2500 | 2300×3300×2500 |
| Overall Weight (kg) | 1350 | 1400 | 2300 |
Diesel Concrete Mixer with Lifting Bucket:
| Model | JZC350-DHL |
| Discharging Capacity | 350L |
| Loading Capacity | 560L |
| Lifting Bucket Capacity | 200L |
| Productivity | 10-14m3/h |
| Bags of Cement per batch | 2 Bag Cement |
| Drum Thickness | 6mm |
| Drum Size | Φ1460×1760mm |
| Rated Lifting Height | 17m |
|
Engine Option |
Water-cooled JIANGDONG Diesel Engine ZS1100(16HP) |
|
Water-cooled CHANGFA Diesel Engine CF1100(16HP) |
|
|
Water-cooled CHANGCHAI Diesel Engine ZS1100(16HP) |
|
| Displace of Hydraulic Pump | 25ml/r |
| Max. Size of Aggregate | 60mm |
| Drum Rotation Speed | 14rpm |
| Total Weight | 2300kg |
| Overall Size(L*W*H) | 3300×2300×3100mm |
| Packing Size(L*W*H) | 2300×2000×2500mm |
| Container Loading Plan | 2 Sets/20GP, 5 Sets/40HQ |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
