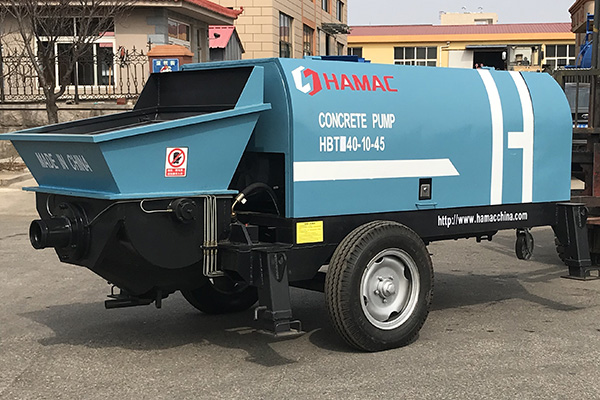

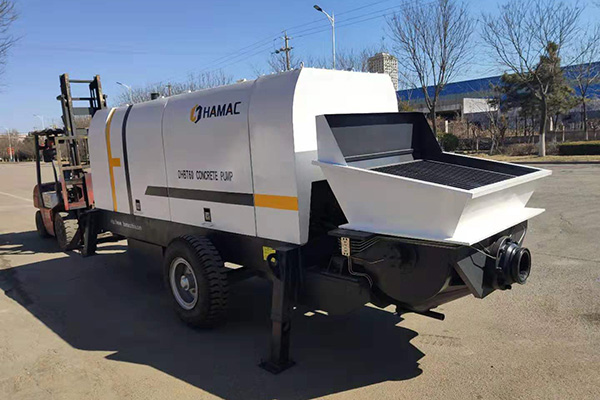

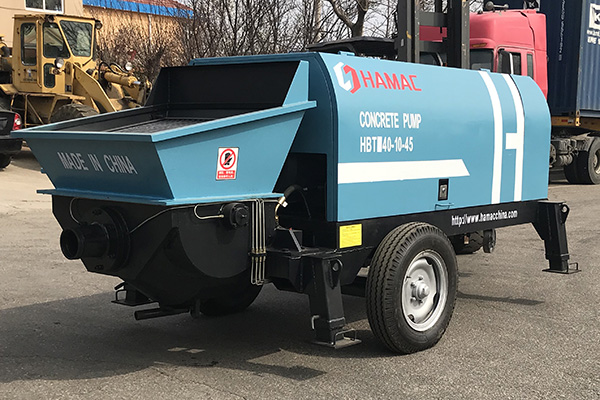

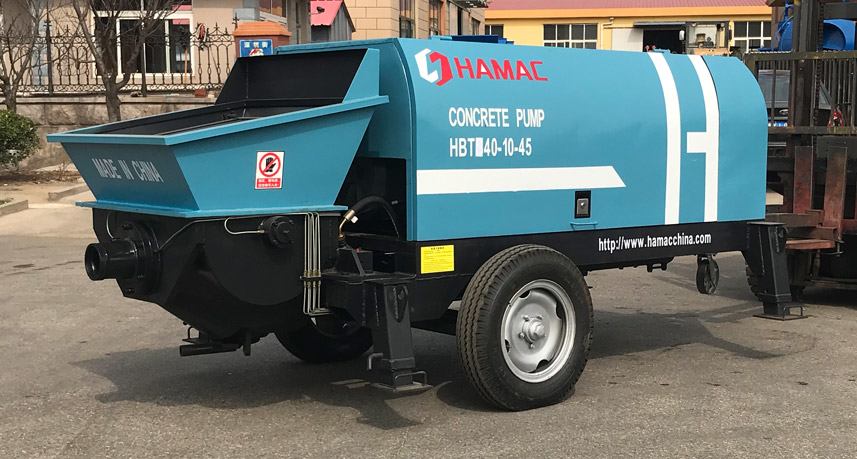

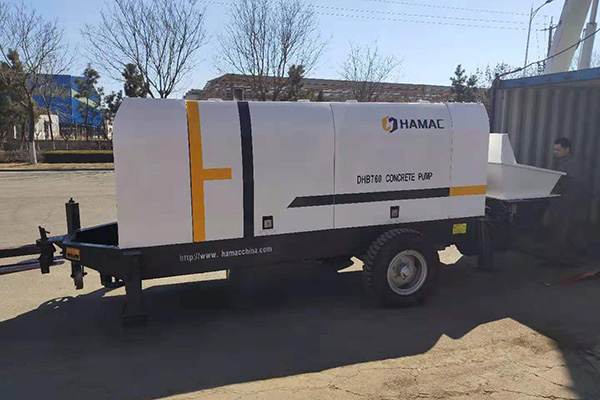

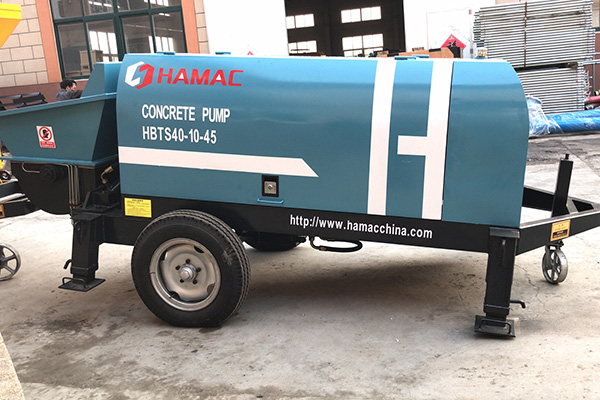

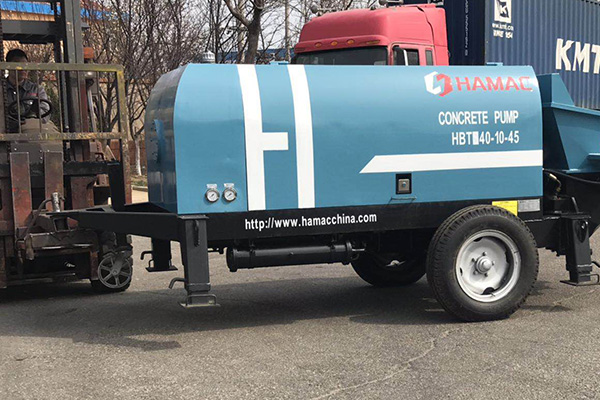

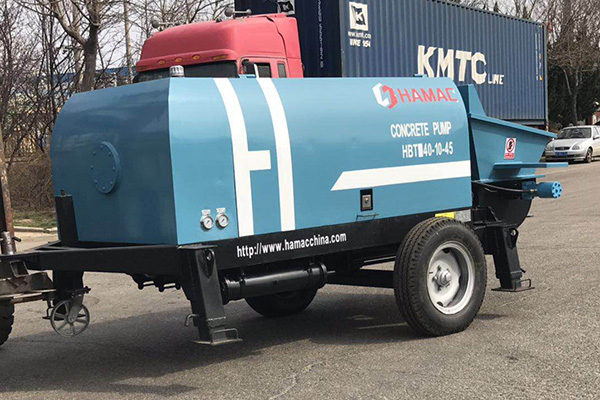

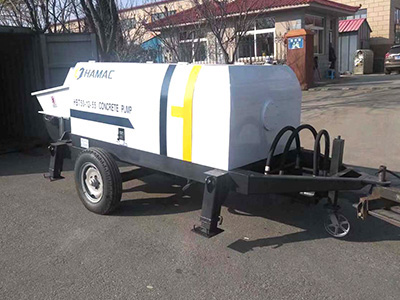

Detailed Photos
Performance
1. Radiator: adopts the air-cooled plate-fin radiator to ensure that the system could operate in a maximum temperature allowed.
2. The main oil pump: adopts the German Hawe / Rexroth / Japanese Kawasaki series.
3. Lubrication system: adopts the automatic multi-point lubrication technology featuring one to one lubrication with better efficiency and the extending service life of wearing parts.
4. Power system: the power of motor series uses the well-known domestic and foreign brands: Yantai motor, Qingdao motor, Siemens Beide motor.
5. Diesel Series: power system employs the Lovol or Deutz diesel engine;
6. Electrical parts: the main electrical products adopts Schneider , LG products to the reliability of the electronic control system.
7. Hydraulic Hose Fittings: adopts the US Eaton products to ensure the safety of the hydraulic system, no leakage.
8. Large cylinder seals: Large cylinder seals adopts the US Parker products.
9. S valve: employing the manganese steel overall casting, the wearing surface adopts wear-resistant materials featuring the dual advantages of pressure and abrasion resistant.
10. Glasses plate cutting ring: glasses plates and cutting ring inlaid adopts the carbide hard to ensure a durable design.
11. Pistons: adopts the imported materials and precision machining, with excellent qualities: hydrolysis resistance, wear resistance and high temperature resistance.
Specification
Item | Unit | S Valve Concrete Pump | |||||||
HBT30 | HBT40 | HBT50 | HBT60 | HBT80 | |||||
Theoretic Concrete Delivery Volume | Low Pressure | M3/H | 30 | 40 | 50 | 60 | 80 | ||
High Pressure | M3/H | / | / | 23 | 36 | 48 | |||
Concrete Delivery Pressure | Low Pressure | MPa | / | / | 5.8 | 6.3 | 8.3 | ||
High Pressure | MPa | 10 | 10 | 12 | 13 | 16 | |||
Hydraulic Pressure | MPa | 25 | 28 | 28 | 28 | 28 | |||
Electric Motor Speed | R/Min | 1480 | |||||||
Main hydraulic Pump | JINDA | Kawasaki | |||||||
Main Cylinder Dia./Pole Dia.× Stroke |
mm | Φ80/55×845 | Φ100/70×1100 | Φ110/70×1300 | Φ120/80×1650 | Φ140/90×1800 | |||
Diameter Of Delivery Cylinder | mm | 140 | 160/180 | 180 | 200 | 200 | |||
Electric Motor Power | KW | 37 | 45 | 55 | 90 | 110 | |||
Capacity Of Hydraulic Oil Tank | L | 200 | 370 | 370 | 560 | 560 | |||
Hopper Capacity | M3 | 0.4 | 0.55 | 0.6 | |||||
Overall Weight | Kg | 2300 | 3500 | 3600 | 5000 | 5600 | |||
Max. Delivery Distance |
Vertical | M | 100 | 160 | 160 | 160 | 160 | ||
Horizontal | M | 300 | 500 | 500 | 800 | 1000 |
