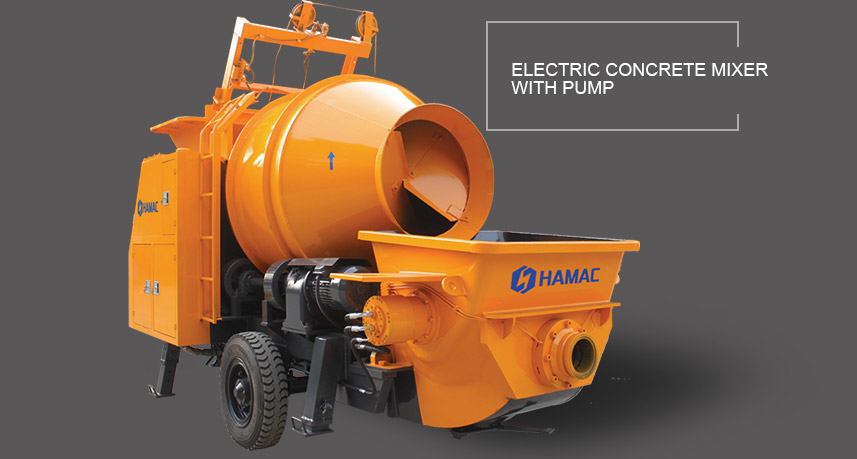

HBT15 Electric Concrete Mixer Pump

HBT15 Electric Concrete Mixer Pump

INTRODUCTION

As the name implies, the power system of electric concrete mixer pump machine is motor. Because using electricity is environmental and convenient, it is a popular choice for many people. In the past time, the construction subcontractor wanted to buy a concrete mixer to produce the concrete firstly, and then he also needed a concrete pump to deliver the concrete to the buildings. There will be two machines to finish this job. It required more people for the projects. In order to solve this problem and provide our customer with better solution. We researched and developed this concrete mixer with pump. You can finish all the work by the same machinery. It combined concrete mixer with concrete pump. When the concrete pump is working, the concrete mixer is also working. It will save your time to produce and deliver the concrete. After it is sold to the market, we get a positive response from our customers. Most of them said that it is really a revolution for the mixer and pump.

Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump - Get quote or inquiry!

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

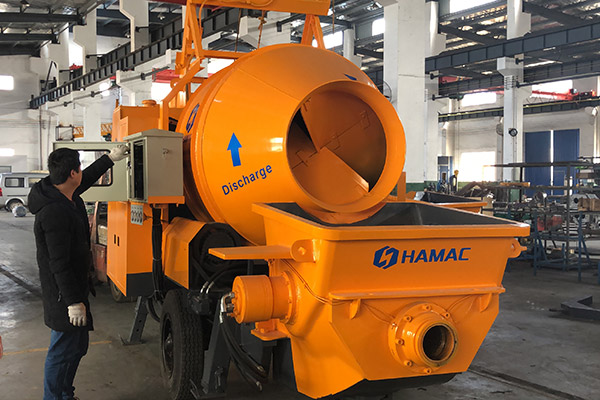

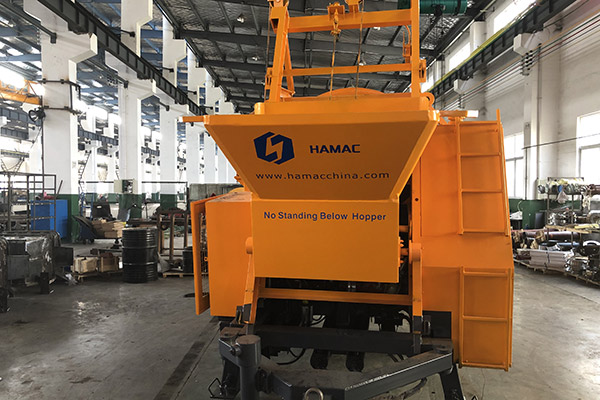

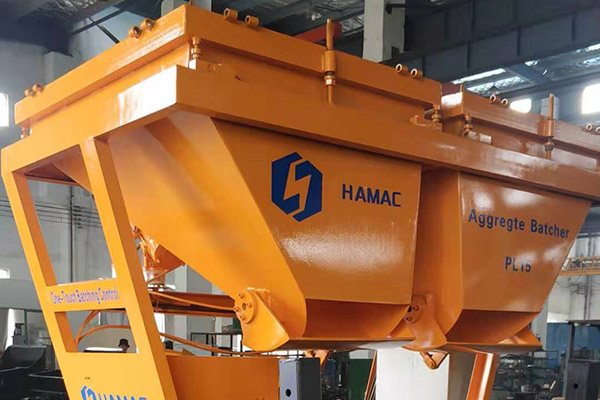

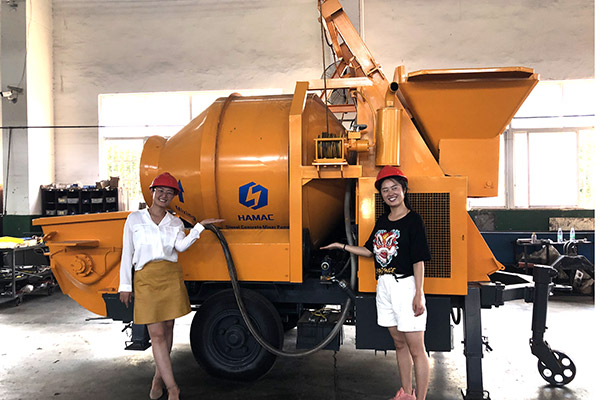

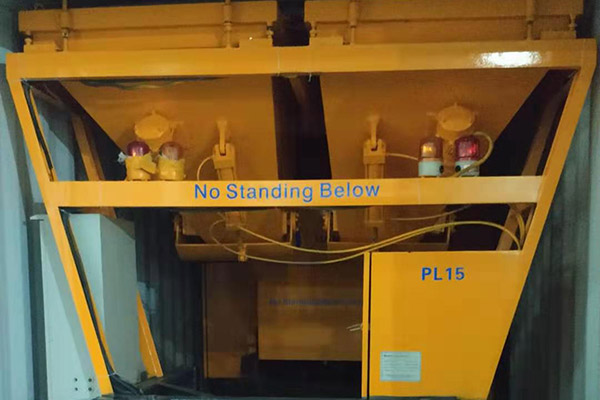

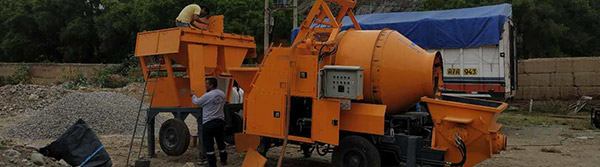

Detailed Photos

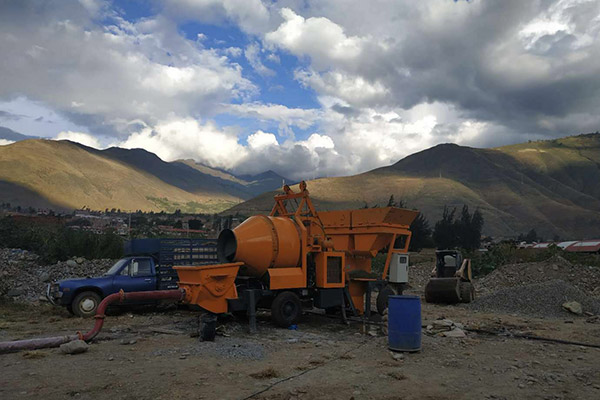

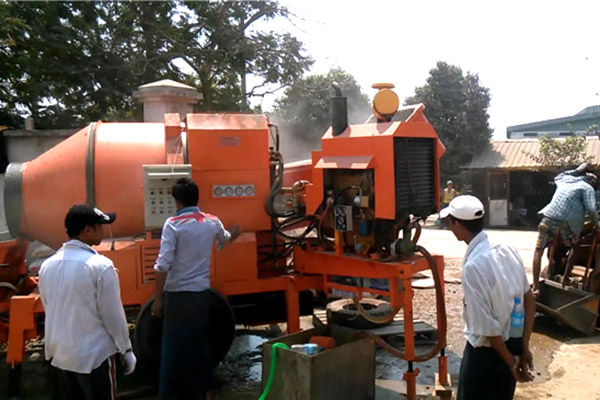

FEEDBACK

Performance

1. Small land occupation: In comparison with only one concrete mixer or just one concrete pump, mixer pump occupies a less limited area and can be moved easily in order to apply it in different construction sites

2. Larger application: Since we take the carrying capacity of rural power into consideration, it has a much smaller power and has a larger application than common concrete pump.

3. Advanced system: We adopts double open hydraulic loops. The pumping hydraulic circuit is independent of distributing hydraulic circuit. Therefore, the reliability of the whole system is also much higher as well as the components’life is prolonged greatly.

4.High efficiency: It increases efficiency by makes mixing function and pumping function into one, which saves more time for other construction procedures. Besides, it saves labor costs and reduces labor intensity by adopting fully automated construction operating system.

5. Simple operation:The operation is easy to be mastered. It is worth mentioning that our concrete pump mixer is equipped with wire remote control. It makes the operation more convenient

6. Value-added service: We can provide you with conveying pipes for free. Usually, the pipe length of small mixer pump is sixty meters. For middle mixer pump, the free length can reach to one hundred meters.

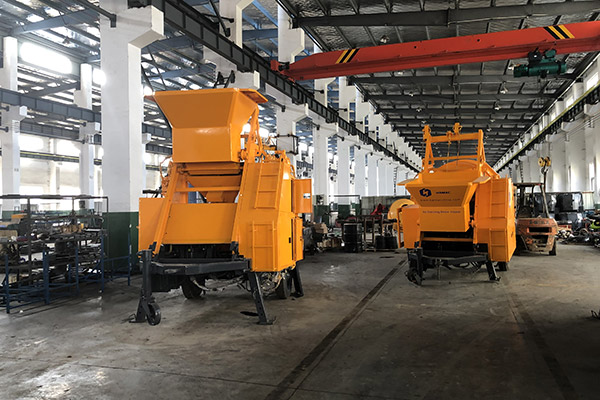

Manufacturing Process

Specification

Electric Driven Concrete Mixer with Pump
Different parts and information		Brand/Origin	Quantity	Specification
Power	380V	Local Electric	1 pc	Customized accept
Power	Electric Component	/	/	Siemens/Schneider/Omron
Mixing System	Mixer	Domestic	1 set	JZM450 drum mixer
	Mixing Motor	Domestic	2 pc	5.5KW
	Hoist Motor	Nanjing te zhong	1 pc	5.5KW
	Submersible Pump	Shanghai Bali	1 pc	0.75KW, pumping water to mixer
	Max. Theoretical Mixing Output	/	/	18-22m³/h
Pumping System	Main Motor	Siemens/Zhaoyang	1pc	37KW
	Motor Rated Speed	/	/	1480Rpm
	Main Oil Pump	Kawasaki 112	1pc	40 cubic meters per hour.
	Double Gear Pump	Domestic	1set	25&16
	Valves	Tokyo Keiki	4sets	overflow and directional valves
	Main Oil Cylinder	Domestic	2pcs	Φ100Φ701000mm
	Delivery Cylinder	Domestic	2pcs	Φ200*1000mm
	S Valve	Domestic	1pc	Φ200mm
	Cutting Ring	alloy	1pc	Φ200mm
	Glass Wear Plate	alloy	1pc	Φ200mm
	Max. Theoretical Pumping Output	/	/	40m³/h
	Outlet Pressure	/	/	8Mpa
	Hydraulic System Type	/	/	Open
	Motor Rated Voltage	/	/	380v
	Max. Aggregate Size	/	/	Pebble:40 Crushed Stone：30
	Concrete Outlet Diameter	/	/	Φ180mm
	Hopper Capacity × Filling Height	/	/	8001000 (Lmm)
	Machine Size(LxWxH)	/	/	496021002500 mm
	Total Weight	/	/	5300kg
	Tyre Size	/	/	700R16
	Towing Speed	/	/	Max. 8km/h
