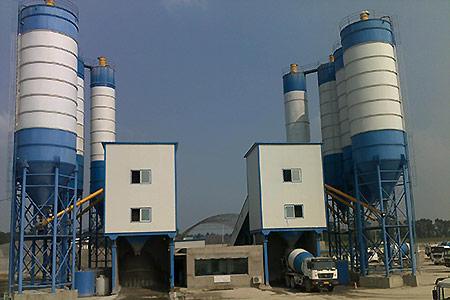

Clients' Working Site

Advantage
1. Modular organization, assembly and disassembly is rapid, easy for transportation. And we have different layout forms which are suitable for clients’ requirement;
2. Adopt the JS500 twin shafts concrete mixer which work stable and reliable, suitable for different kinds of concrete, high efficiency;
3. All the weighing parts, control parts select the famous brand parts, computerized controlled to guarantee the work performance;
4. All the powder material is transported, weighed, mixer and discharging in a closed working status, so the power and noise are eliminated in a very low level;
5. There is the ladder and platform for the operation and maintenance, and there is high pressure clean system for the mixer;
6. The control system adopts good elements to make sure the system working stable. The system will alarm through different ways if there is something wrong with the system.
Specification
| Model | 2HZS60A |
| Theoretic productive | 2×(25-30)m3/h |
| Concrete mixer | 2×JS500 |
| Maximum aggregate size | 80mm |
| volume of discharge product | 2×0.5m3 |
| aggregate transporting way | Bucket conveyor |
| aggregate weighing | 1500Kg ±2% |
| cement weighing | 300Kg ±1% |
| Water weighing | 200Kg ±1% |
| Loading height | 2.61m |
| total power | 75Kw |
| total weight | 12.8t(the discharge height 1.6m) |
| 13.8t(the discharge height 2.7m) | |
| 17.8t(the discharge height 3.8m) | |
| Overall dimension (working condition: LXWXH) | 5843mm×5580mm×4700mm(the discharge height 1.6m) |
| 7488mm×5580mm×5900mm(the discharge height 2.7m) | |
| 9454mm×6936mm×9580mm(the discharge height 3.8m) | |
| discharging height | 1.6m/2.7m/3.8 m |
| silo (optional) | As client request, the quantity and volume is optional. |
| screw conveyor (optional) | One φ219 screw conveyor for each silo |
