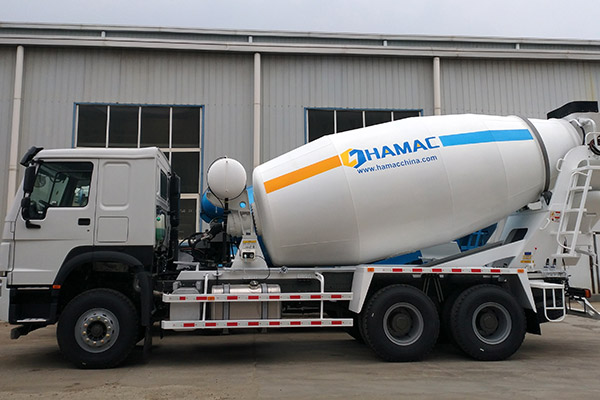

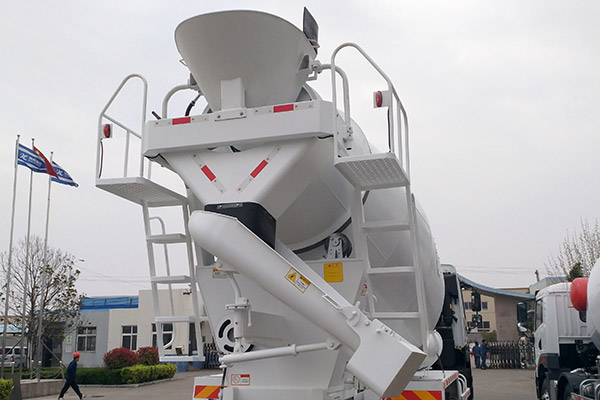

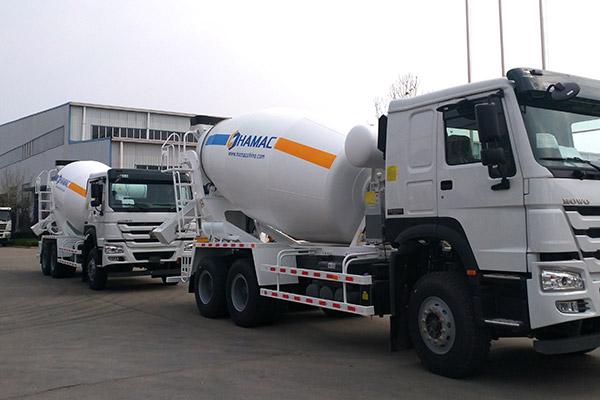

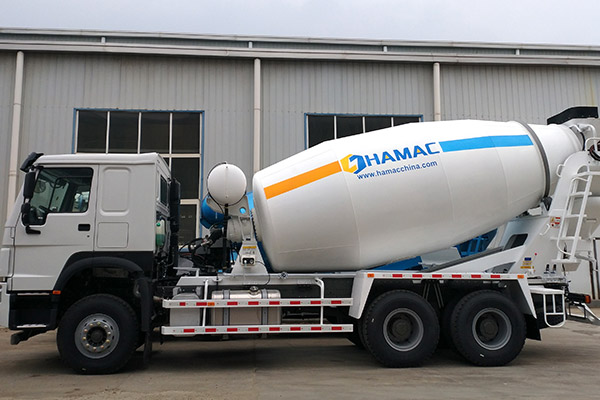

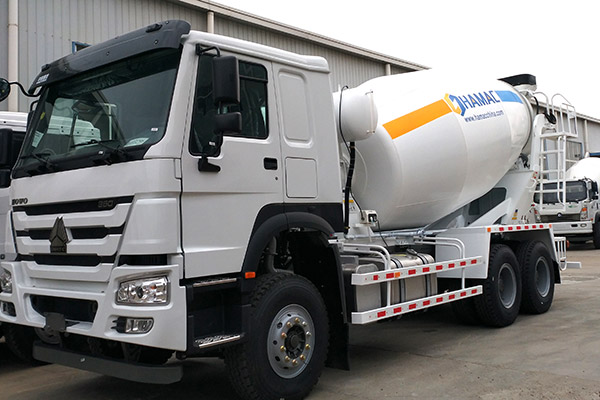

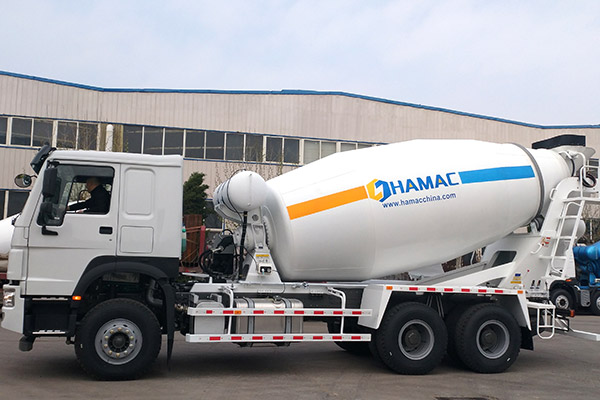

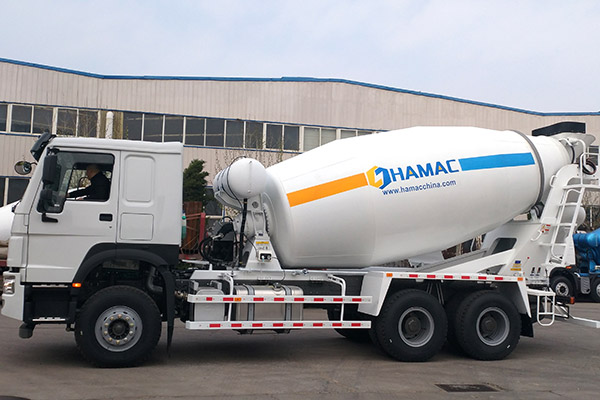

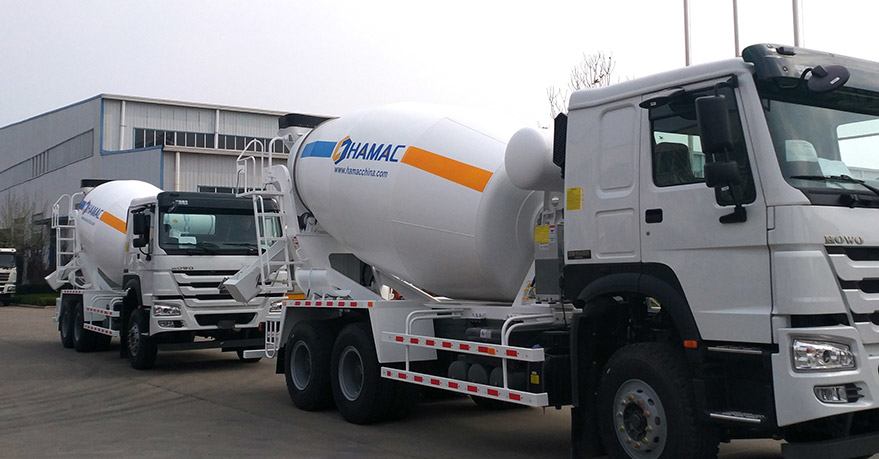

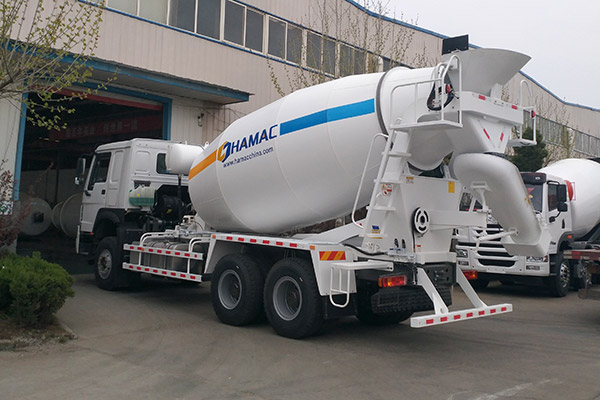

Detailed Photos
Performance
1. The whole truck is convenient and stable with strong intensity. Sperical purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination. Center of gravity is lower than similar concrete transit mixer at 5%, safety factory higher 10%;
1. The whole truck is convenient and stable with strong intensity. Special purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination Center of gravity is lower than similar concrete transit mixer at 5%, safety facto higher 10%
Specification
Overall parameter( Concrete Transit Mixing Truck 10m³) | |
Overall dimension | 9400x2500x3850mm(Approx) |
Kerb weight | 14500kg(Approx) |
Mixing Drum parameter | |
Mixing drum material | High quality wear-resistance steel |
Model:Q345 | |
Drum body thickness: 5mm, End cover thickness:6mm | |
Agitating capacity | 10m3 |
Drum overall dimension(with frame) | 7100*2500*2730mm |
Charging rate | ≥3 m3/min |
Top feed hopper dimension | ≥650 mm |
Discharging rate | ≥2 m3/min |
Residual rate | ≤0.5% |
Water supply | Baric water supply system |
Water tank capacity | 450L |
Radiator | 18L |
Reduction gear | TOP T68 Reducer, Italy Brand |
Hydraulic pump | EATON 54, American Brand |
Hydraulic motor | EATON 54, American Brand |
Accessory | Tool box |
Chassis parameter | |
Chassis Brand | SINOTRUCK chassis |
Wheelbase (mm) | 3825+1350 |
Drive model | Left hand drive |
Quantity of axis | 3 |
Engine | SINOTRUCK D10.34-40 |
Engine Power | 340hp |
Emission Standard | EUR IV |
Tire | 12.00R20 |
