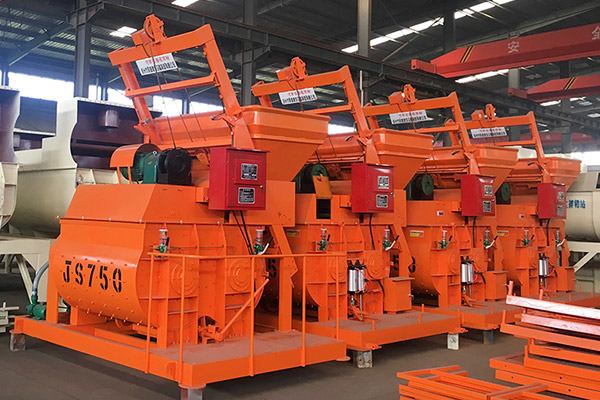

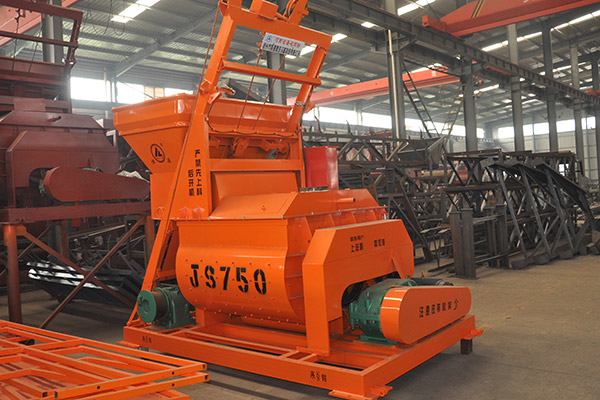

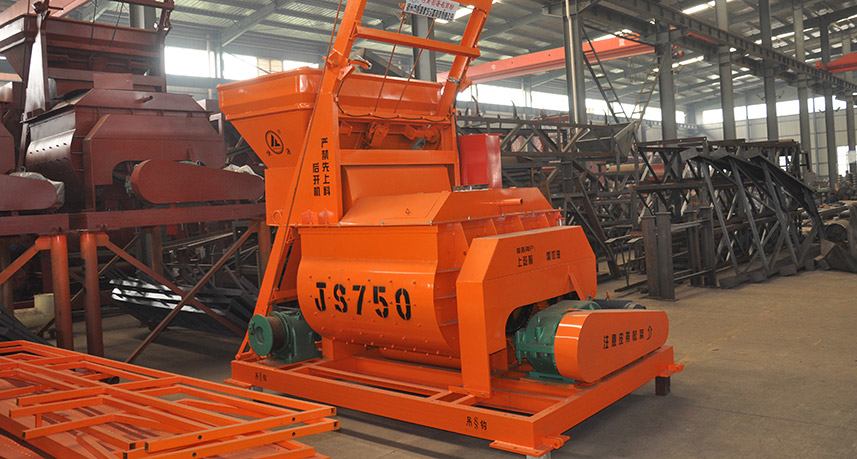

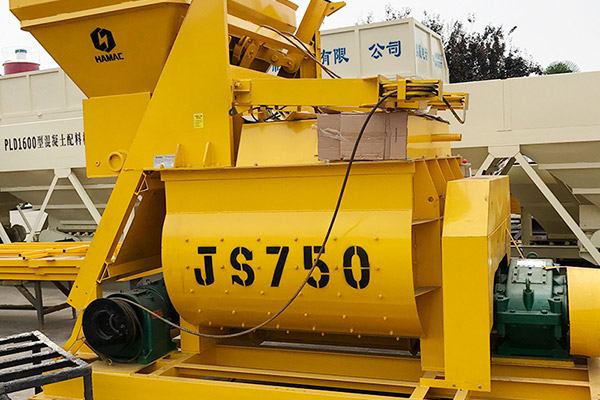

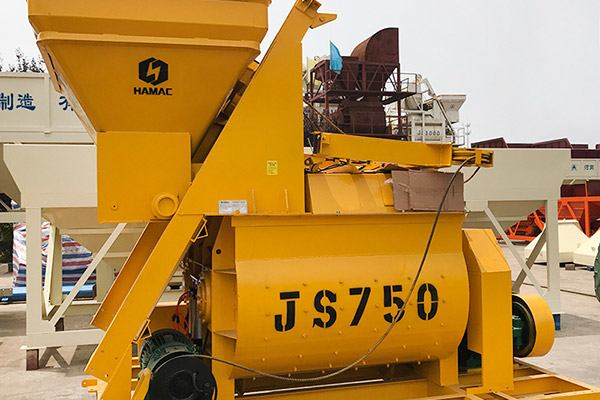

Detailed Photos
Performance
1. Special drum prolongs the service life of the steel wire rope.
2. Precise mechanical parts.
3. High-quality wear-resistant alloy casting parts and advanced production technology ensure the clearance of the mixing blades and the liner plate well-distributed.
4. The test run with dry aggregate supplies sufficient reasons for customers to choose Hamac.
5. Concrete intensity test proves the excellent performance of the mixing equipment.
Manufacturing Process
Raw material
Using in for the concrete block machines
Making Blocks and Bricks:
Specification
Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | JS3500 | JS4000 | |
Discharging volume (L) | 500L | 750L | 1000L | 1500L | 2000L | 3000L | 3500L | 4000L | |
Feeding volume (L) | 800L | 1200L | 1600L | 2400L | 3200L | 4800L | 5600L | 6400L | |
Capacity | ≥25m³/h | ≥37.5m³/h | ≥50m³/h | ≥75m³/h | ≥100m³/h | ≥150m³/h | ≥180m³/h | ≥200m³/h | |
Maximum aggregate size (pebble/gravel)mm | 40/50 | 40/60 | 60/80 | 80/100 | 80/100 | 80/120 | 80/120 | 80/120 | |
Cycle time (S) | 72 | 72 | 60 | 60 | 60 | 60 | 60 | 60 | |
Total weight (kgs) | 4000 | 5500 | 8700 | 11300 | 15000 | 11450 | 12000 | 19000 | |
Discharge height (m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | |
Mixing blade | Rotary speed | 35r/min | 26r/min | 29.6r/min | 24.5r/min | 24.5r/min | 21r/min | 21r/min | 21r/min |
Quantity | 2×7 | 2×7 | 2×8 | 2×8 | 2×8 | 2x10 | 2x10 | 2x11 | 2x12 |
Mixing motor | Model | Y180M-4 | Y200L-4 | Y180M-4 | Y225M-6 | Y250M-6 | Y280M-6 | Y280M-6 | Y315S-6 |
Power | 18.5kw | 30kw | 2x18.5kw | 2x30kw | 2X37kw | 2X55kw | 2X55kw | 2X55kw | |
Hoist motor | Model | YEZ1325-4-B5 | YEZ132M-4-B5 | YEZ160L-4 | YEZ180L-4 | YEJ180L-4 | Y25M -4 | Y25M -4 | Y25M -4 |
Power | 5.5KW | 7.5KW | 15KW | 18.5KW | 22KW | 2 × 55 kw | 2 ×55 kw | 2 × 75 kw | |
Pump motor | Power | 1.1KW | 1.1KW | 3KW | 3KW | 4KW | 5KW | 5KW | 6KW |
Any change of technical data shall not be advised additionally.
