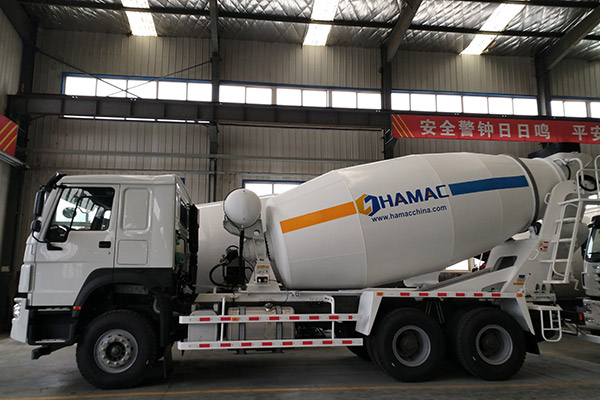

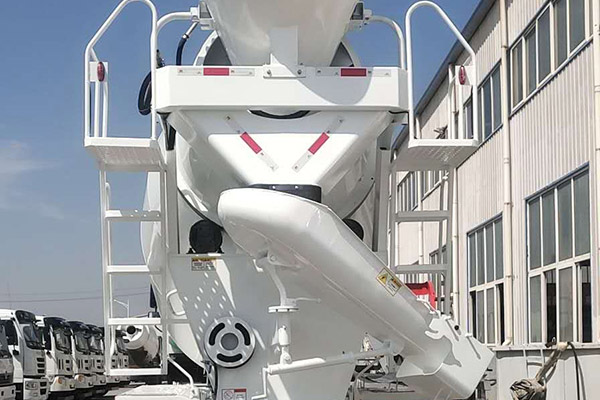

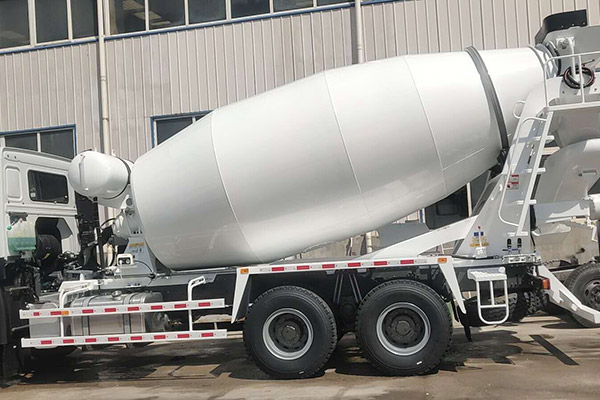

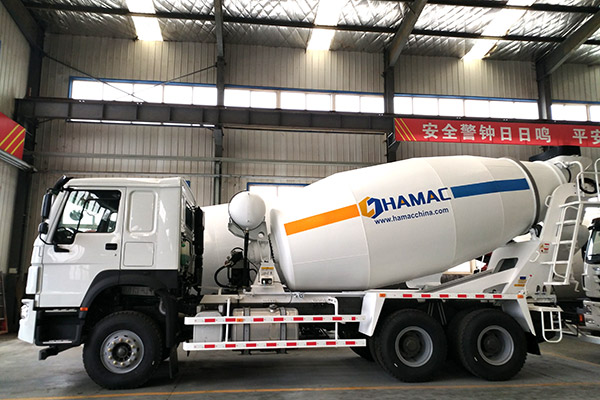

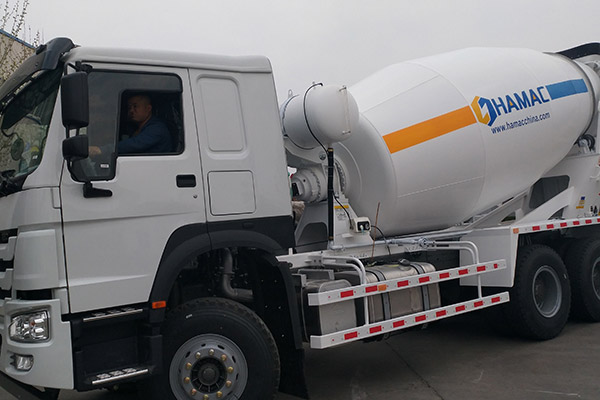

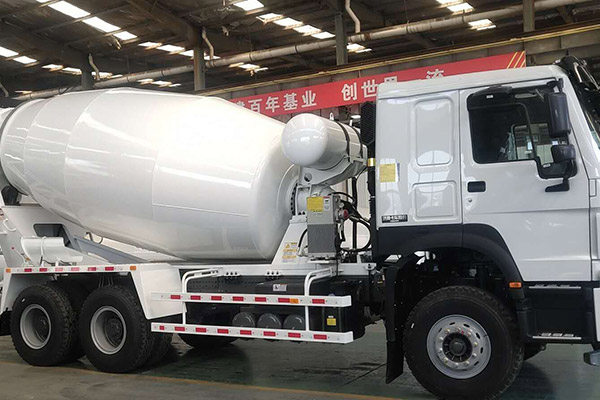

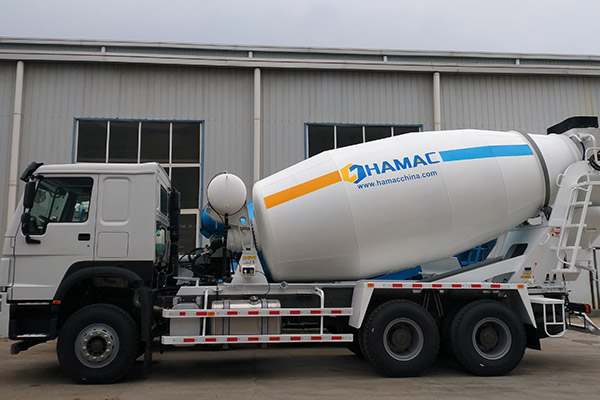

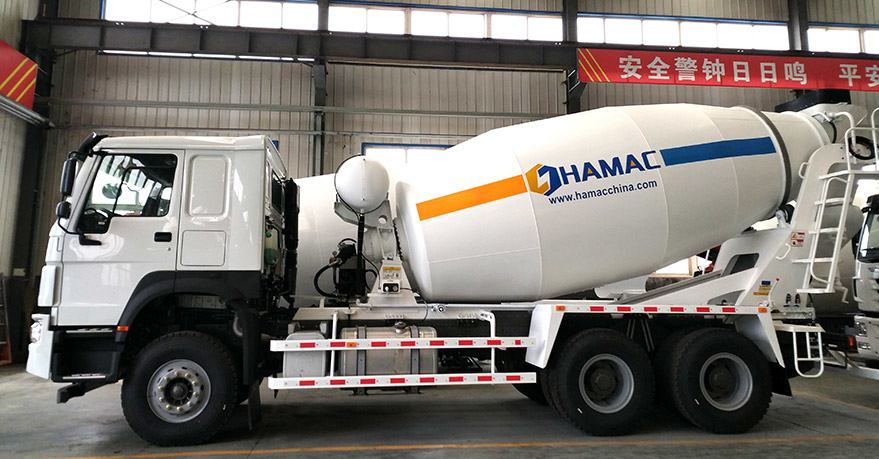

12cbm Concrete Mixing Truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.
12cbm Concrete Mixing Truck has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.
1. Principal components of the concrete mixer truck
(1) Hydraulic System: hydraulic pump, hydraulic motor.
(2) Drivetrain System: reductor.
(3) Control System.
(4) Mixing System.
(5) cleaning system.
2. Advantages of concrete mixer truck
(1) High-intensity drum material.
(2) featuring better wear-resistance and long service life.
(3) Germany IFM sensors
(4) low material residue.
(5) High-quality parts.
(6) Excellent performance and convenient operation.
(7) Imported original hydraulic system(Bosch Rexroth Brand).
(8) PMP or CF reducer
|Overall parameter( Concrete Transit Mixing Truck 12m³)|
|Mixing Drum parameter|
|Mixing drum material||High quality wear-resistance steel|
|Drum body thickness: 5mm, End cover thickness:6mm|
|Drum overall dimension(with frame)||7100*2500*2730mm|
|Charging rate||≥3 m3/min|
|Top feed hopper dimension||≥650 mm|
|Discharging rate||≥2 m3/min|
|Water supply||Baric water supply system|
|Water tank capacity||450L|
|Reduction gear||TOP T68 Reducer, Italy Brand|
|Hydraulic pump||EATON 54, American Brand|
|Hydraulic motor||EATON 54, American Brand|
|Chassis Brand||SINOTRUCK chassis|
|Drive model||Left hand drive|
|Quantity of axis||3|
|Emission Standard||EUR IV|
