Tracked Vibrating Screening Plant

Tracked Vibrating Screening Plant
The best choice for material crushing in different working sites

The HMC series tracked mobile crushers are widely used in aggregates production and recycling. Their track-mounted design allows for easy relocation within production sites or between sites. These mobile crushers enhance productivity, reduce operating costs, improve safety, and minimize environmental impact. While their core components are similar to those of stationary crushers, their full mobility enables operation on slopes with inclines up to 1:10.

  • Different modular as options
  • Easily being transported
  • Reduce transportation cost of material
  • Introduction
  • Technical Parameters
  • Gallery
Content Index

Usage of Tracked Vibrating Screening Plant

Tracked crusher and screens are used widely in the world for different projects as below:

  • 1. Widely used in mines, coal mines, recycling of garbage and construction waste, earthwork engineering, urban infrastructure, roads or construction sites.
  • 2. Processing of topsoil and other materials; separation of viscous aggregate; construction and blasting industries; screening after crushing; quarrying industry.

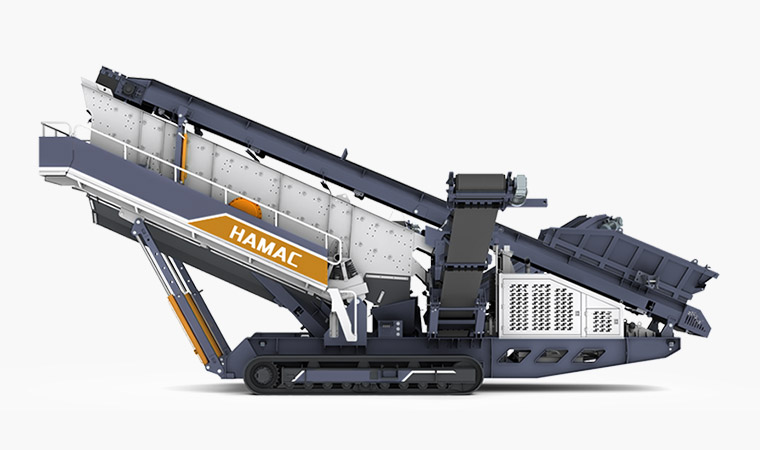

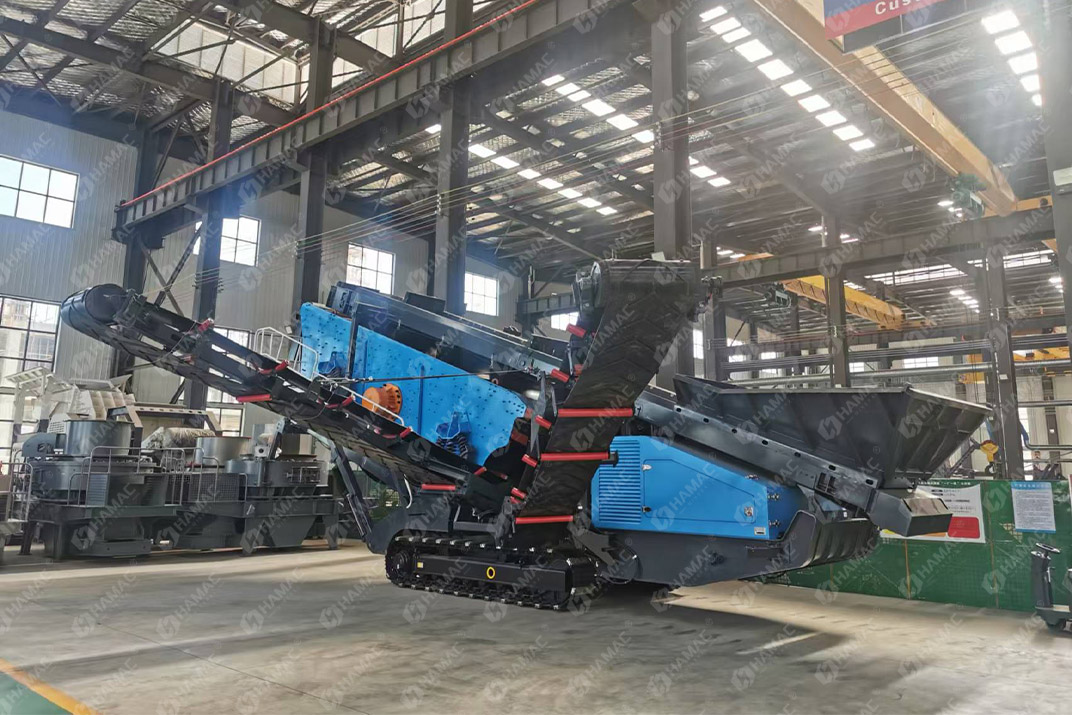

Tracked Vibrating Screening Plant

Features and advantages

  • 1.Fuel saving, environmental protection and low cost;
  • 2.Light weight, compact design and convenient transportation;
  • 3.Attached power package adopts optimized design.
  • 4.Pre-screening system can increase crushing efficiency greatly.
  • 5.It adopts heavy-load crawler chassis, hydraulic drive and self-powered. According to different project needs, it can be equipped with jaw crusher, impact crusher, cone crusher, vertical shaft impact crusher, vibrating screen and supporting equipment to operate alone or in multiple stages to form a combined crushing and screening operation system.
Tracked Vibrating Screening Plant

Tracked Vibrating Screening Plant Goods Delivery

Based on good quality and decades of experience, the Tracked Vibrating Screening Plant which is manufactured by HAMAC was exported to different countries. The Tracked Vibrating Screening Plant will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

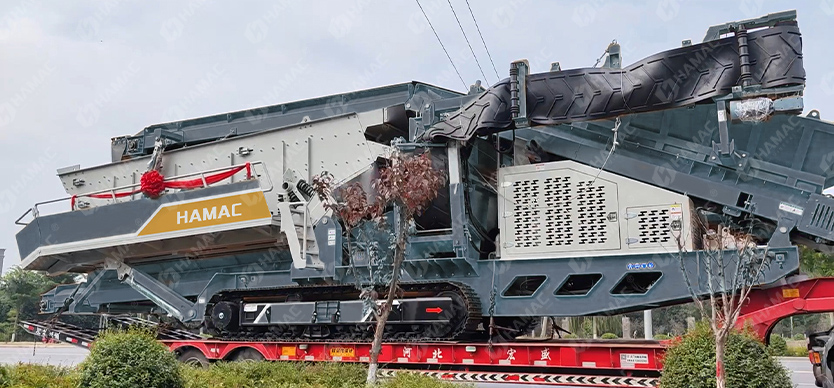

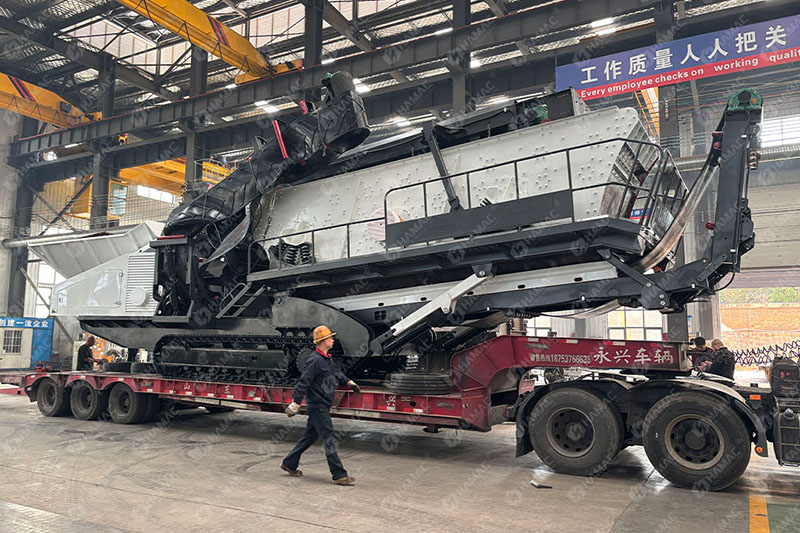

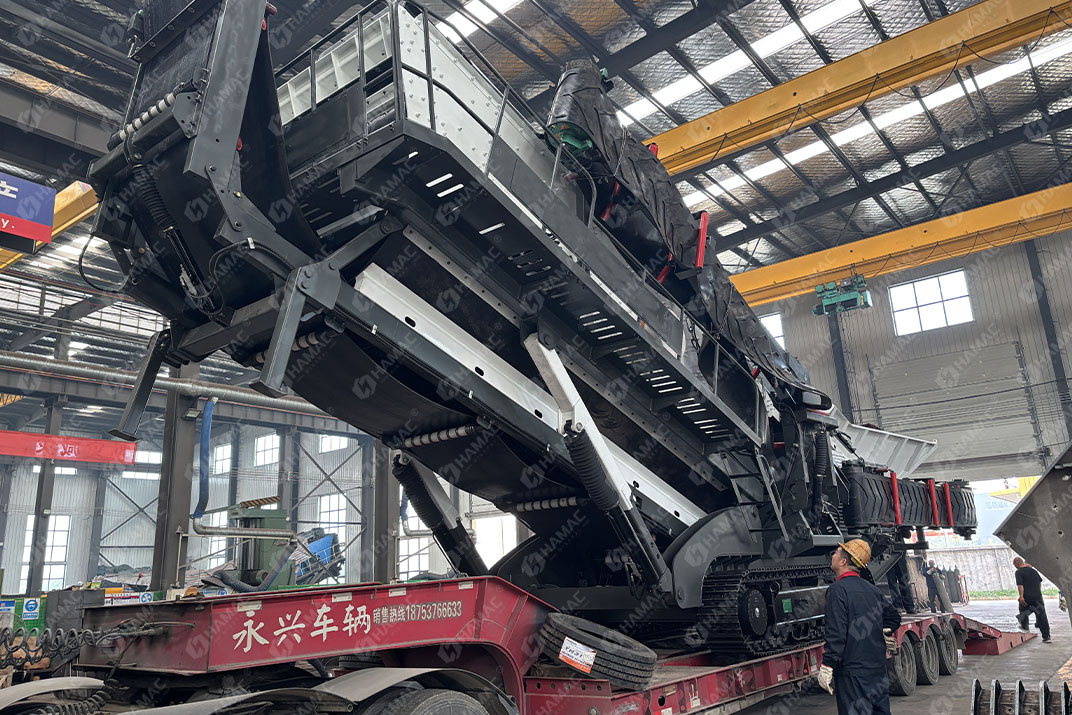

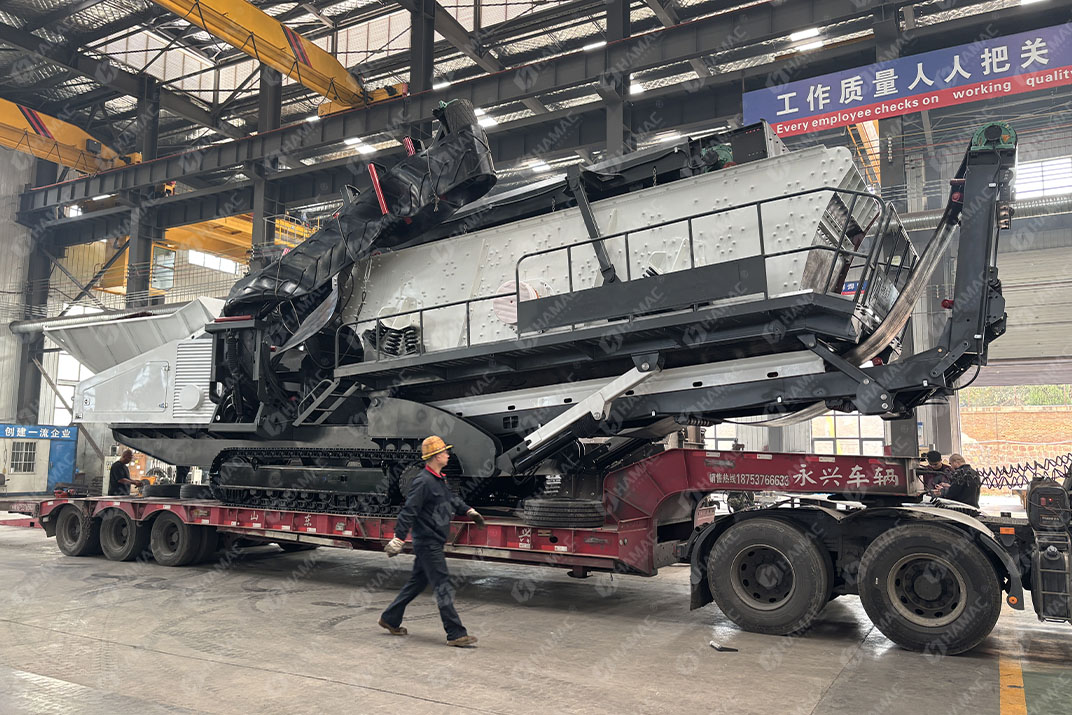

Tracked Vibrating Screening Plant shipping pictures

Tracked Vibrating Screening Plant Technical Parameters

Model MS-3618E
Feeder
Volume 2.8 m³
Feeding height 2288 mm
Maximum feed size 200 mm
Feeding capacity 350 t/h
Screening
Vibrating screen length × width 1800 x 6000 mm
Number of layers 3
Conveyor
Main feeding conveyor belt width 1000 mm
Transfer conveyor belt width 500 mm
Fine material conveyor belt width × stacking height 1000 x 4330 mm
Large material conveyor belt width × stacking height 500 x 3640 mm
Medium material conveyor belt width × stacking height 650 x 4000 mm
Medium & Fine material conveyor belt width × stacking height 650 x 4000 mm
Power Unit
Generator power 120 kW
Diesel tank capacity 400 L
Hydraulic tank capacity 300 L
Technical Data
Total power 68.5 kW
Host power 2 x 11 kW
Processing capacity 200 - 500 t/h
Track speed 0.6 - 1 km/h
Total weight 35 t
Transport dimension 16226 x 3359 x 3885 mm

Note: Our products are being updated constantly, all rights reserved by HAMAC.

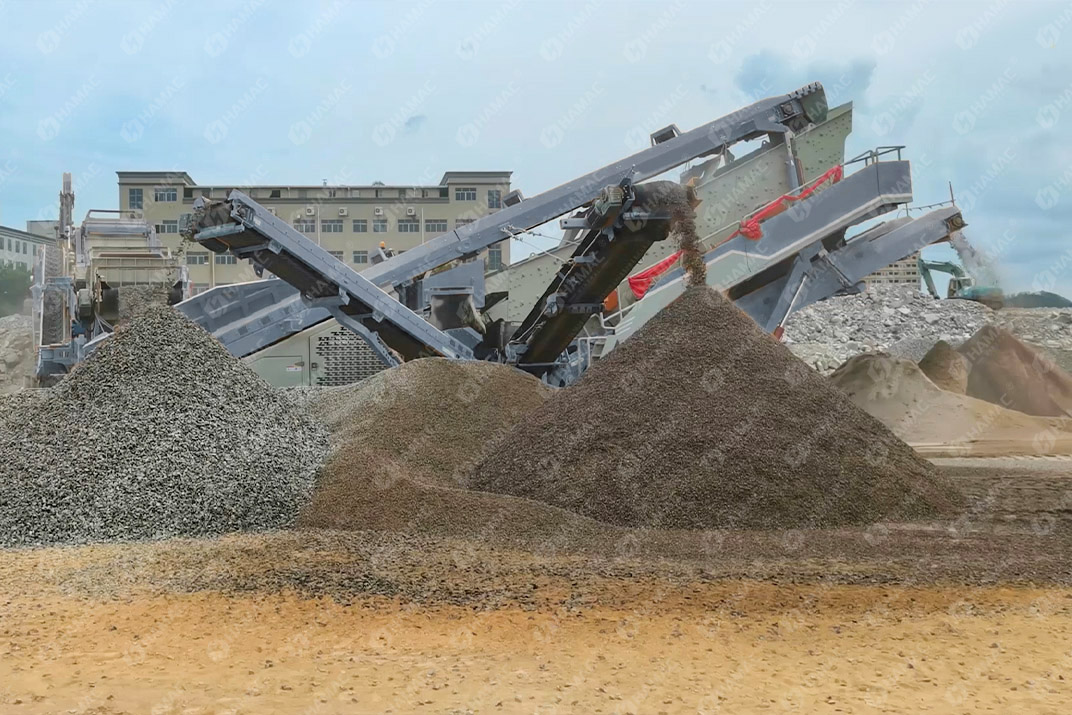

Tracked Vibrating Screening Plant Application Case

The Tracked Vibrating Screening Plant is widely used for different projects all over the world. HAMAC exported the Tracked Vibrating Screening Plant to different countries and got good comments from our clients.
