Mini Self-loading Concrete Mixer

Mini Self-loading Concrete Mixer Load, Mix, and Go – The Smart Choice for Small-Scale Jobs!
For efficient concrete production in confined and challenging environments

A compact intelligent transport device with a high-strength tracked chassis, designed for narrow spaces and rugged terrains (e.g., construction sites, agriculture, warehouses). Capable of autonomous/remote-controlled material handling and short-distance transport.

  • High-strength tracked chassis
  • Direct engine-to-pump linkage
  • All-terrain mobility
  • Introduction
  • Technical Parameters
  • Gallery
Content Index

What is mini self-loading concrete mixer?

The mini self-loading concrete mixer is engineered for sites with limited space and uneven terrain. Its compact size and robust construction make it ideal for infrastructure projects, urban construction, and remote operations. Whether you're working on city streets, residential areas, or agricultural sites, this mixer ensures consistent and reliable concrete production.

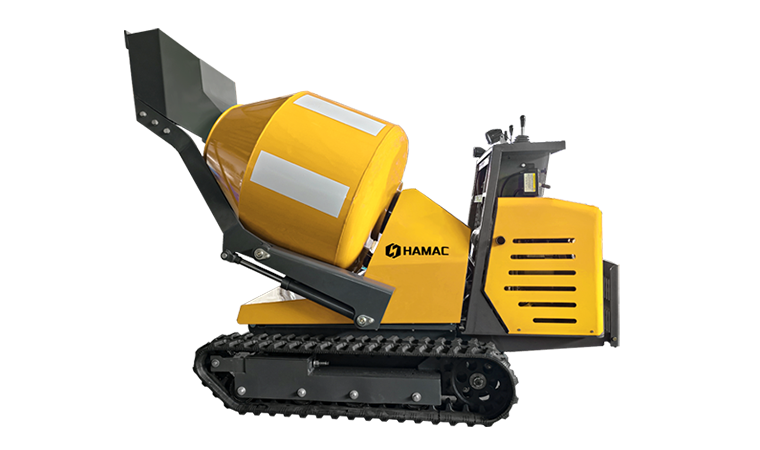

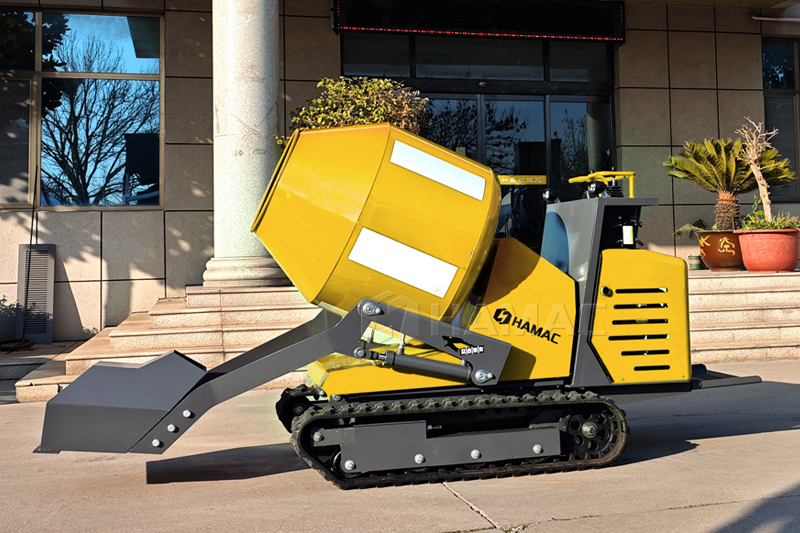

Mini Self loading Concrete Mixer

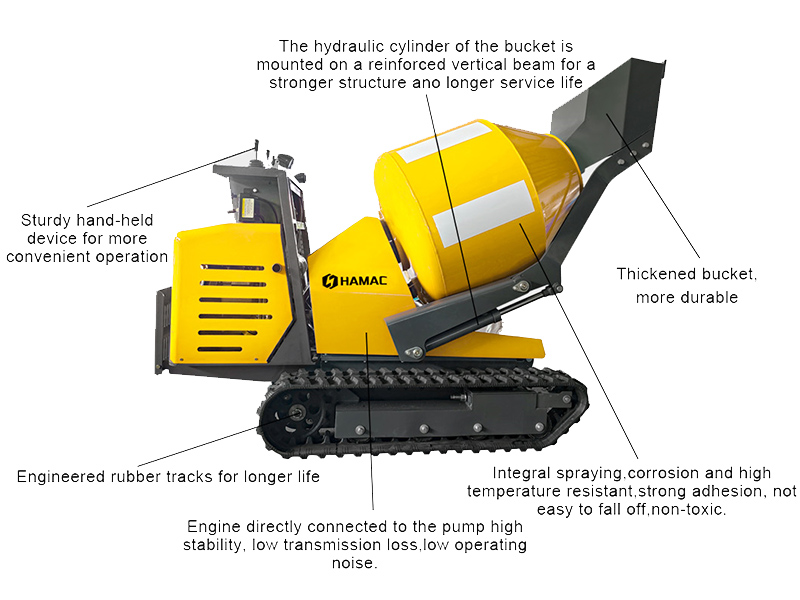

Details display of mini self-loading concrete mixer

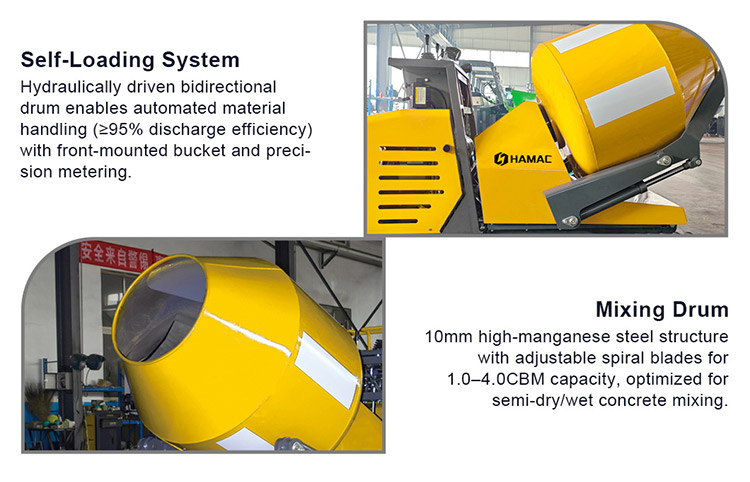

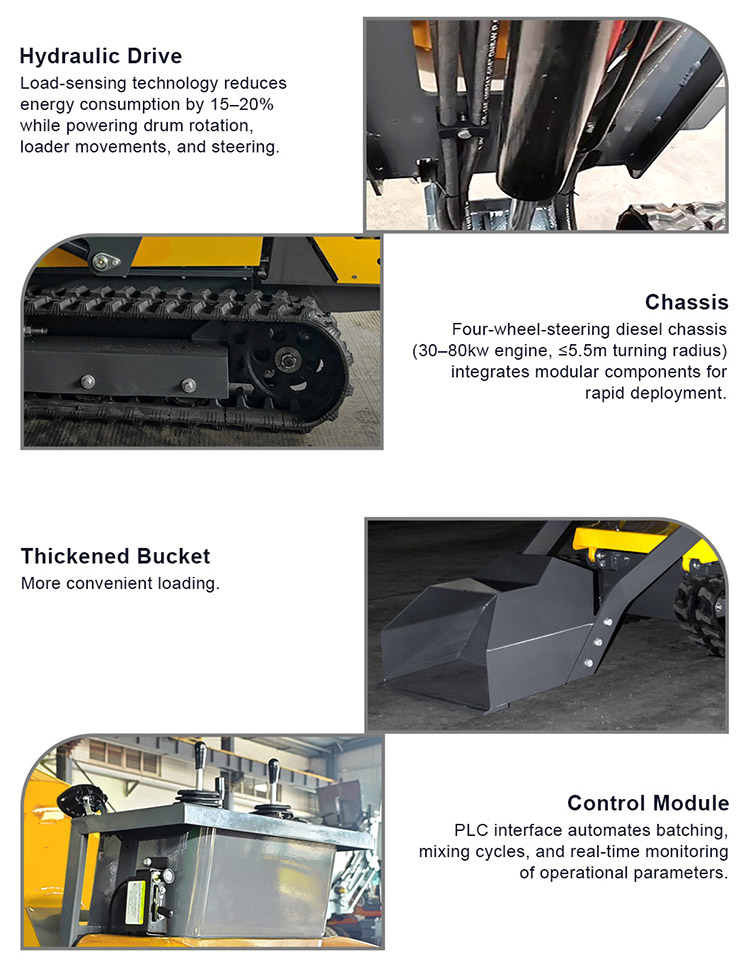

The mini self-loading concrete mixer integrates 6 core components.


Product advantages of mini self-loading concrete mixer

  • 1.Automatic feeding operation is more convenient The concrete mixer has an advanced control system that allows the operator to precisely control the mixing process.
  • 2.The hydraulic drive is more powerful With full hydraulic operation system, turn in place while walkingstepless speed change, slope is maintained at 25 degrees, so it can work on the inclined site.

Usage scenario of mini self-loading concrete mixer

It is mainly used for occasions where the workplace is small, the floor is uneven, and the work content is frequently changed. Suitable for infrastructure construction, industrial applications handling, city streets, houses, barns, barns, airport runways, etc., can also be used as auxiliary equipment for large construction machinery.

Mini Self-loading Concrete Mixer Goods Delivery

Based on good quality and decades of experience, the Mini Self-loading Concrete Mixer which is manufactured by HAMAC was exported to different countries. The Mini Self-loading Concrete Mixer will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

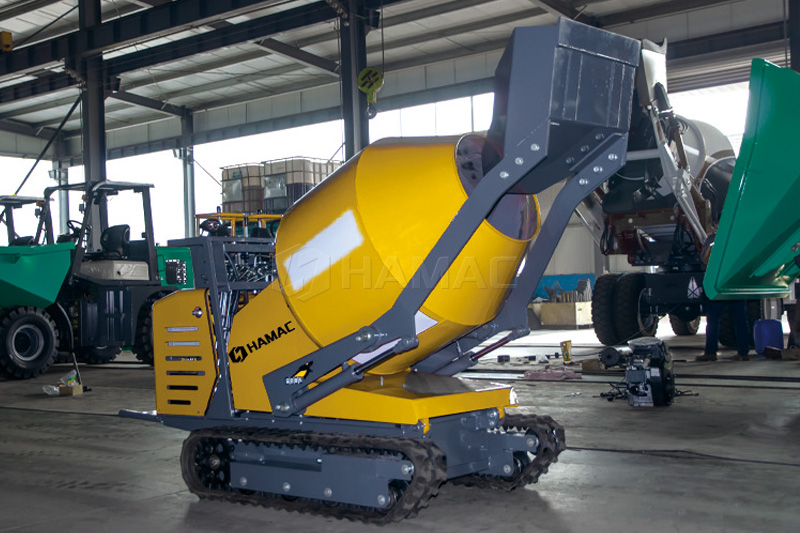

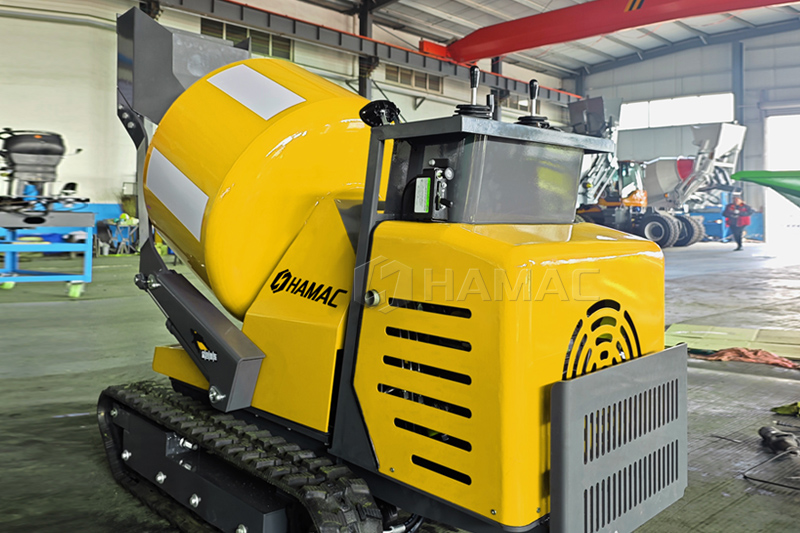

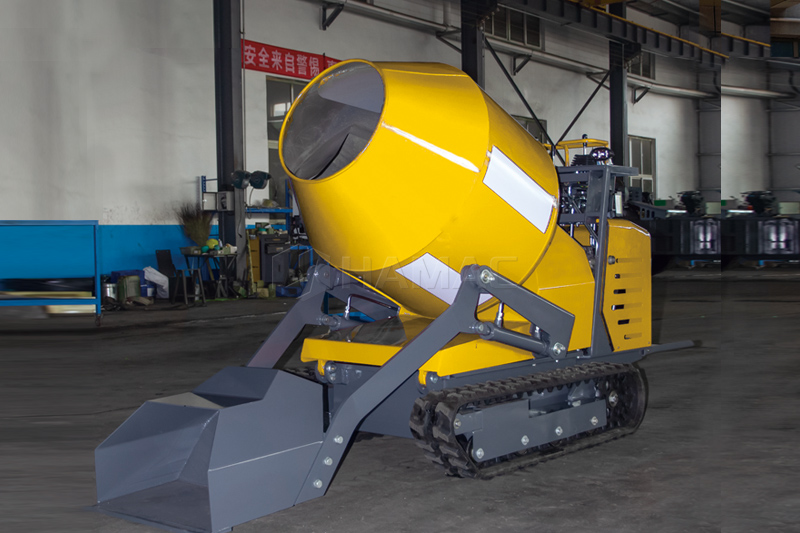

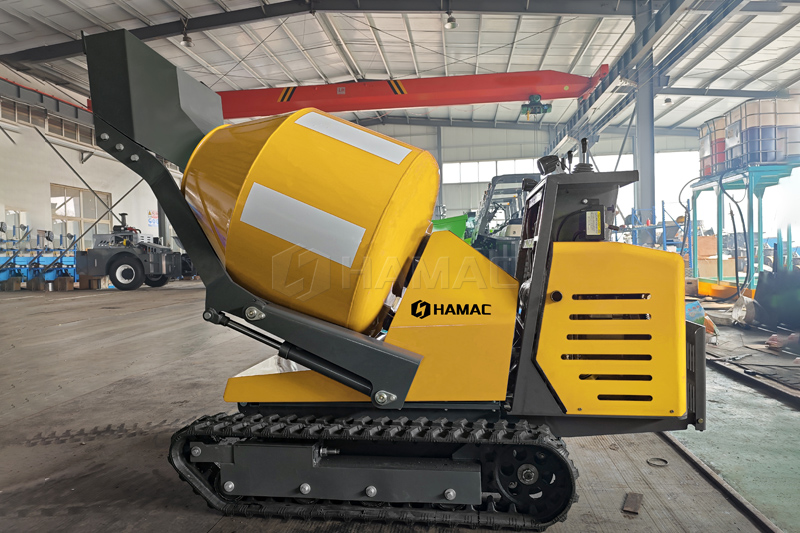

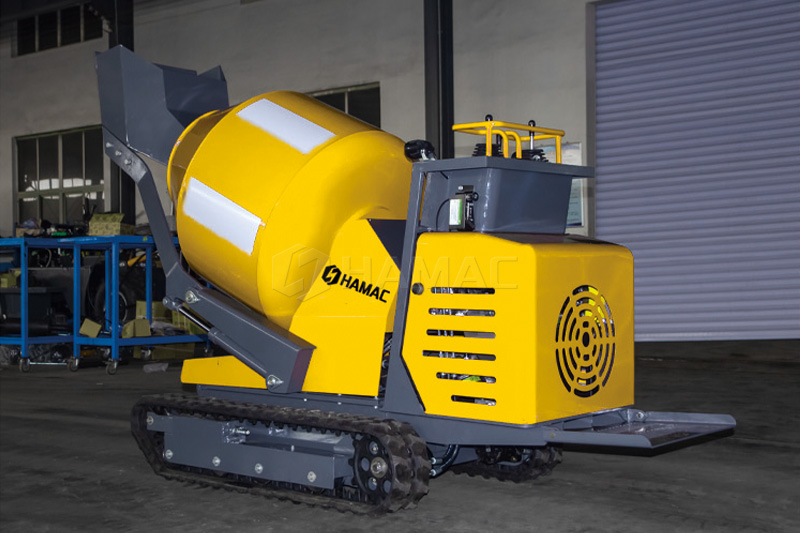

Mini Self-loading Concrete Mixer shipping pictures

Mini Self-loading Concrete Mixer Technical Parameters

Product Parameter
Machine Weight 1000kg 800kg
Total Volume 500L /
Concrete Per Batch 320L /
Engine Brand Briggs&Stratton Briggs&Stratton
Engine Model 3864 3864
Rated speed 3600rpm 3600rpm
Displacement 627cc 627cc
Rated Power 23HP 23HP
Walking Speed 0-6KM/H 0-6KM/H
Minimum Radius of Turn 1880mm 1880mm
Ground Clearance 170mm 170mm
Climbing Ability 30° 30°
Hydraulic Tank Capacity 25L 25L
Hydraulic Oil 46# hydraulic oil 46# hydraulic oil
Bucket Capacity 0.1m³ 0.1m³
Length*Width*Height 2930*1100*1530mm 2780*1100*1350mm

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Mini Self-loading Concrete Mixer Application Case

The Mini Self-loading Concrete Mixer is widely used for different projects all over the world. HAMAC exported the Mini Self-loading Concrete Mixer to different countries and got good comments from our clients.
