What is the difference between a wheeled mobile crushing plant and a tracked mobile crushing plant?

A wheeled mobile crushing plant is mounted on rubber tires and usually needs to be towed by a truck or tractor between job sites. A tracked mobile crushing plant is mounted on steel crawler tracks and is self-propelled by its own engine or hydraulic system. Both are mobile crushers that integrate feeding, crushing and screening equipment on a single chassis, but they are designed for different working conditions and project requirements.

A wheeled mobile crushing plant is designed as a semi-mobile unit. It is transported mainly by being towed on public roads with a truck tractor, and then positioned and leveled on site using outriggers. This makes it very efficient for long-distance movement between different projects, especially when the job sites are connected by highways or paved roads.

A tracked mobile crushing plant, on the other hand, is fully self-propelled. It moves on crawler tracks like an excavator or bulldozer and can reposition itself quickly within the job site without the help of another vehicle. Its travel speed on tracks is lower than a wheeled unit on the road, so for long-distance transport it is usually carried on a low-bed trailer, but on-site mobility is much more flexible.

Terrain adaptability and working environment

The wheel type mobile crusher performs best on flat, hard and stable surfaces such as concrete yards, asphalt plants, urban construction sites and prepared industrial platforms. It is ideal for construction waste recycling, urban demolition and highway projects where the ground is relatively smooth and the site access roads are good. On soft or very uneven ground, a wheeled mobile crushing plant may require more site preparation and can lose traction more easily.

The track type mobile crusher is designed to work in rough conditions. Its crawler undercarriage distributes the machine weight over a larger area, resulting in lower ground pressure and better traction on mud, gravel, slopes and uneven terrain. This makes tracked mobile crushing plants suitable for quarries, open pit mines, remote mountain projects and other sites where there are no paved roads and the ground is not well prepared.

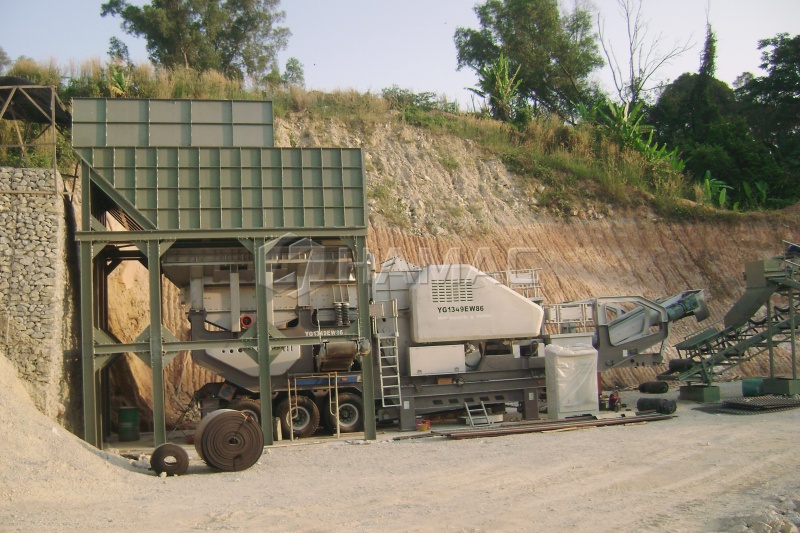

Wheeled mobile crushing plant working on a highway project

Tracked mobile crushing plant working in a quarry

Capacity, configuration and application scale

In many cases, tracked mobile crushing plants are configured for high-capacity, heavy-duty applications. They can be positioned close to the face in a quarry or mining site, reducing haul distance and allowing continuous feeding by excavators or wheel loaders. Combined with on-board screening units, they can form a compact, high-throughput crushing and screening train for large-scale projects.

Wheeled mobile crushing plants are often used for small to medium scale crushing tasks. They can be combined with separate screening plants or used as part of a semi-mobile crushing line with conveyors. For contractors who need to move equipment frequently between different small jobs, a wheeled mobile crusher provides a good balance between capacity and transport convenience.

Investment cost, operating cost and maintenance

Generally, a wheeled mobile crushing plant has a lower initial purchase cost than a comparable tracked unit, because the wheel chassis and drive system are simpler. Its energy consumption per ton is also often lower when powered by an external generator or grid, making it attractive for projects with limited budgets or where cost per ton is a key factor. Maintenance on tires, axles and braking systems is relatively straightforward and familiar to many fleets.

A tracked mobile crushing plant usually has a higher upfront cost due to the more complex crawler undercarriage and hydraulic drive components. The track system also needs regular inspection and maintenance of rollers, sprockets and track shoes, and fuel consumption can be higher because the machine is heavier and fully self-propelled. However, for projects where the crushing plant must constantly follow the mining face or move frequently within a rugged site, the higher investment is offset by savings in haulage and higher productivity.

How to choose between wheeled and tracked mobile crushing plants?

When choosing between a wheeled mobile crushing plant and a tracked mobile crushing plant, it is important to consider the typical working environment, production volume and relocation frequency. If your projects are mainly in urban or semi-urban areas with good roads, involve frequent long-distance transfers between sites, and the crushing tasks are medium scale, a wheeled mobile crusher (wheel type, tire mounted) is usually more economical and convenient. It offers lower investment, easier road transport and sufficient flexibility for many contractors.

If your work is in quarries, mines, remote mountain roads or other rough terrain, and you need the crusher to move directly with the face or along the line of a project, a tracked mobile crusher (track type, crawler mobile crushing plant) is the better choice. Its self-propelled mobility, strong terrain adaptability and ability to work very close to the material source can significantly reduce hauling, increase efficiency and improve safety on site.
