Mobile Concrete Batching Plant

The mobile concrete batching plant is a concrete mixing equipment that integrates the material storage, weighing, conveying, mixing, discharging and automatic control systems of the traditional stable concrete batching plant into a single trailer unit; it is as same as the stable automatic concrete batching plant. All the production processes, operation methods, and maintenance methods are exactly as same as the stationary concrete batching plant; at the same time, it has the unique advantages of flexible movement, quick and easy disassembly and assembly, and simple storage management; it is the best choice for mobile constructions like highways, bridges, ports, hydropower and other projects.

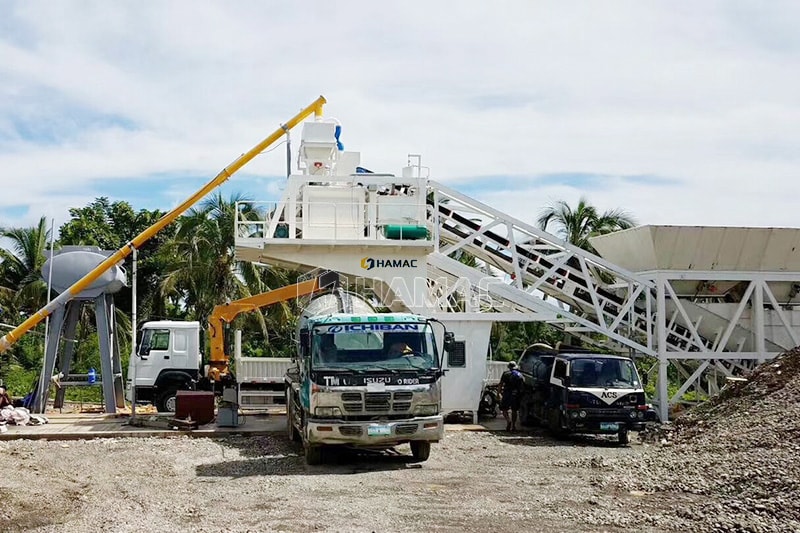

Mobile concrete batching plant in the Philippines

Mobile concrete batching plant in the Philippines

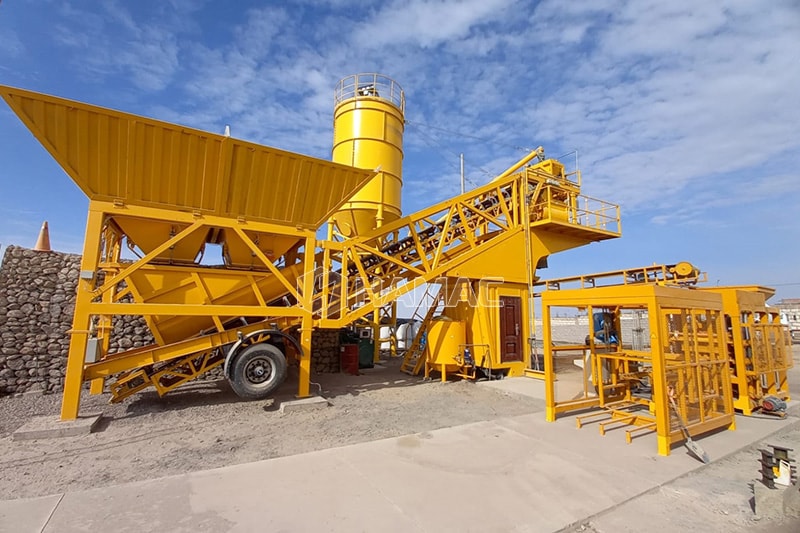

Mobile concrete batching plant in Arequipa, Peru

Mobile concrete batching plant in Arequipa, Peru

Features:

The mobile batching plant adopts the trailer design, the belt conveyor weighing system, the central concrete mixer, independent weighing system, the screw conveyor and the cement silo are highly integrated and form an integral system.

Independent weighing system for cement, water and additive

Independent weighing system for cement, water and additive

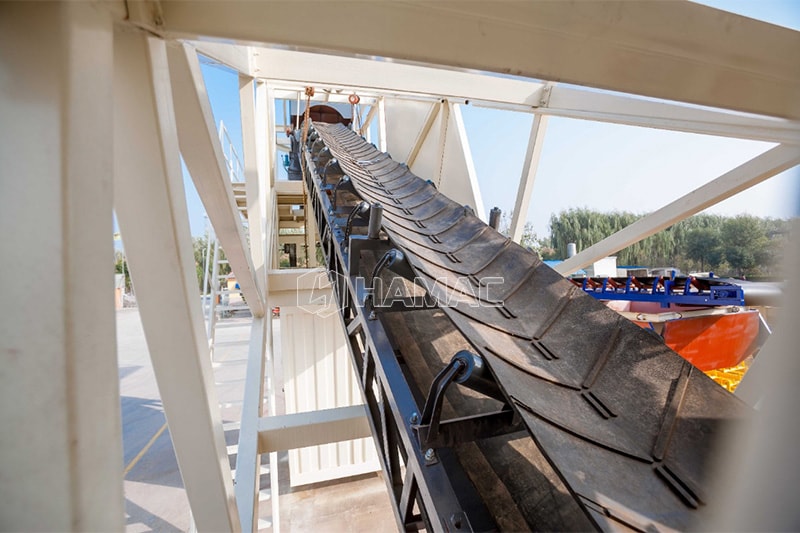

Belt conveyor weighing system for aggregates and sand

Belt conveyor weighing system for aggregates and sand

In order to meet customers’ demands for efficiency, functionality and compactness, the mobile batching plant is delivered as a fully pre-connected complete set, which significantly reduce the installation and commissioning time of the batching plant.
The control room is connected with the main structure, the control panel and other equipment have been tested before leaving the factory, so there is no need to disassemble and connect the cables when the equipment is transferred.

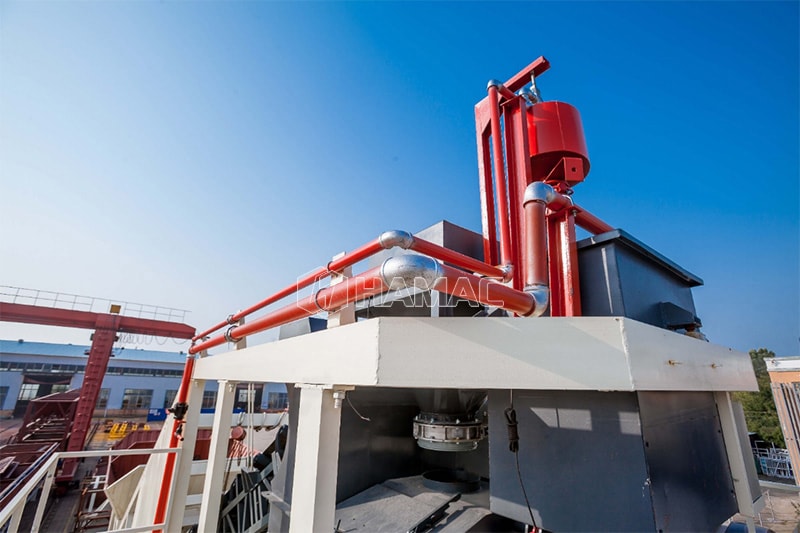

The air circuit system is closely connected with the main structure, so it does not need to be dismantled during transition.

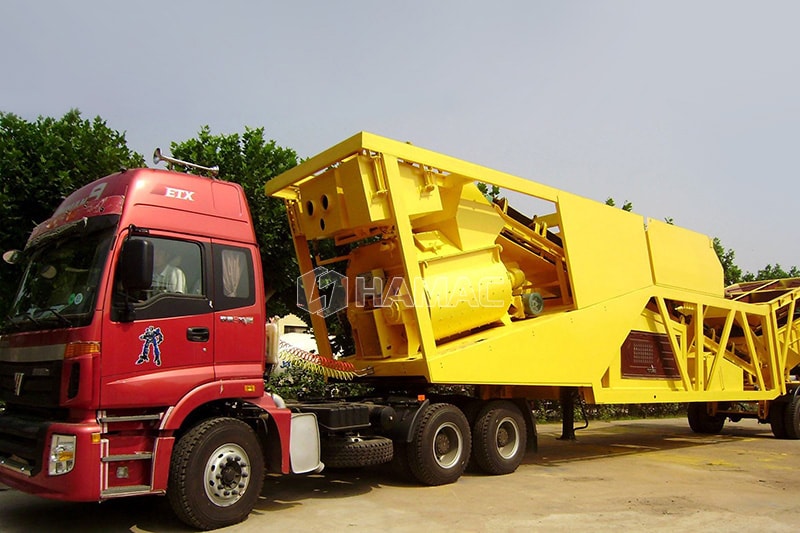

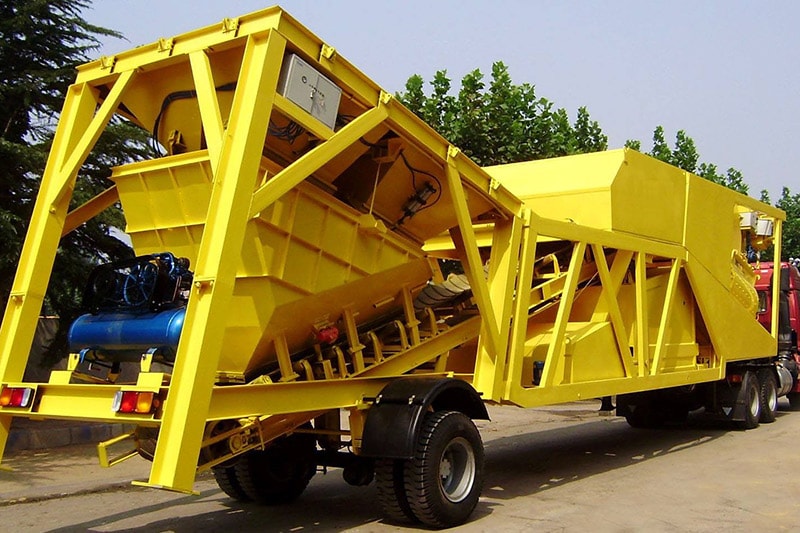

Mobile concrete batching plant is being towed as a complete system

Mobile concrete batching plant is being towed as a complete system

All the required parts are integrated in the same trailer concrete batching plant

All the required parts are integrated in the same trailer concrete batching plant

As a manufacturer of concrete batching plant, HAMAC can provide our clients with the mobile concrete batching plant from 25m3/h-100m3/h. And we can provide you with the different ways to feed the bulk cement and cement in BIGBAG.

For the cement in BIGBAG, we will provide the hopper with screw conveyor. There is a knife in the hopper, the BIGBAG will be cut and the cement will be discharged into the hopper.
If the client wants to use a cement silo stock the cement in BIGBAG, we can provide you with a pneumatic tank with air compressor to blow the cement into the cement silo.

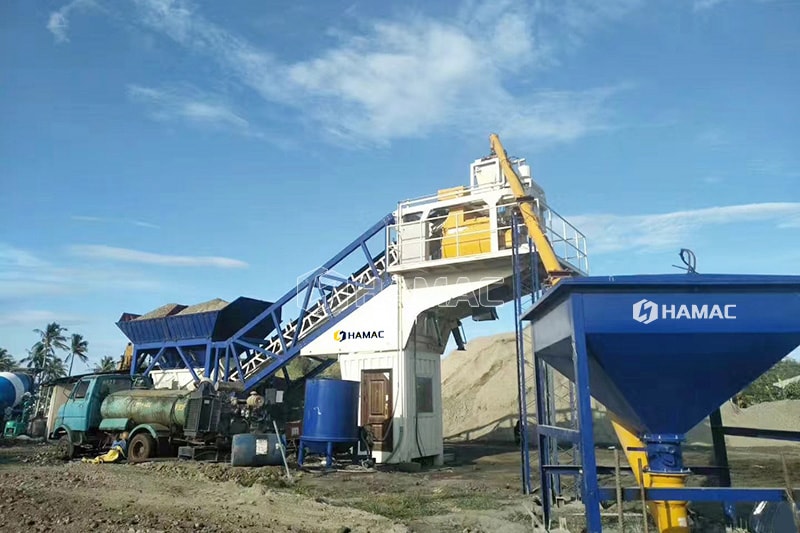

Mobile concrete batching plant in the Philippines feed by BIGBAG cement

Mobile concrete batching plant in the Philippines feed by BIGBAG cement

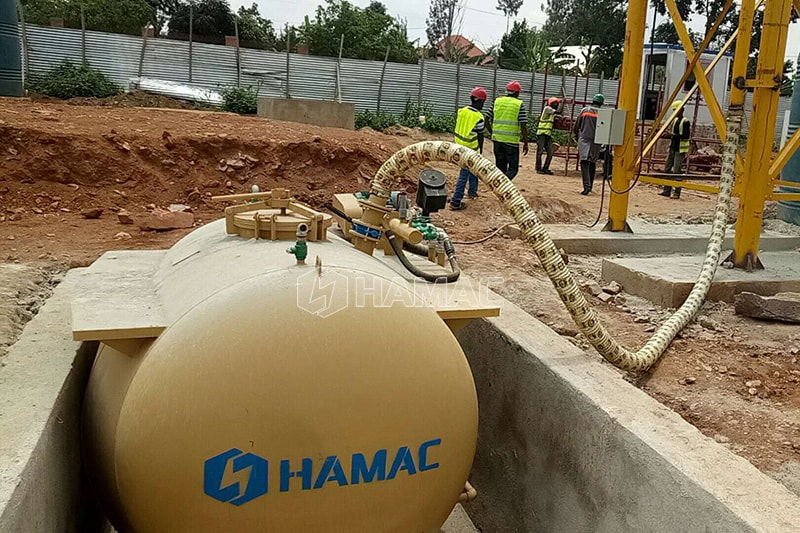

Pneumatic device to supply the BIGBAG cement into cement silo

Pneumatic device to supply the BIGBAG cement into cement silo

If the client wants to use the bulk cement which is supplied by the cement factory directly, there is a feeding pipe on the cement silo. It can be connected with the bulk cement carrier and then the cement will be blown into the cement silo.

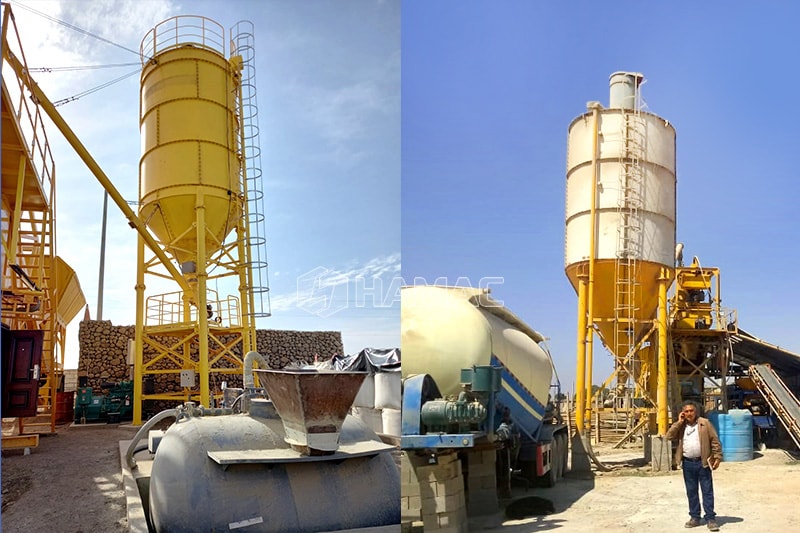

Different feeding ways for bulk cement

Different feeding ways for bulk cement

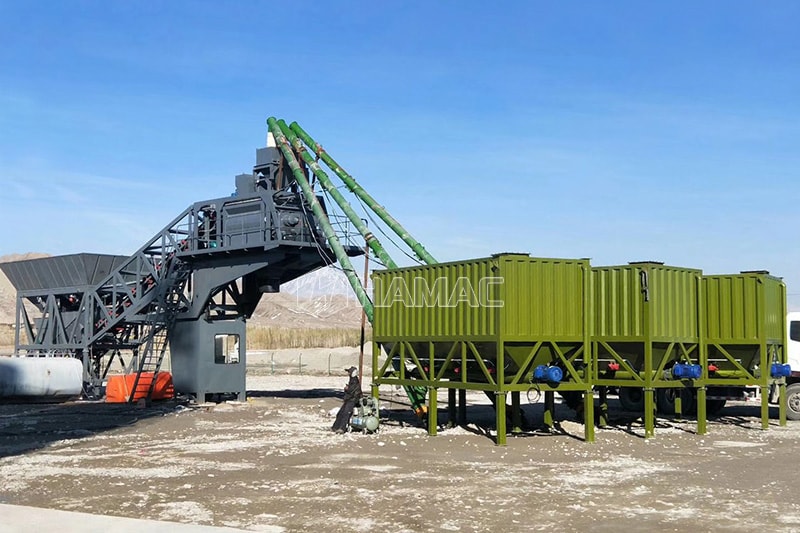

Horizontal cement silo and screw conveyor for the mobile concrete batching plant

Horizontal cement silo and screw conveyor for the mobile concrete batching plant

For more information, please contact our expert or send us an email to get a solution.

Working site of Mobile Concrete Batching Plant

The Mobile Concrete Batching Plant is widely used for different projects all over the world. HAMAC exported the Mobile Concrete Batching Plant to different countries and got good comments from our clients. They are used in different working sites for different projects.

YHZS50 Mobile concrete batching plant in Australia YHZS50 Mobile concrete batching plant in Australia Application Country: Australia

This projects was installed on 2012, it works for 5 years up to now. It is for a contracting company who has many different projects in Australia. When one projects finished, it will be transported to another working site for the next projects. It saves the installation time and transportation cost for concrete. …

YHZS50 Mobile Concrete Batching Plant in Myanmar YHZS50 Mobile Concrete Batching Plant in Myanmar Application Country: Myanmar

This is our project in Myanmar. This client has many different working sites. He wants to move the concrete batching plant after one project finished. So, we recommend him this mobile one. This customer visited us last year, and visited many companies. Finally he choose us because of our quality and our professional service for exporting even ou…
