JZC350 Concrete Mixer

INTRODUCTION

Since the machine is off-bipyramidal reversal discharging mobile concrete mixer, mixing semi-rigid plastic and concrete. Stir mixing tube is transferred, a reversal expected. Each tank can be mixed with 350Lconcrete (after absorption of concrete volume), to produce 10-14 million cubic meters per hour. Applies to construction sites, roads, bridges projects and small and medium-sized concrete structures plant. Mixing fixed, it can dig the hole, the hopper be flush with the ground, feed convenience and reduce labor intensity. The machine is a novel structure, with high efficiency, mixing good quality, light weight, form aesthetic advantages, is a more advanced model.

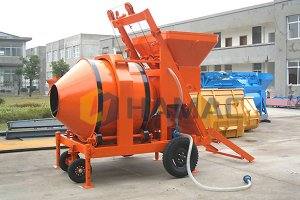

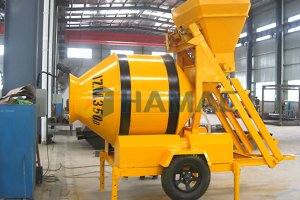

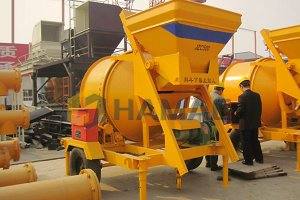

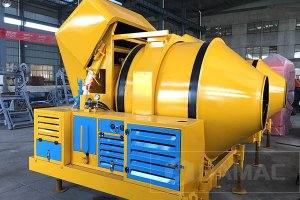

Detailed Photos

FEEDBACK

Performance

1. Adopt electric motor for power supply;
2. Mixing drum is driven through gear ring. Low noise, Low energy consumption, no slip in rainy weather, easily operate.
3. JZC series concrete mixers are portable concrete mixers with 2 tyres, except JZC750 is fixed concrete mixer.
4. Assemble lifting bucket, which mouth is lower than ground, be conveniently for aggregate loading and feeding.

Manufacturing Process

Raw material

Using in for the concrete block machines

Making Blocks and Bricks:

Specification

Model	JZC250	JZC350	JZM350	JZC500	JZM500	JZC750
Discharge volume (L)	250	350	350	500	500	750
Charging volume (L)	320	560	560	800	800	1200
Capacity (m3/h)	6-8	10~14	15~18	18~20	20~25	25~30
Drum rotating speed(r/min)	17	14	15	13	13	13
Max. aggregate size (mm)	60	60	60	60~80	60~80	60~80
Water feeding precision	≤2%	≤2%	≤2%	≤2%	≤2%	≤2%
Mixing power (kw)	4	5.5	5.5	11	11	15
Lifting power (kw)	4	4.5	4.5	5.5	5.5	7.5
Water pump (kw)	0.55	0.55	0.55	0.75	0.75	1.1
Tyre type	6.50-16	6.50-16	6.50-16	7.50-16	7.50-16
Max. hauling speed (kw/h)	20	20	20	20	20
Dimensions (mm)	2260x1990 x2750	2766x2140 x3000	3800x2050 x2690	5226x2200 x5460	6200x2110 x5300	6116x2056 x6060
Weight (kg)	1300	1950	1970	3100	3200	4200
